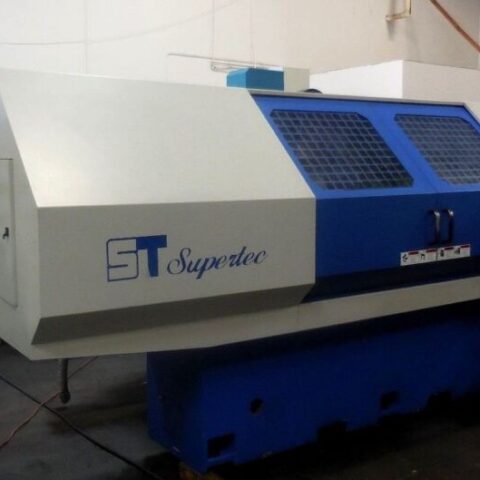

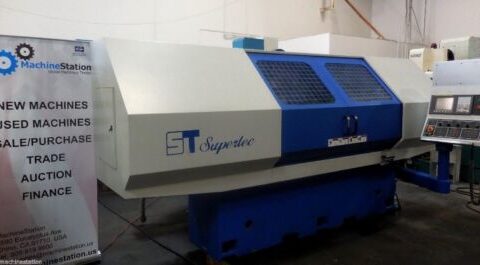

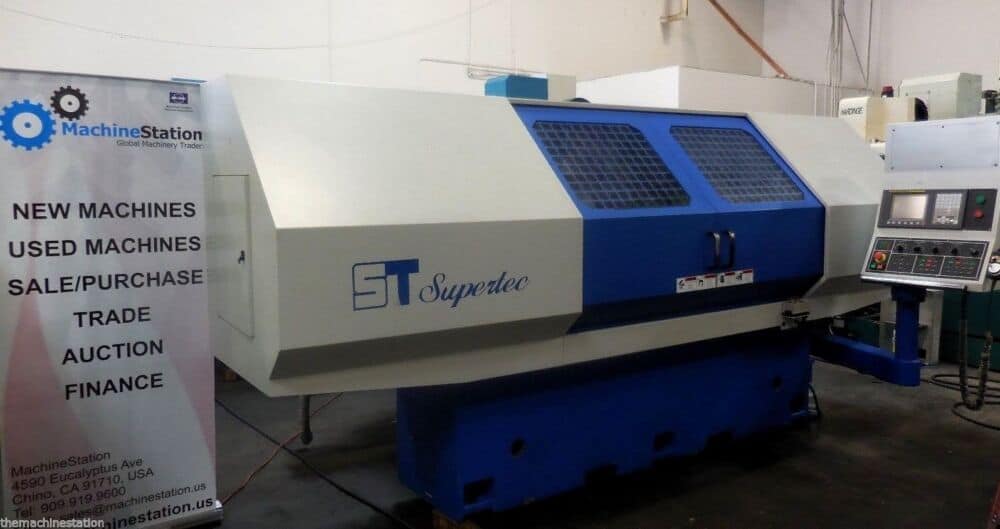

SUPERTEC G32P 60 CNC CYLINDRICAL OD GRINDER

Out of stock

SKU:	1202
Make/Model:	SuperTec G32P-60CNC
Video:	[fusion_button link=”https://www.youtube.com/watch?v=e3UrFmF89-E” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1202

SUPERTEC G32P 60 CNC CYLINDRICAL OD GRINDER
Make	SuperTec
Model No.	G32P-60CNC
Country of Origin:	Taiwan
Date of Manufacture:	2009-07
Condition	Very Good

SUPERTEC G32P 60 CNC Features:

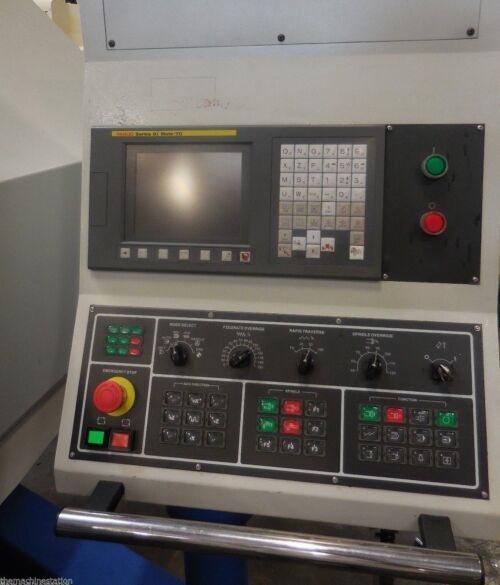

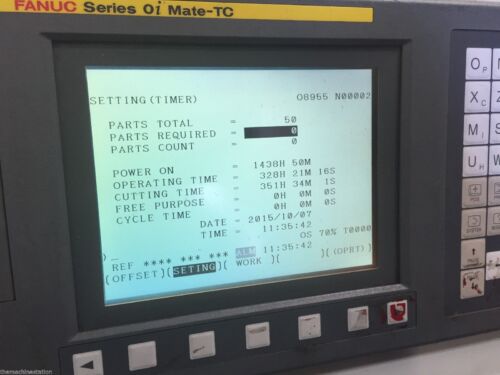

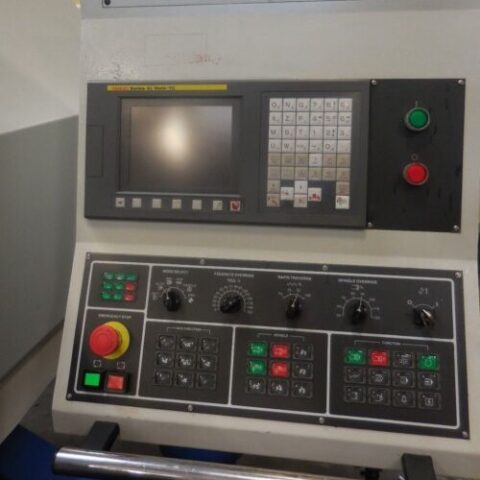

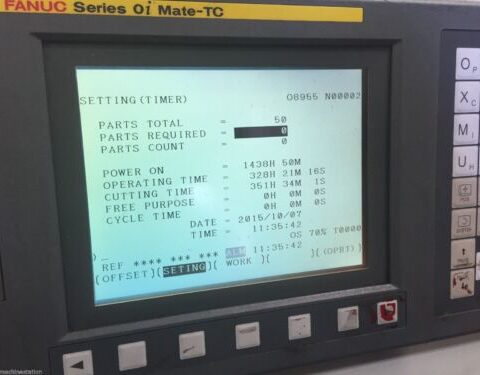

FANUC Oi Mate-TC CNC control, Fanuc AC drives and servo motors.

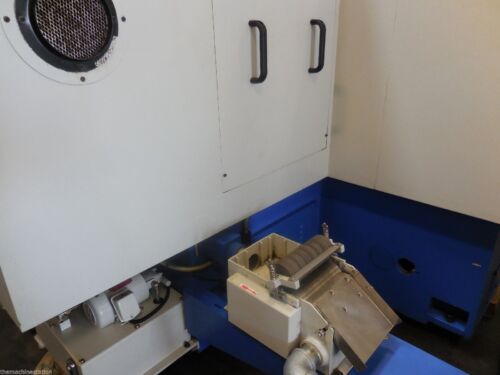

Coolant system w/magnetic separator & paper filter (60L/min, 140L)
Hydraulics, coolant and lubrication systems are separated from machine to eliminate vibration and dissipate heat

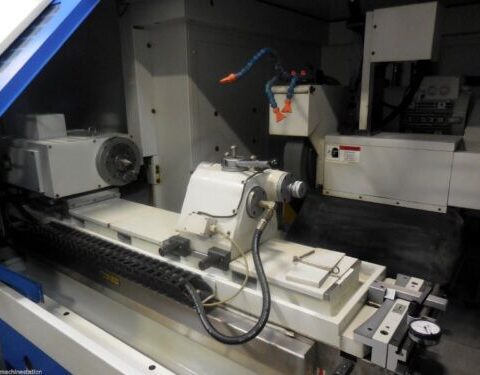

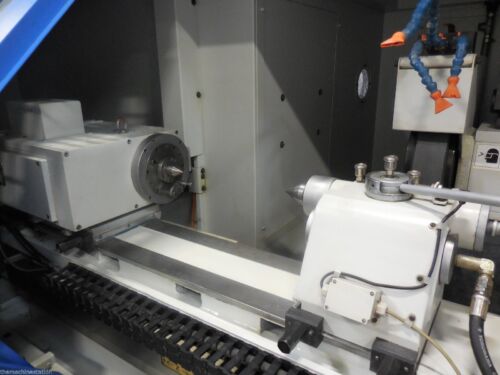

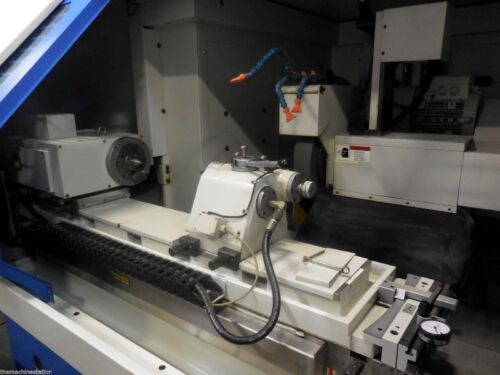

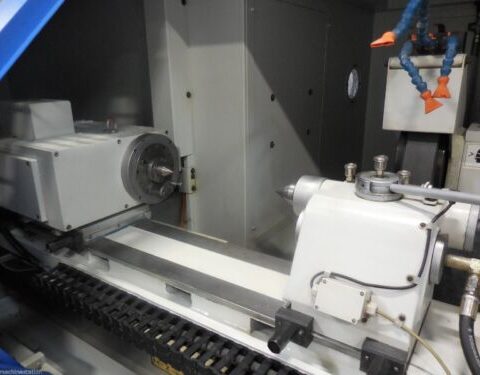

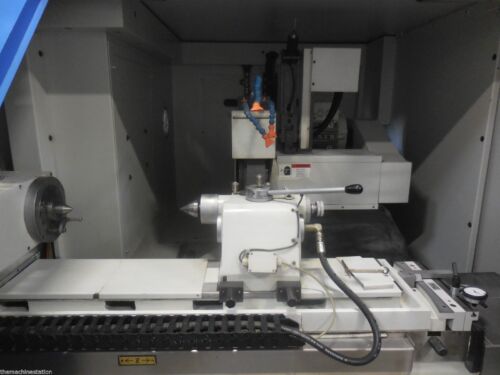

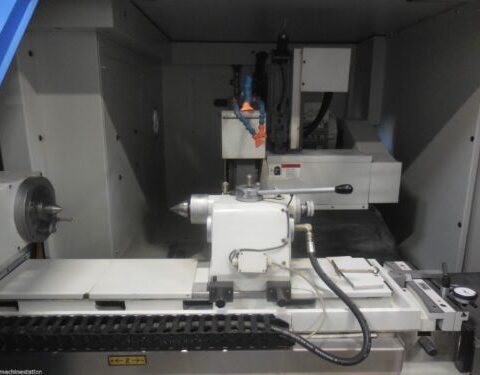

The design of the tailstock is both rigid and robust. Housed in a cast body, the hardened nitralloy steel sleeve is designed to carry a MT4 center
The One V and one flat hand-scraped guideways are Turcite coated and incorporated with an automatic lubrication system, precision ballscrew, AC servo motor and a 0.000004″ linear
feedback system to ensure smooth movement of the wheelhead for superior positioning accuracy and repeatability
Z-axis positioning accuracy and repeatability is assured with an AC servo motor and high precision, pre-tensioned ballscrews.
A swiveling table dial indicator enables rapid cylindricity corrections and taper grinding applications.

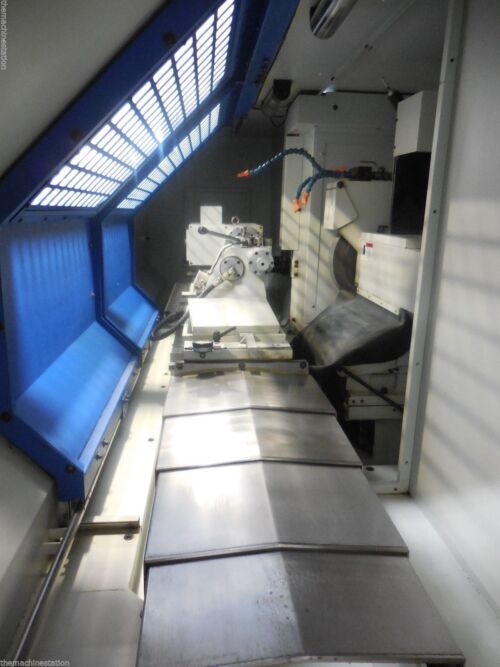

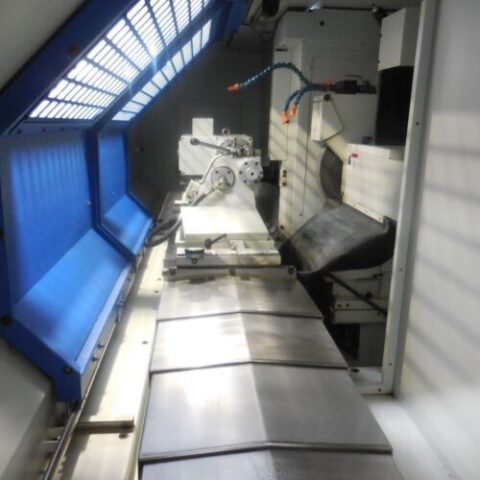

Full enclosure splash guard w/oil & mist separator
Heavily ribbed box-type base is made of Meehanite castings, providing excellent rigidity to ensure machine stability.
RS-232 Port.

SUPERTEC G32P 60 CNC Specifications:
Capacity
Max Grinding Diameter: 12.00″
Swing Over Table: 12.6″
Distance Between Centers: 24.00″
Max Load Between Centers: 330lbs
