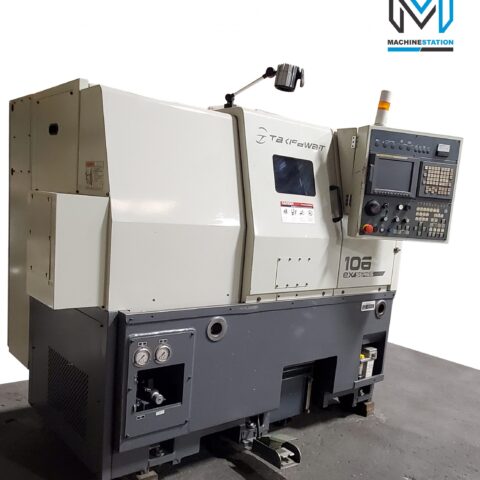

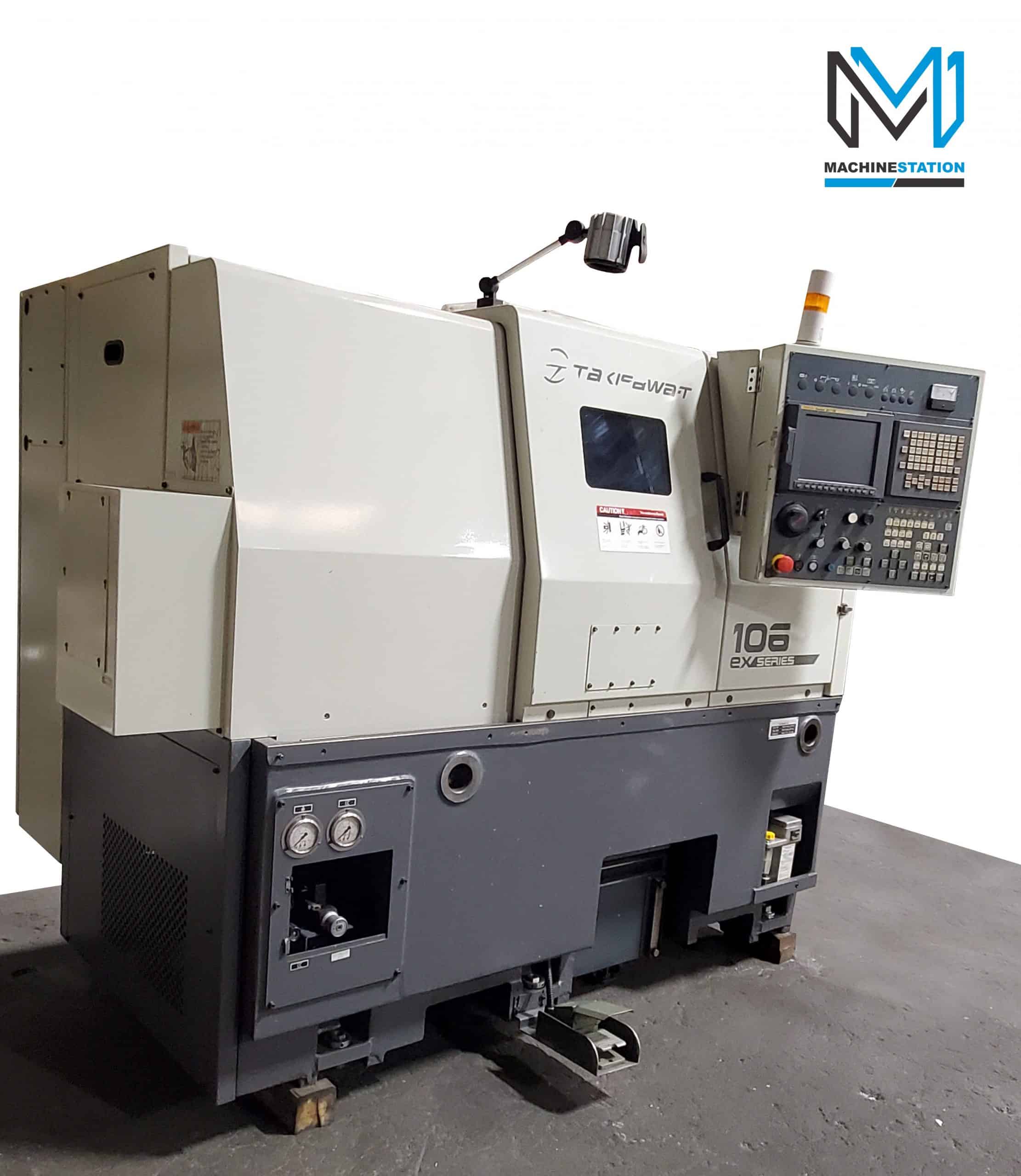

| TAKISAWA EX-106 CNC TURNING CENTER | |
|---|---|
| SKU | 2182 |
| Make | Takisawa |
| Model No. | EX-106 |
| Year | 2006/08 |

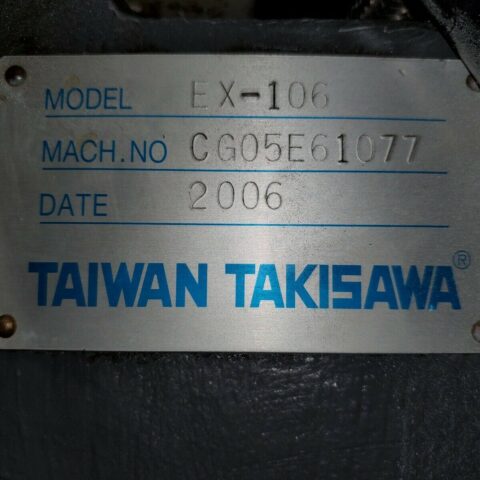

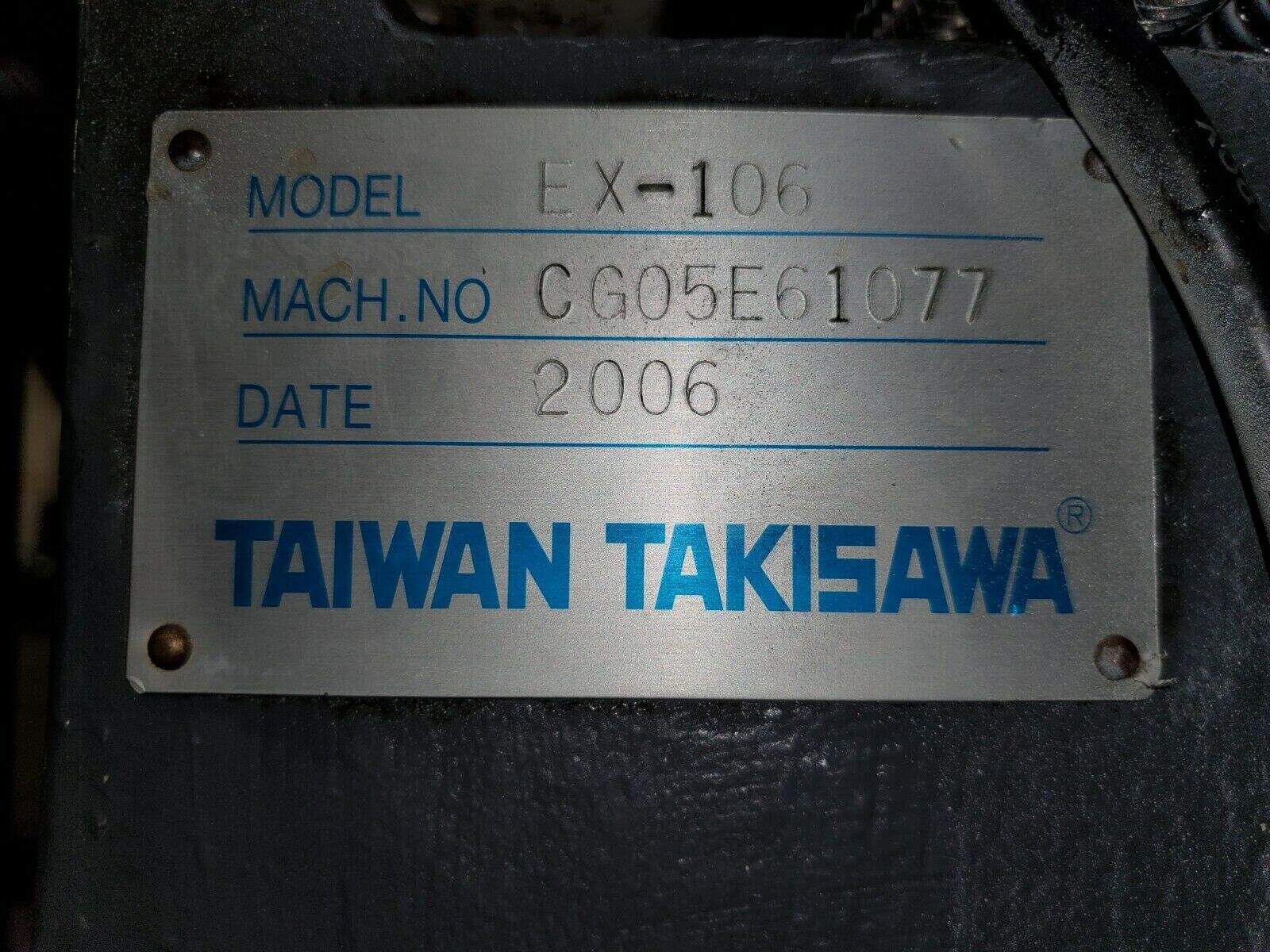

| Serial # | CG05E61077 |
| Condition | Very Good |
| Cutting Hours: | Hours |
- Equipped With:

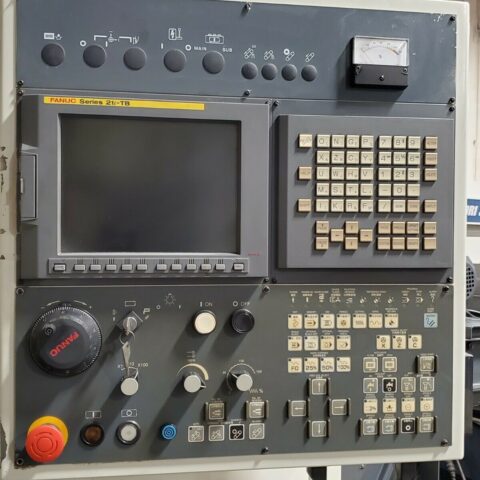

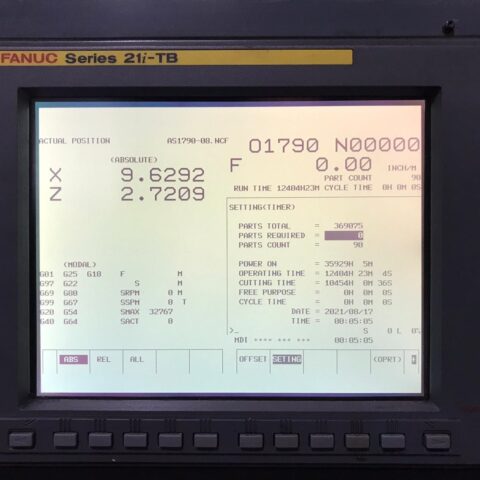

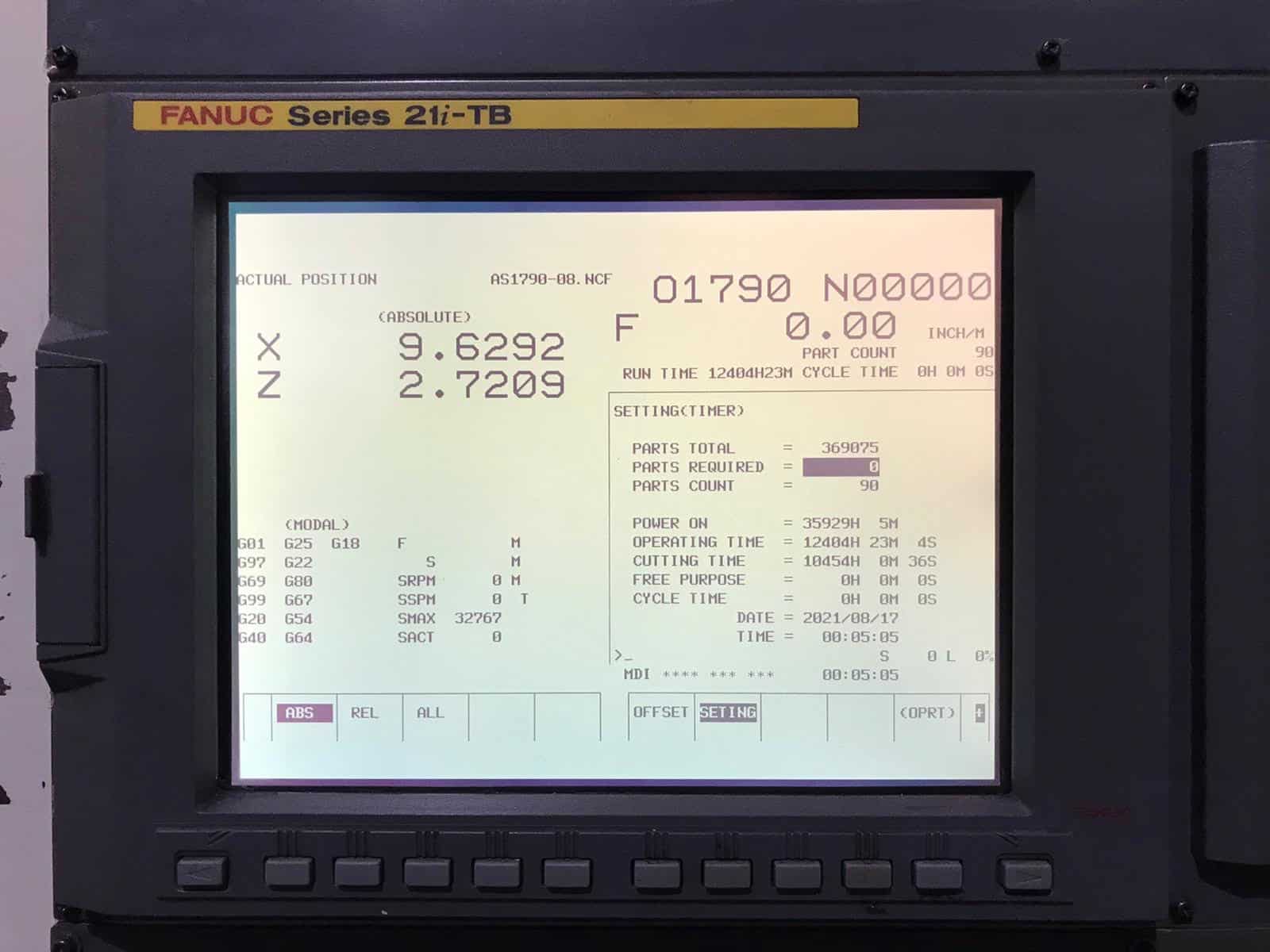

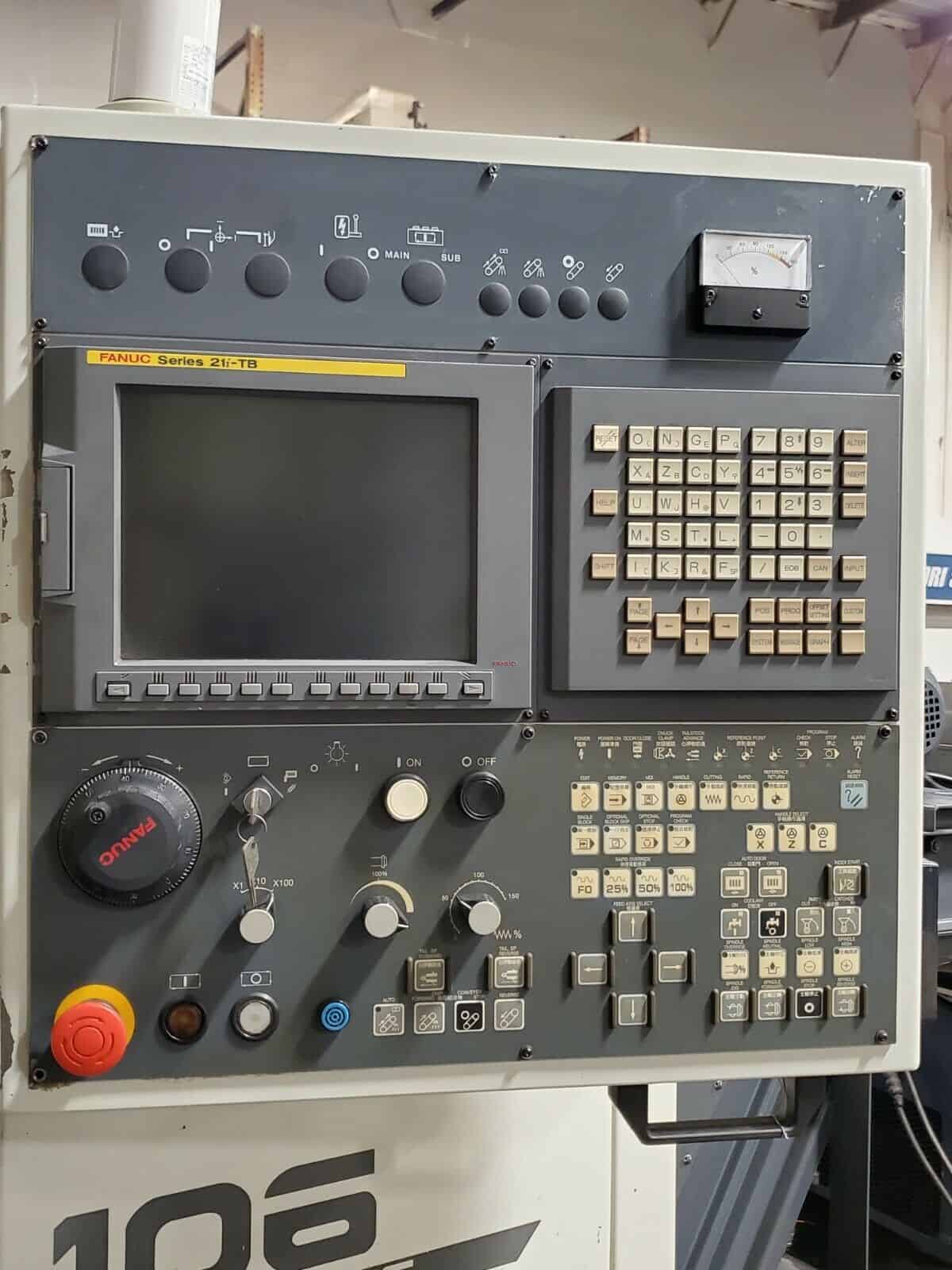

- Fanuc 21i-TB CNC Control
- 16C Hydraulic Collet Nose
- A2-6, 4500 RPM Spindle

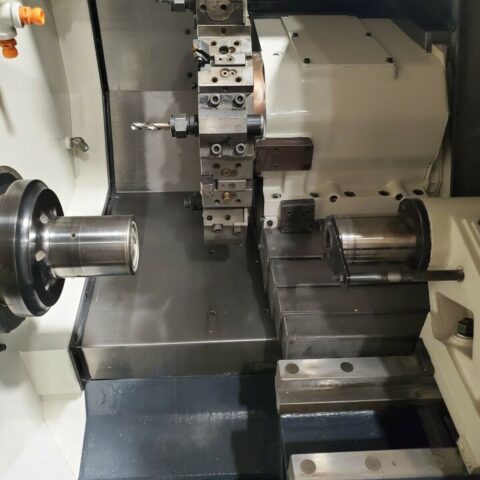

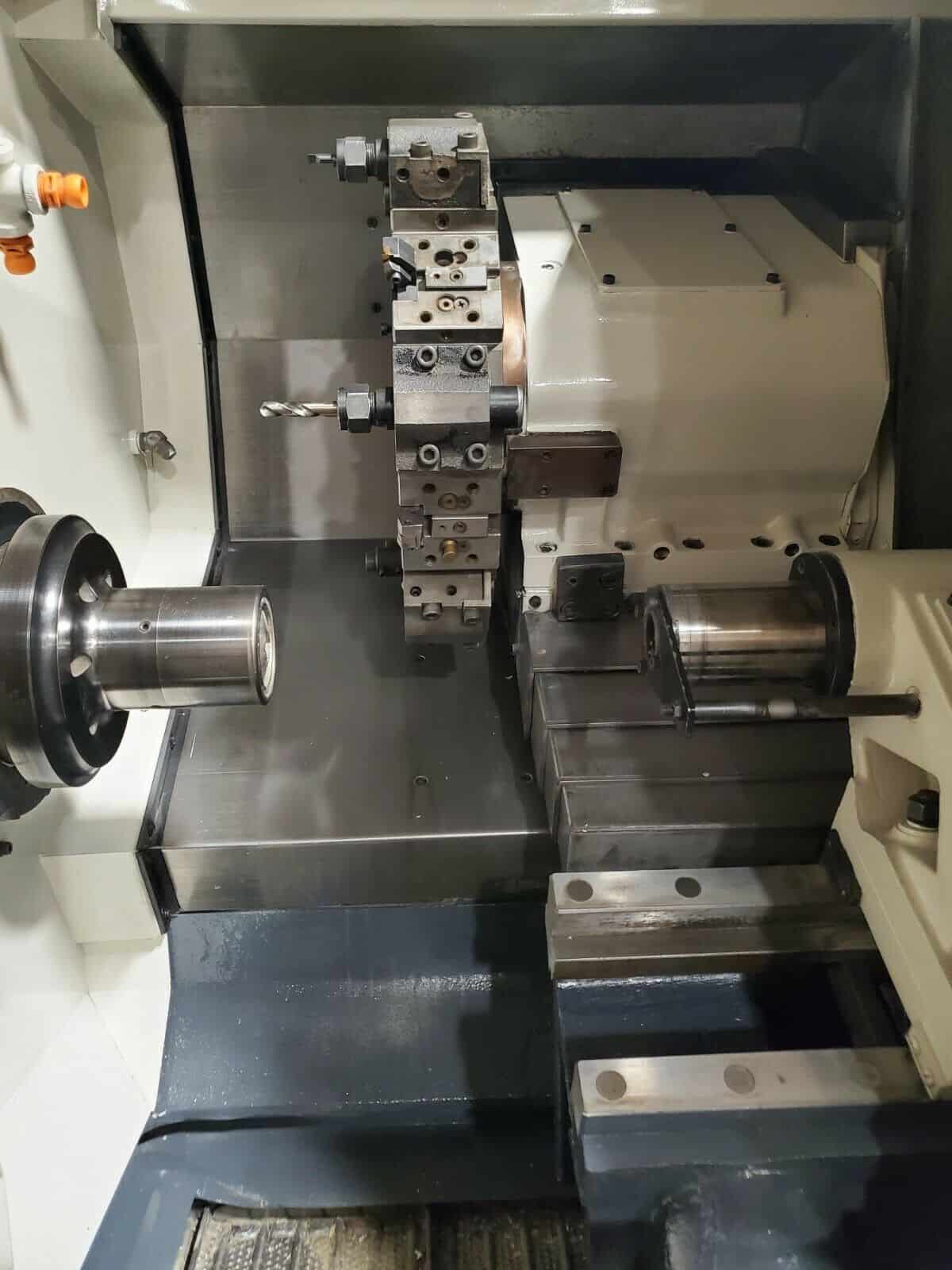

- Hydraulic Tailstock and Quill
- PCMCIA Card Interface

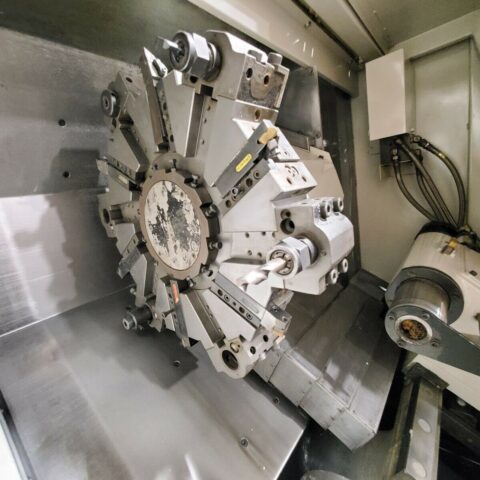

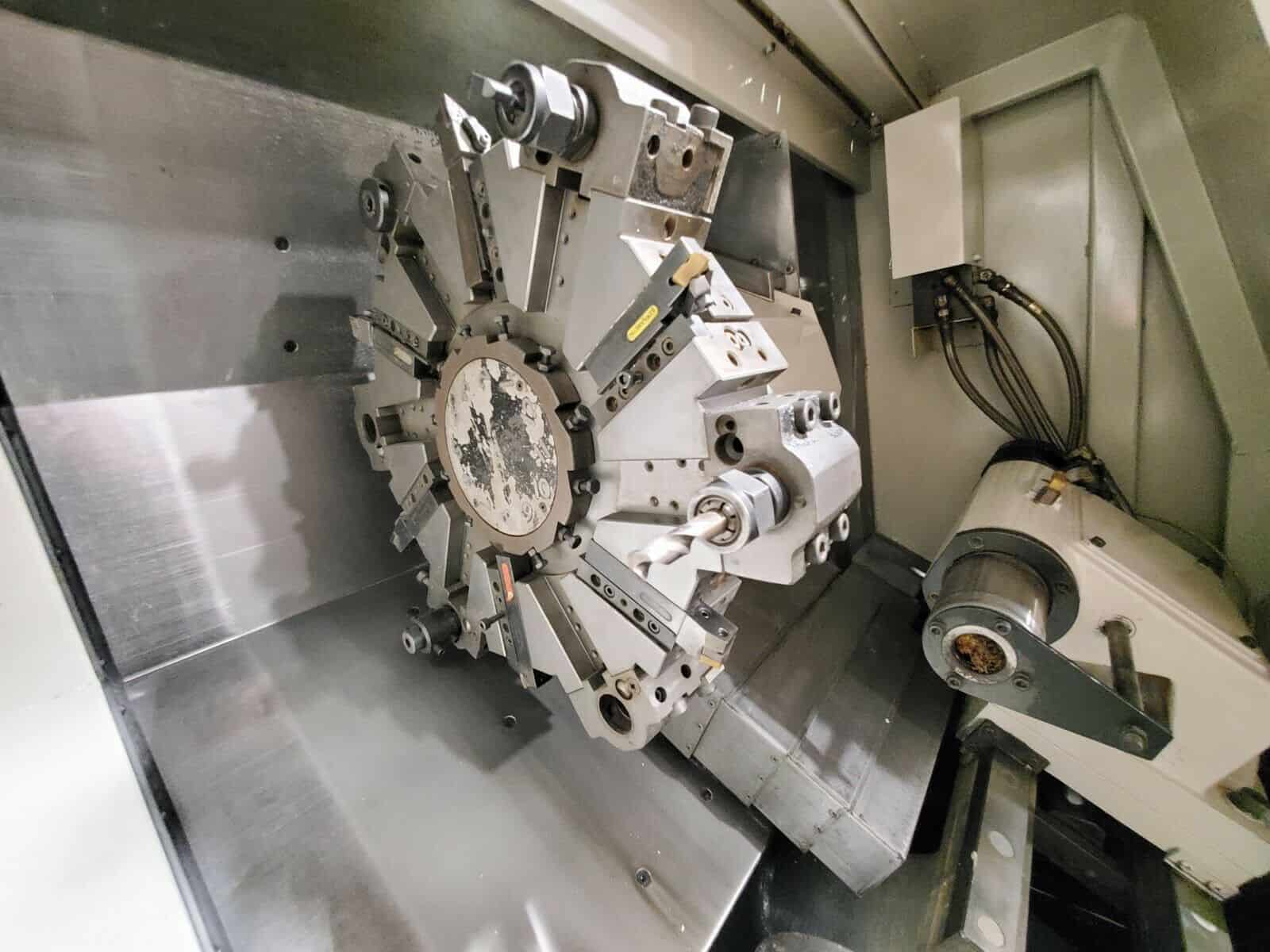

- 12 Station Automatic Turret
- Foot Switch
- Coolant System

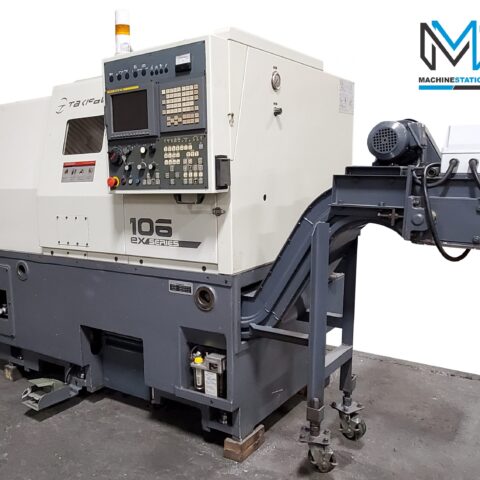

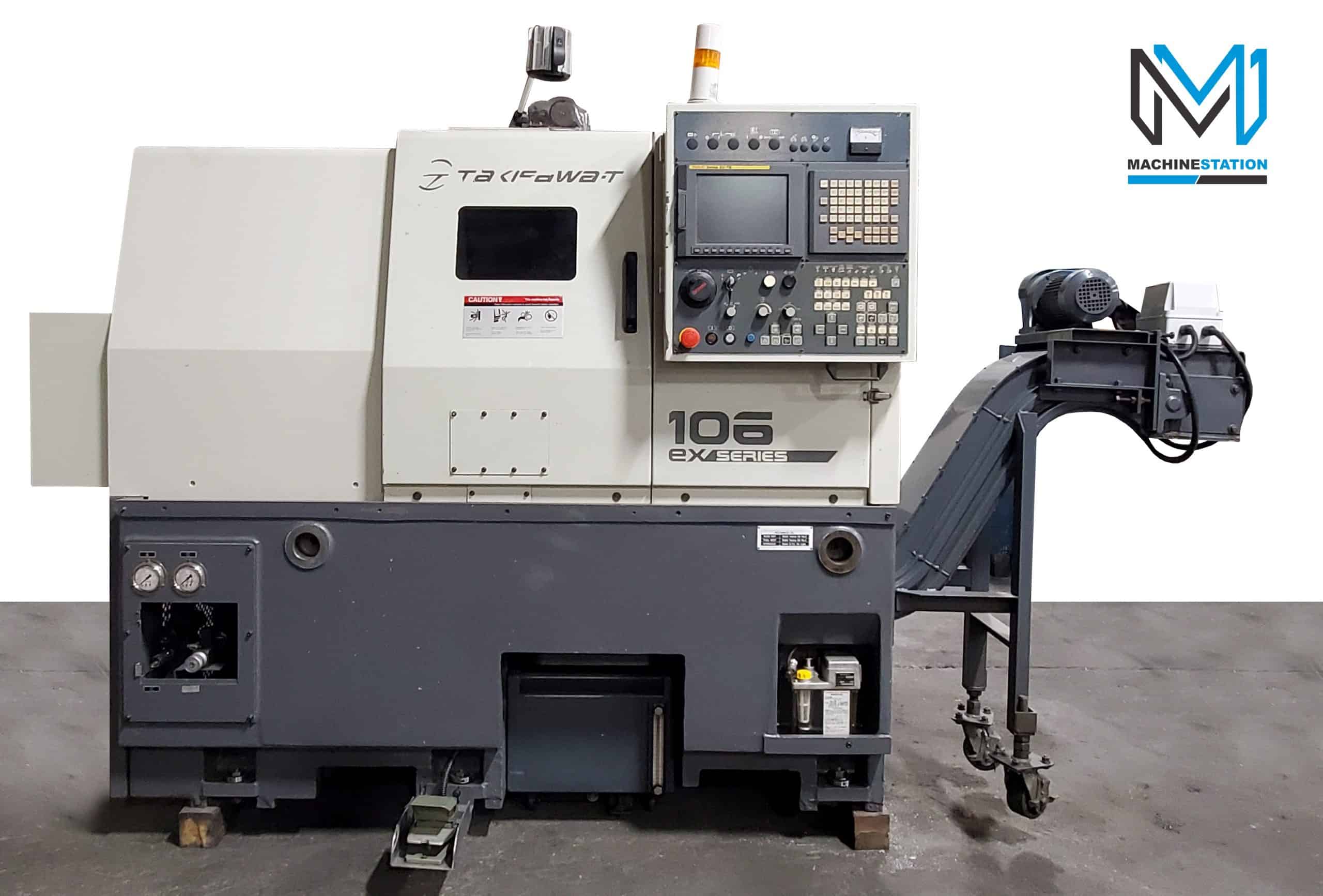

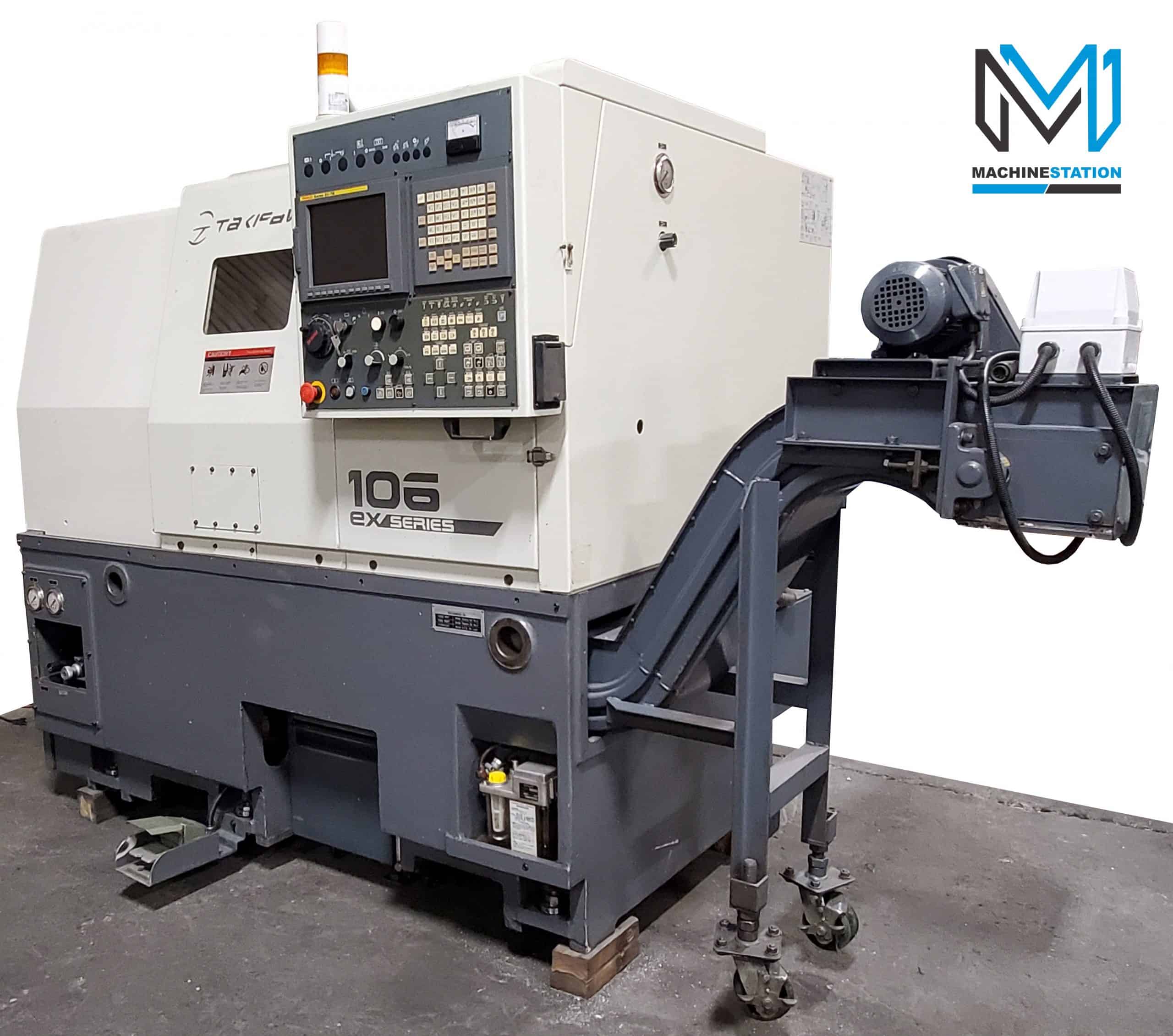

- Chip conveyor
- Specifications:
- Capacity:
- Max Turning Diameter: 9.4″
- Max Turning Length: 13.8″
- Max Bar Capacity: 1.95″
- Swing Over Bed: 13.8″
- Distance Between Centers: 19.6”
- Travel:
- X Axis Travel: 6.2″
- Z Axis Travel: 13.8″
- Rapid Traverse X Axis: 945 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 2.2″
- Spindle Speed: 4500 RPM
- Spindle Motor: 25 hp
- Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tool Size: 2″
- Tailstock:
- Tailstock Taper: MT-4
- Tailstock Body Travel: 11.77″
- Tailstock Quill Dia.: 3.33″
- Tailstock Quill Travel: 3.90″
- General:
- Power: 55 kva, 220v / 3-Phase
- Overall Dimensions: 95″ x 70″ x 80″ High
- Weight: 7,000 lbs
“No Charges for loading at list Price”
Comes as shown in pictures….
