Takisawa EX-106K CNC Gang Tool Lathe

Out of stock

This One Owner machine has 5c Collet Chuck, Gang Tooling, Fanuc 21iT Control. On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops.”

SKU: 1505
Make/Model: Takisawa EX-106K
Video: [fusion_button link=”https://www.youtube.com/watch?v=eJo8X8MN11A” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1505

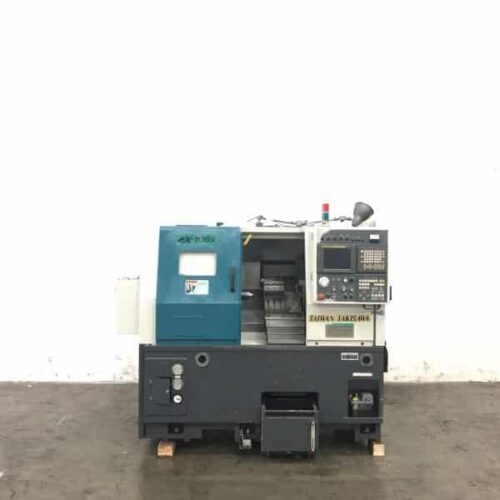

TAKISAWA EX-106K CNC GANG TOOL LATHE
Make Takisawa
Model No. EX-106K
Serial # CB08E60282
Condition Very Good
Comes with 5C Collet Chuck.

“This One Owner machine has 5c Collet Chuck, Gang Tooling, Fanuc 21iT Control. On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops.”

  • TAKISAWA EX-106K Equipped With:

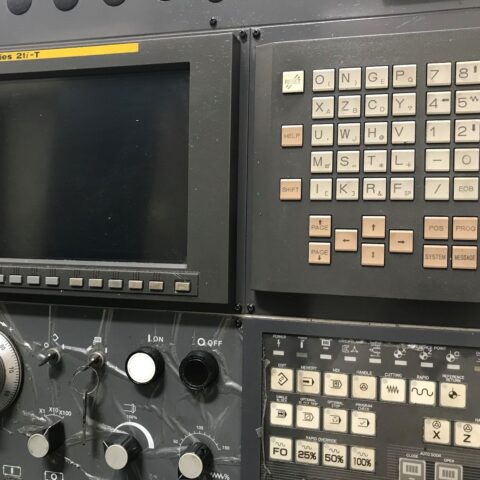

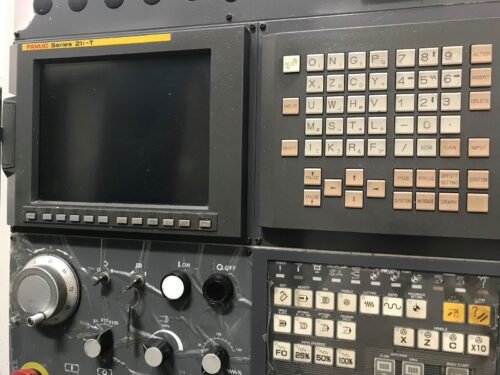

  • Fanuc 21iT CNC Control
  • ATS 5C Hydraulic Collet Chuck
  • PC Card Slot
  • Coolant System with Tank
  • Barfeed Interface
  • RS-232 ports
  • General:
  • Power: 21 kva, 220v / 3-Phase
  • Overall Dimensions: 82″ x 58″ x 73″ High
  • Weight: 7000 lbs
  • TAKISAWA EX-106K Specifications:
  • Capacity:
  • Max Turning Diameter: 9.45″
  • Max Turning Length: 13.78″
  • Max Bar Capacity: 1.69″
  • Swing Over Cross Slide: 11.02″
  • X Axis Travel: 10.99″
  • Z Axis Travel: 12.78″
  • Rapid Traverse X Axis: 945 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.2″
  • Spindle Speed: 0 – 5000 RPM
  • Spindle Motor: 10 HP

TAKISAWA EX-106K Comes as shown in pictures..
