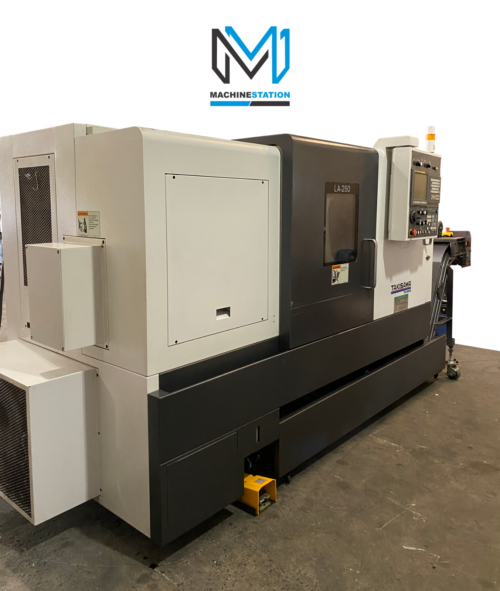

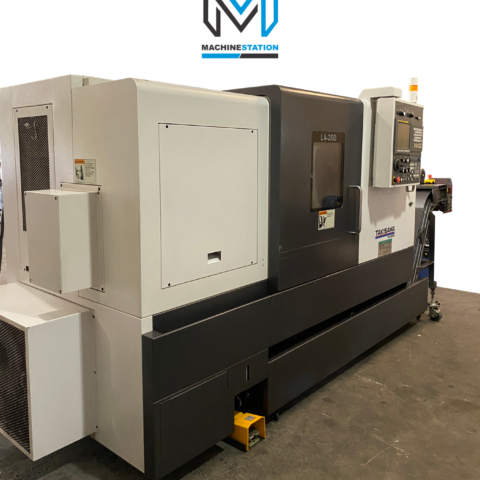

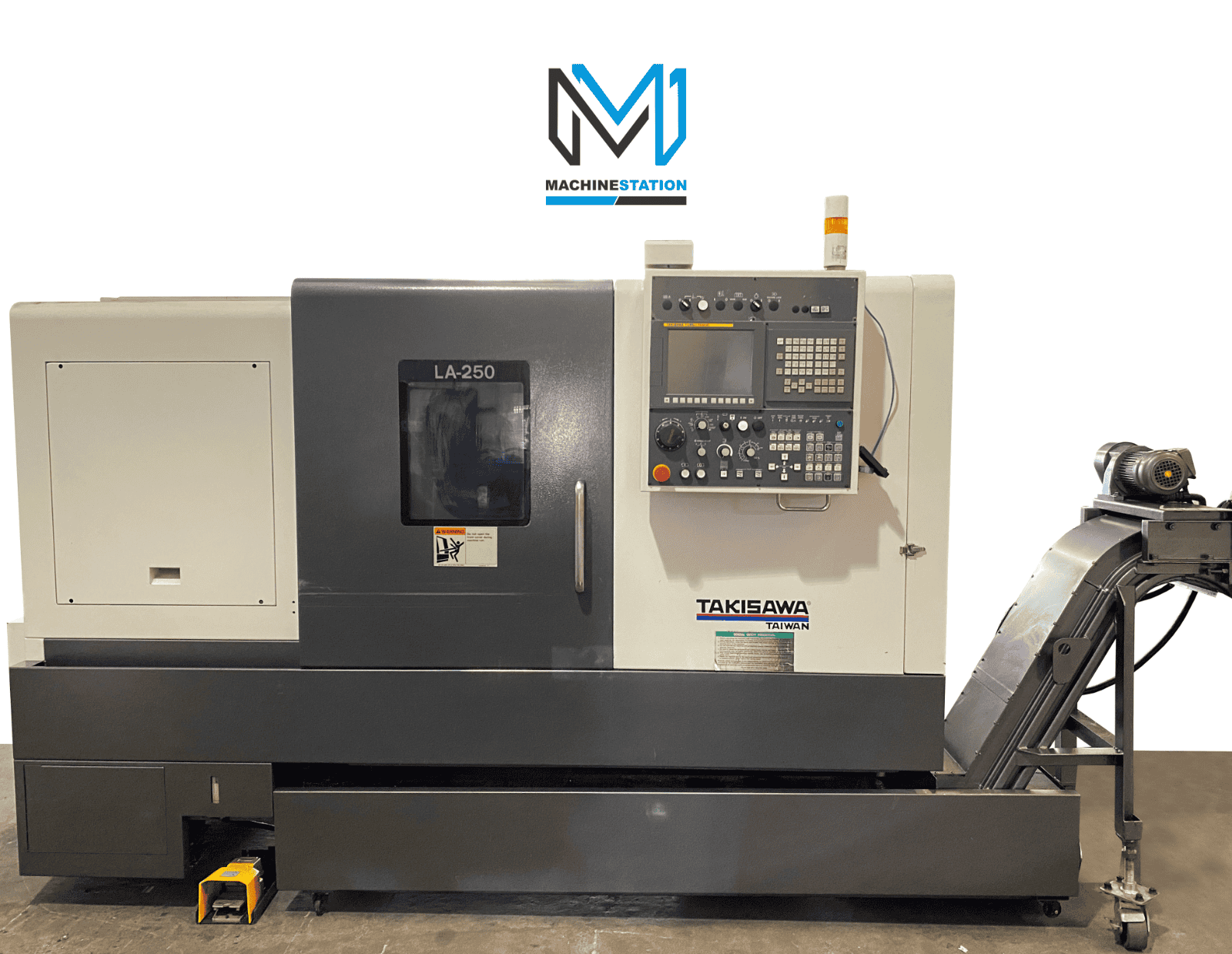

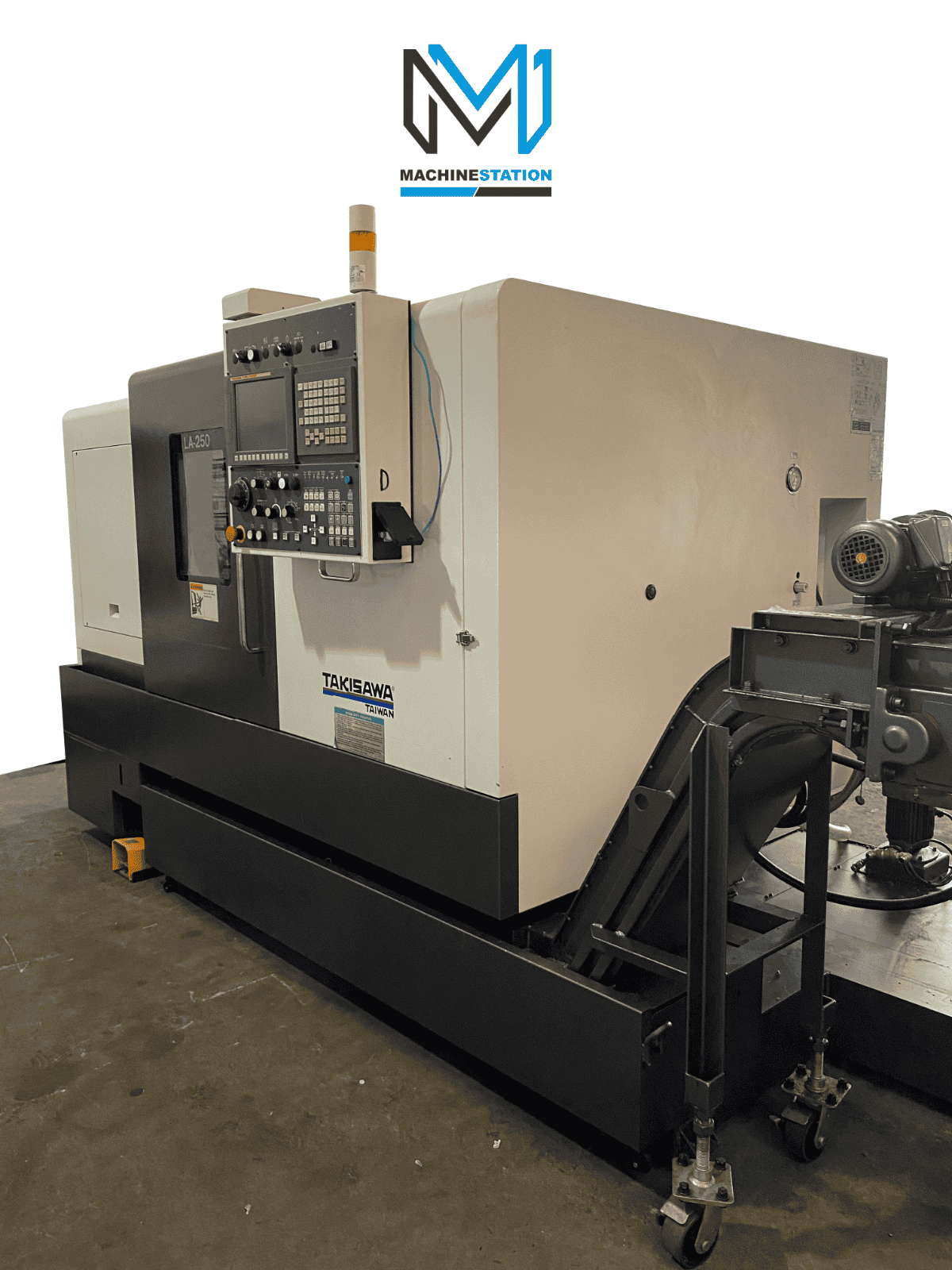

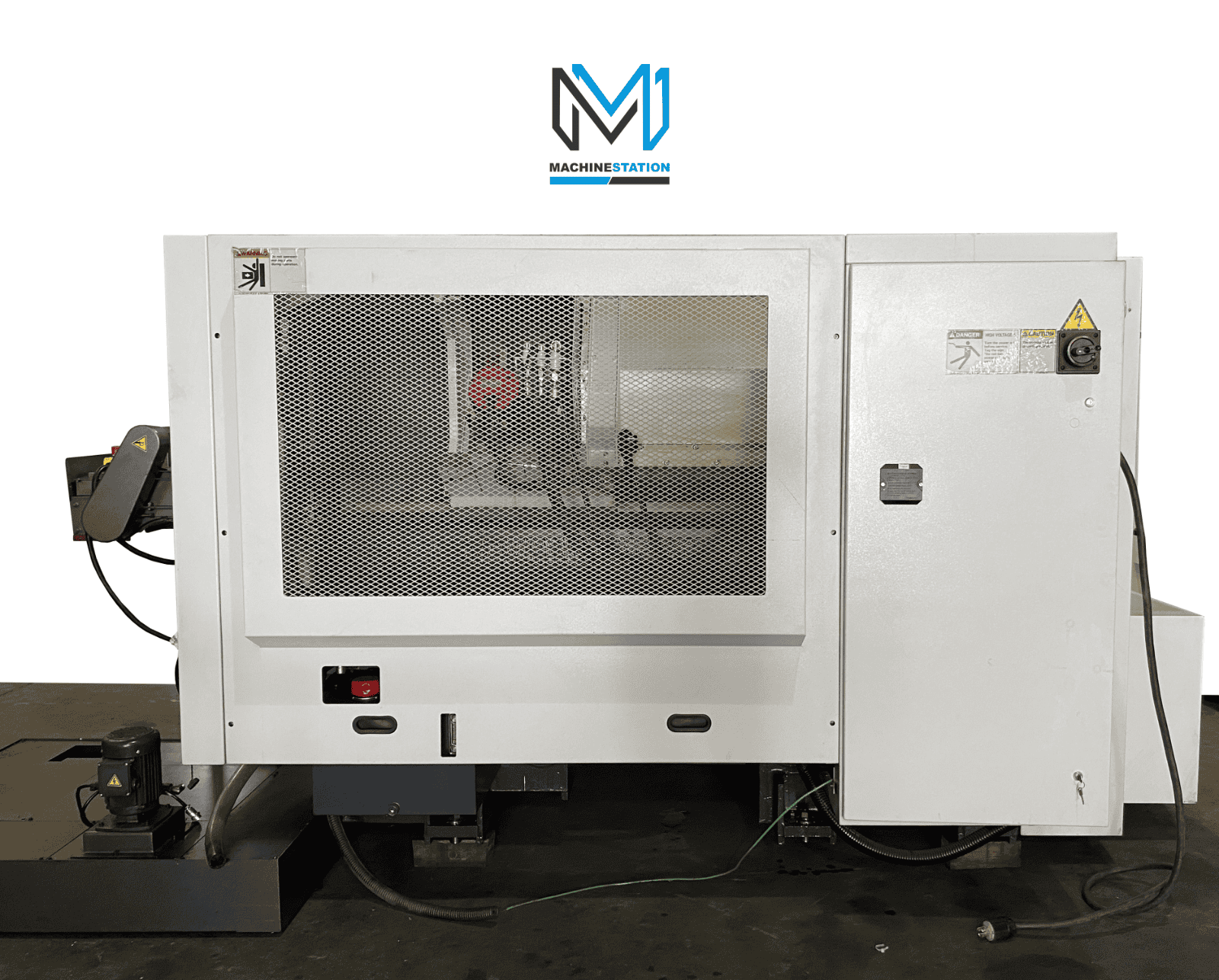

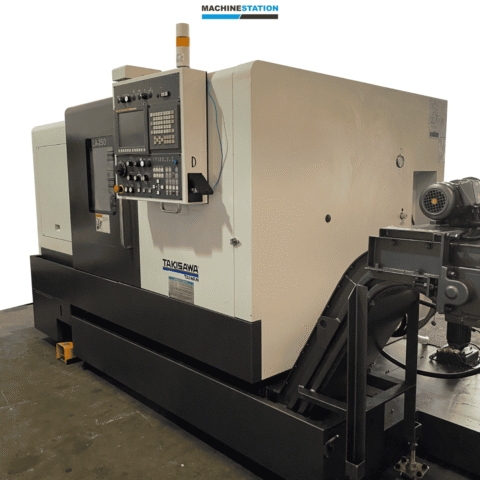

TAKISAWA LA-250 CNC TURNING CENTER

Out of stock

SKU:	2181
Make/Model:	Takisawa/LA-250
Video:	[fusion_button link=”https://www.youtube.com/watch?v=_IeHBRak2_o” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2181

TAKISAWA LA-250 CNC TURNING CENTER
SKU	2181
Make	Takisawa
Model No.	LA-250
Year	2017/2018

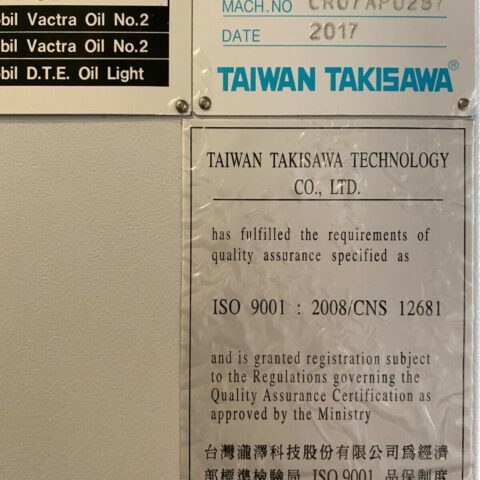

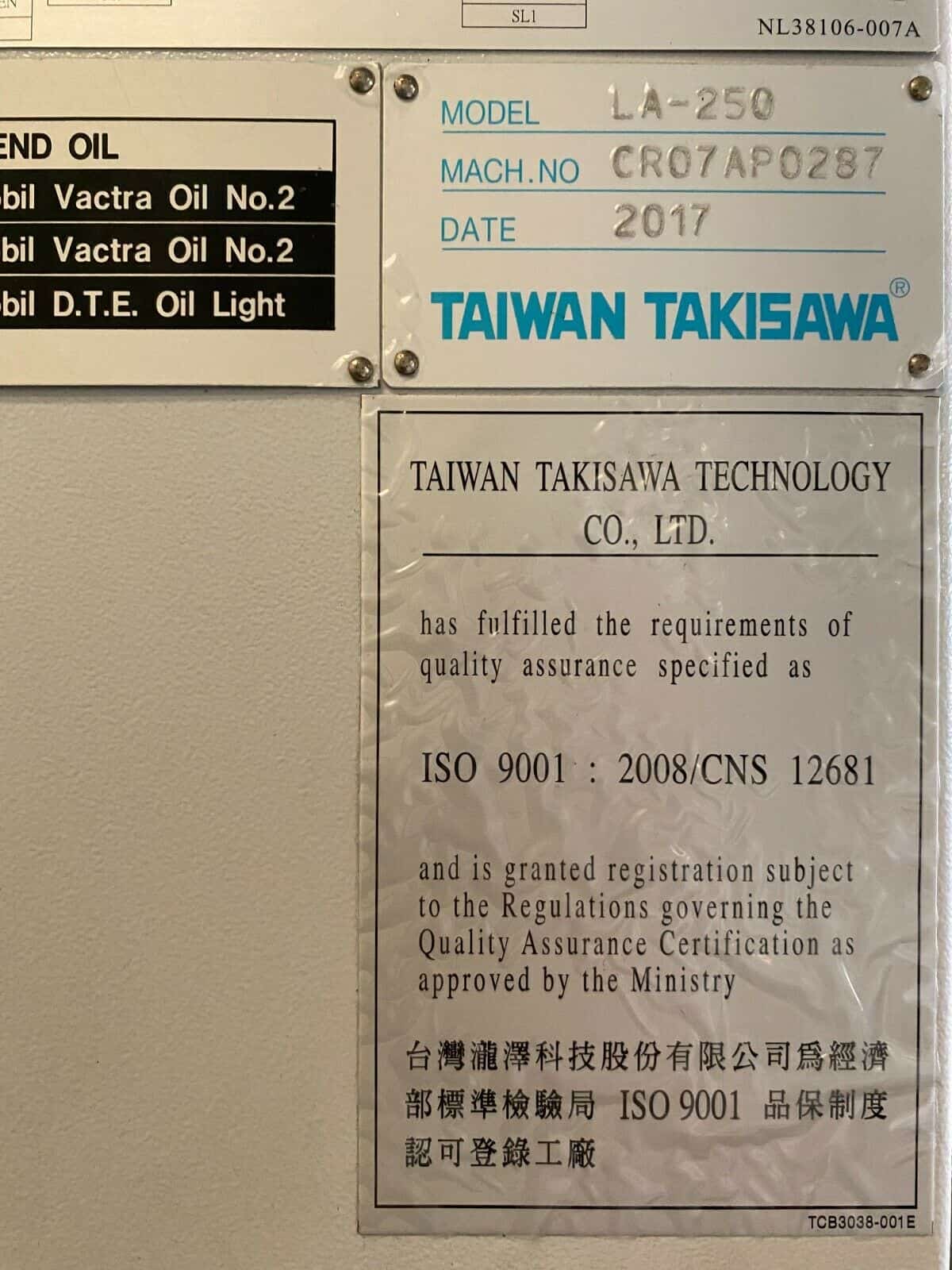

Serial #	CR07AP0287
Condition	Almost New

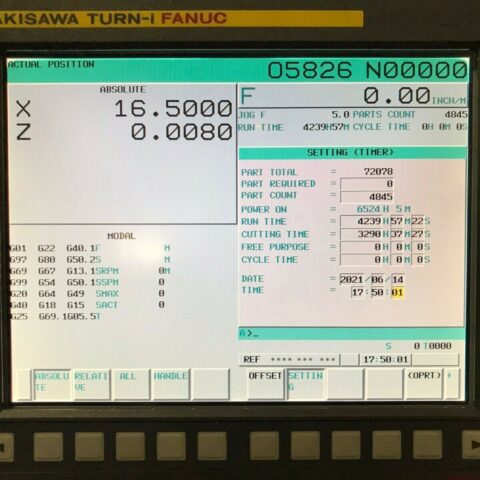

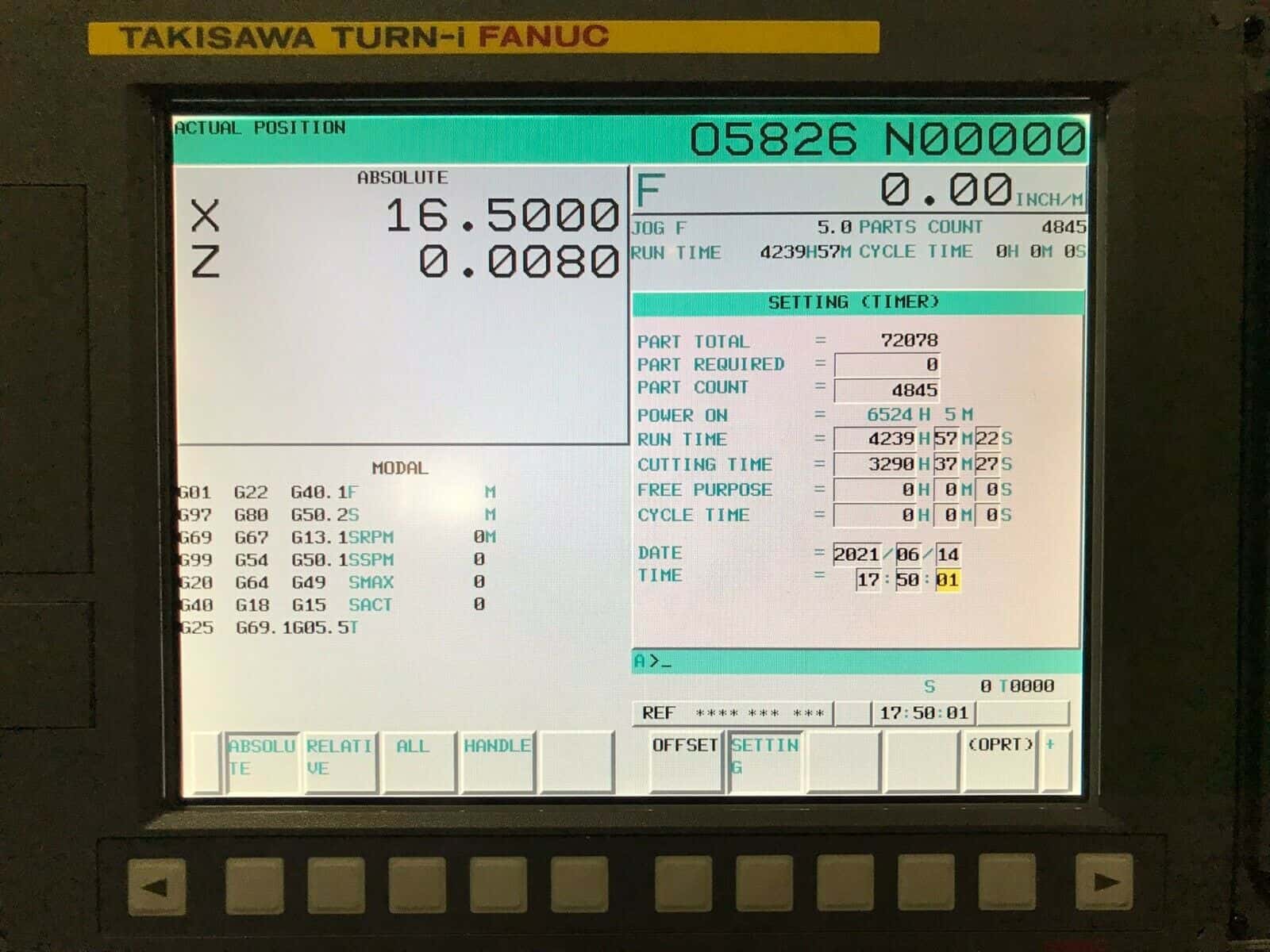

Cutting Hours:	3290 Hours

All specifications are approximations and are subject to verification.

Equipped With:

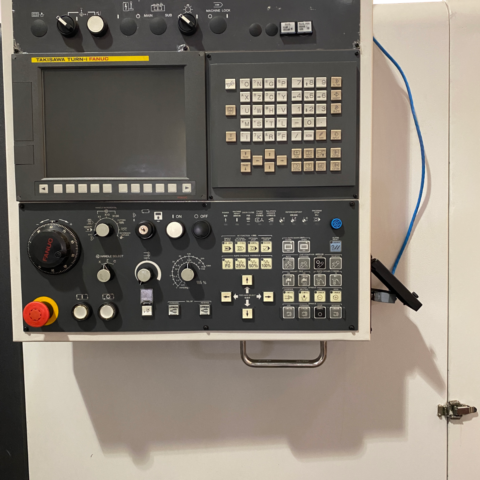

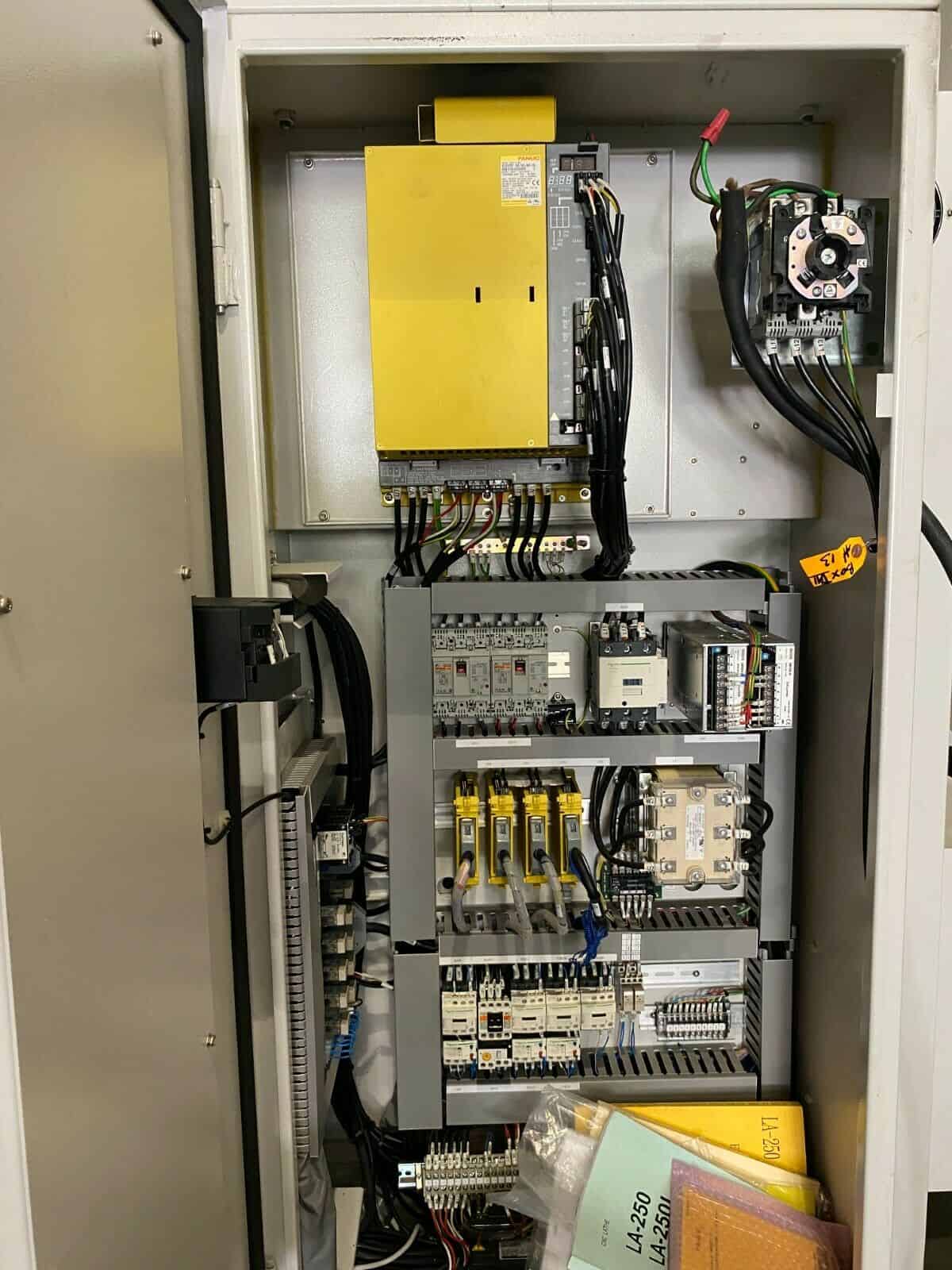

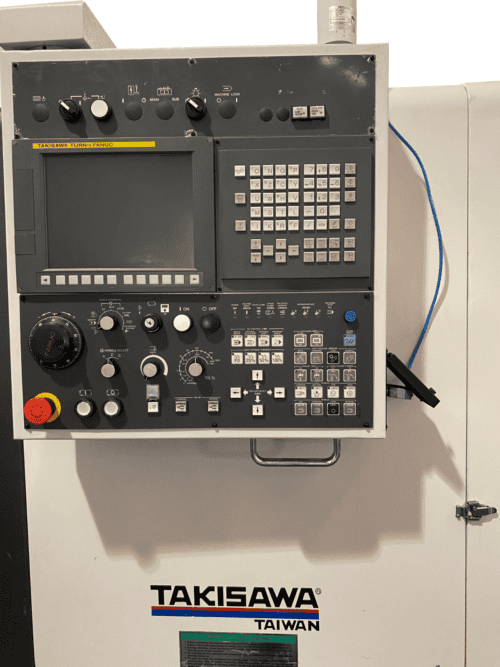

Fanuc I Series CNC Control

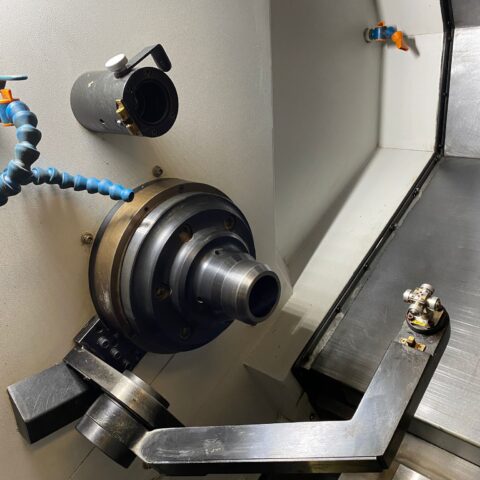

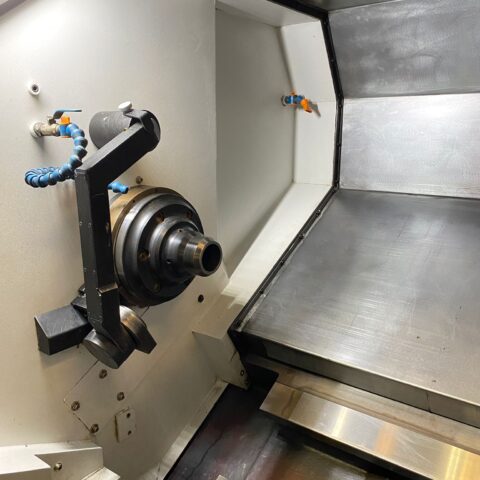

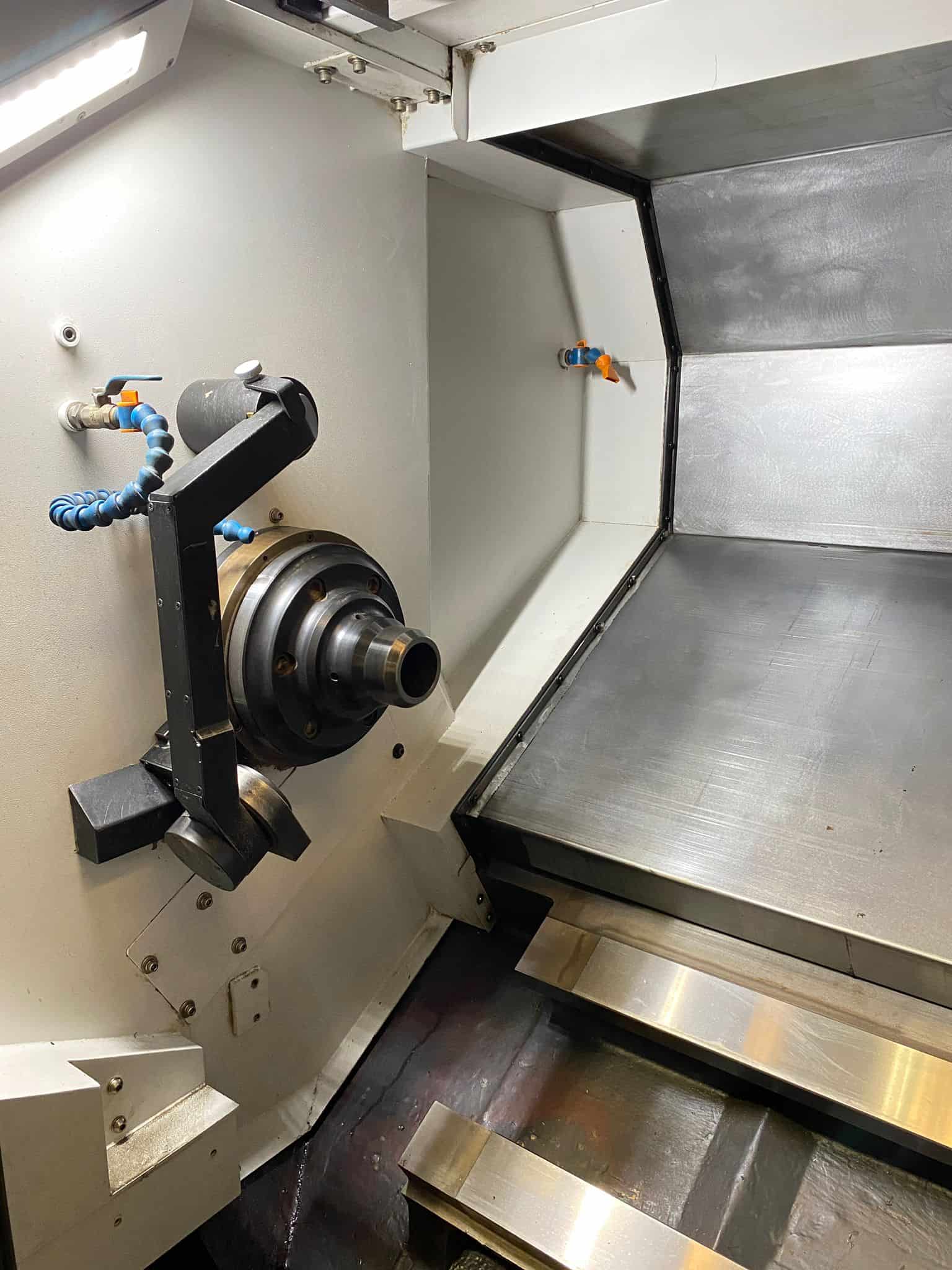

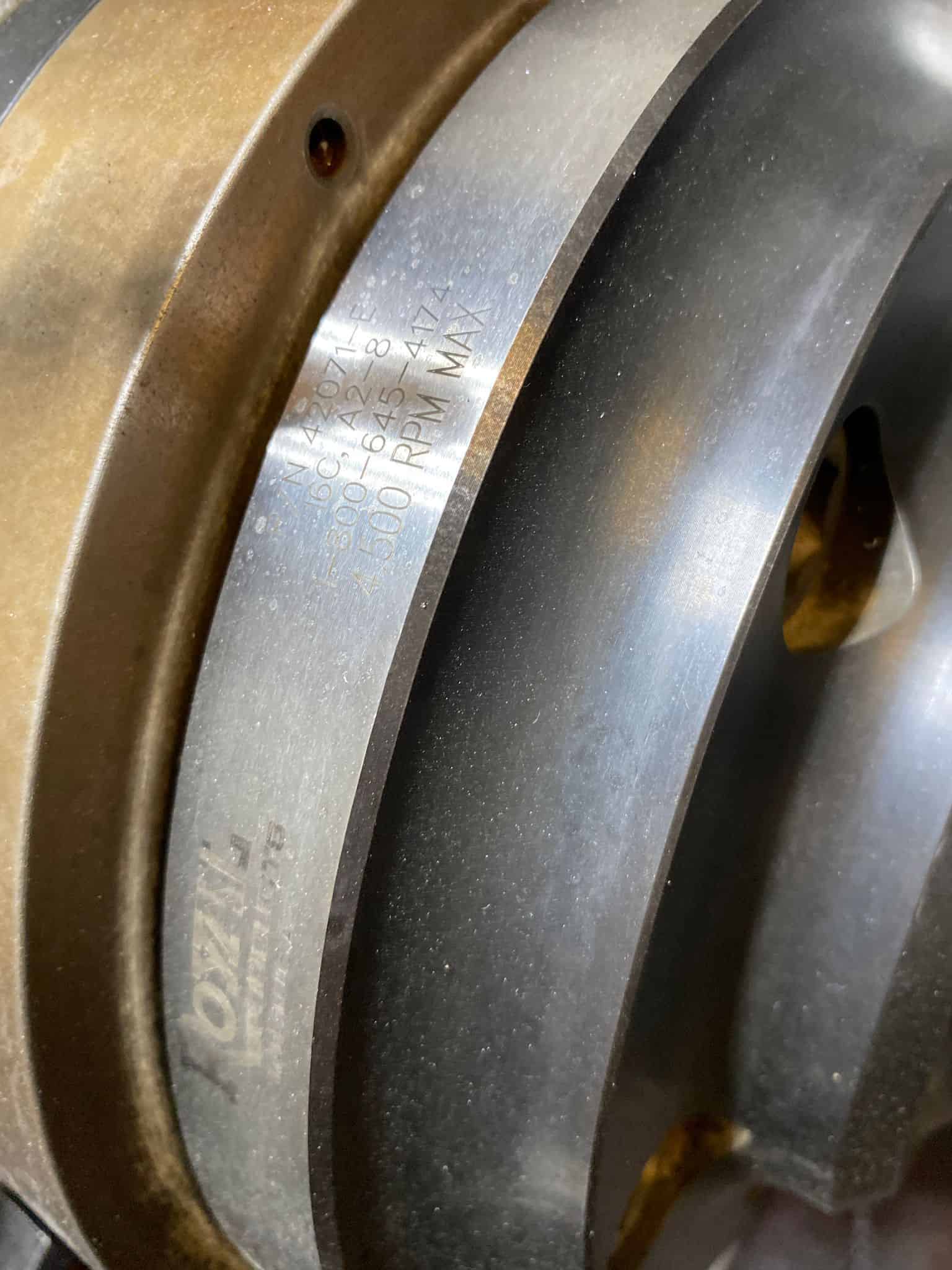

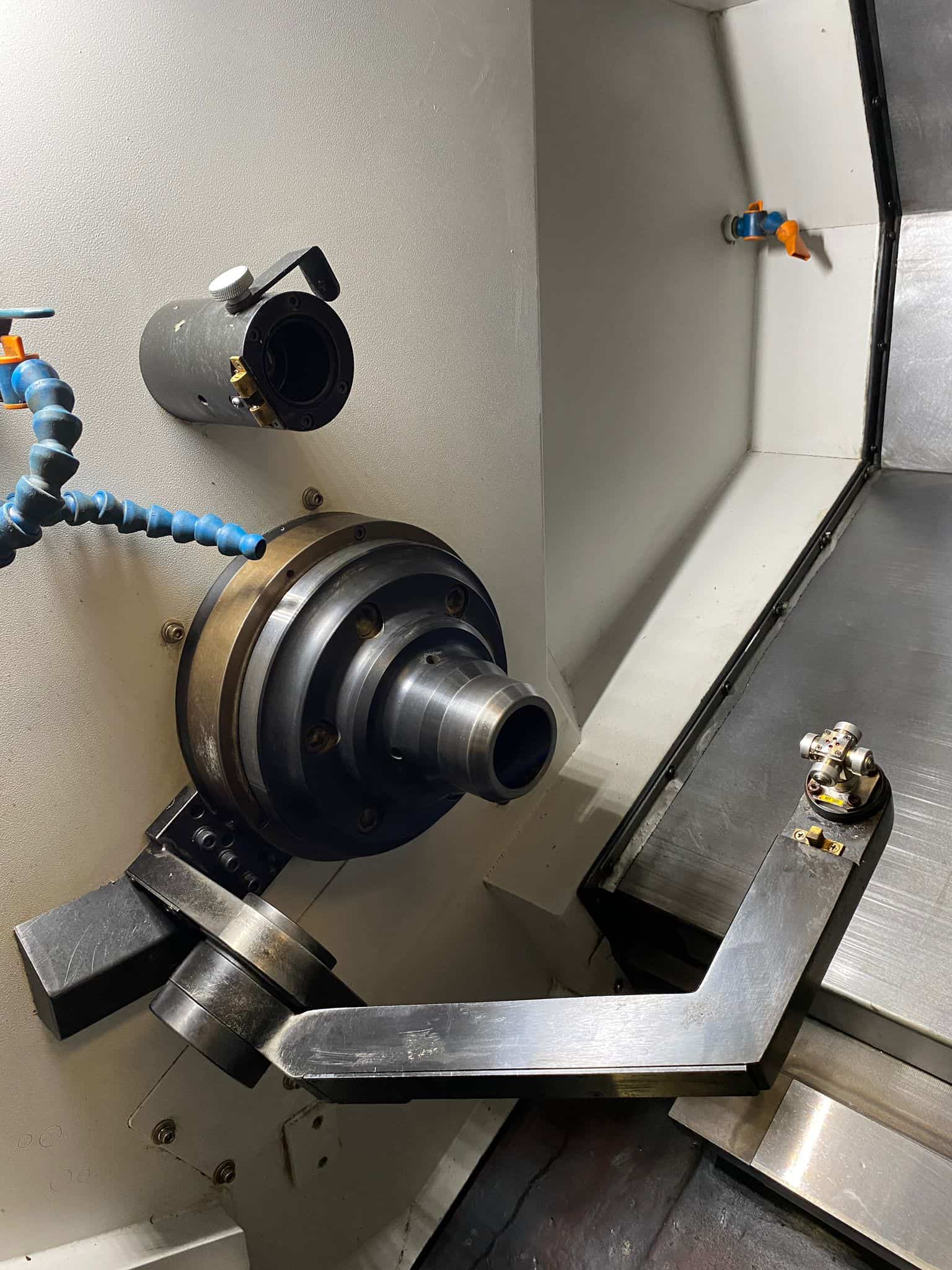

Hydraulic Collet Chuck

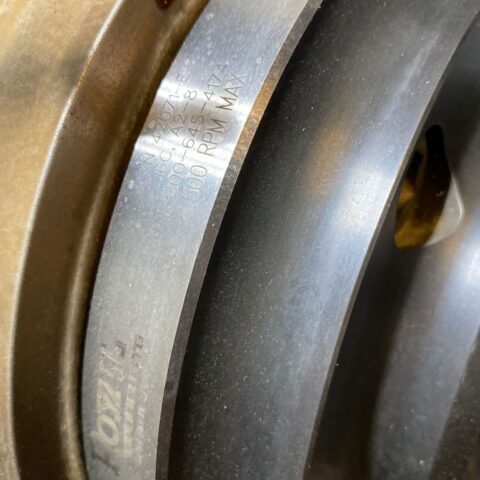

10″ 3 Jaw Chuck
A2-8, 3000 RPM Spindle
Tool Presetter

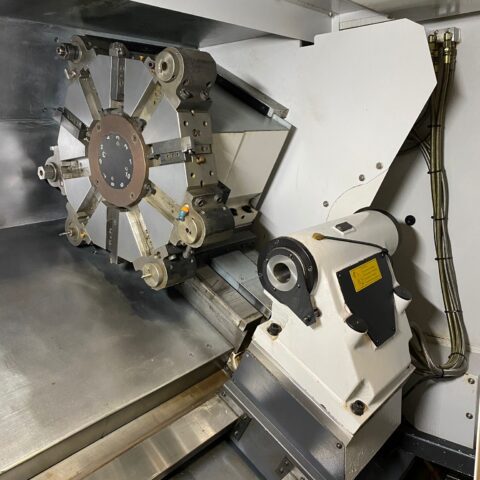

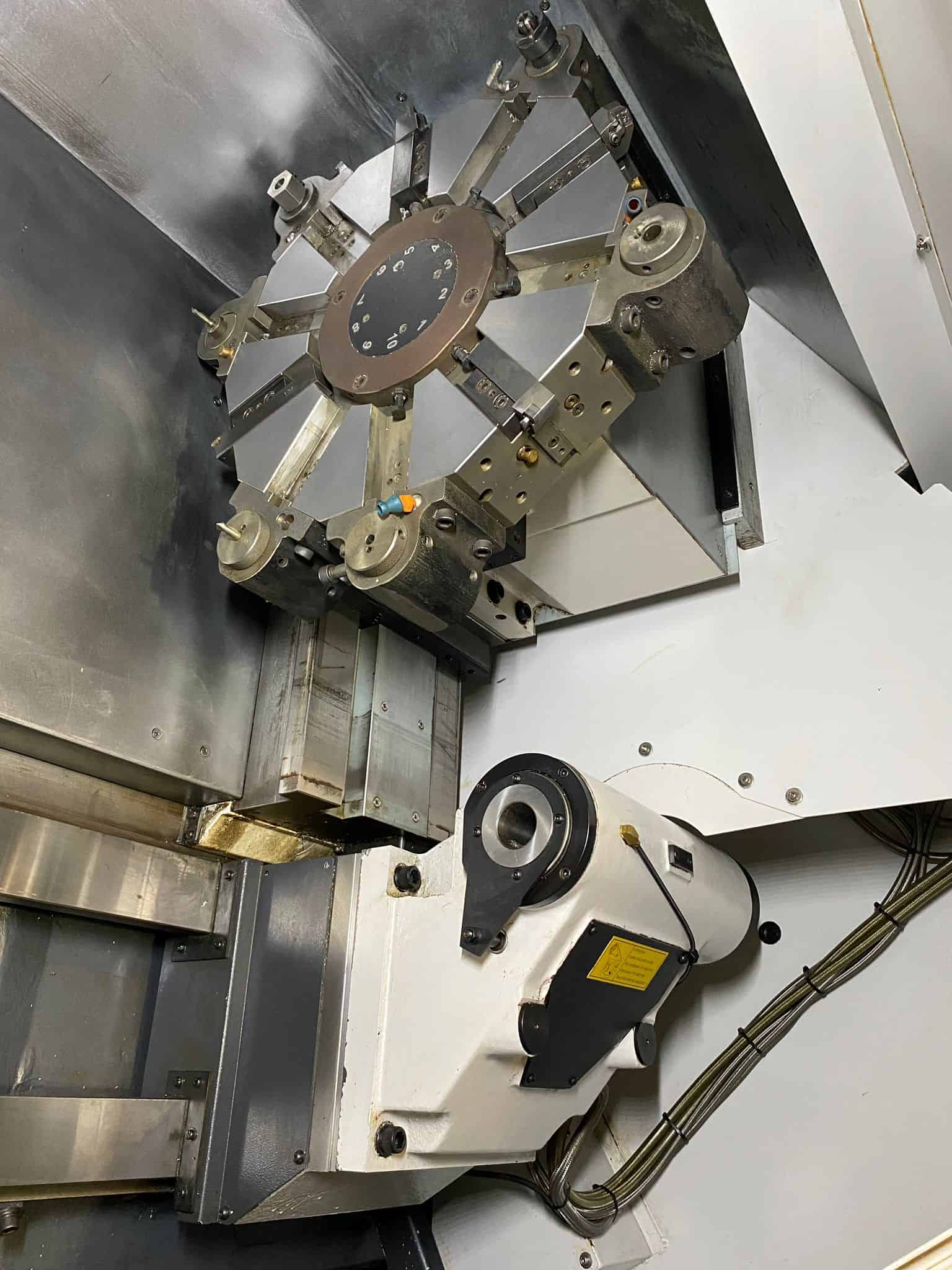

Hydraulic Tailstock and Quill
PCMCIA Card Interface
USB Port

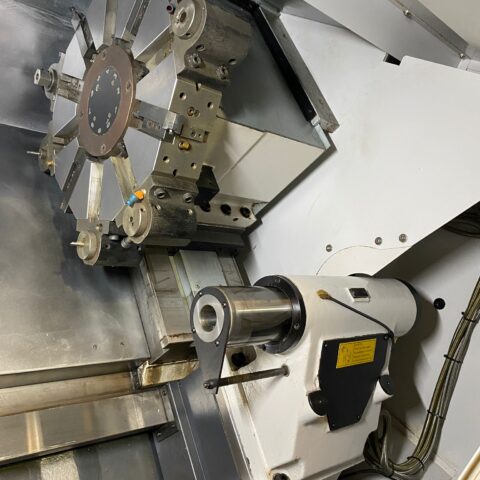

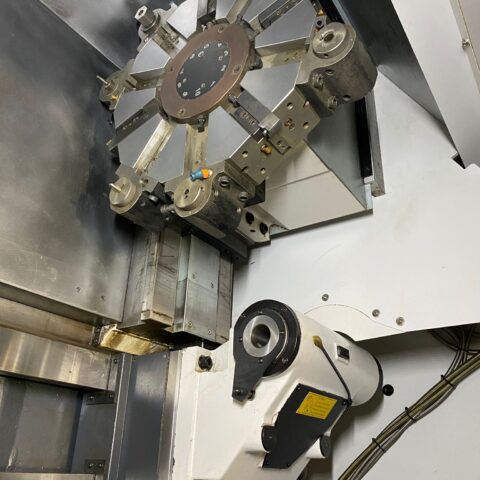

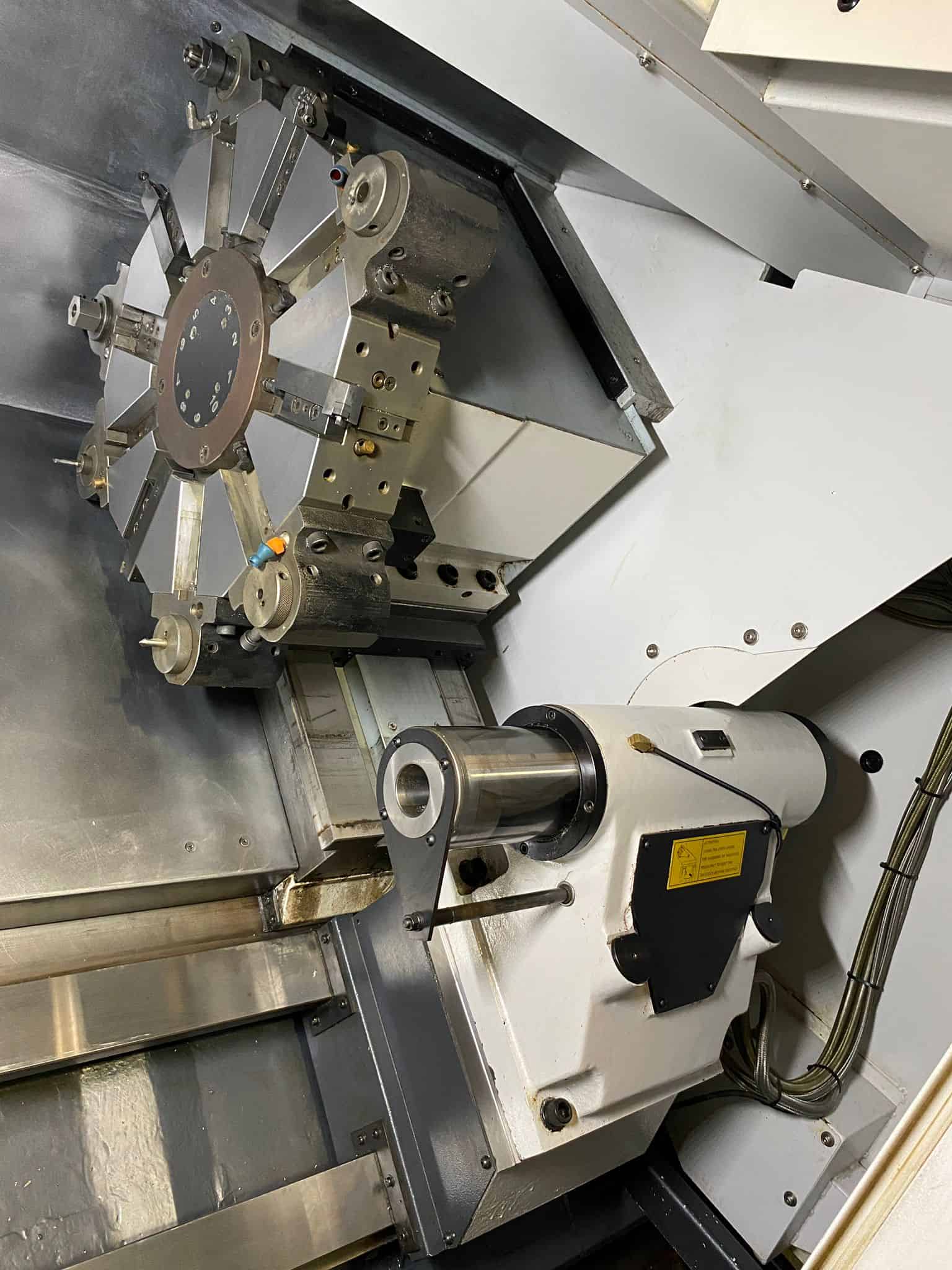

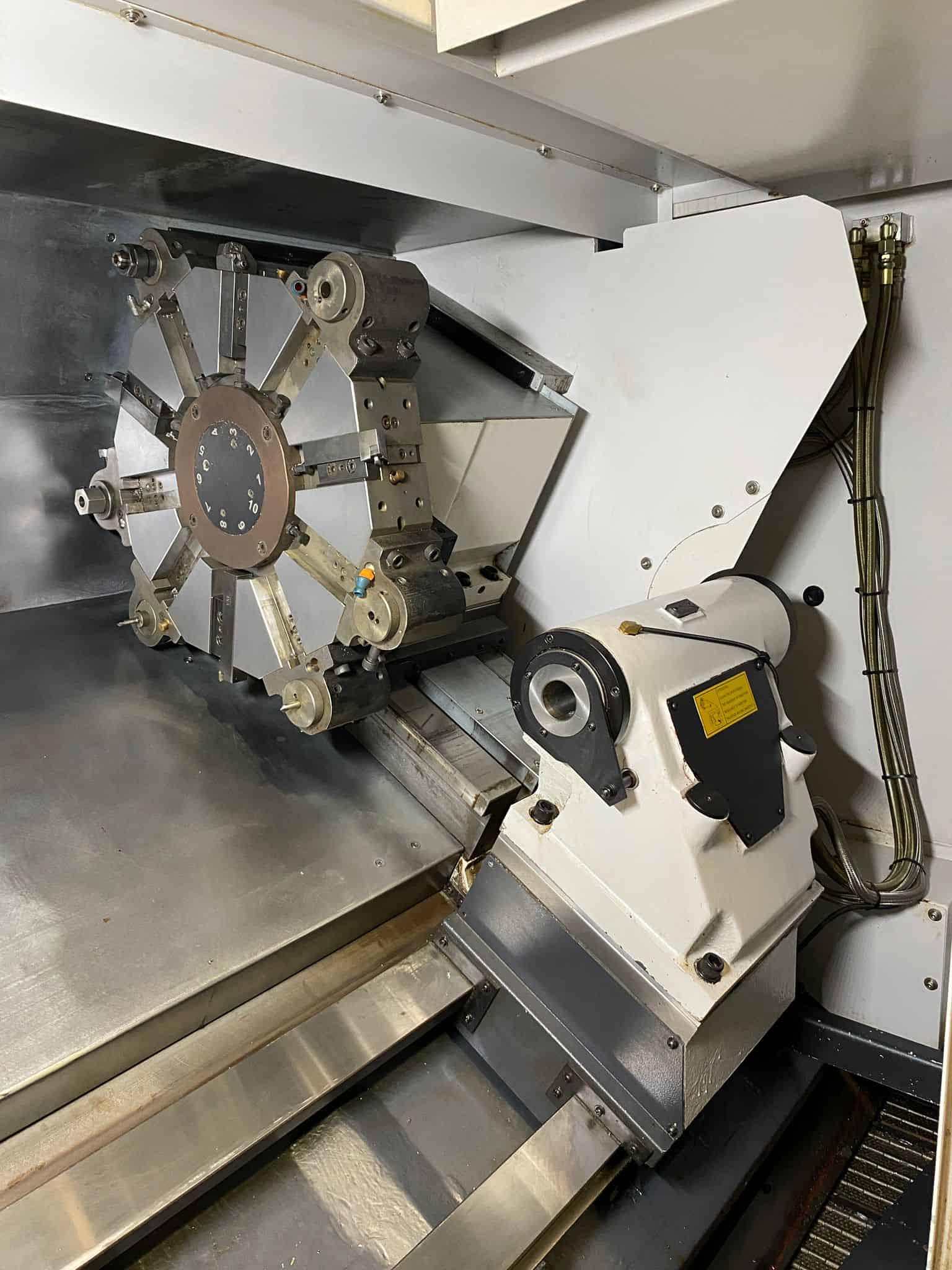

10 Station Automatic Turret
Foot Switch
Parts Catcher
Coolant System
Chip conveyor

Specifications:
Capacity:
Max Turning Diameter: 17.75″
Max Turning Length: 30.11″
Max Bar Capacity: 2.95″
Swing Over Bed: 22.8″
Swing Over Carriage: ″
Distance Between Centers: 39.6”

Travel:
X Axis Travel: 10.2″
Z Axis Travel: 31.49″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.38″
Spindle Speed: 3000 RPM
Spindle Motor: 25 hp

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 0.15 Second
Tool Size: 2″

Tailstock:
Tailstock Taper: MT-5
Tailstock Body Travel: 26.77″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Travel: 5.90″

General:
Power: 55 kva, 220v / 3-Phase
Overall Dimensions: 135″ x 80″ x 90″ High
Weight: 10,000 lbs

“No Charges for loading at list Price”

Comes as shown in pictures….
