Takisawa TC 2 CNC Turning Center

Out of stock
SKU: 1394
Make/Model: Takisawa TC-2
Video: [fusion_button link=”https://www.youtube.com/watch?v=ZEC7eSgKgsc” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1394

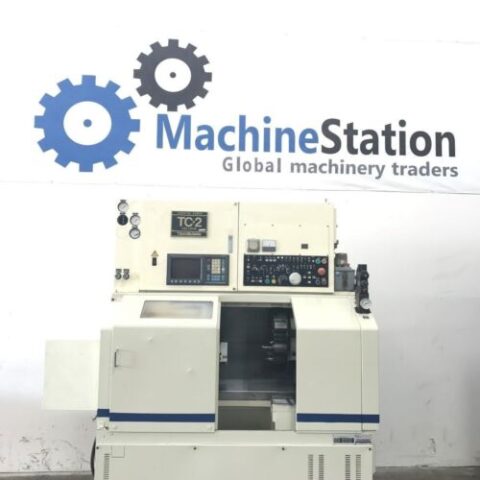

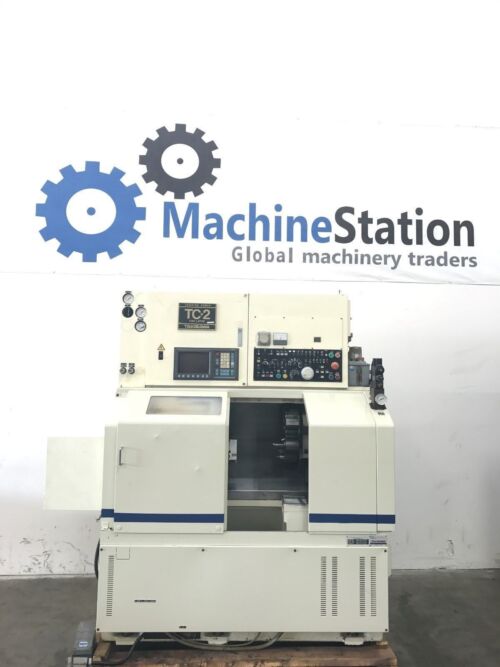

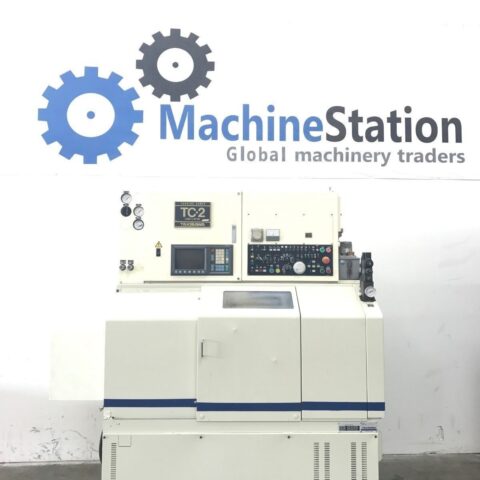

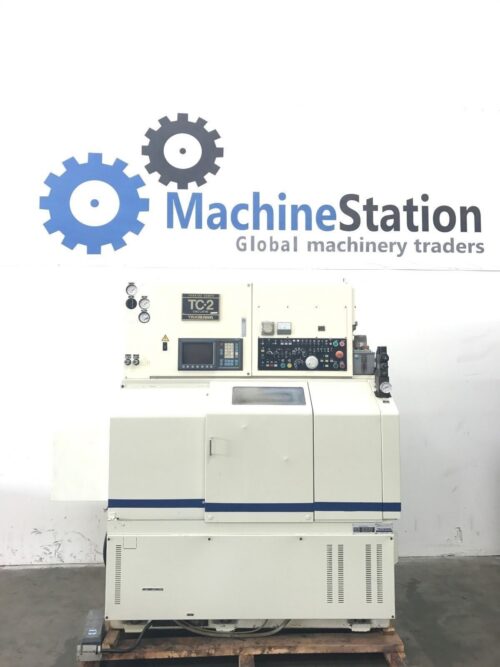

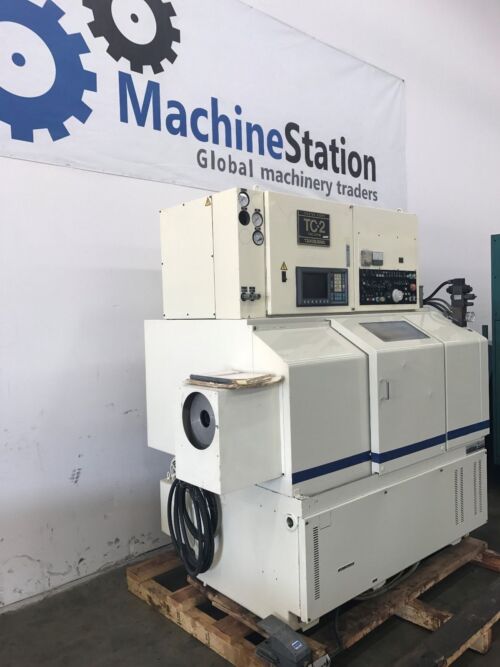

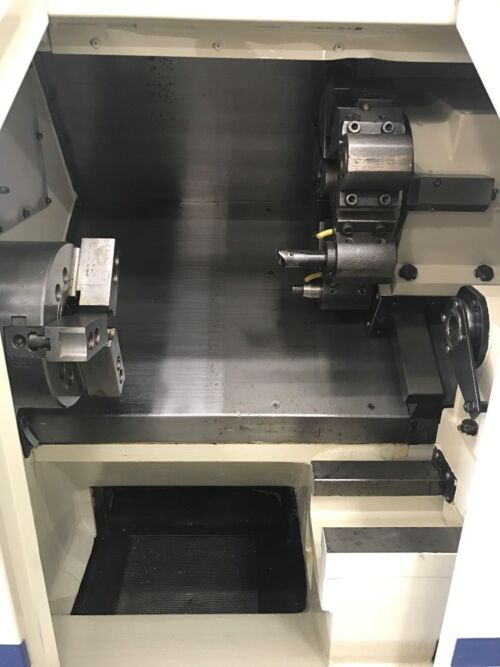

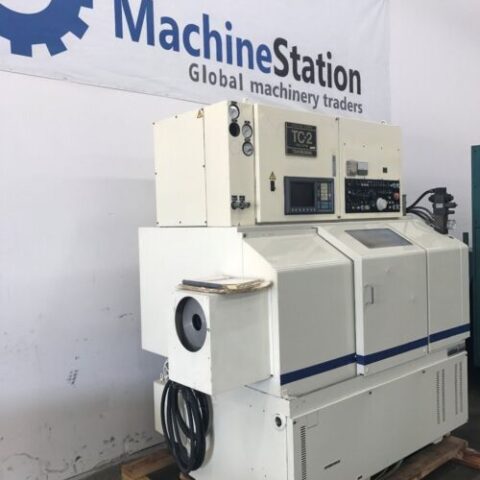

TAKISAWA TC 2 CNC TURNING CENTER
Make Takisawa
Model No. TC-2

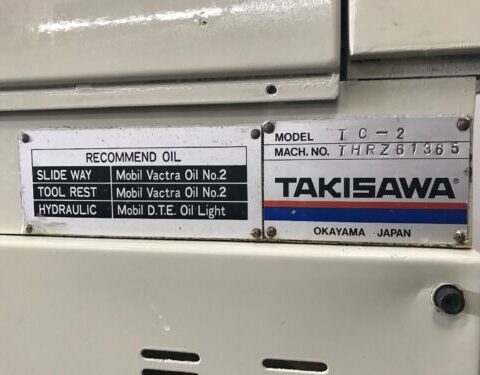

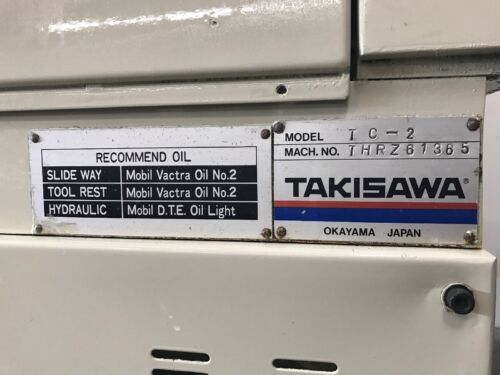

Serial # THRZ61365
Condition Very Good
Made in Japan
  • TAKISAWA TC 2 CNC TURNING CENTER Equipped With:
  • Fanuc 0T CNC Control

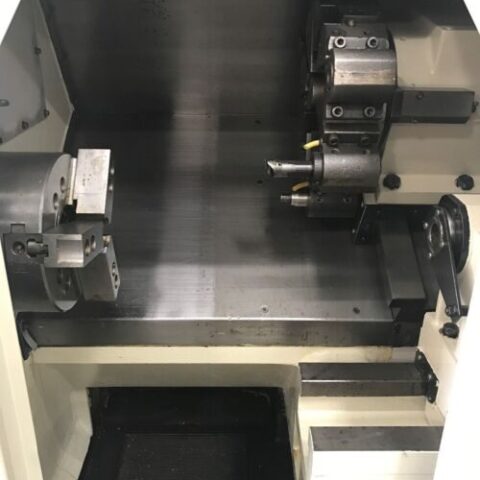

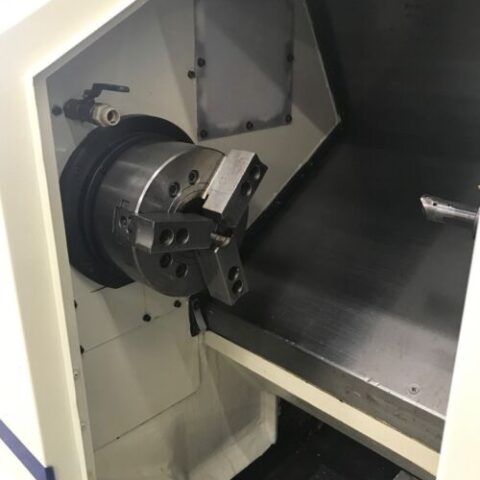

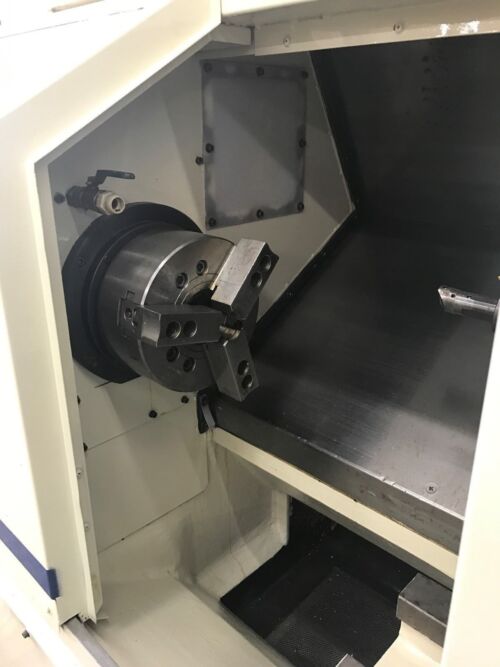

  • 8″ Hydraulic Chuck
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

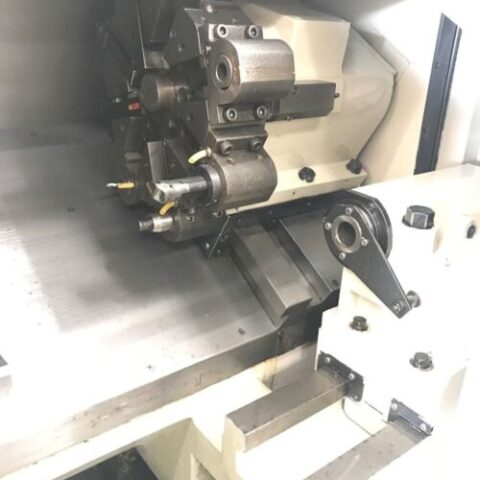

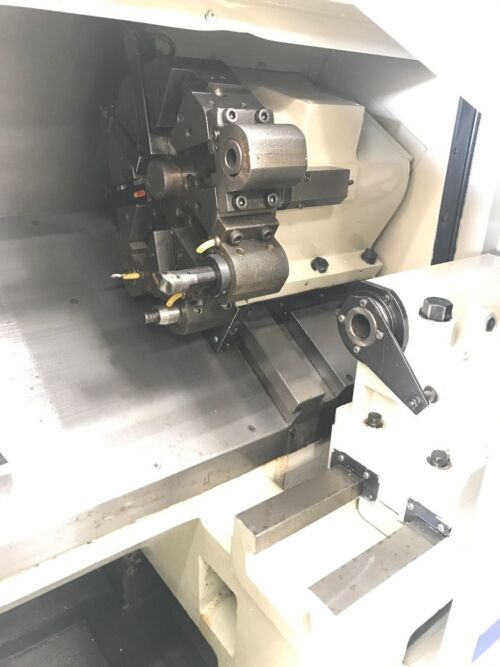

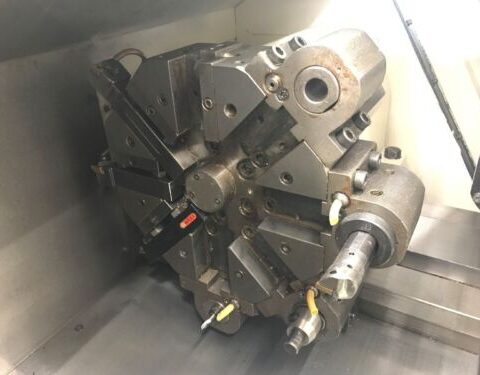

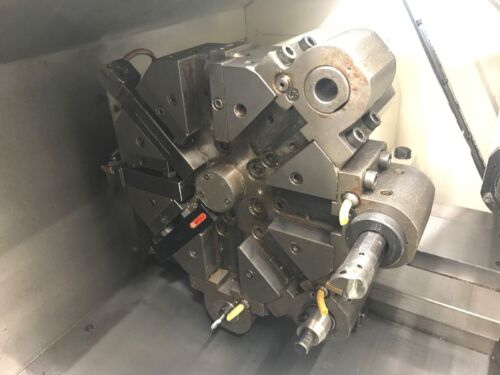

  • 8 Station Automatic Turret
  • Foot Switch
  • Comes with Manuals, Tool Holders & Tooling.
  • General:

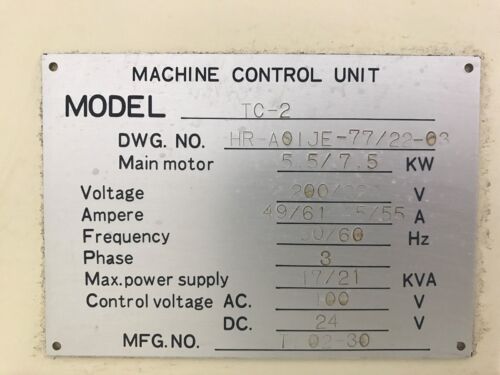

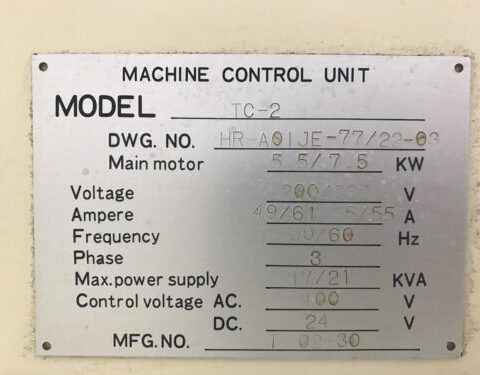

  • Power: 21 kva, 220v / 3-Phase
  • Overall Dimensions: 82″ x 55″ x 73″ High
  • Weight: 8000 lbs
  • TAKISAWA TC 2 CNC TURNING CENTER Specifications:
  • Capacity:
  • Max Turning Diameter: 10.18″
  • Max Turning Length: 14.50″
  • Max Bar Capacity: 2.0″
  • Swing Over Cross Slide: 13.75″
  • X Axis Travel: 5.6″
  • Z AXis Travel: 14.56″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.28″
  • Spindle Speed: 0 – 3600 RPM
  • Spindle Motor: 7.5/10 HP
  • Turret Capacity: 8 Stations
  • Turret Index Time: 1 Second
