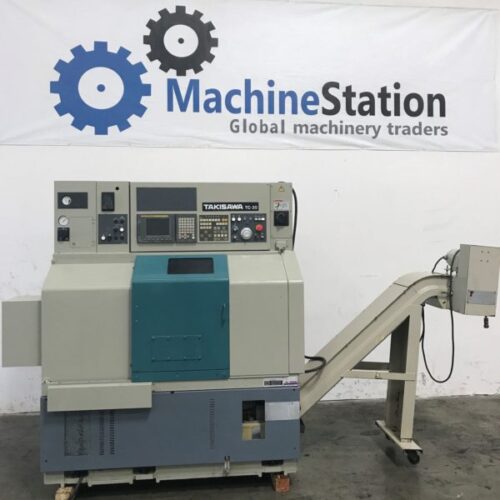

Takisawa TC-20 CNC Turning Center

Out of stock

This One Owner machine has 8″ Chuck, Tool Setter, Tailstock, Chip Conveyor. Tailstock was in a box since day one, we just installed it. On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops. Made in Japan.”

SKU: 1445
Make/Model: Takisawa TC-20
Video: [fusion_button link=”https://www.youtube.com/watch?v=7c9qzkK-o8M” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1445

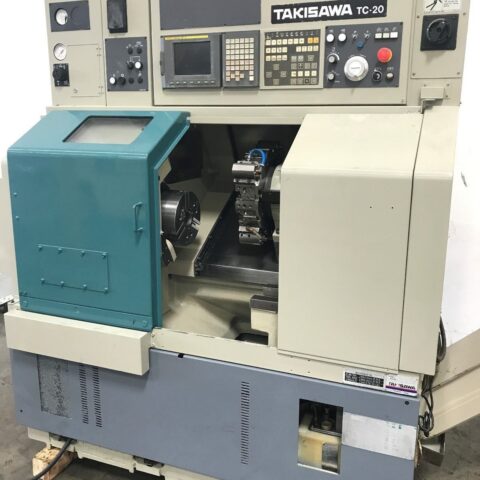

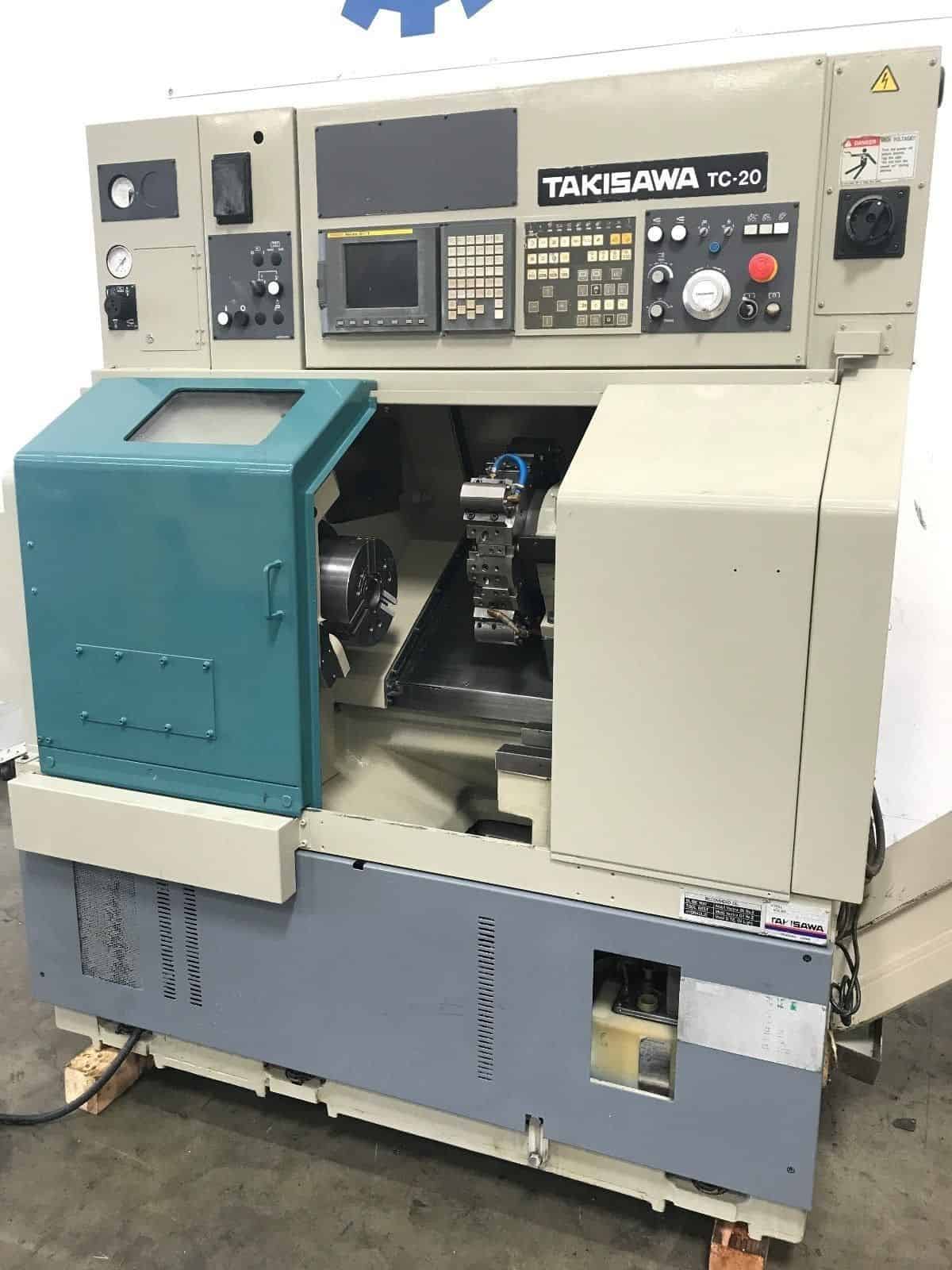

TAKISAWA TC-20 CNC TURNING CENTER
Make Takisawa
Model No. TC-20

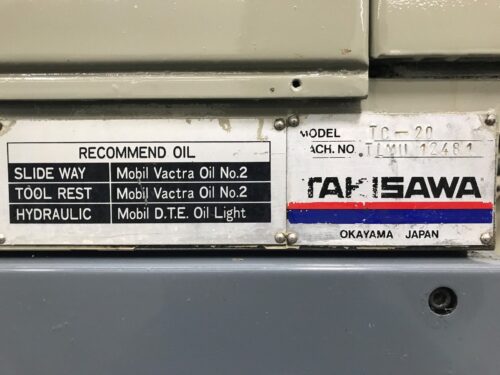

Serial # TLMU-12481
Condition Very Good
Made in Japan

Comes with 8″ Chuck, Tool Presetter & Chip COnveyor.

“This One Owner machine has 8″ Chuck, Tool Setter, Tailstock, Chip Conveyor. Tailstock was in a box since day one, we just installed it. On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops. Made in Japan.”

  • TAKISAWA TC-20 CNC Equipped With:

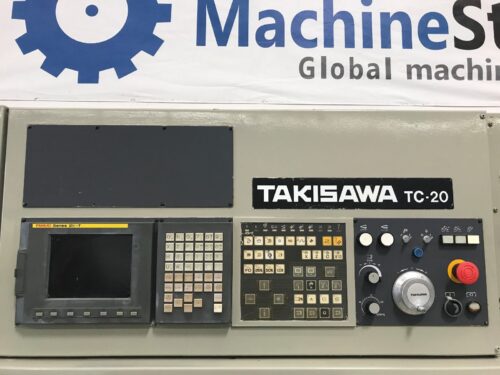

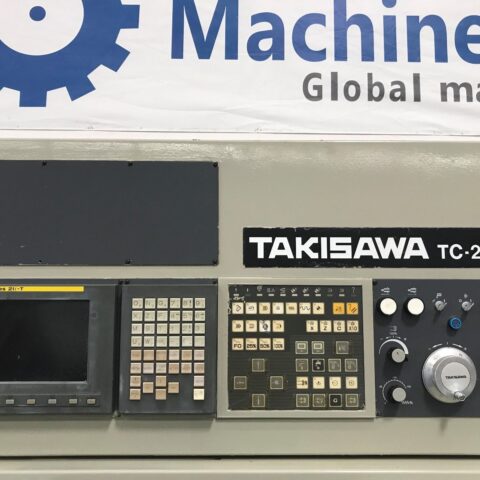

  • Fanuc 21iT CNC Control

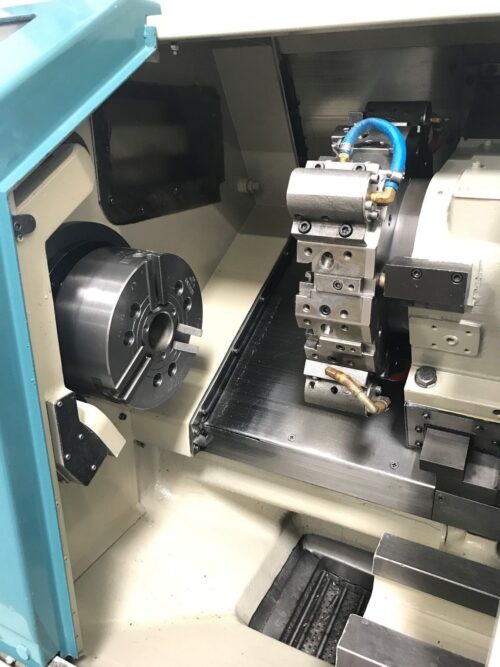

  • 8″ Kitagawa Hydraulic Chuck
  • Tool Presetter
  • Hydraulic Tailstock
  • PC Card Slot
  • Coolant System
  • Barfeed Interface
  • RS-232 ports
  • 12 Station Automatic Turret
  • Foot Switch

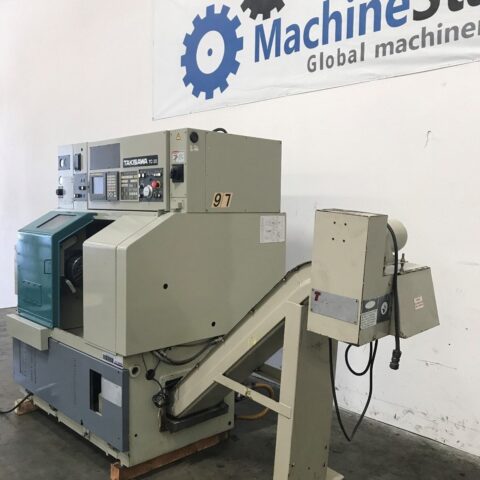

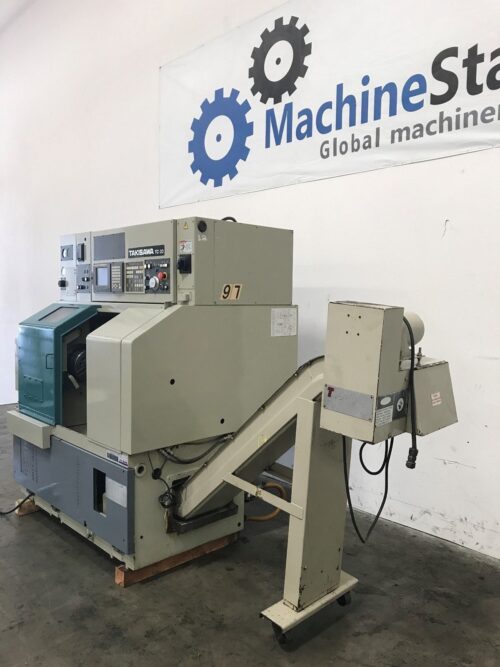

  • Chip Conveyor
  • General:

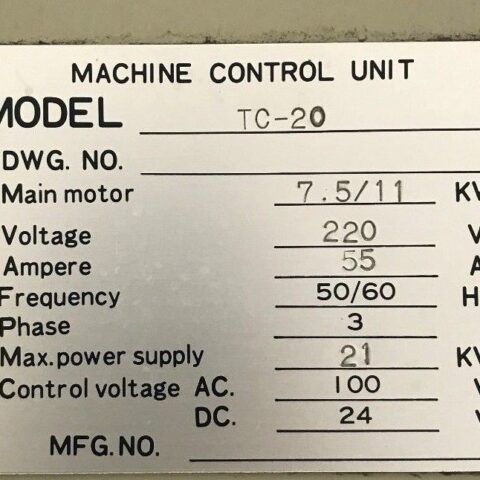

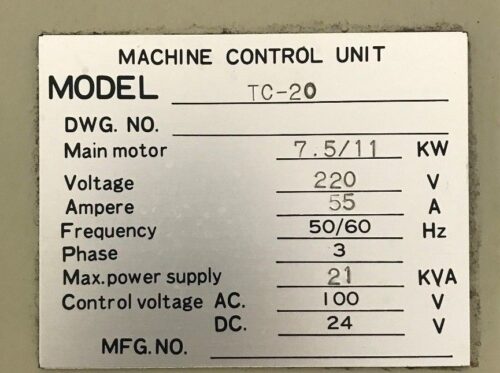

  • Power: 21 kva, 220v / 3-Phase
  • Overall Dimensions: 82″ x 55″ x 73″ High
  • Weight: 7000 lbs
  • TAKISAWA TC-20 CNC Specifications:
  • Capacity:
  • Max Turning Diameter: 10.18″
  • Max Turning Length: 23.89″
  • Max Bar Capacity: 2.04″
  • Swing Over Cross Slide: 16.53″
  • X Axis Travel: 5.6″
  • Z Axis Travel: 25.19″
  • Rapid Traverse X Axis: 790 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.28″
  • Spindle Speed: 0 – 4500 RPM
  • Spindle Motor: 15 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.2 Second

TAKISAWA TC-20 CNC Comes as shown in pictures..
