Takisawa TC-4 CNC Turning Center

Out of stock

*Pay as low as $469.79*

This One Owner machine is in good running condition. It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

SKU: 1515
Make/Model: Takisawa TC-4
Video: [fusion_button link=”https://www.youtube.com/watch?v=3osEM6Gk8xY” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1515
TAKISAWA TC-4 CNC TURNING CENTER
Make Takisawa
Model No. TC-4

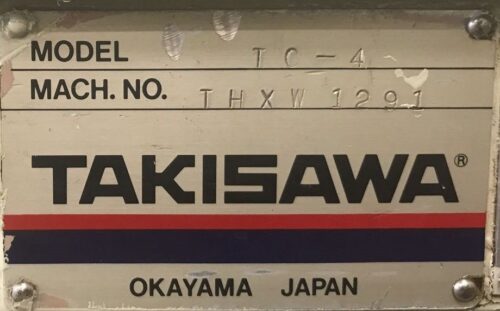

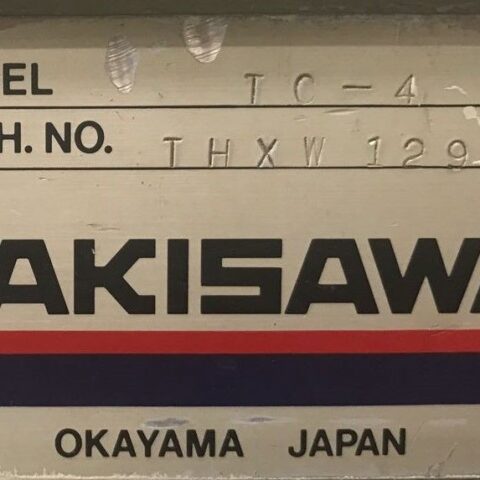

Serial # THXW1291
Condition Very Good

Comes with 12″ Chuck, Tailstock & Chip Conveyor

“This One Owner machine is in good running condition. It is equipped with 12″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

  • TAKISAWA TC-4 CNC Equipped With:

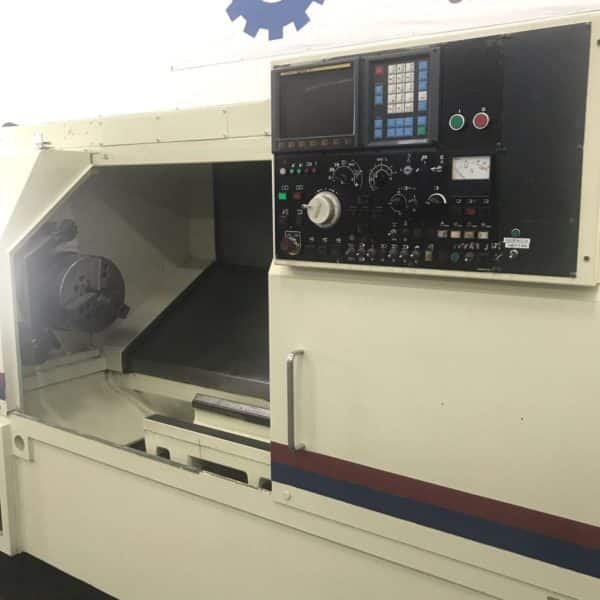

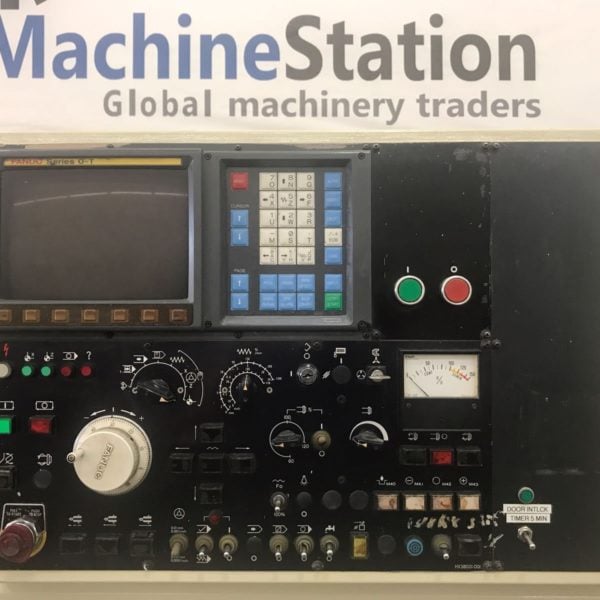

  • Fanuc OT-C CNC Control

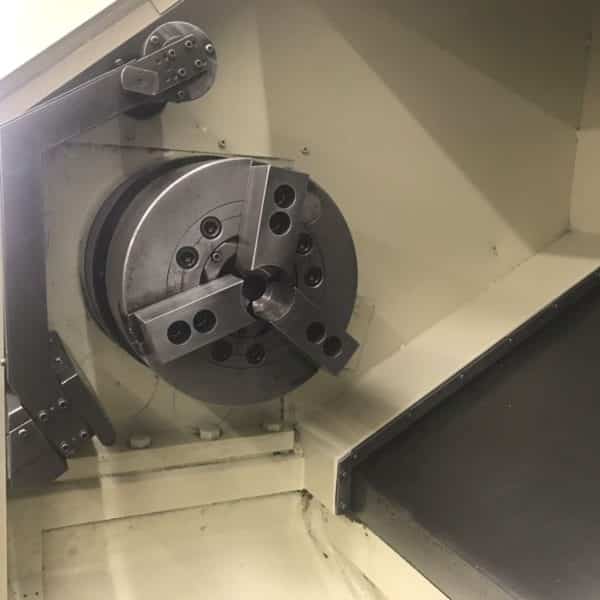

  • 12″ 3 Jaw Hydraulic Chuck ( 15″ Capable )
  • A2-11 Spindle
  • Auto Tool Presetter
  • Hydraulic Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

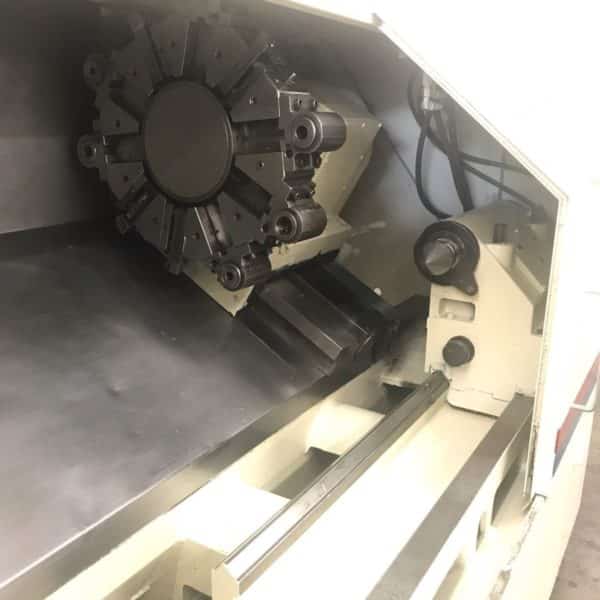

  • 10 Station Automatic Turret
  • Foot Switch
  • Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: ” High
  • Overall Dimensions: ” High with Chip Conveyor
  • Weight: 17500 lbs
  • TAKISAWA TC-4 CNC Specifications:
  • Capacity:
  • Max Turning Diameter: 17.32″
  • Max Turning Length: 40.15″
  • Max Bar Capacity: 3.5″
  • Swing Over Bed: 23.62″
  • Distance Between Centers: 44″
  • X Axis Travel: 9.8″
  • Z Axis Travel: 41.5 ”
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 630 IPM
  • Spindle Nose: A2-11
  • Spindle Bore: 4.13″
  • Spindle Speed: 25 – 2500 RPM
  • Spindle Motor: 35 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 1 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 4.6″
  • Tailstock Quill Travel: 7.1″

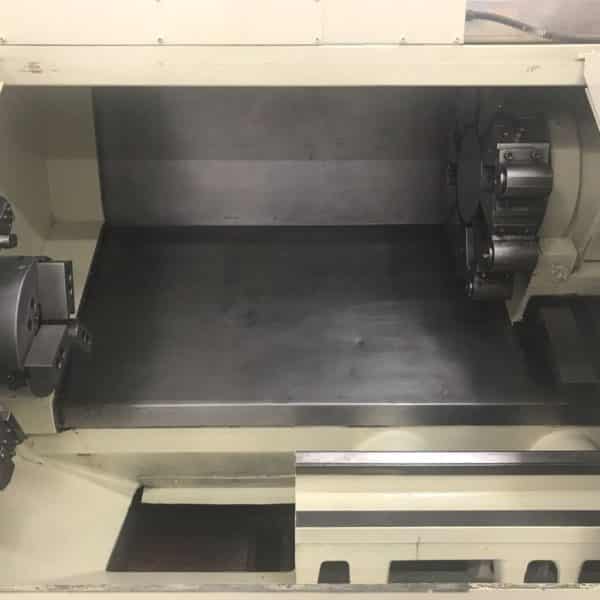

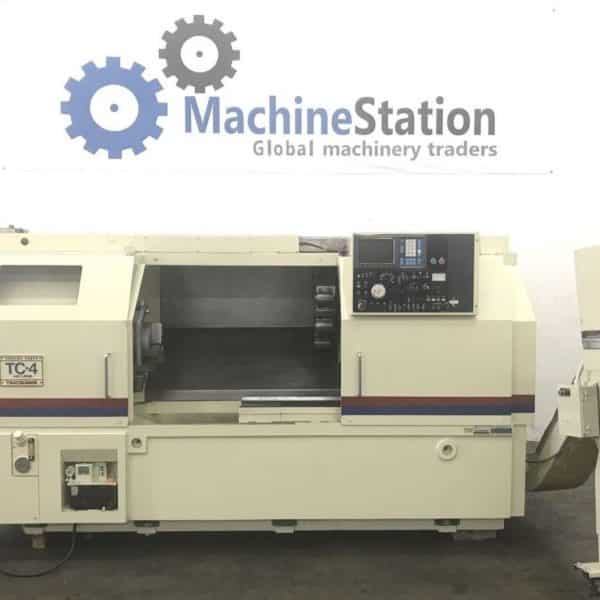

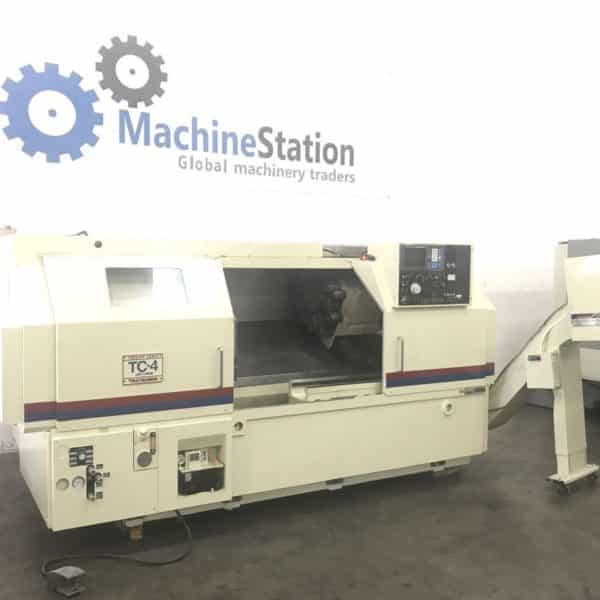

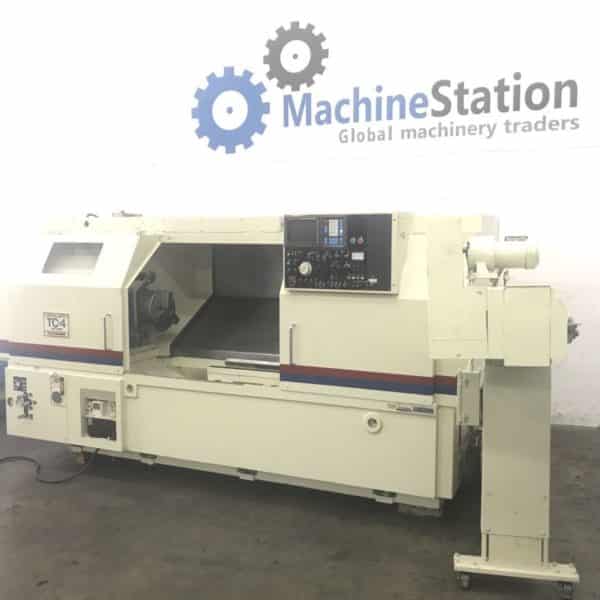

TAKISAWA TC-4 CNC Comes as shown in pictures..
