*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

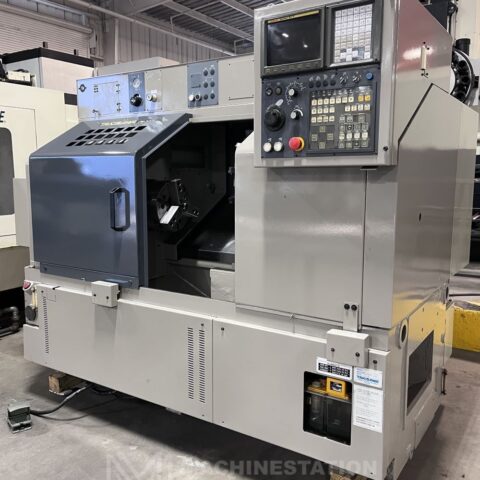

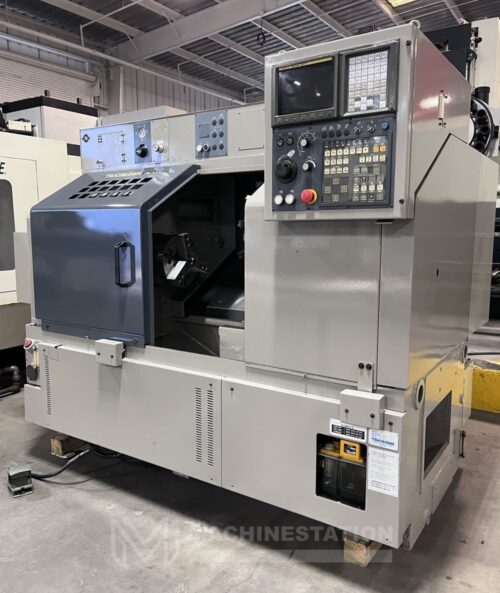

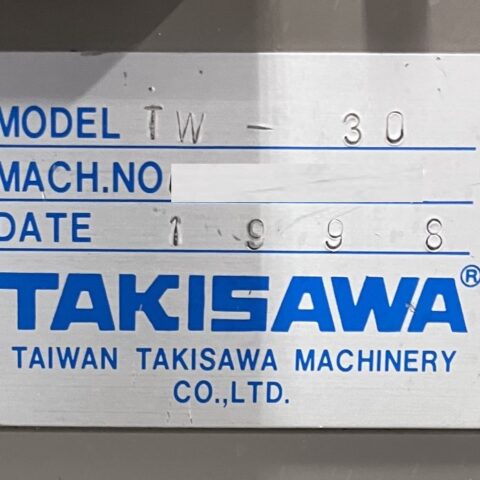

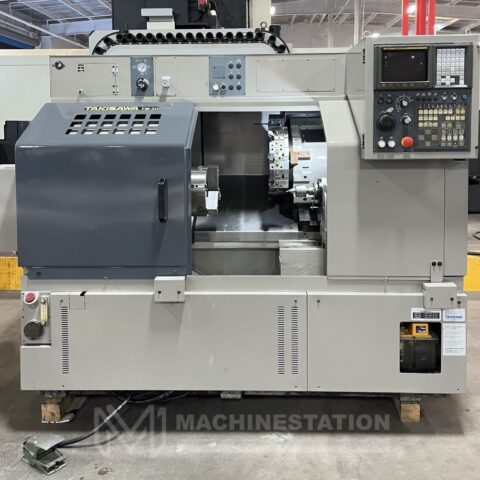

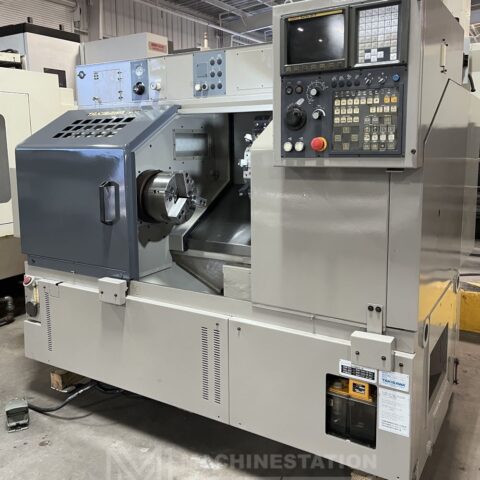

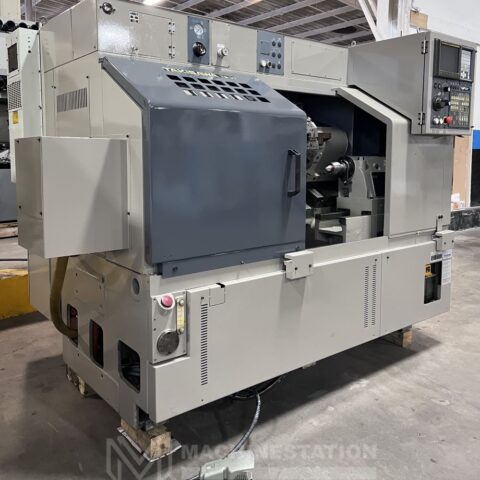

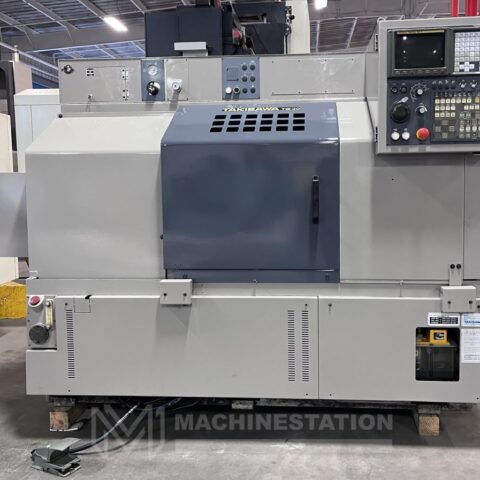

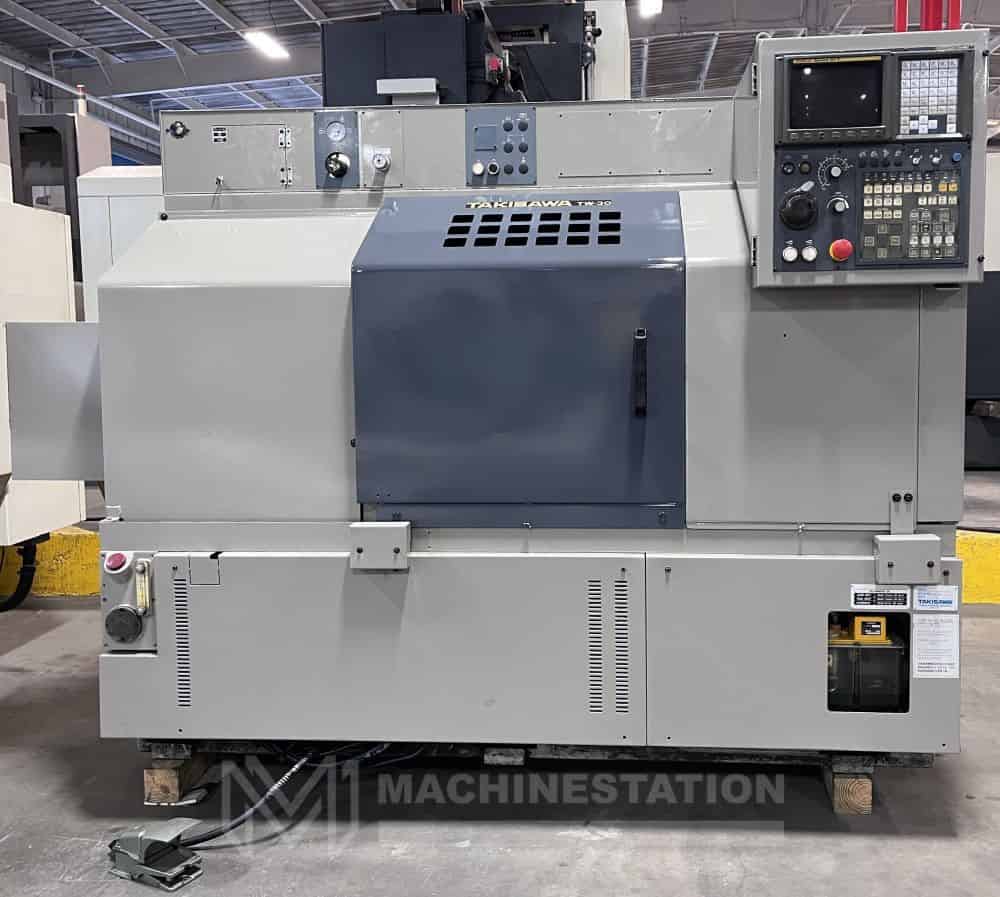

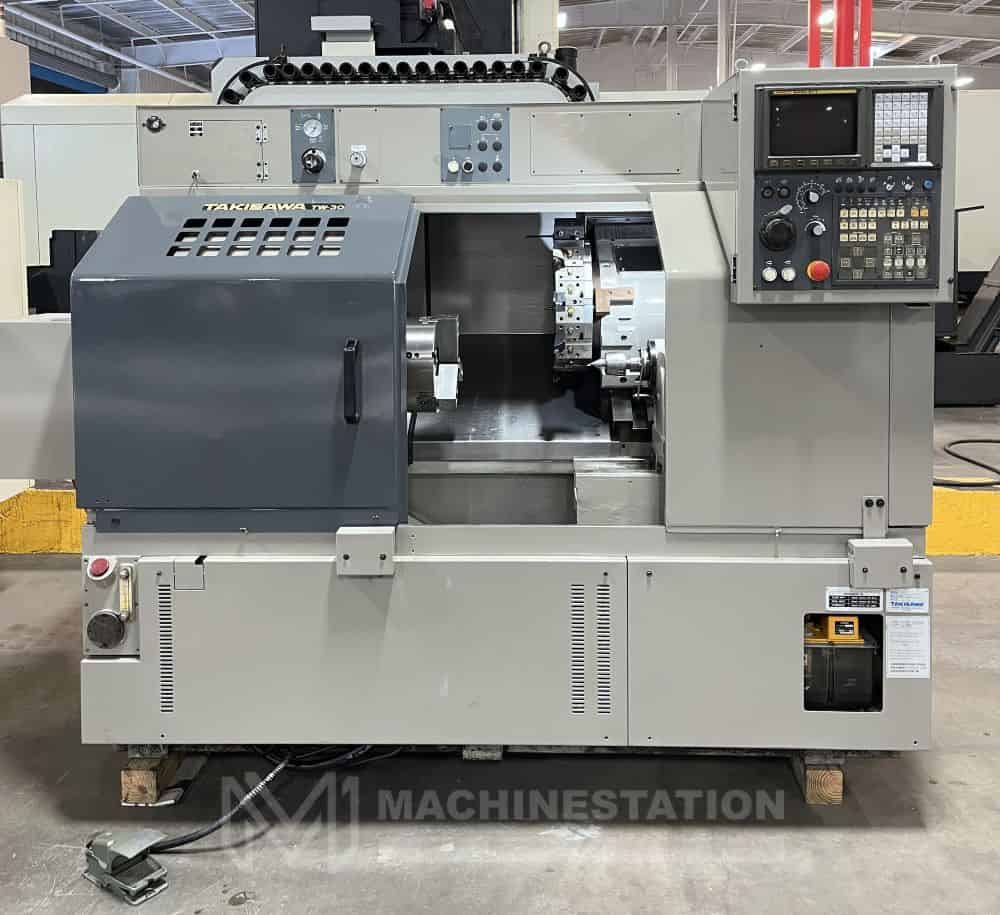

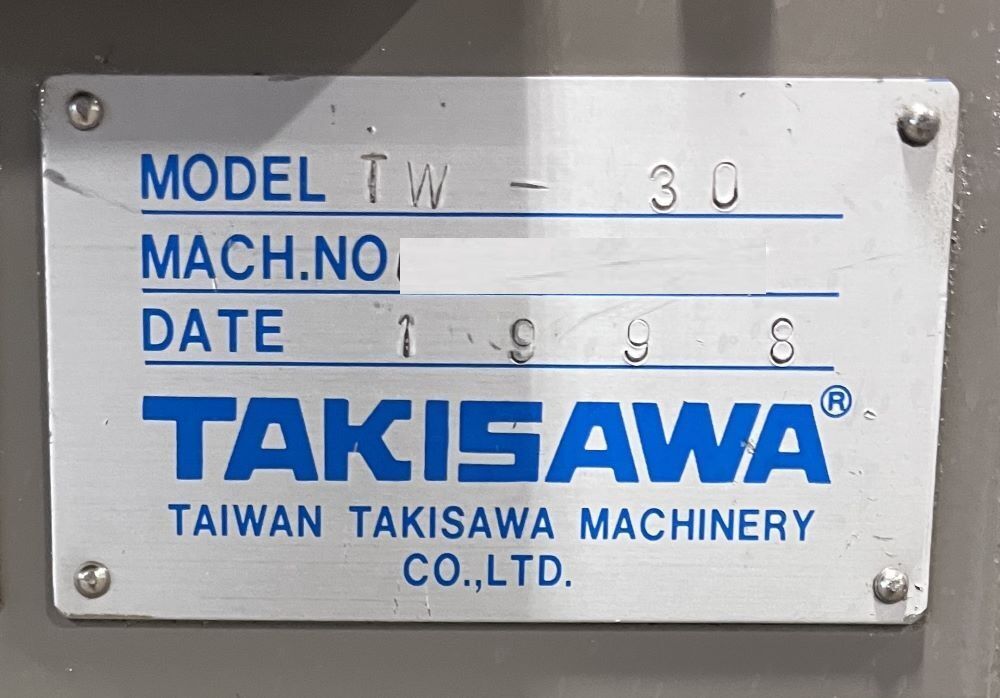

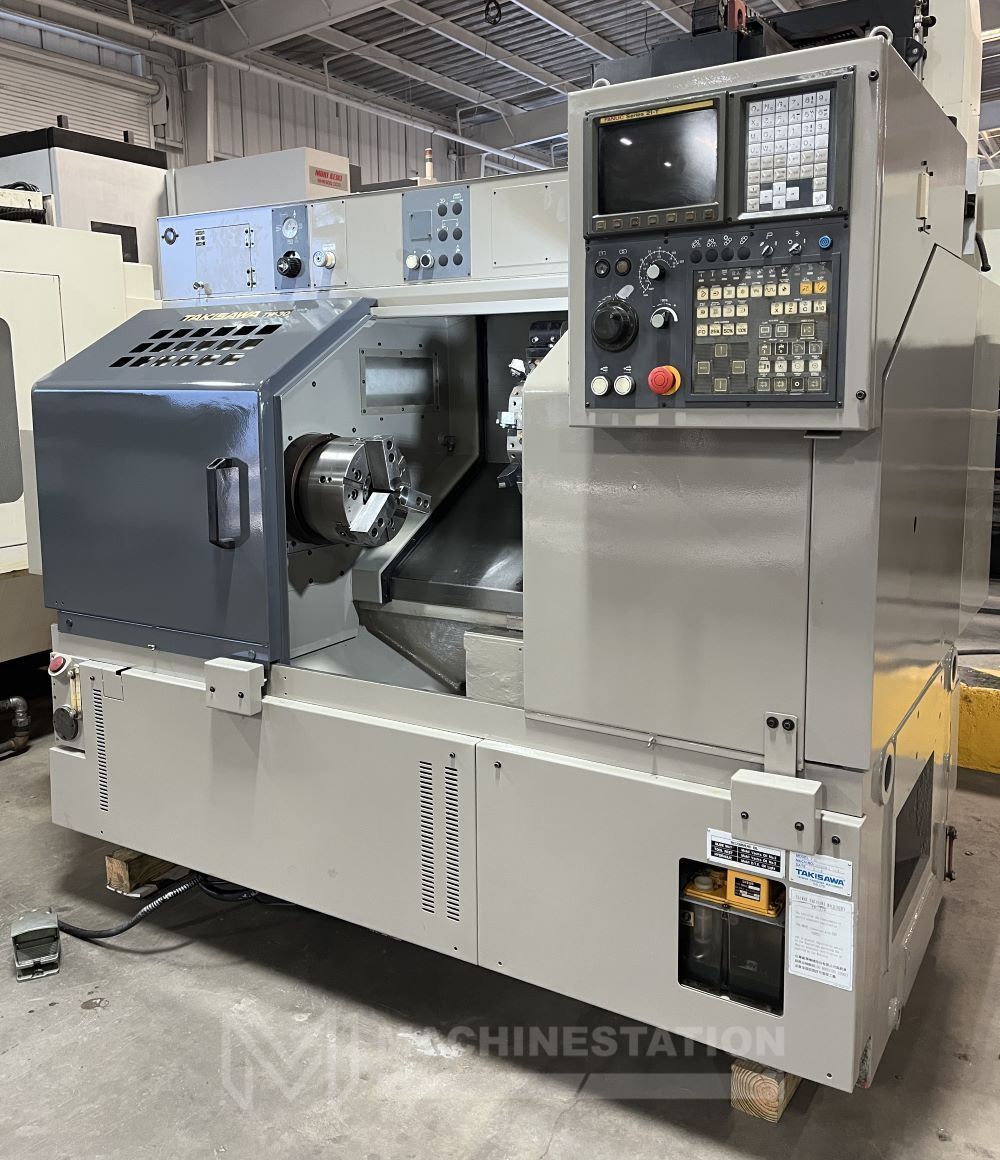

| Make: | TAKISAWA |
| Model: | TW-30 |
| Year: | 1998 |
| Condition: | Used – Good |
| Equipped With: |
|---|

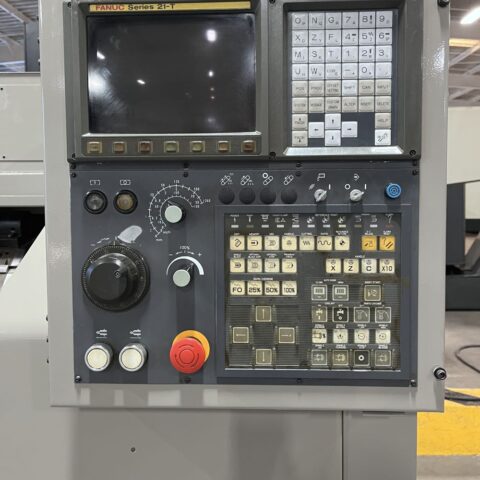

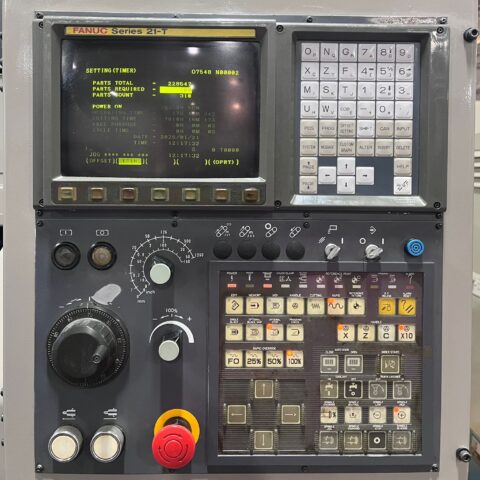

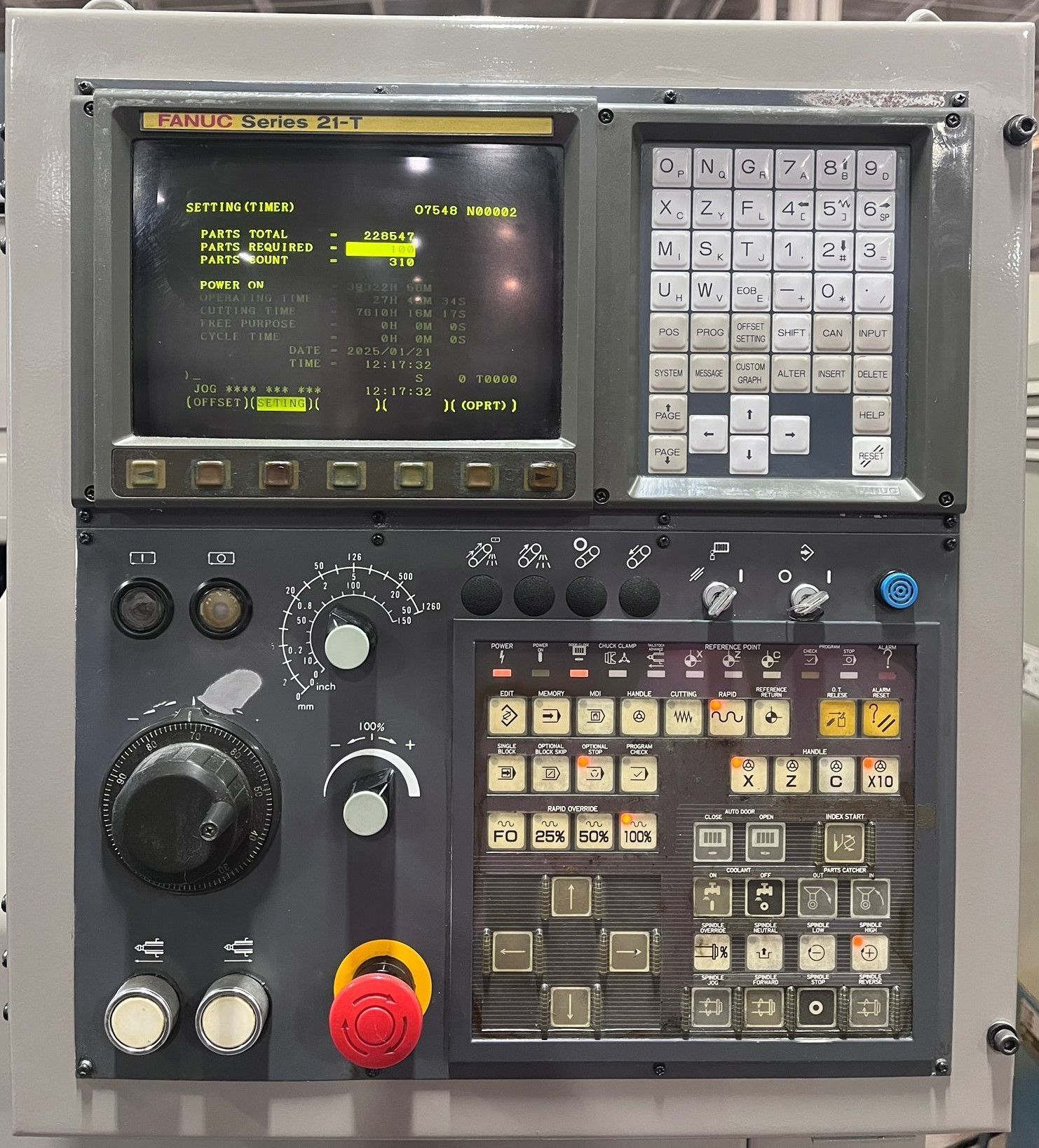

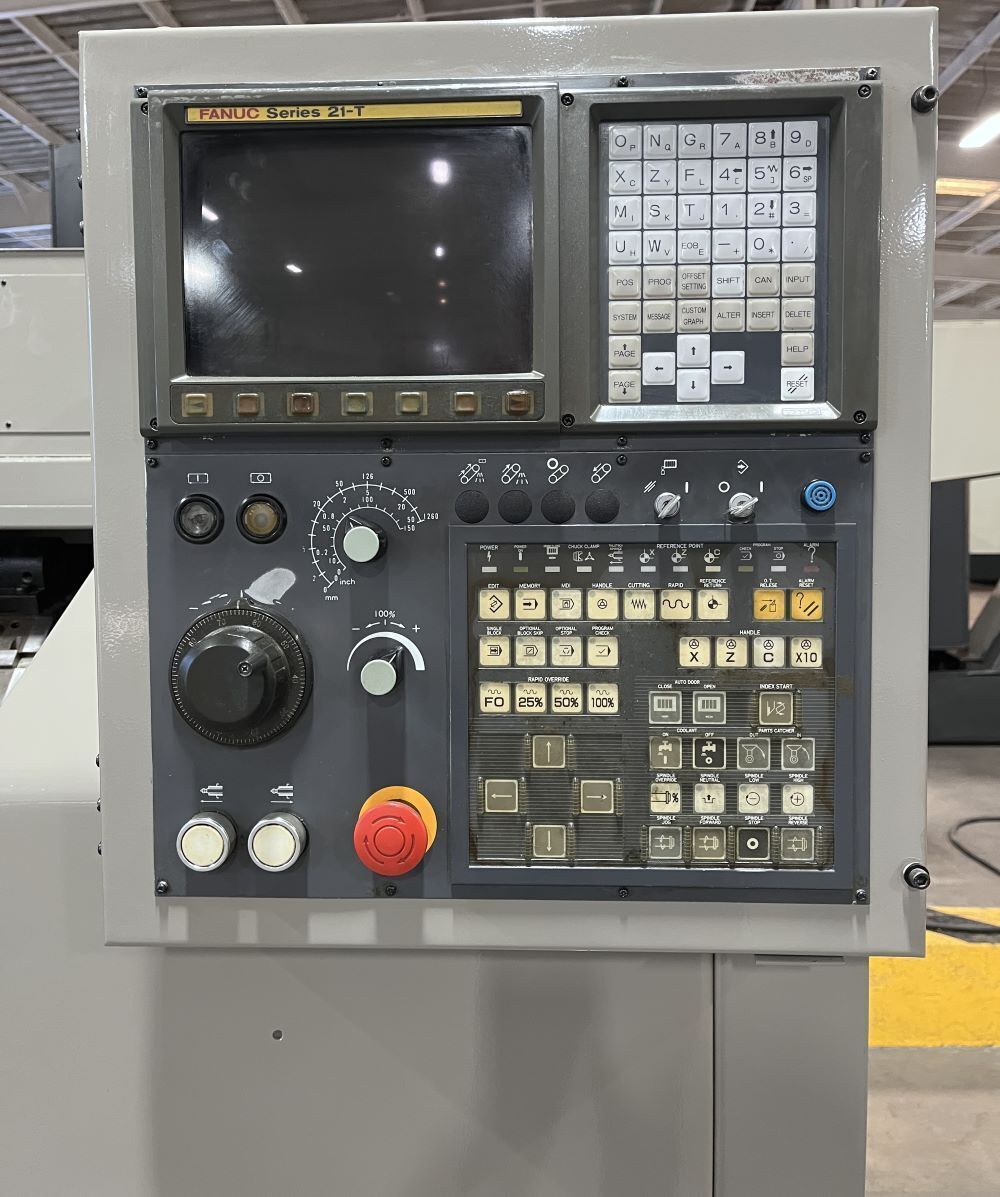

| Fanuc 21-T CNC Control |

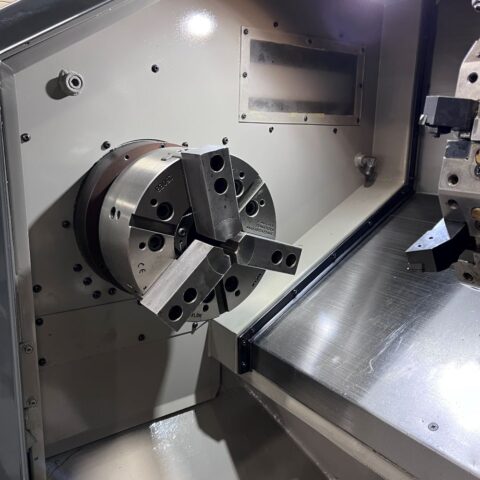

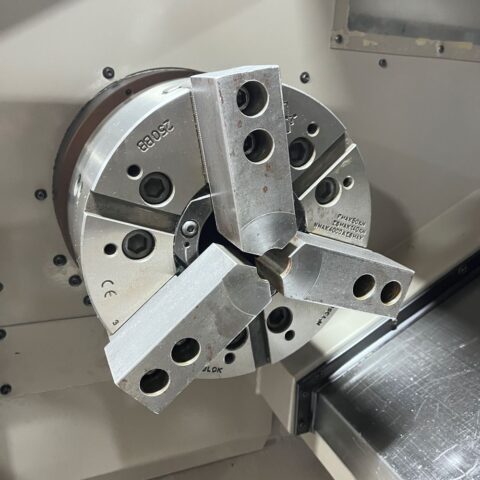

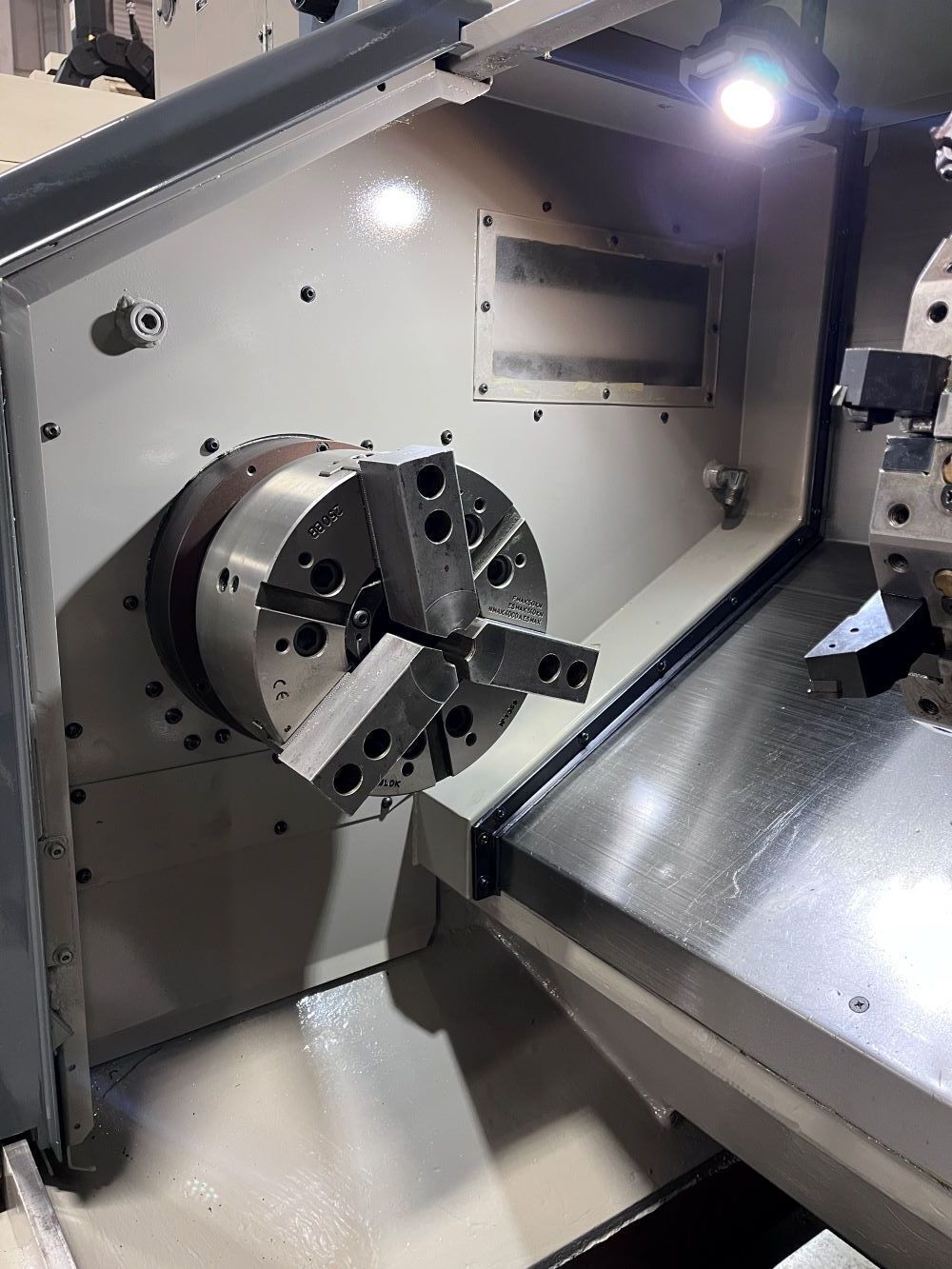

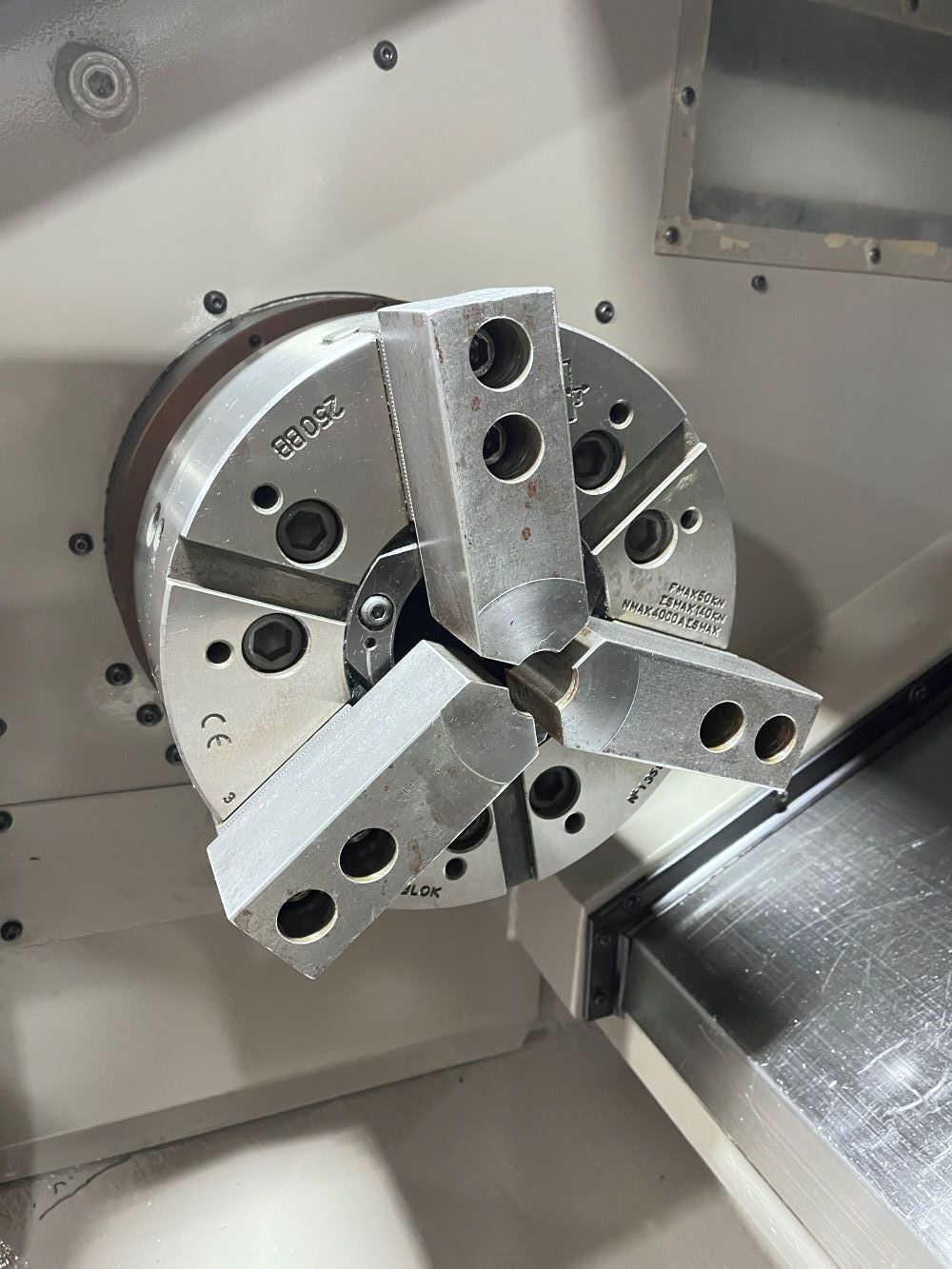

| 10” 3 Jaw Hydraulic Chuck |

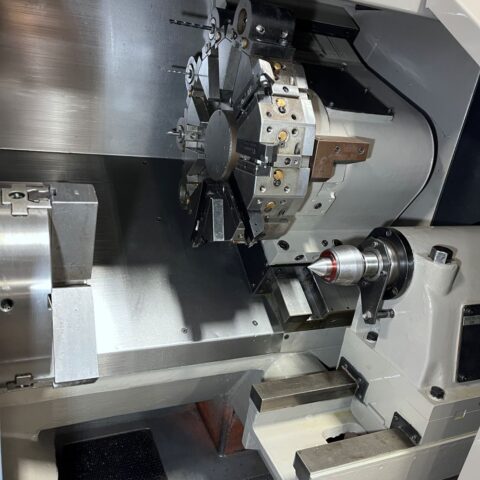

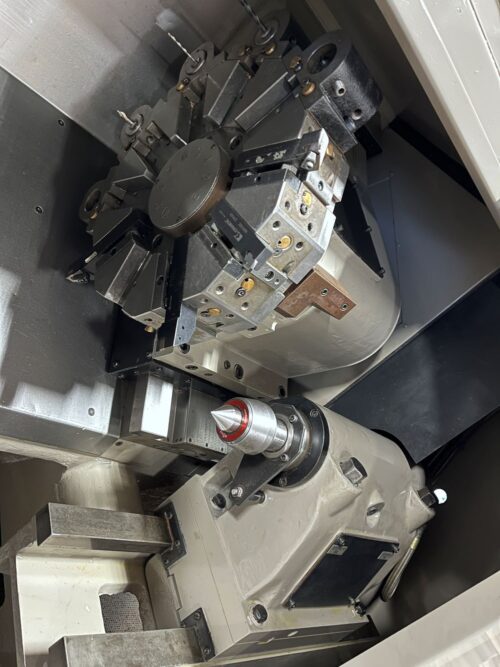

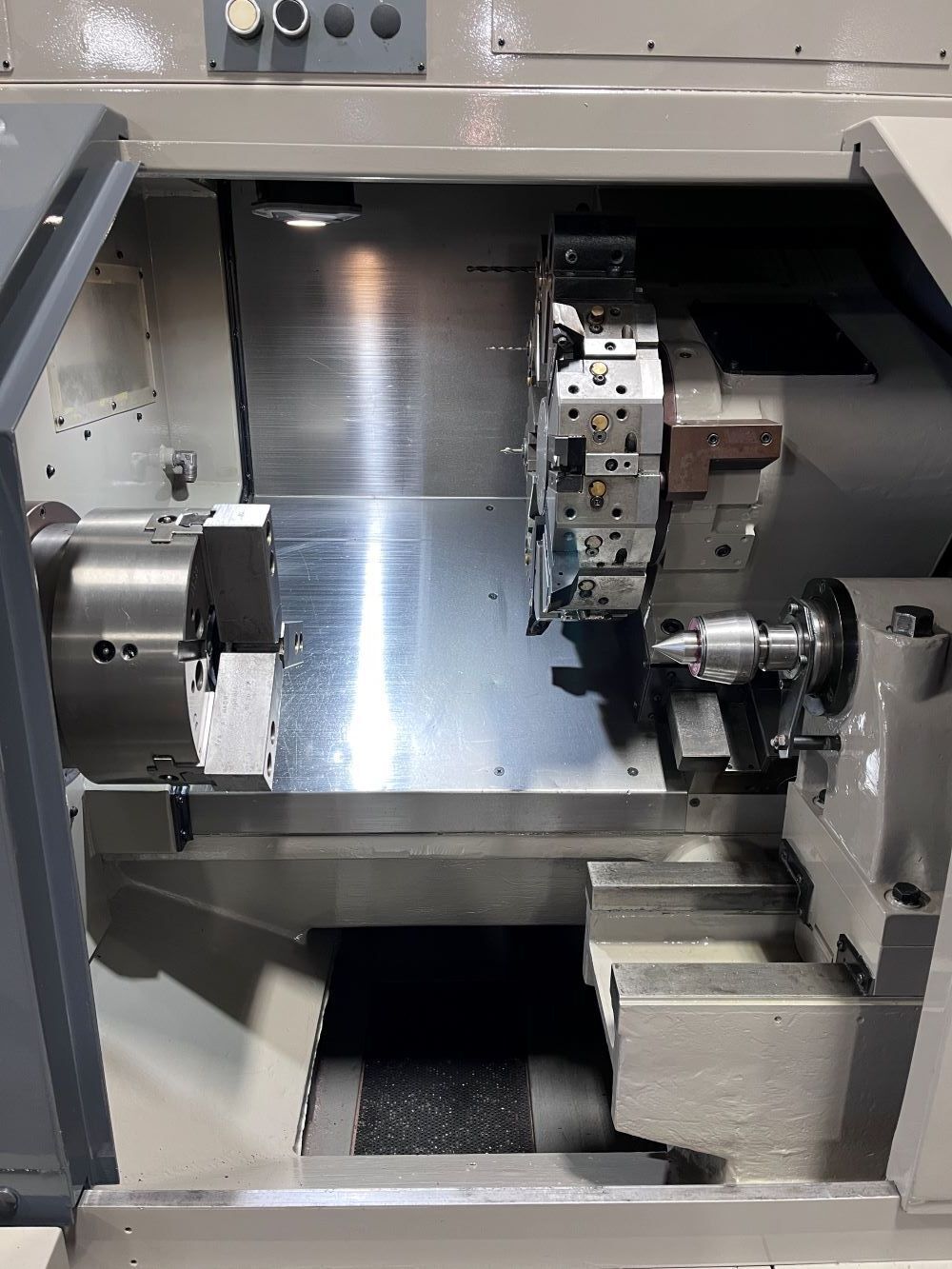

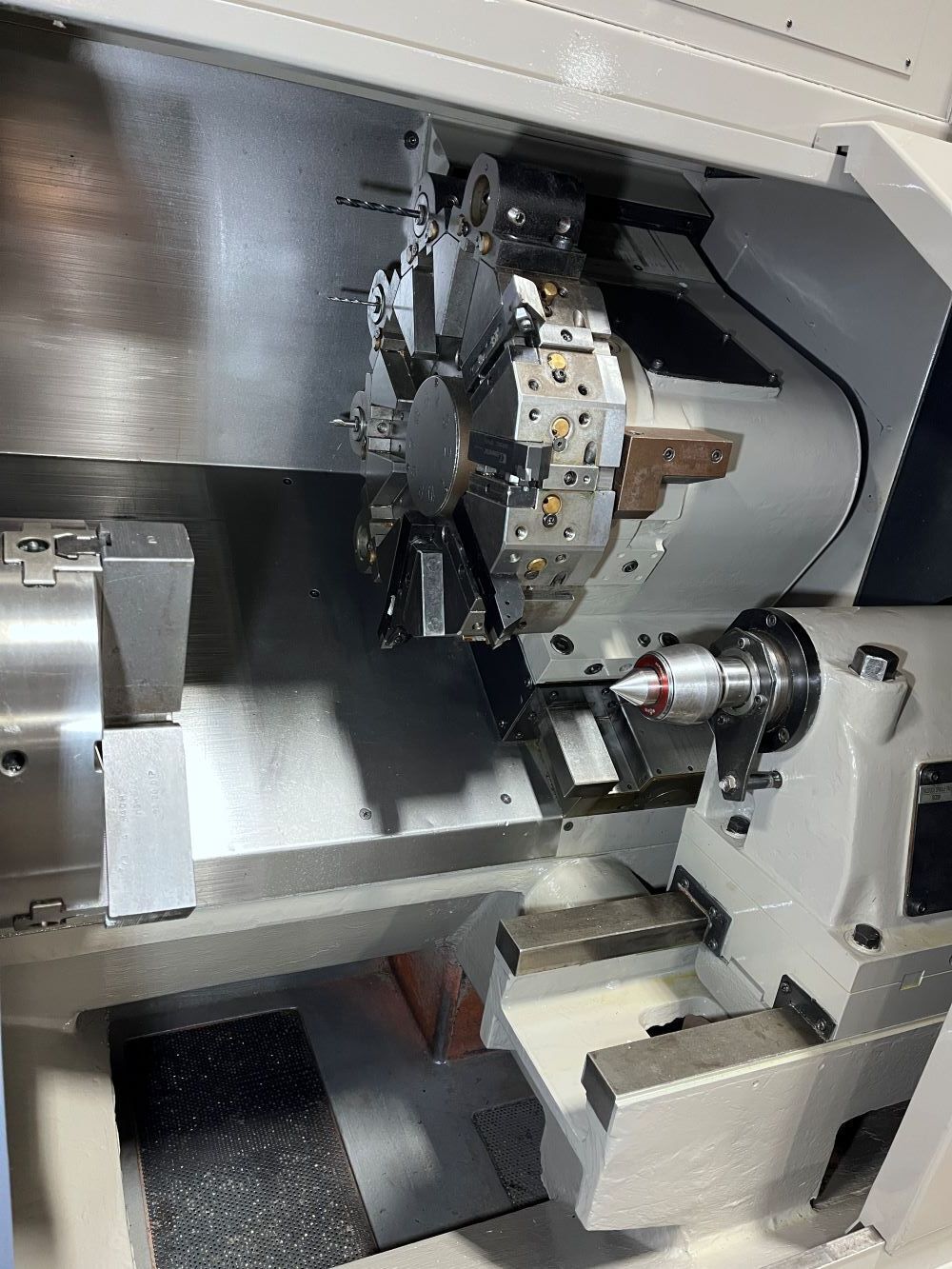

| 10-Station Turret |
| Box Ways Design |

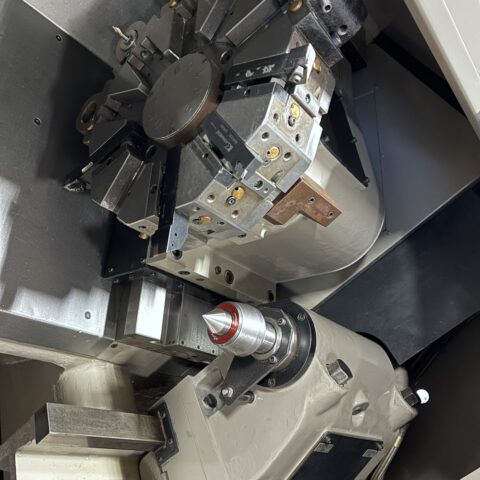

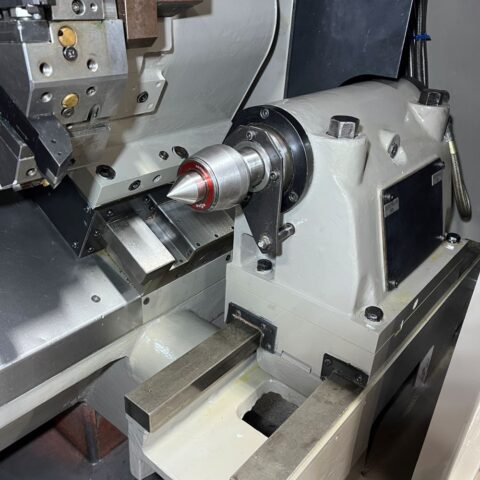

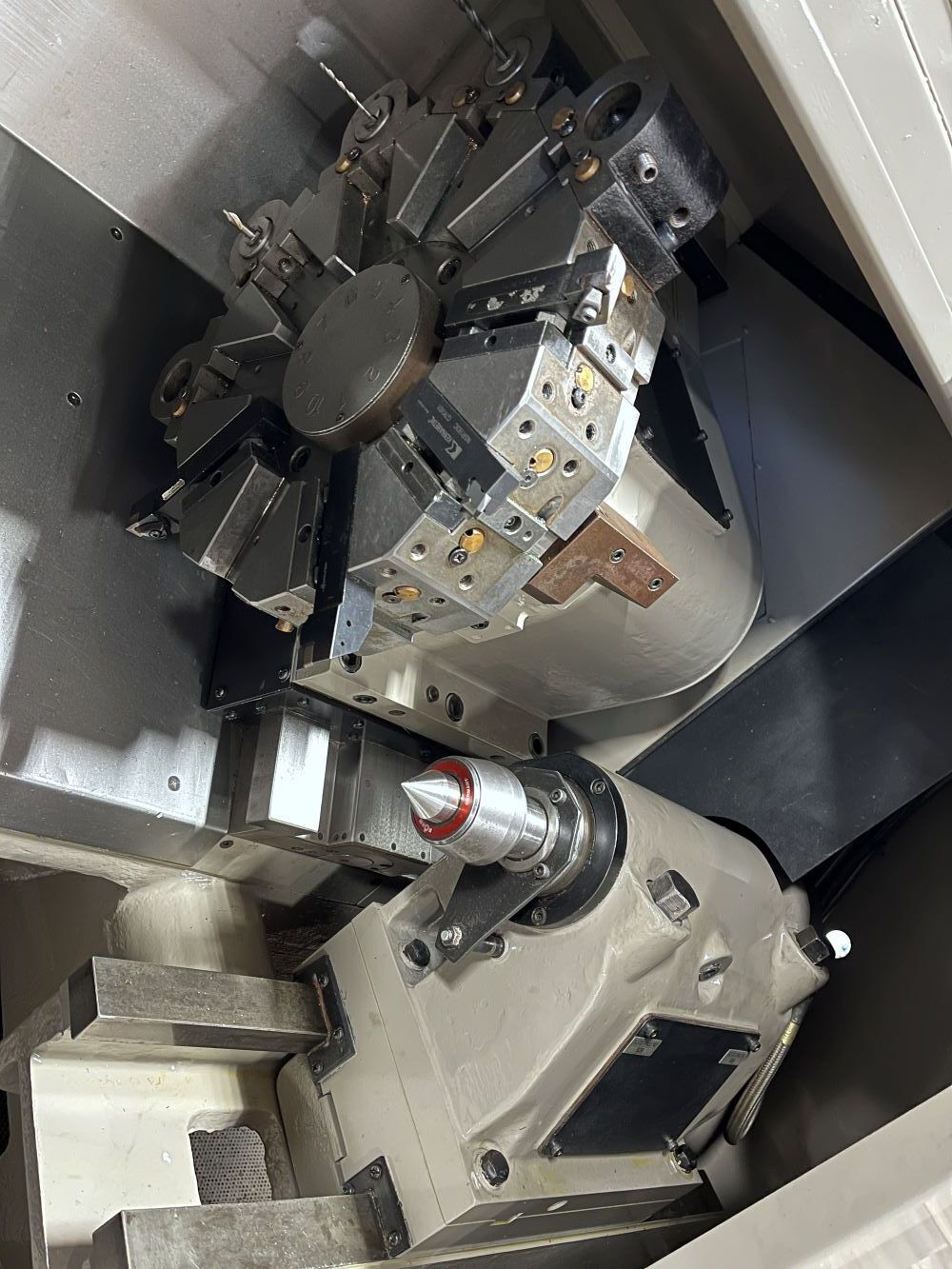

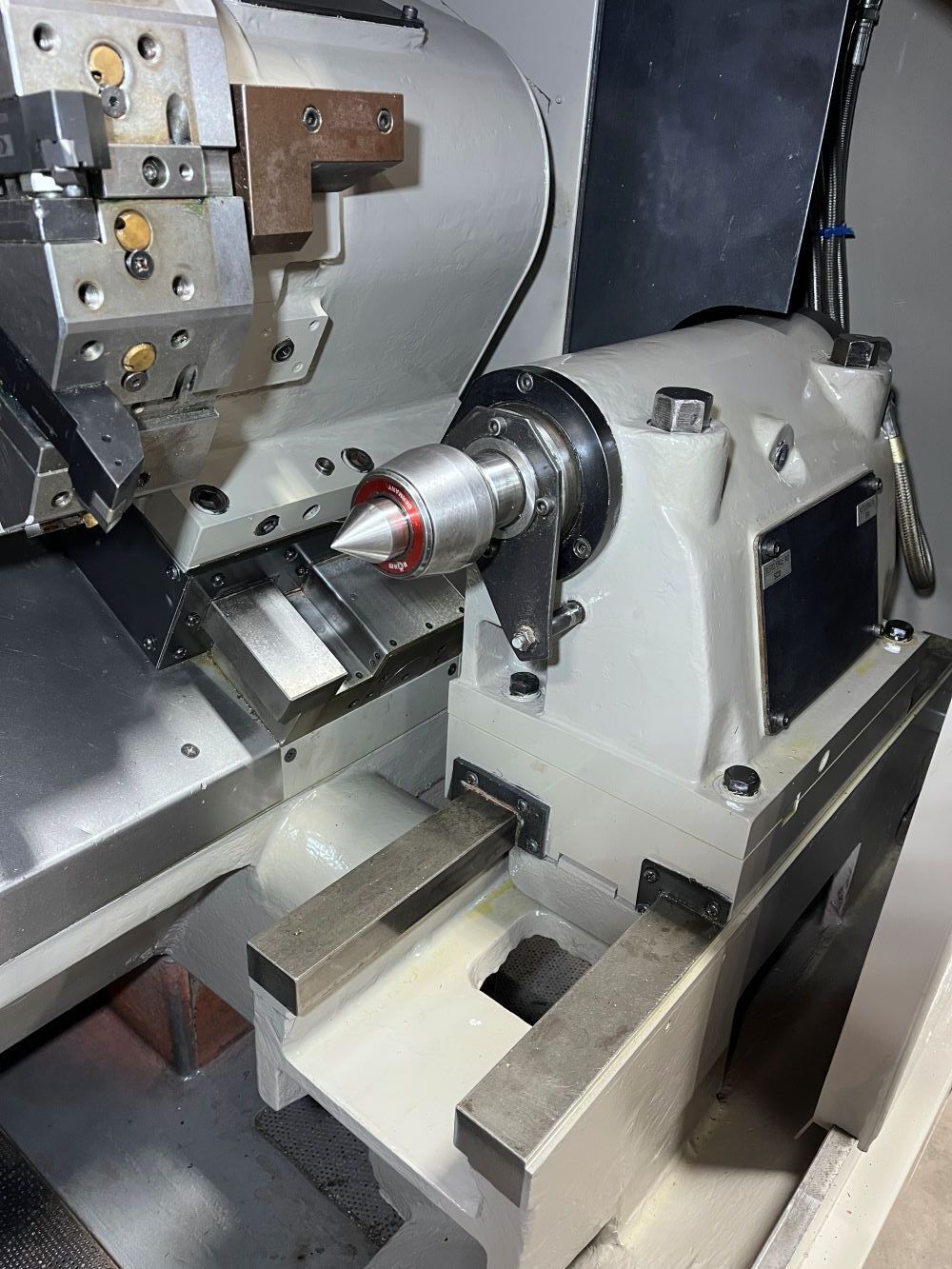

| Hydraulic Tailstock with Power Quill |
| Rigid Tapping |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck |

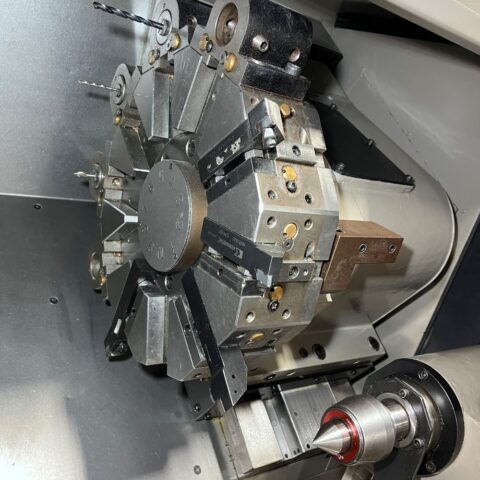

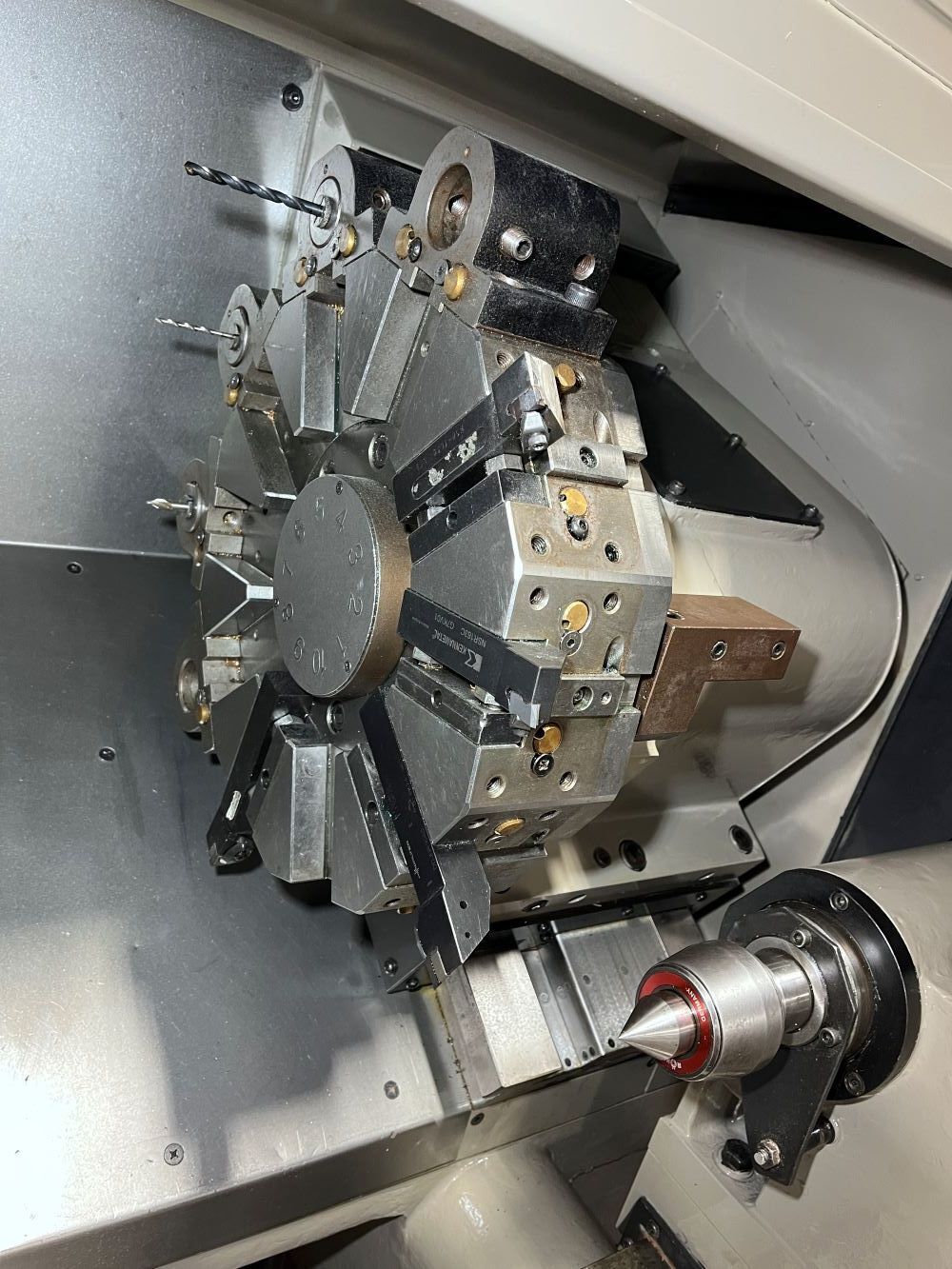

| (5) Boring Tool Holders (4) Turning Tools are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 12″ |
| Max Turning Length: 20″ |
| Max Bar Capacity: 3.0″ |
| Swing Over Bed: 19.7″ |
| Distance Between Centers: 24″ |
| Travels: |
|---|
| X Axis Travel: 6.75″ |
| Z Axis Travel: 23.0″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 785 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 3000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.5 Second |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Body Travel: 14″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Travel: 3.5″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: kva |
| Overall Dimensions: 96″ x 72″ x 75″ High |
| Weight : 9,000 lbs Approx. |
