Takisawa TW-46 CNC Long Bed Turning Center

Out of stock

This One Owner machine is in good running condition. It is equipped with 15″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

SKU: 1668
Make/Model: Takisawa TW-46
Video: [fusion_button link=”https://www.youtube.com/watch?v=8joJCQK8TQo” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1668

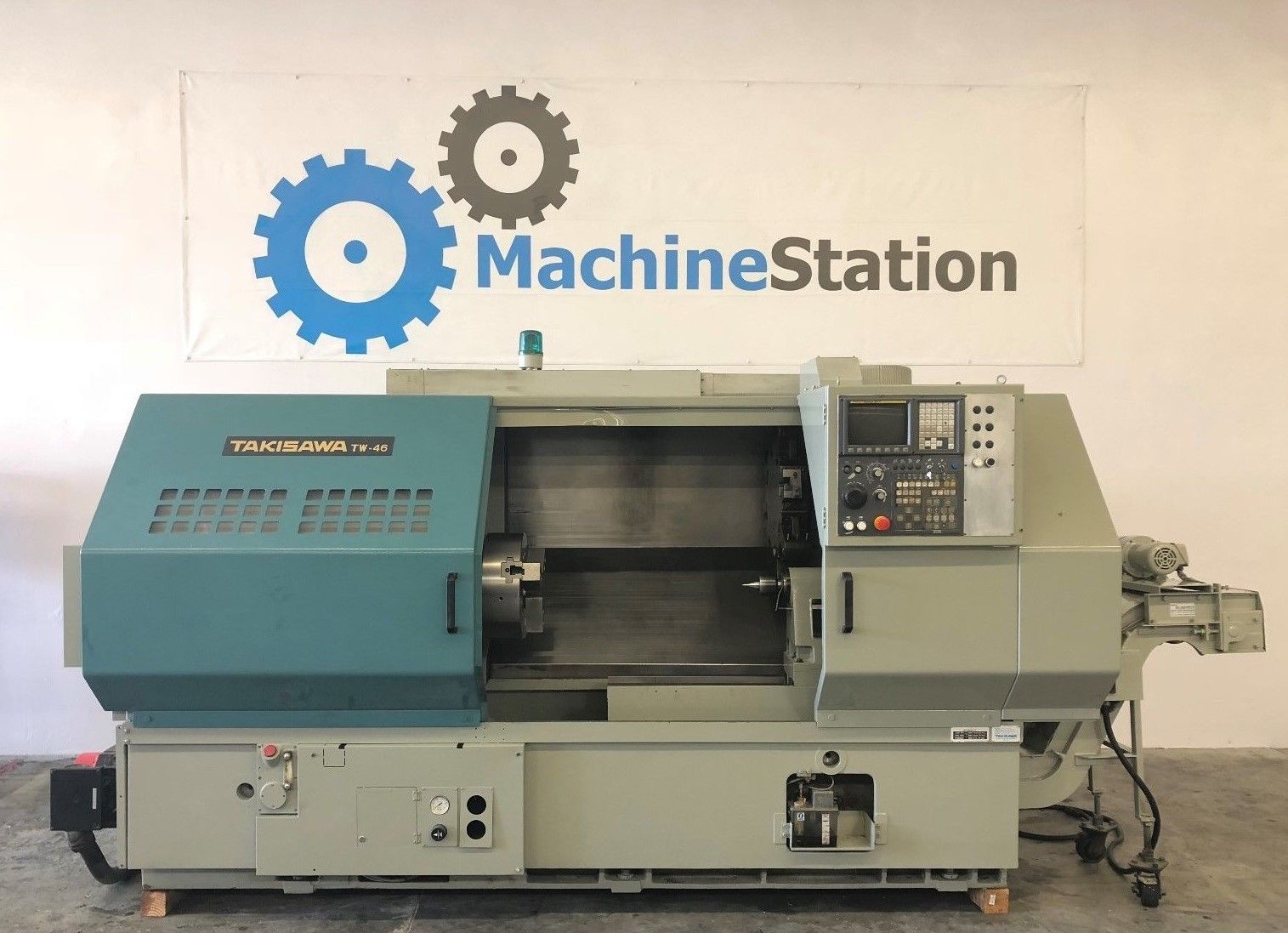

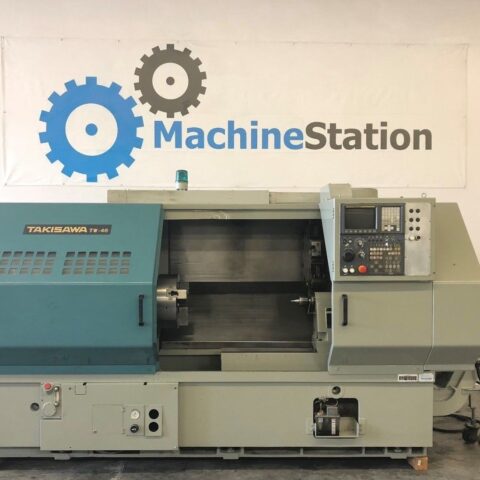

TAKISAWA TW-46 CNC LONG BED TURNING CENTER LATHE
Make Takisawa
Model No. TW-46

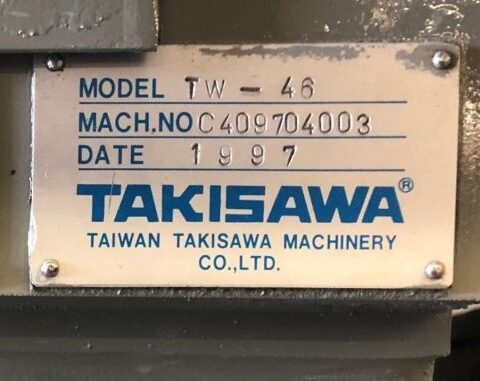

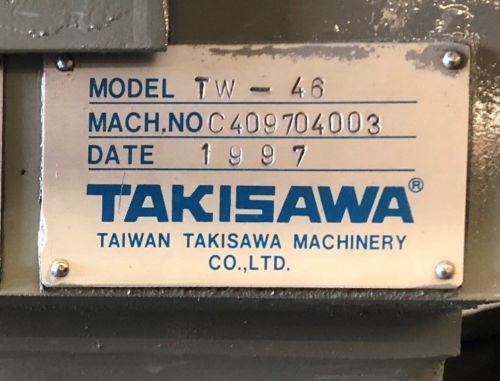

Serial # 409704003
Condition Very Good

Comes with 15″ Chuck, Tailstock, Tool Holders & Chip Conveyor

“This One Owner machine is in good running condition. It is equipped with 15″ Chuck, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition.”

  • Takisawa TW-46 Equipped With:

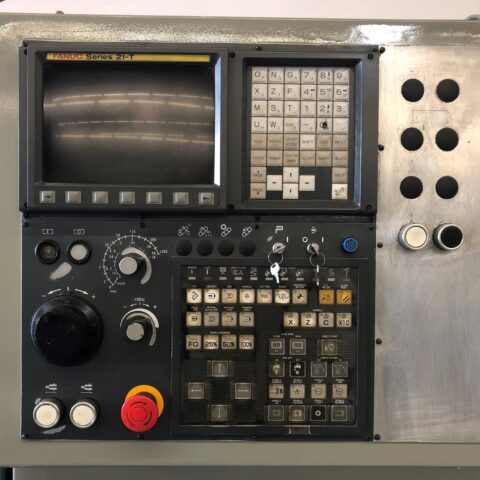

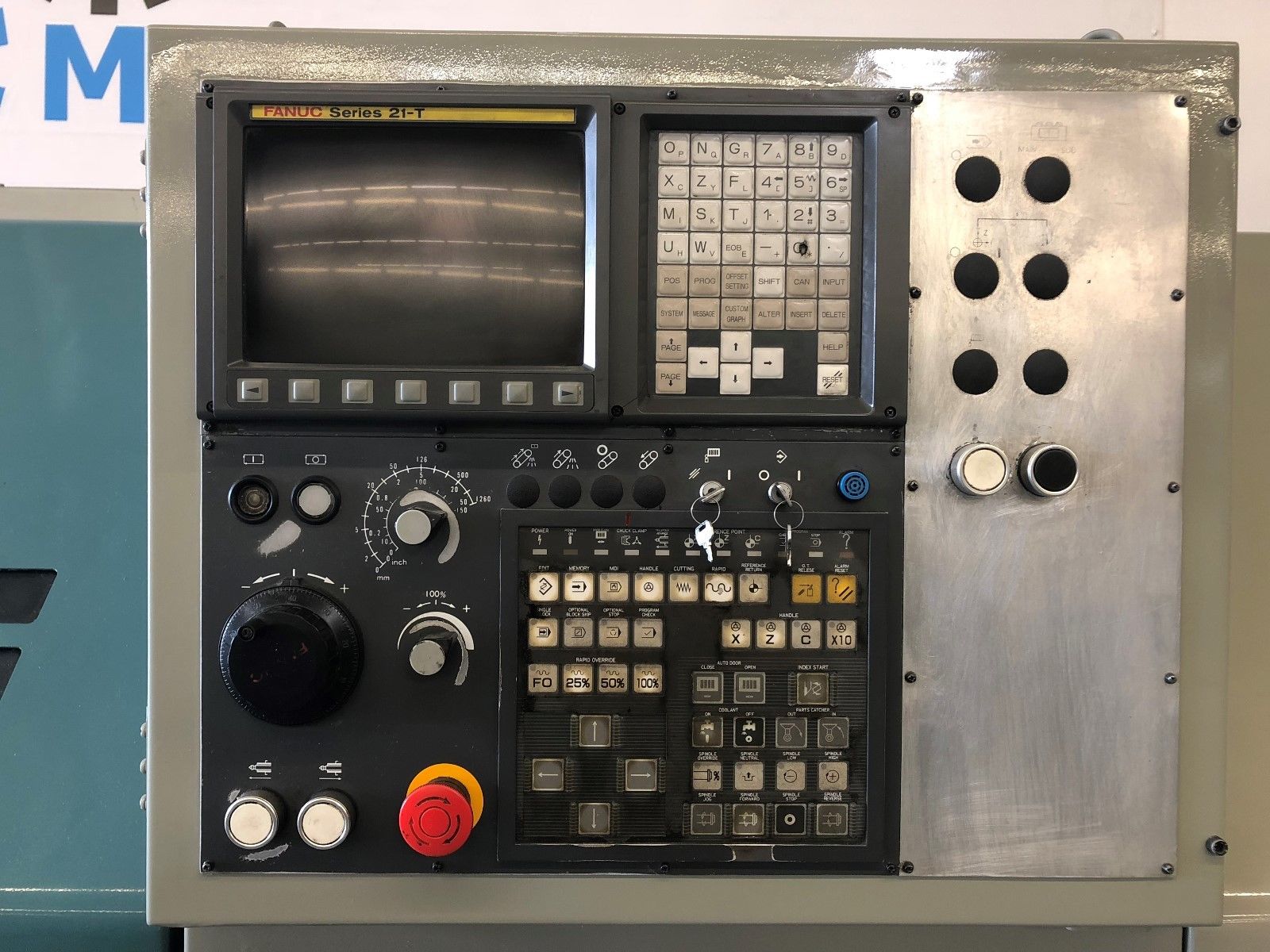

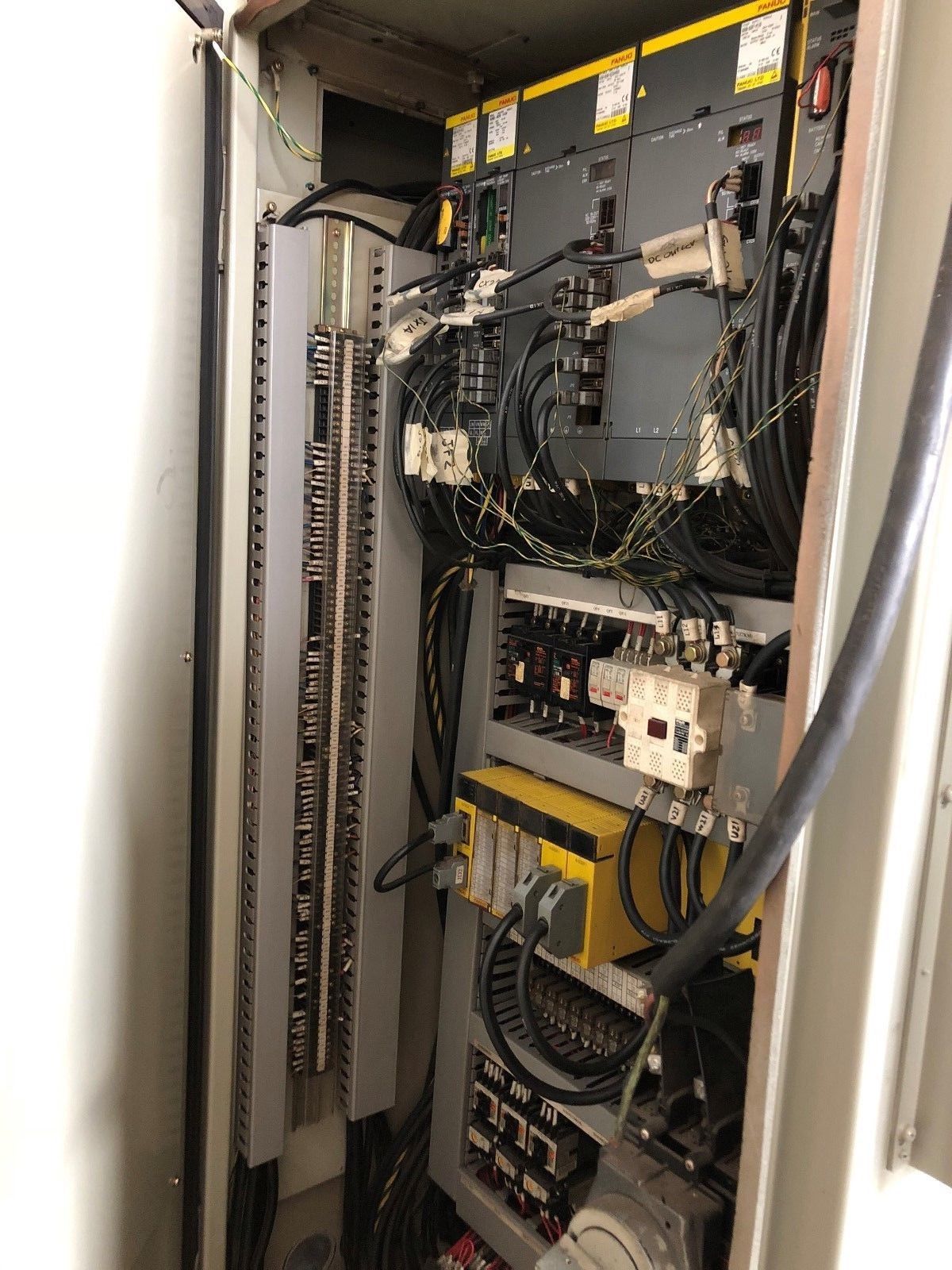

  • Fanuc 21-T CNC Control
  • 15″ 3 Jaw Hydraulic Chuck
  • A2-8 Spindle

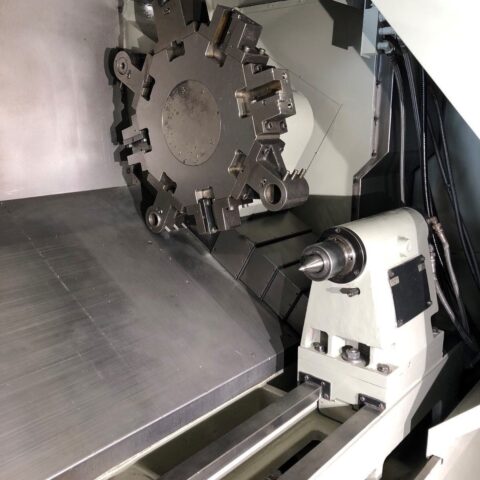

  • Hydraulic Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

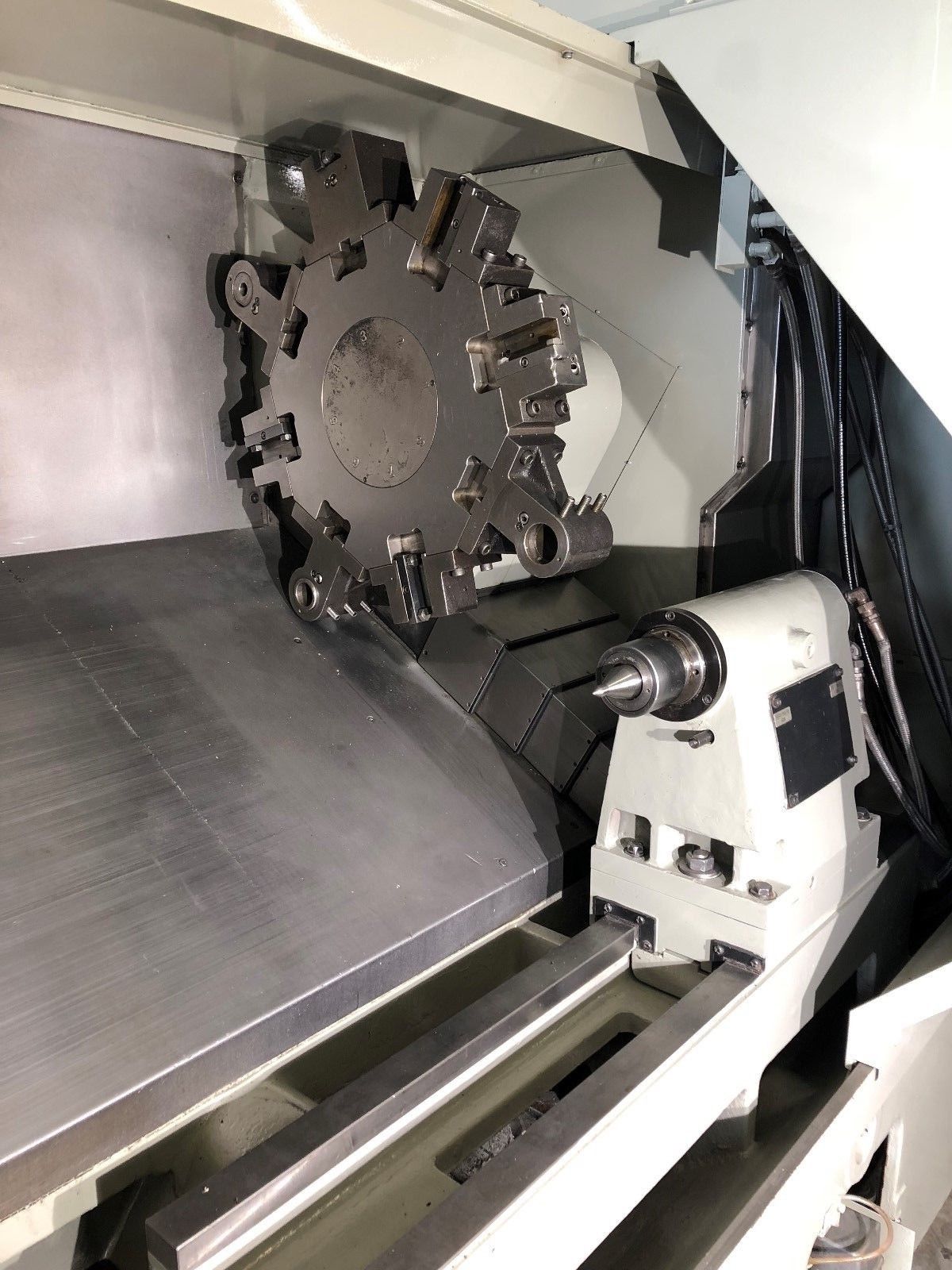

  • 8 Station Automatic Turret
  • Foot Switch

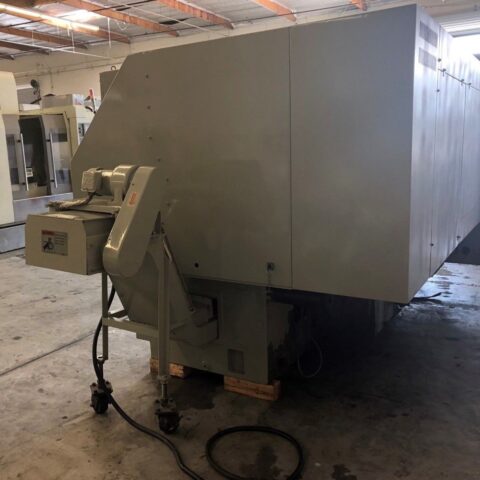

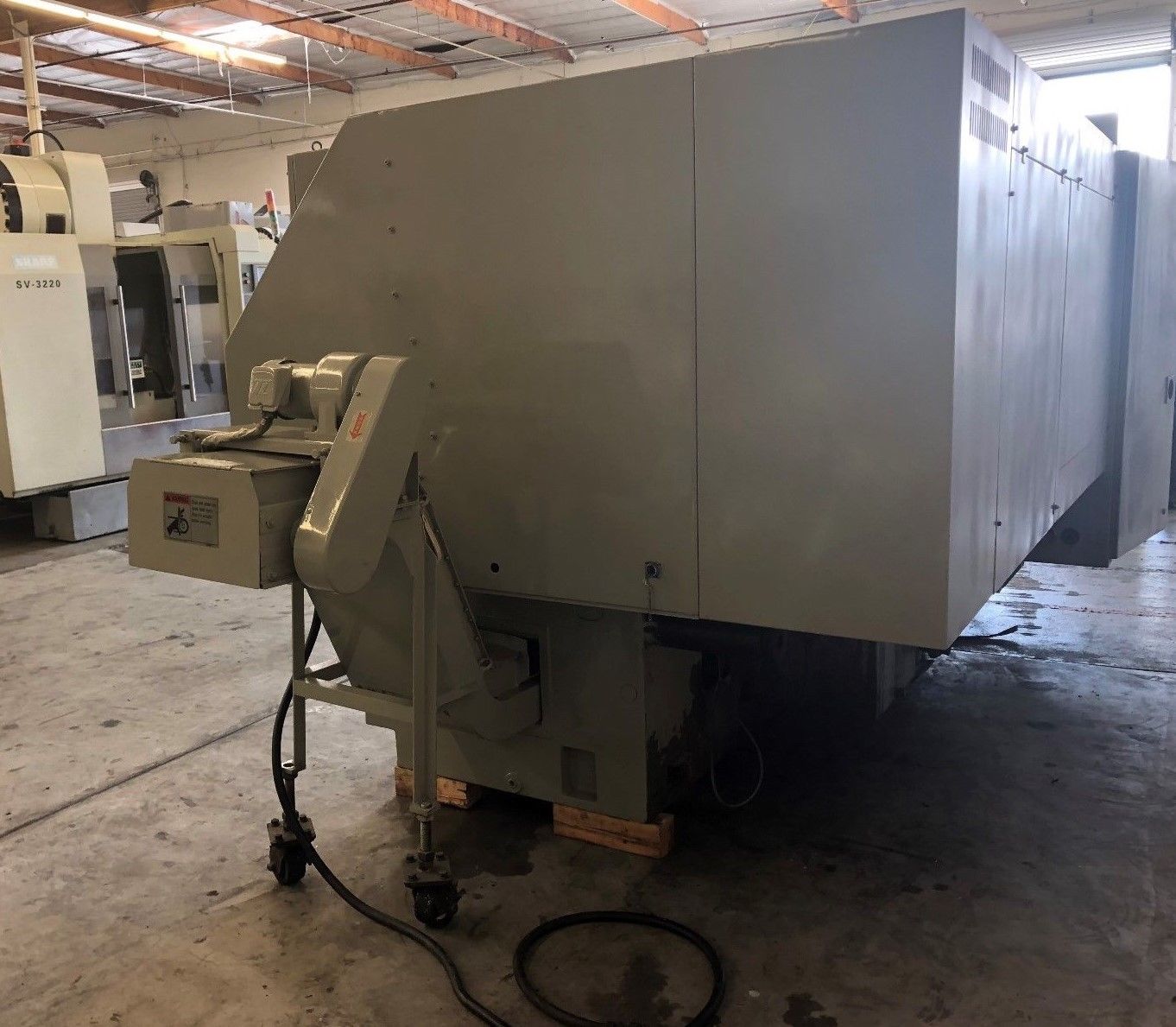

  • Chip Conveyor
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 140″ X 72″ X 72 ” High
  • Overall Dimensions: 200″ X 72″ X 72″ High with Chip Conveyor
  • Weight: 14000 lbs
  • Takisawa TW-46 Specifications:
  • Capacity:
  • Max Turning Diameter: 18.5″
  • Max Turning Length: 38.52″
  • Max Bar Capacity: 3.0″
  • Swing Over Bed: 23.82″
  • Distance Between Centers: 44.45″
  • X Axis Travel: 9.8″
  • Z Axis Travel: 38.58 ”
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 630 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.58″
  • Spindle Speed: 25 – 2500 RPM
  • Spindle Motor: 35 HP
  • Turret Capacity: 8 Stations
  • Turret Index Time: 1 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 4.6″
  • Tailstock Quill Travel: 4.72″
  • Tailstock Body Travel: 37.79″

Takisawa TW-46 Comes as shown in pictures..
