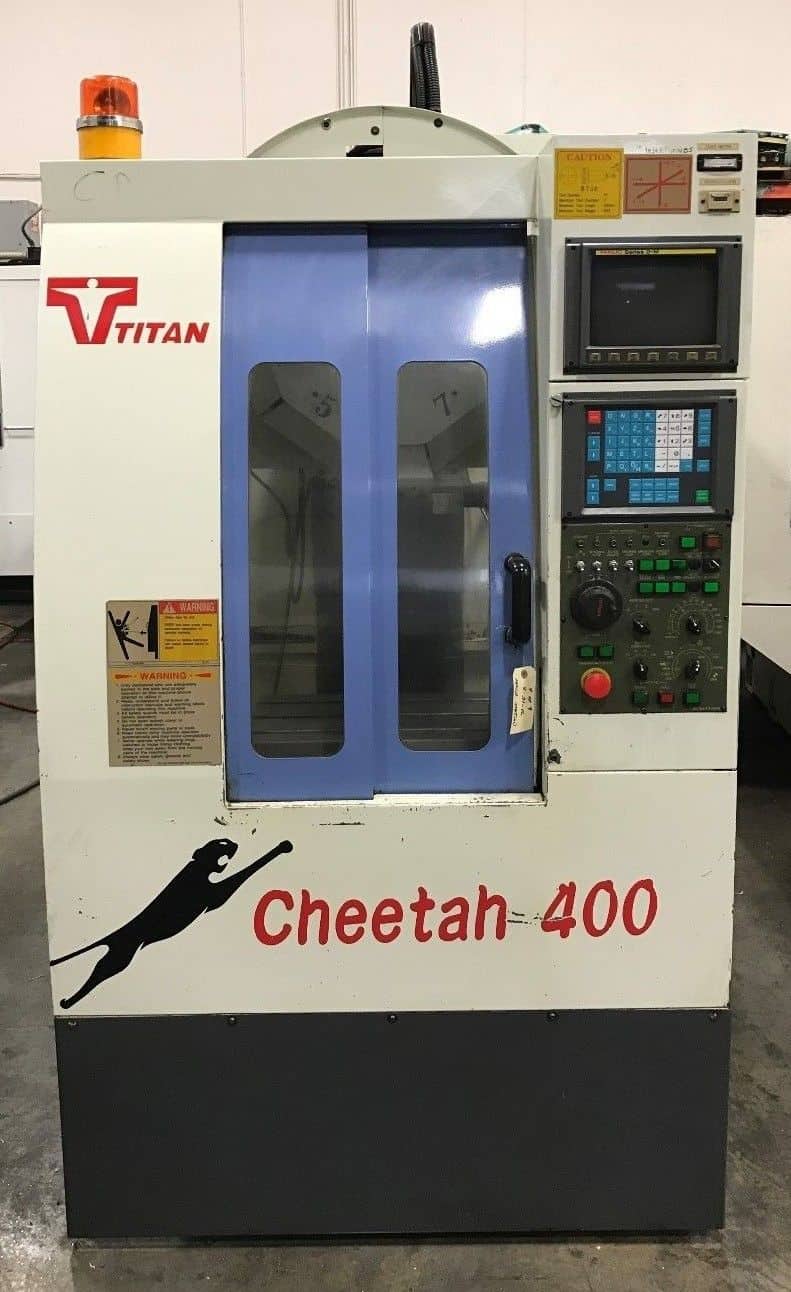

TONG TAI TITAN CNC Drill Tap Center | |
---|---|

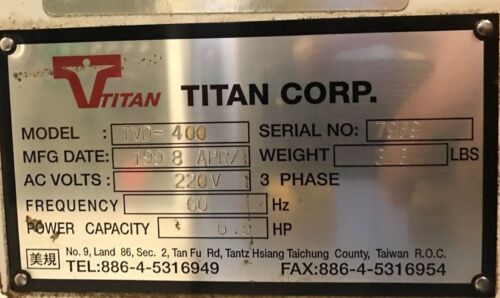

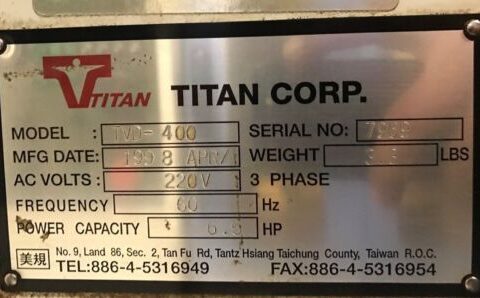

Make | Tong Tai |
Model No. | Titan TMV-400 |
Year of Manufacture: | 1998 |
Serial # | 7969 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has 12000 rpm, 10 tool Turret High speed tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- TONG TAI TITAN CNC Drill Tap Center Features:
- Fanuc 0M-C CNC Control

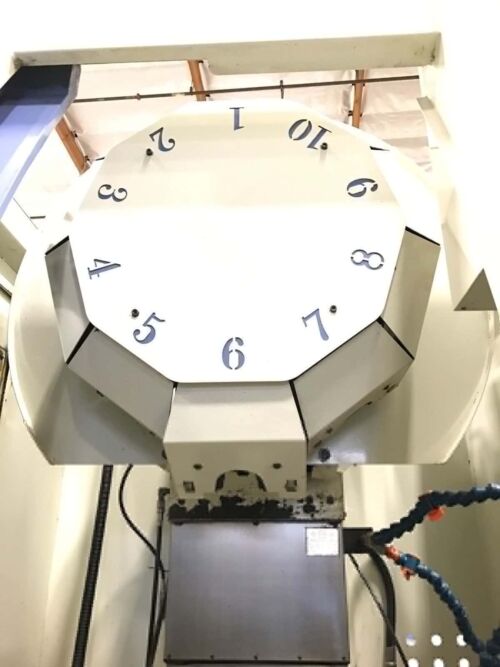

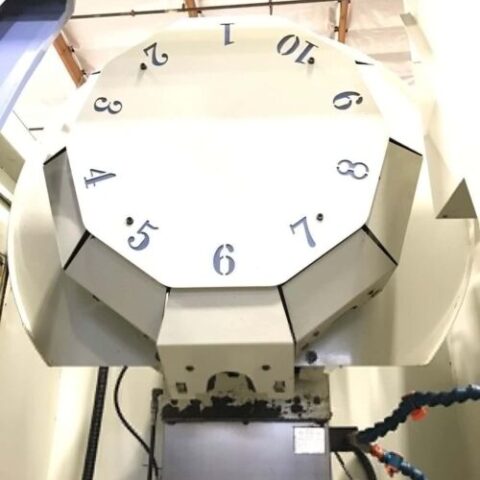

- High Speed Turret Type Tool Changer
- High precision 12,000 RPM Spindle
- Powerful 3.7 kw high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast 1418 IPM Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Work light
- All Books, Manuals, Floppy Disk, Parameters Available.
- TONG TAI TITAN CNC Drill Tap Center Specifications:
- Travels:
- X-Axis: 15.7″
- Y-Axis: 9.8″
- Z-Axis: 9.8″
- Spindle Nose to Table (Min.- Max.): 7.9″ – 17.7″

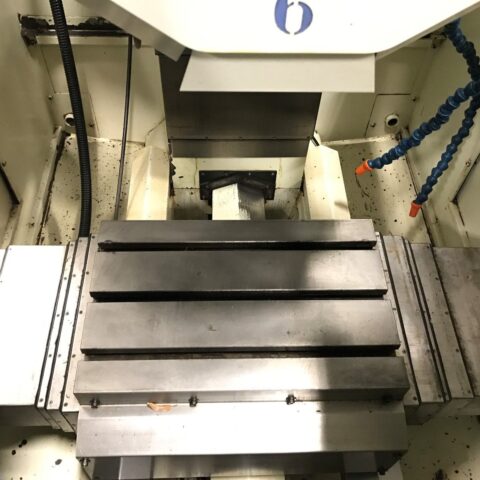

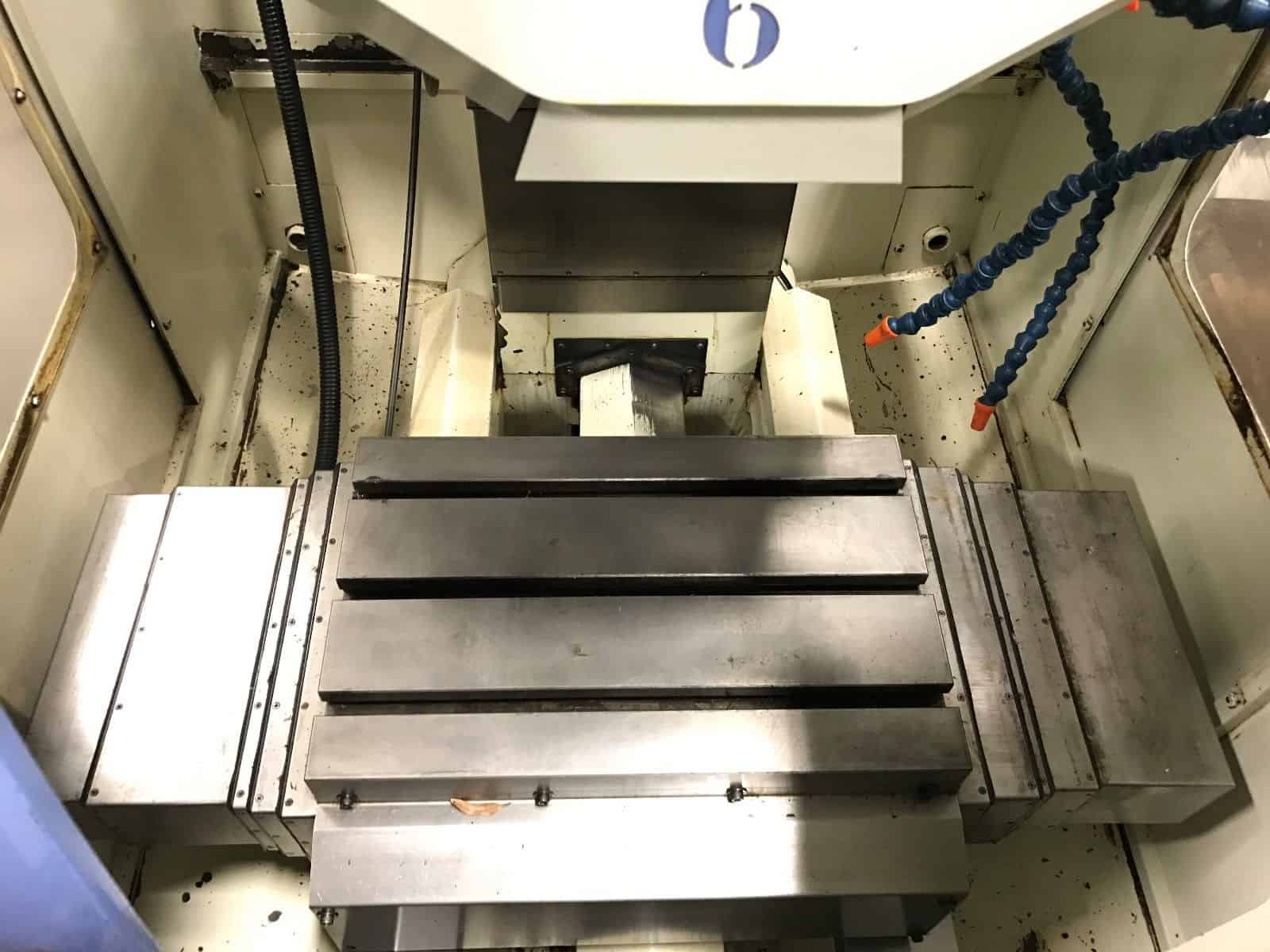

- Table:
- Length: 19.7″
- Width: 12.6″
- Max Weight on Table: 440 lbs
- Spindle:
- Taper Size: BT 30
- Speed Range: 120 – 12,000 RPM
- Spindle Power: 3.7 kw
- Feed rates:
- Rapid X,Y & Z: 1418 inch/P.M
- Cutting Feedrate: 400″ inch/ P.M
- Automatic Tool Changer:
- BT 30 Taper
- Capacity: 10
- Max Tool Weight: 6.6 lbs
- Max Tool Length: 7.9″
- Max Tool Dia.: 3.0″
- Tool Change Time: 1.5 second
- General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 48″ x 84″ x 88″ High
- Weight: 3600 lbs

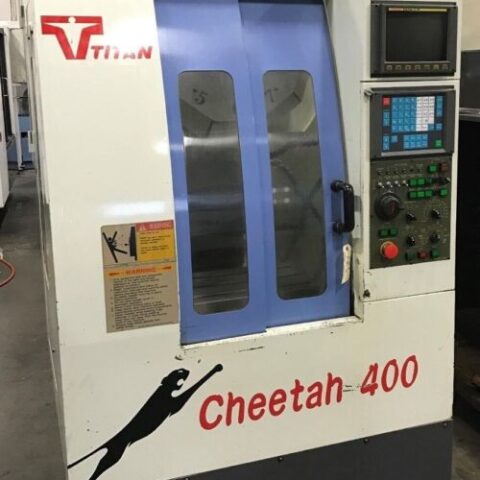

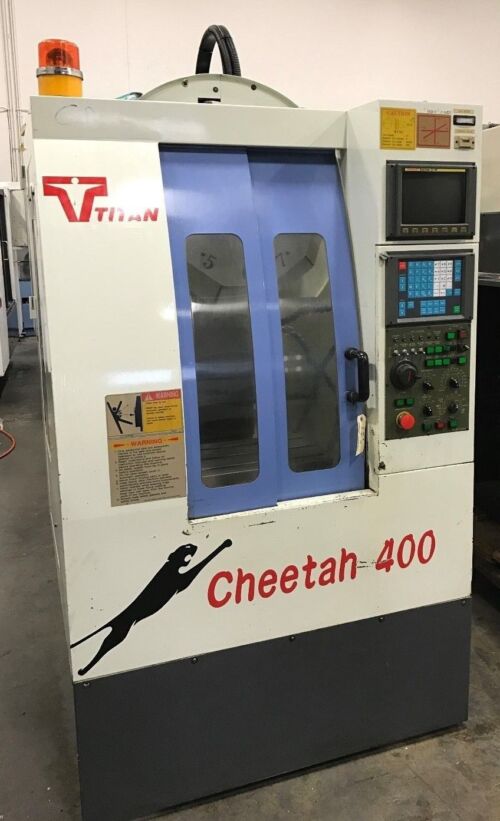

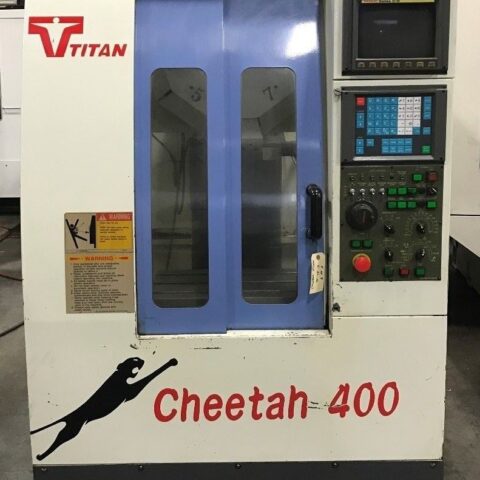

TONG TAI TITAN CNC Drill Tap Center Comes as shown in pictures.
