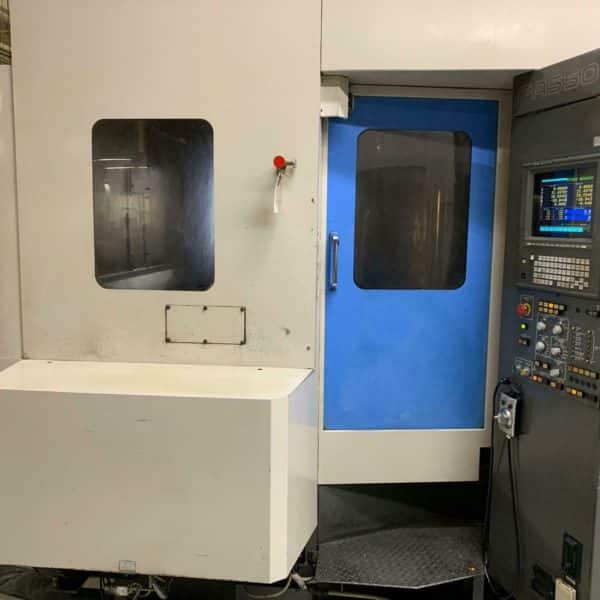

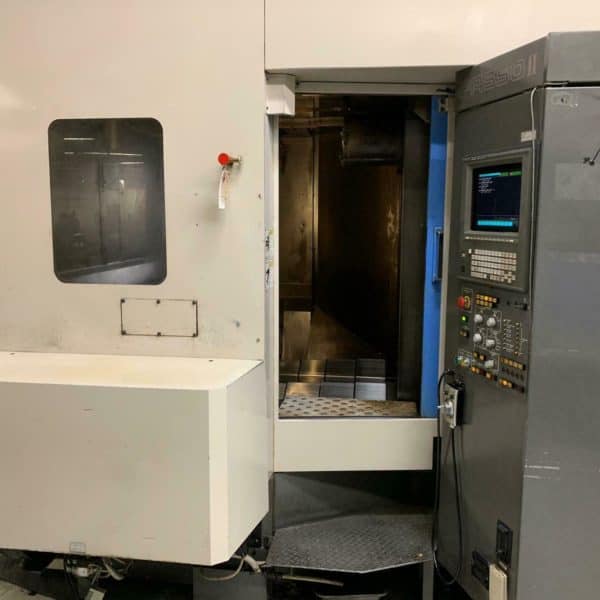

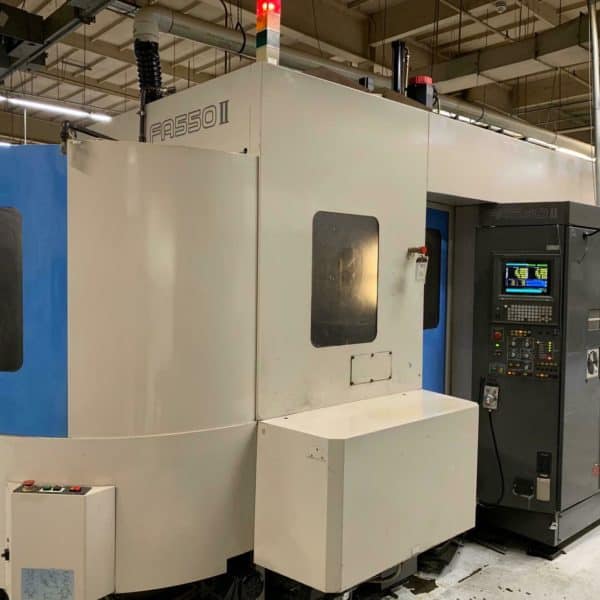

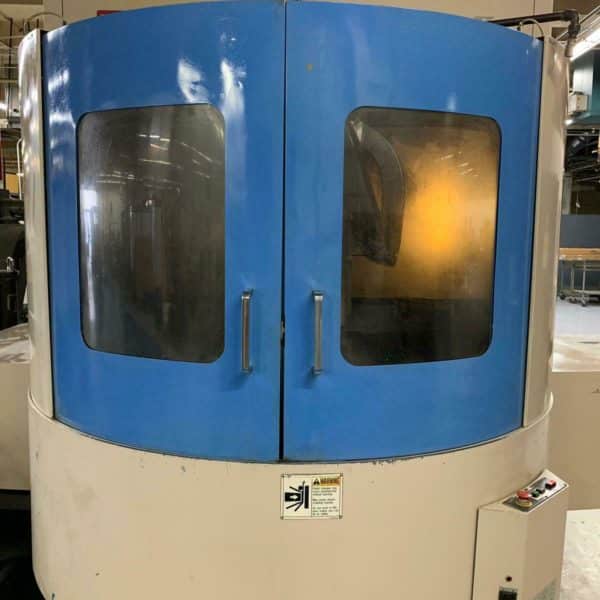

Toyoda FA-550II Horizontal Machining Center

One Owner All Original Paint Machine equipped with every option possible. On our Floor now this Machine in Great working condition. Please feel free to ask For more Pictures. & VideoTwo similar machine available.

Share

Description

TOYODA FA-550II HORIZONTAL MACHINING CENTER HMC
Make Toyoda
Model No. FA-550II
Year 04/1998 Installed : 1999

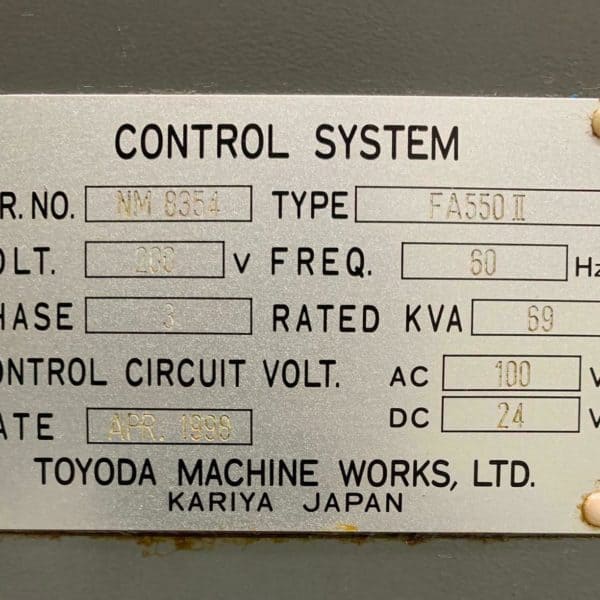

Serial # NM8354
Condition Very Good
Original Price paid by Customer: $5,65,000 for this Machine
Replacement Cost over $7,50,000 with similar options.


“One Owner All Original Paint Machine equipped with every option possible. On our Floor now this Machine in Great working condition. Please feel free to ask For more Pictures. & VideoTwo similar machine available.”

  • Toyoda FA-550II Features:
  • 12000 RPM Gear Head Spindle

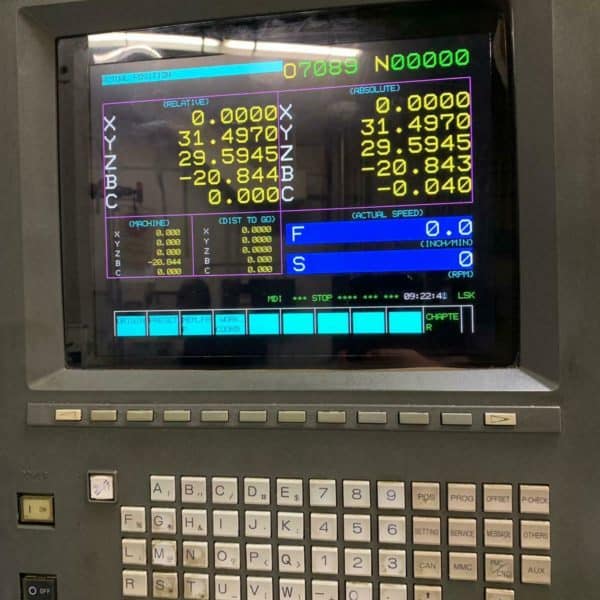

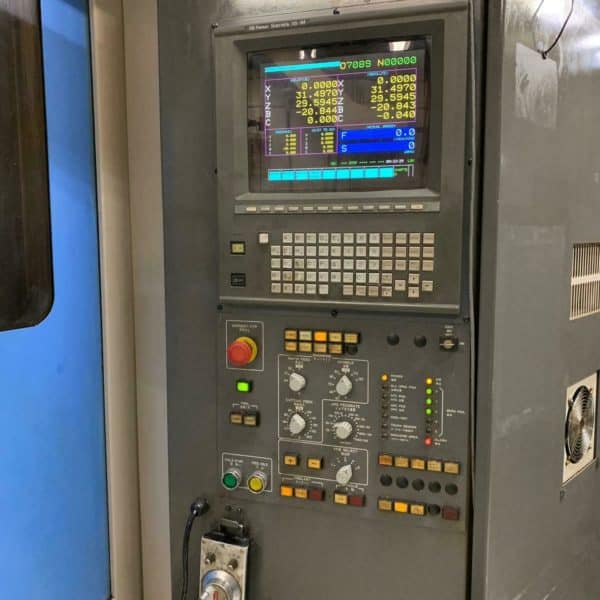

  • Fanuc 15M Control
  • CAT-50 Taper Through Spindle Coolant ( $10,500 Option )
  • 4th “B” – Axis – Dual Pallet Changer ( $17,500 Option )

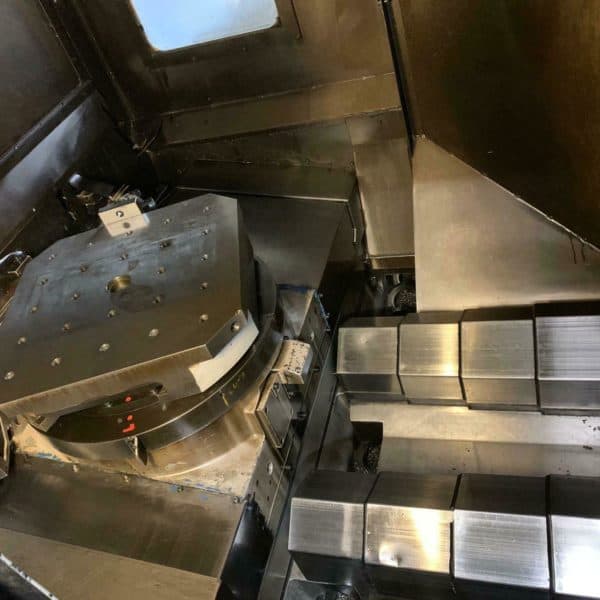

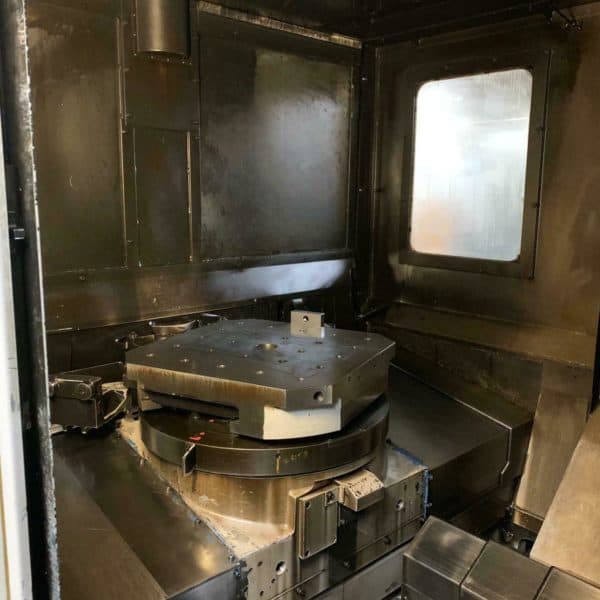

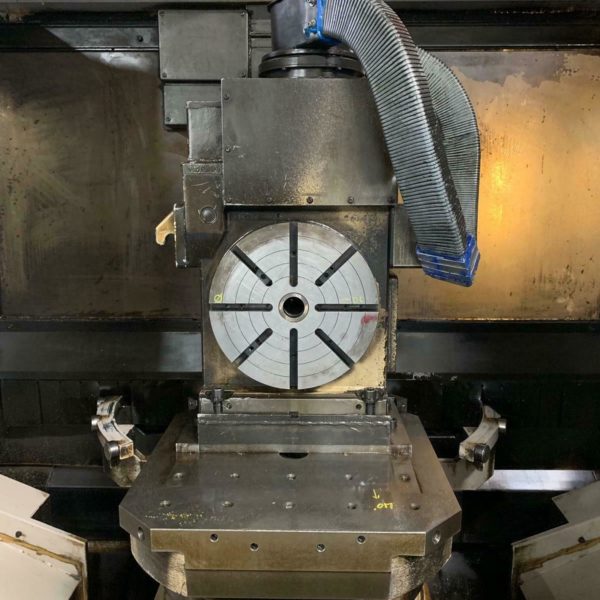

  • 5th Axis Tsudakoma RNCK-301 Rotary Table ( $67,000 Option )
  • 190 Tools Side Mount Tool Changer ( $57,000 Option )
  • 120 MB Expanded Program Memory
  • Helical Interpolation ( $2100 Option )
  • Rigid Tapping
  • High Speed Machining
  • 1181″PM Fast Rapids
  • Coolant Tank
  • Telescopic way covers

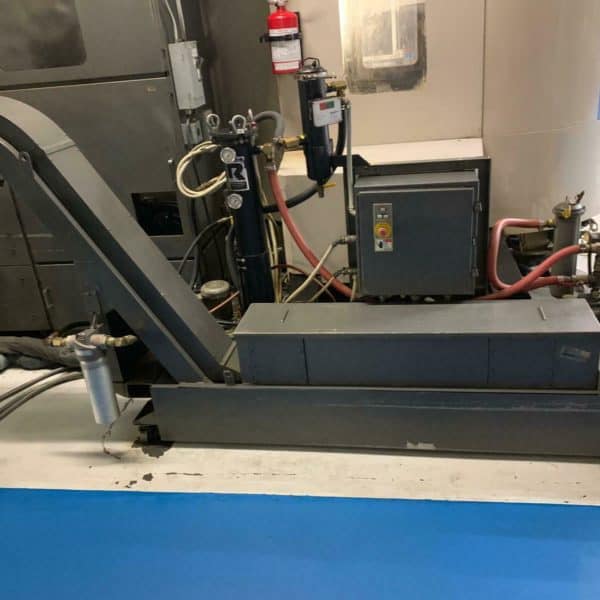

  • Chip Conveyor
  • High Pressure Coolant system
  • Auto Door
  • Toyoda FA-550II Specifications:
  • Travels:
  • X-Axis: 29.52″
  • Y-Axis: 29.52″
  • Z-Axis: 23.62″
  • Rapid Traverse Rates: 1181 Inch Per Minute
  • Cutting Feed Rates: 710 Inch Per Minute
  • Spindle Nose to Rotary Table Center: 5.9″ – 29.52″
  • Spindle Nose to Pallet: 2.0″ – 31.5″
  • Pallet:
  • Dual Pallet Changer
  • Pallet Size: 21.65″ X 21.65″
  • Pallet Change Time: 6 Seconds
  • Weight on Table: 1760 lbs
  • Spindle:
  • Taper Size: CAT-50
  • Speed Range: 100 – 12000 RPM
  • Spindle Power: 30 HP
  • Max Torque: 90ft-lb @ 2000RPM
  • Automatic Tool Changer:
  • Capacity: 190
  • Max Tool Weight: 45 lbs
  • Max Tool Dia: 5″
  • Max Tool Length: 16″
  • Tool Changing Time: 1.7 – 3.0 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 55kva / 220v  / 3-Phase
  • Overall Shipping Dimensions: 264″ x 104″ x 118″ High
  • Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
  • Weight: 35,000 lbs

Toyoda FA-550II Comes as shown in pictures..
