*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

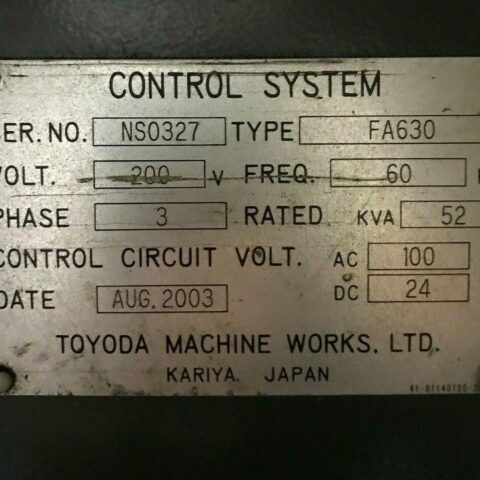

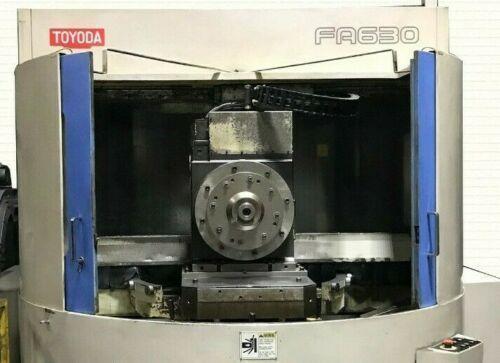

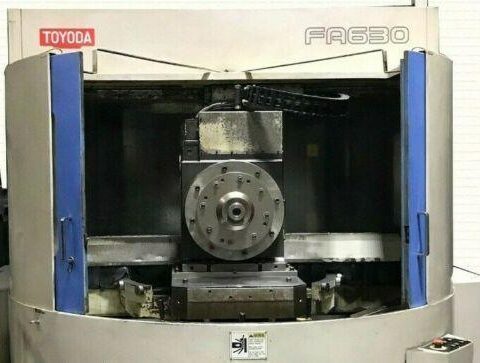

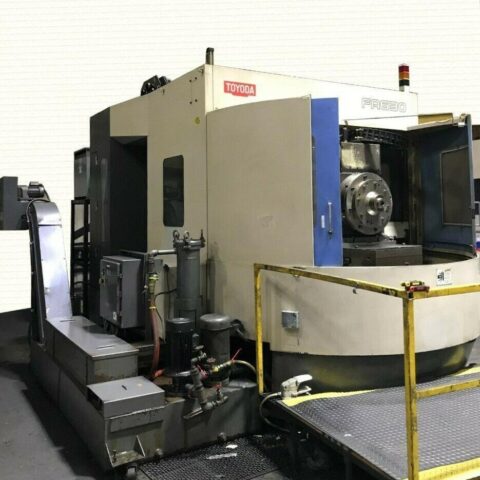

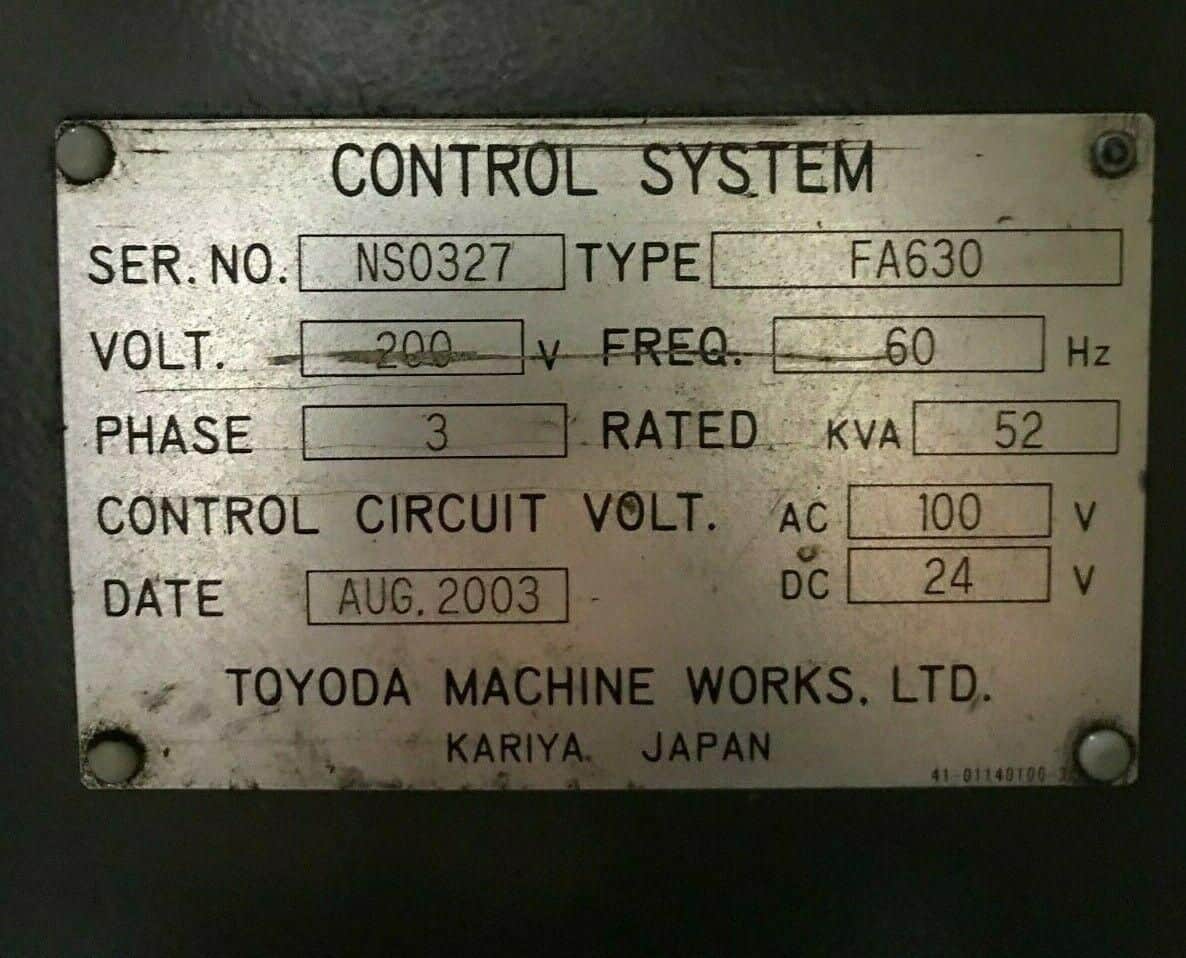

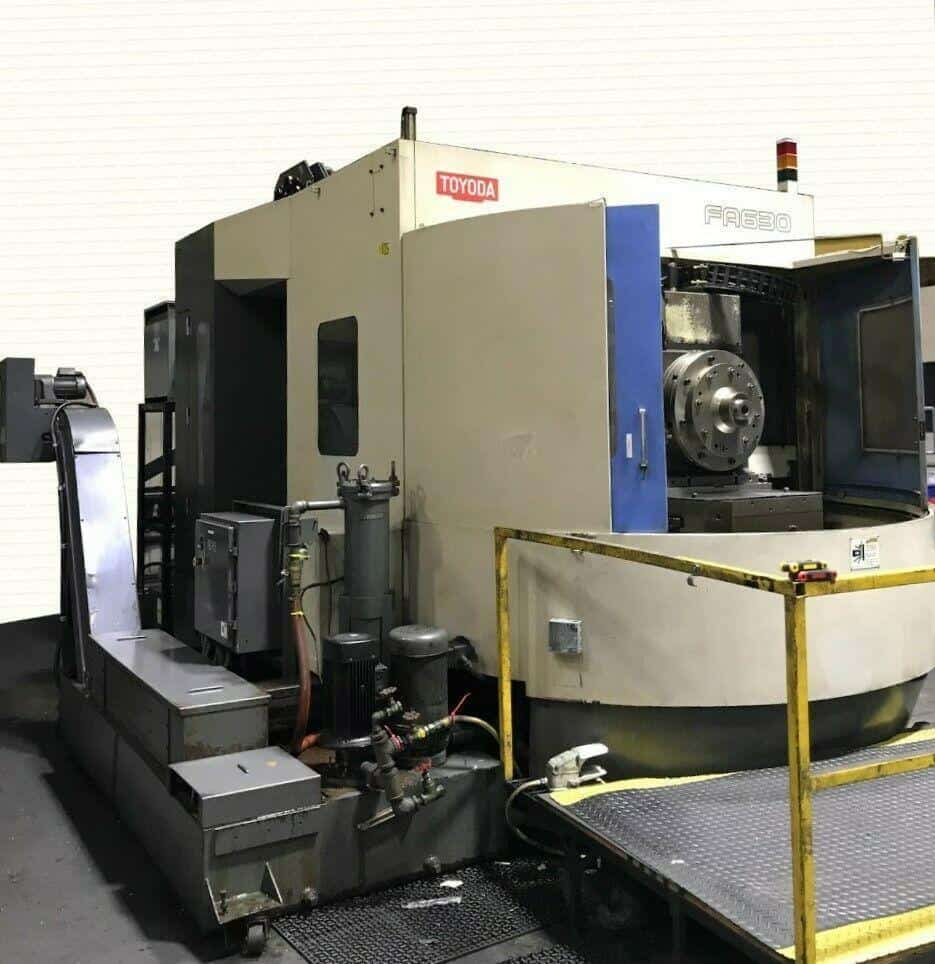

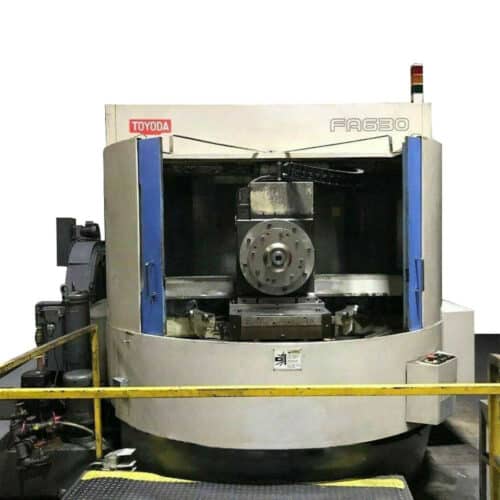

| Make: | TOYODA |
| Model: | FA 630 |
| Year: | 2003 |
| Condition: | Used – Good |
| Equipped With: |
|---|

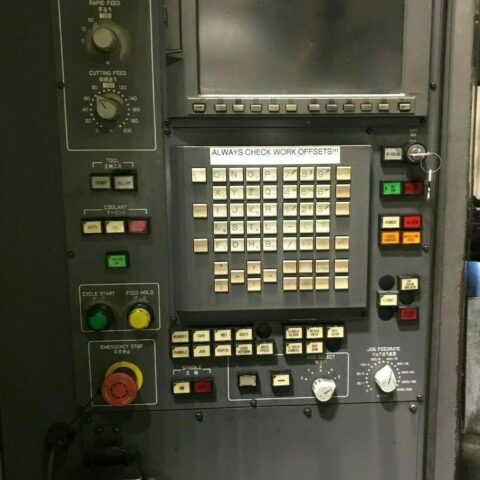

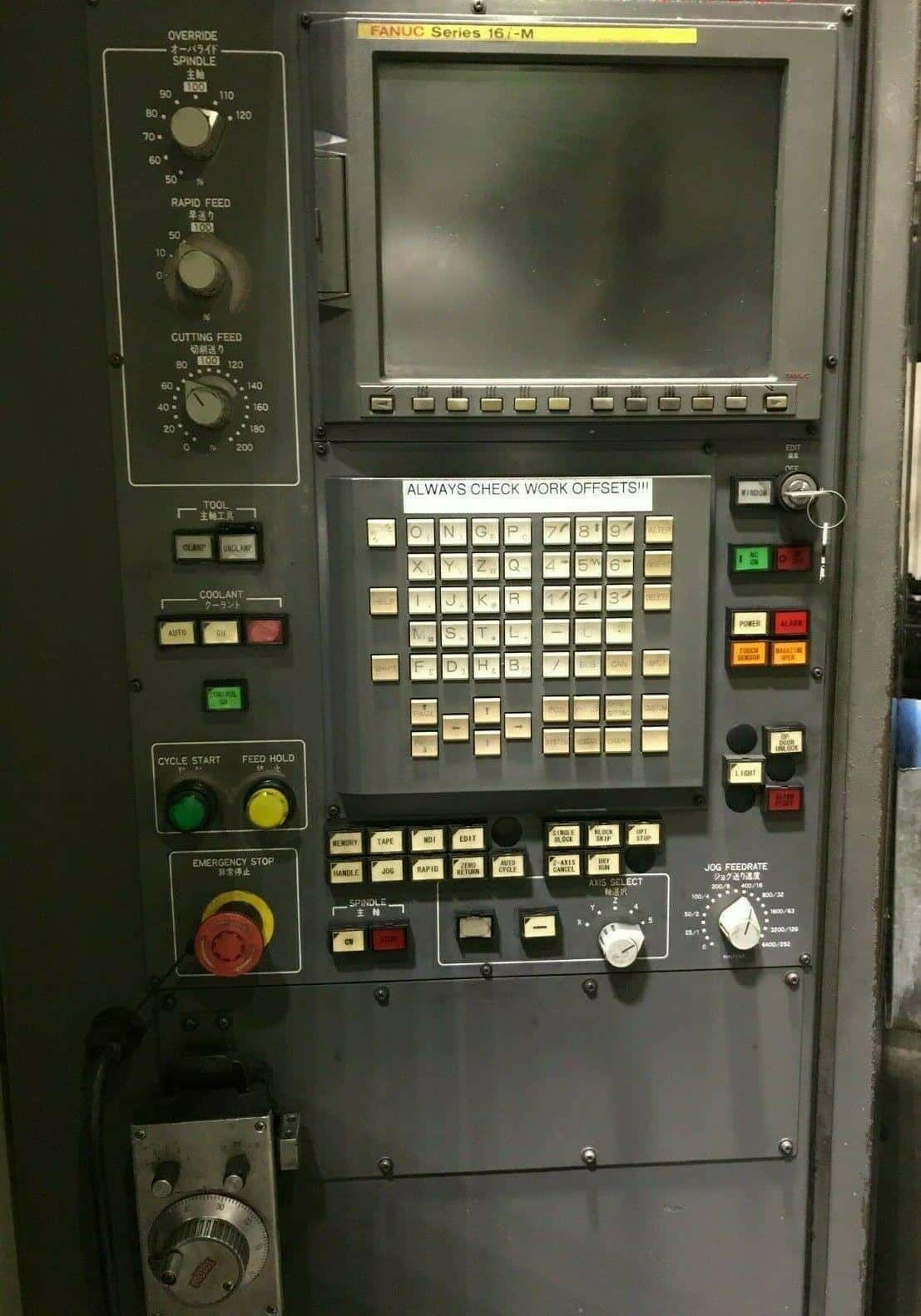

| Fanuc 16-iM CNC Control ( Upgrade for 5th Axis ) |
| Full 4th & 5th Axis ( Upgrade ) |

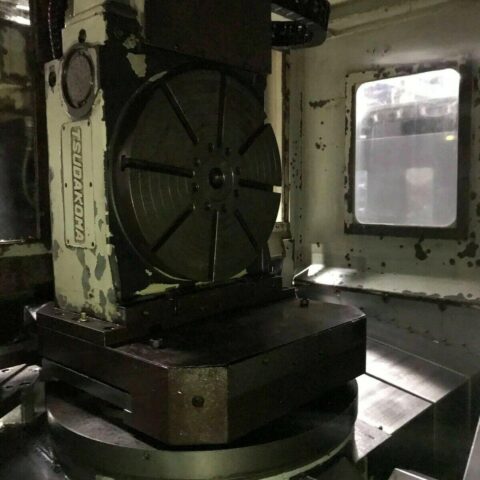

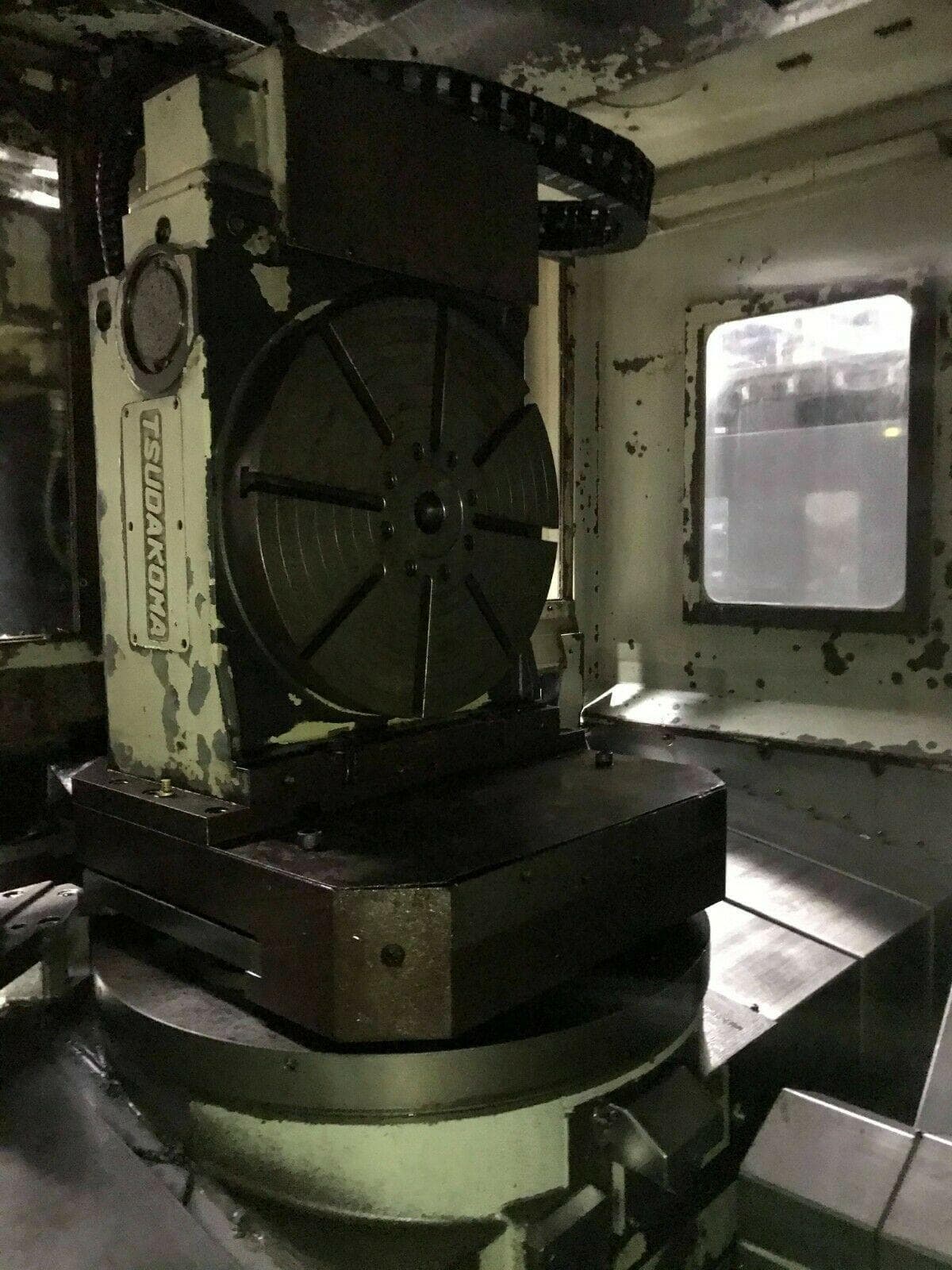

| TSUDAKOMA RB-500 Rotary Table ( Included ) |
| 6000 RPM High Torque Spindle |
| Through Spindle Coolant |
| Twin Pallet Changer |
| 120 Station Tool Changer ( Upgrade ) |
| Box Ways on the Axis |
| PCMCIA Card Interface |
| Upgraded Memory |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Helical Interpolation |
| Fast Rapid Traverse Rate |
| Flood coolant with large coolant tank |
| Chip Blaster Unit |
| Chip Conveyor |
| Work light |
| Travels: |
|---|
| X Axis: 39.4″ |
| Y Axis: 31.5″ |
| Z Axis: 33.4″ |
| B Axis: 0.001° ( Full 4th ) |
| Spindle Nose to Table Center: 3.9″ – 43.3″ |
| Spindle Center to Table Top: 2.9″ – 36.4″ |
| Table: |
|---|
| Length: 24.8″ |
| Width: 24.8″ |
| Max Weight on Table: 2640 lbs |
| Max Workpiece Width X Height: 41.3″ X 53.1″ |
| Index Time: 8.5 seconds |
| Table: |
|---|
| Spindle: |
| Taper Size: 50 |
| Max. Speed: 6000 RPM |
| Power: 50 HP |
| Torque: 1278 ft/lb |
| Feed rates: |
|---|
| Rapid X & Y : 1417 Inch Per Minute |
| Rapid Z : 1417 Inch Per Minute |
| Cutting Feedrate: 945 Inch Per Minute |
| Feed rates: |
|---|
| Tool changer: |
| Capacity: 120 Tools |
| Taper: 50 |
| Max Tool Size: 12.6″ |
| Max Tool Length: 24.8″ |
| Max Tool Weight: 66.5 lbs. |
| Tool Change Time: 2 Second |
| General: |
|---|
| Air Required: 90 psi 4 scfm |
| Power: 75kva / 480v / 3-Phase |
| Overall Dimensions: 270″ X 144″ x 130″ High ? |
| Weight: 41000 lbs |
| “No Charges for loading at list Price” |
