*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2470 |

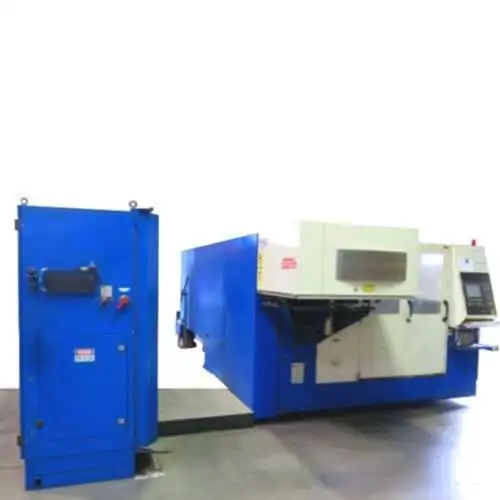

| Make: | TRUMPF |

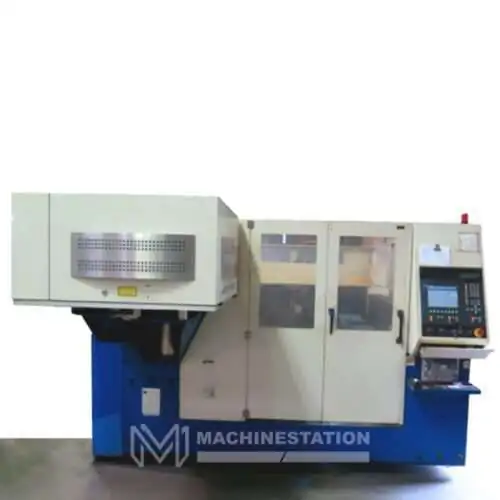

| Model No.: | TRUMATIC L3030 |
| Year | 2002/2003 |
| Equipped With: |
|---|

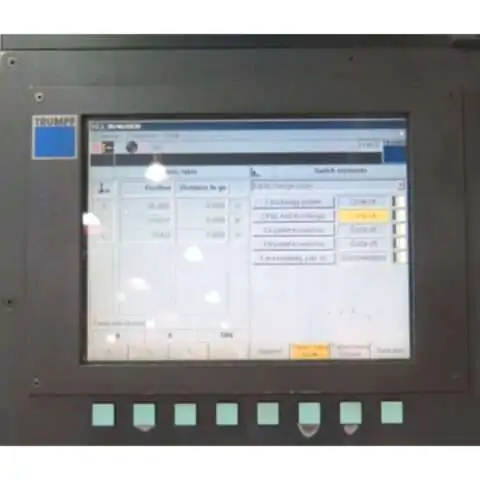

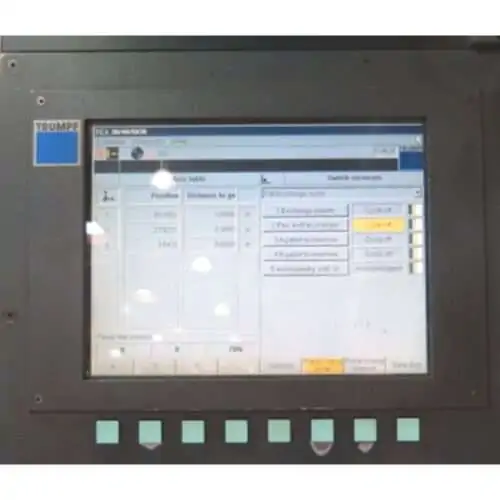

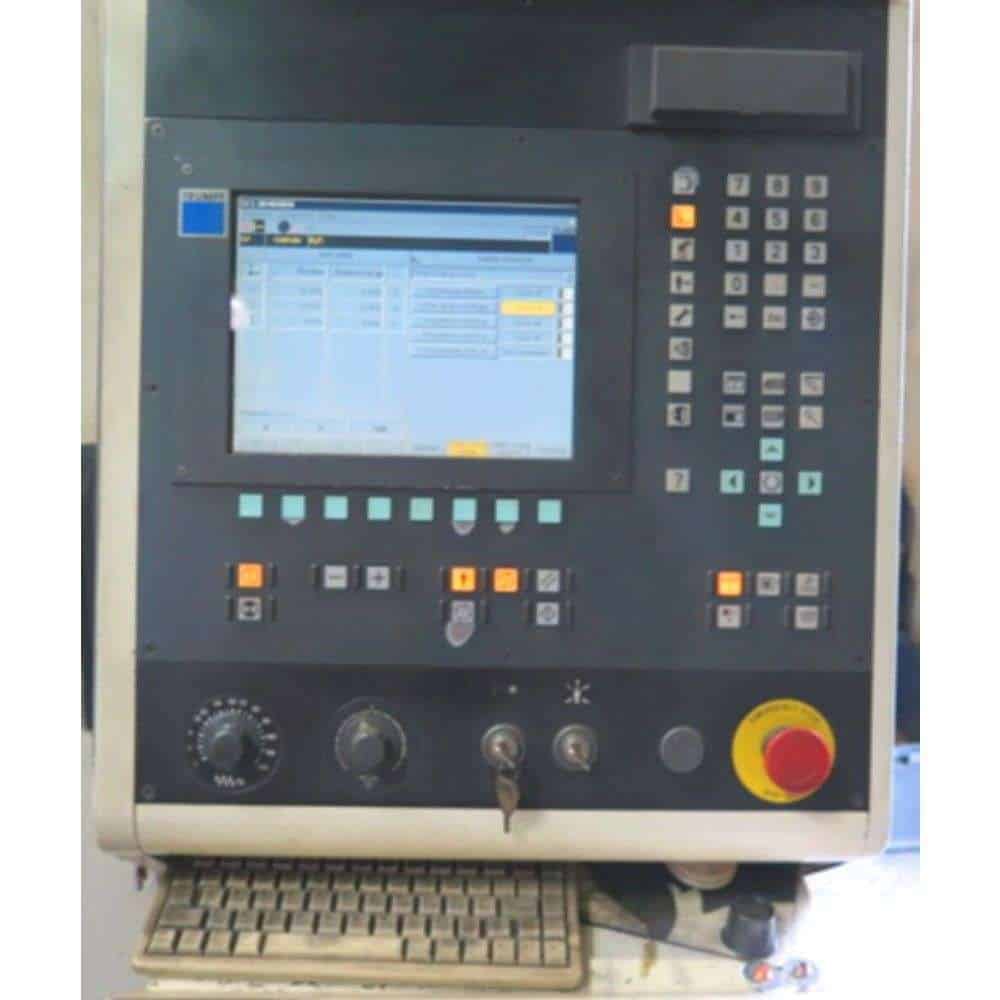

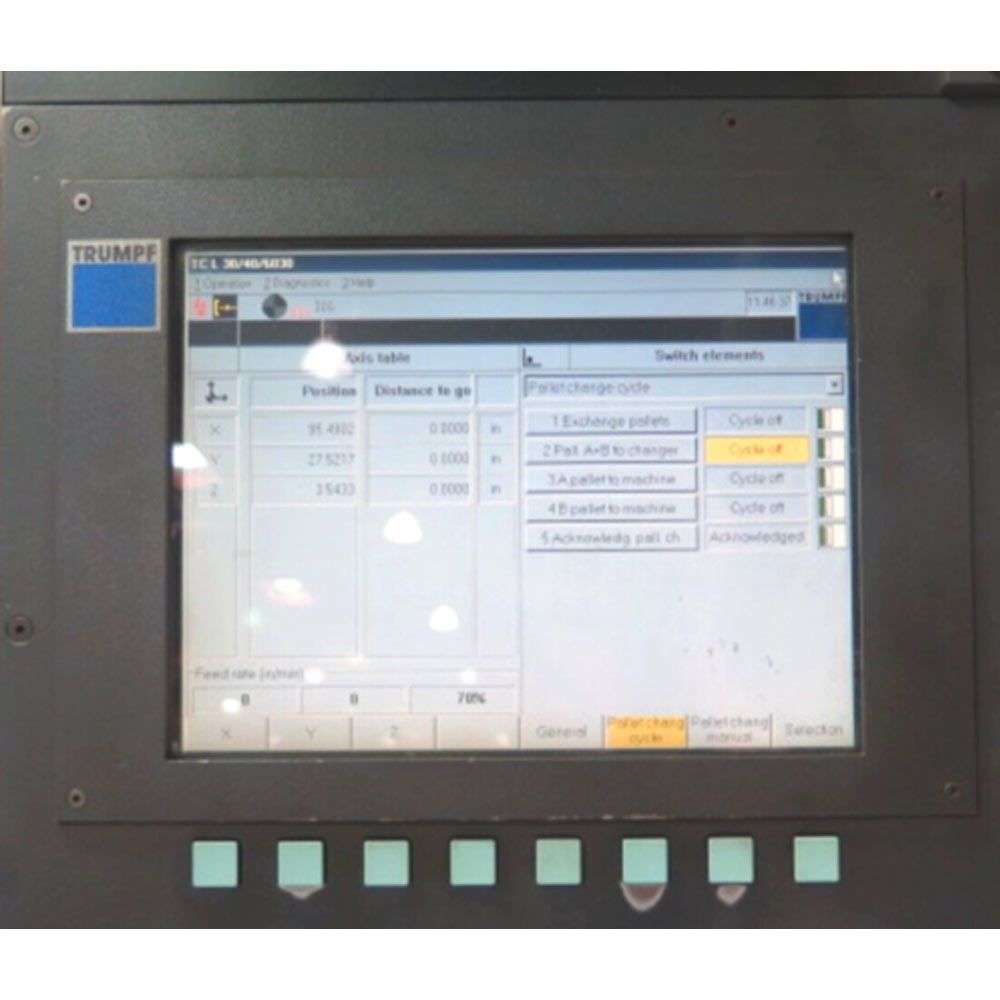

| Trumpf Control (TC L30/40/6030 Software) |

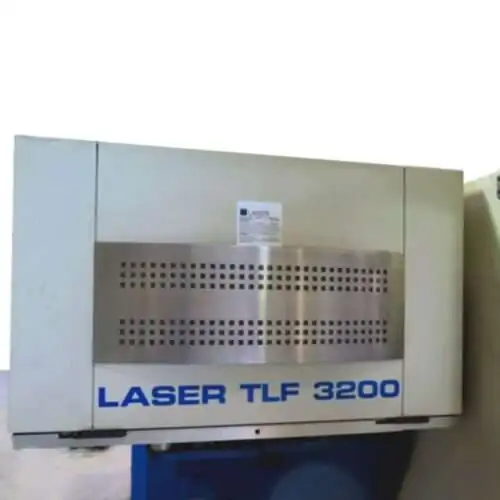

| Trumpf TLF3200 Laser Package |

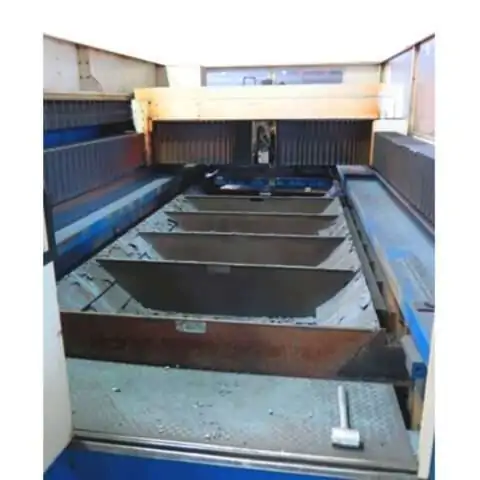

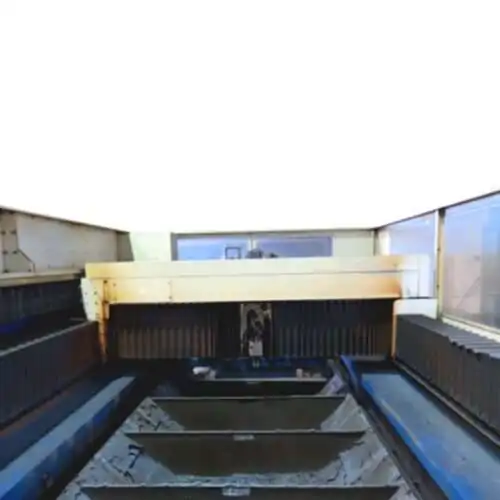

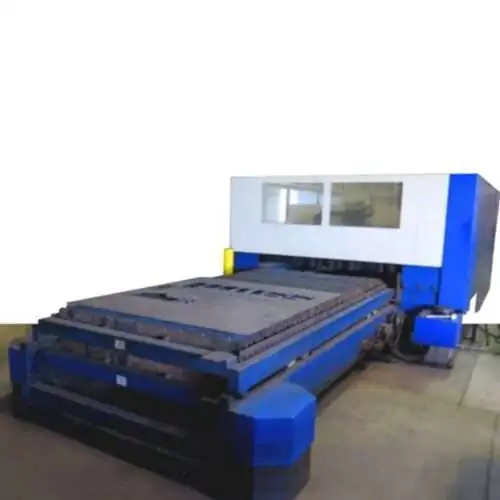

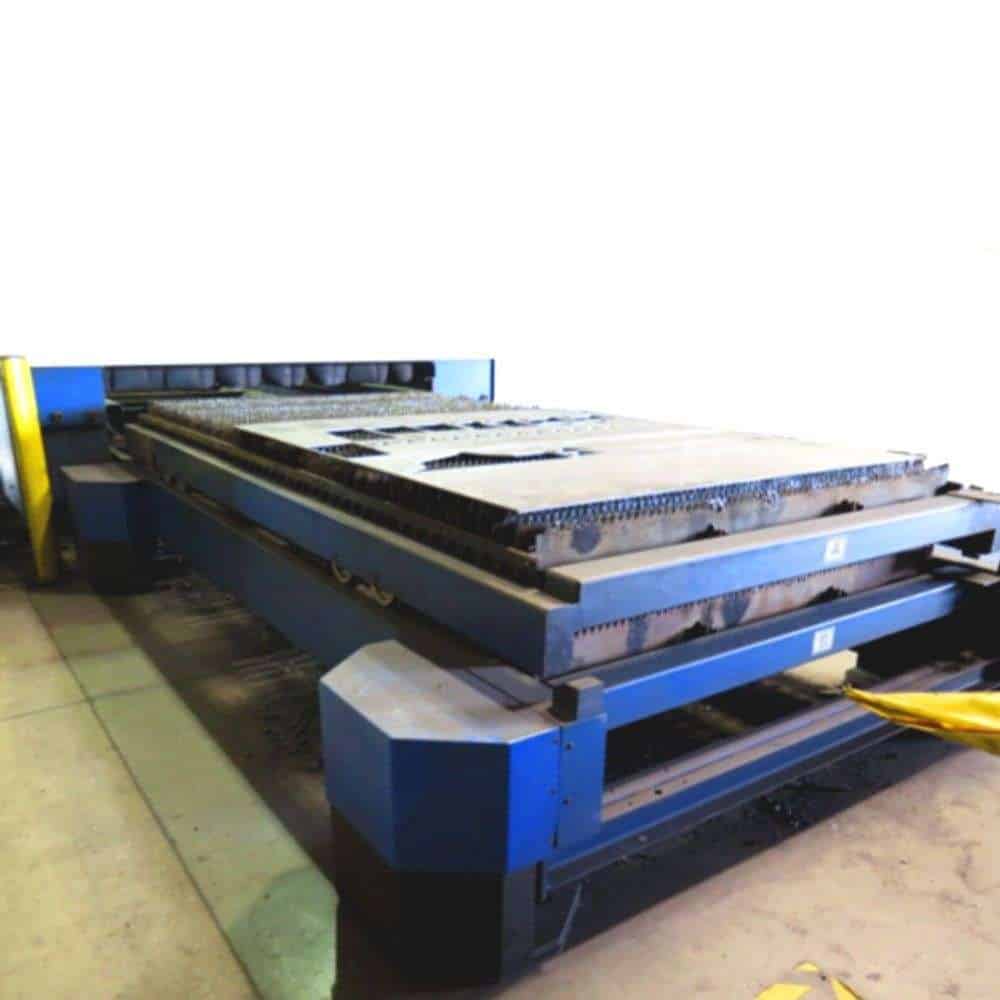

| Pallet Exchange System |

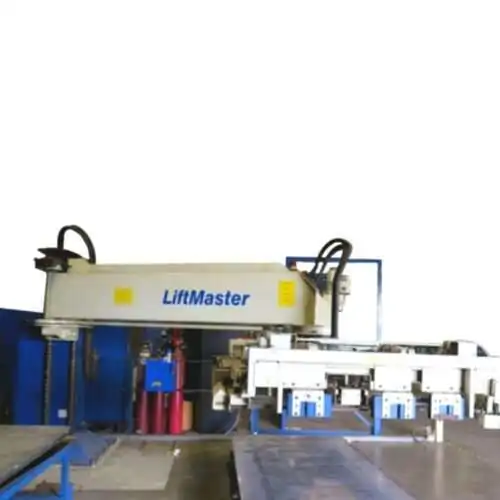

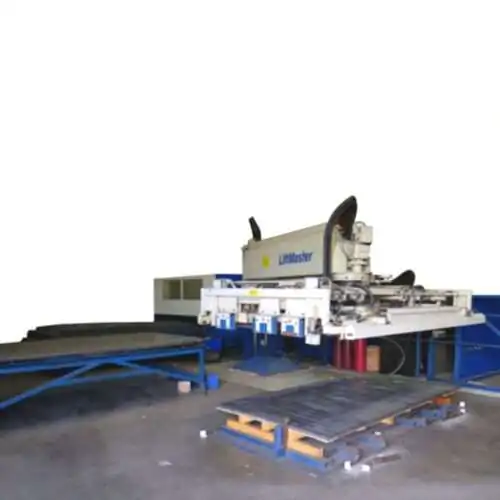

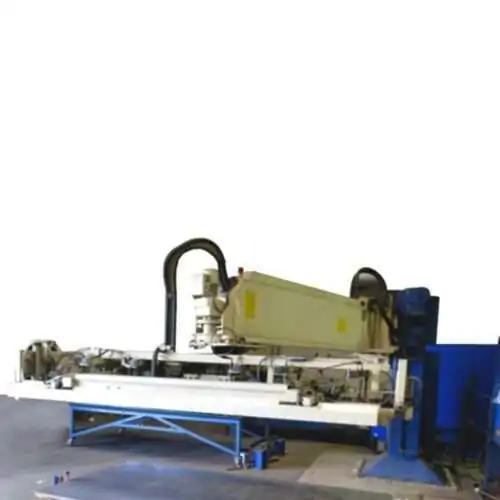

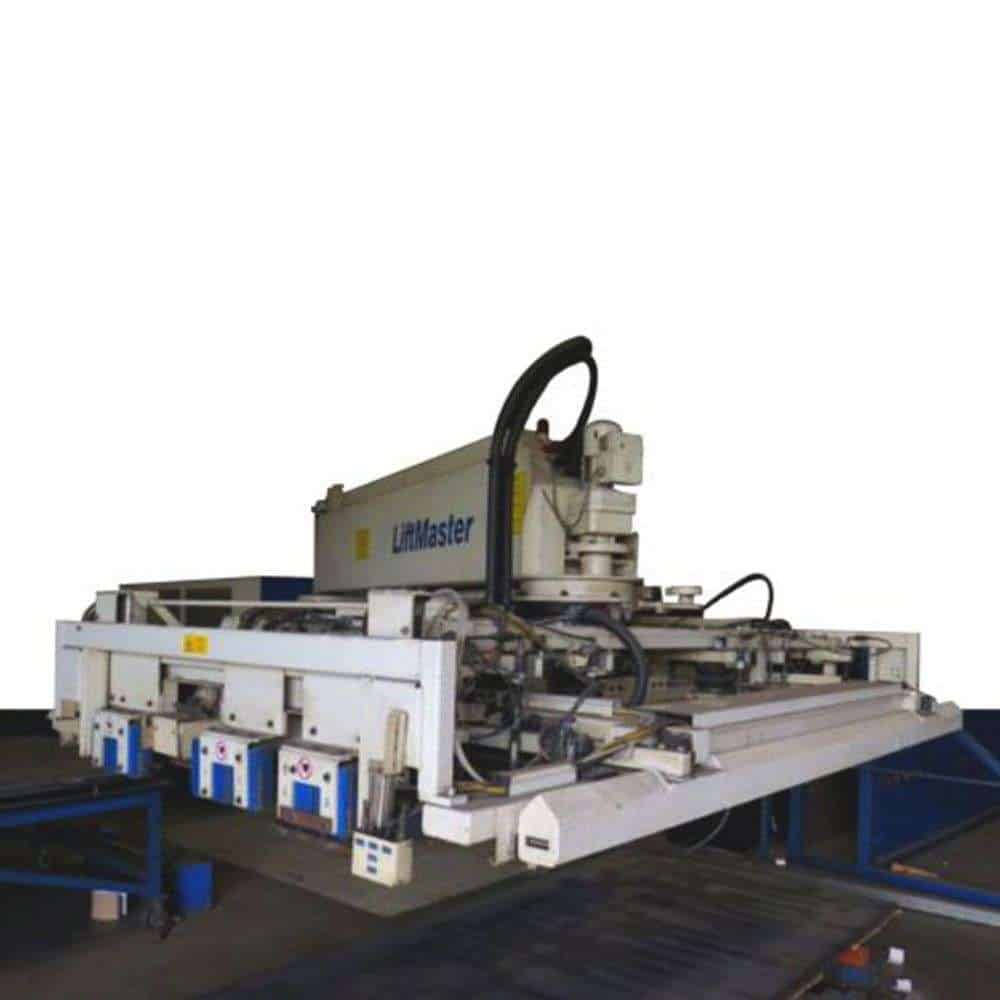

| Trumpf Lift Master Automatic Vacuum Sheet Loader |
| Cooling System |
| Travels: |
|---|
| X-Axis: 118.11″ |
| Y-Axis: 59.05″ |
| Z-Axis: 4.52″ |
| Positioning Speed Parallel to the axis: 236.22 IPM |
| Positioning Speed With Simultaneous Operation of the X and Y axes drives: 334.64 IPM |
| Pallets: |
|---|
| No. of Pallets: 2 |
| Length: 122″ |
| Width: 62″ |
| Max Weight on Table: 1984 lbs |
| Thickness Capacity: |
|---|
| Maximum Sheet Thickness (Mild steel): 0.787″ |
| Maximum Sheet Thickness (Stainless steel): 0.472″ |
| Maximum Sheet Thickness (Aluminum): 0.393 |
| General: |
|---|
| Laser Type: CO2 |
| Power: 460v / 66FLA / 3-Phase |
| Overall Dimensions: 366″ x 185″ x 86″ High |
| Weight: 22,928 lbs |
