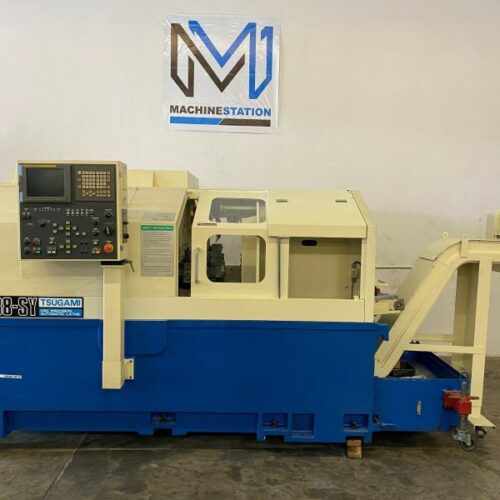

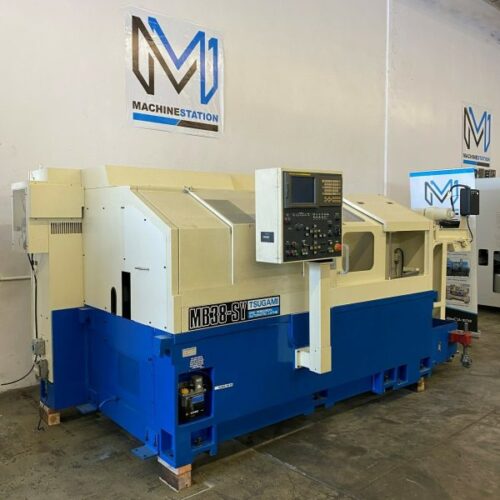

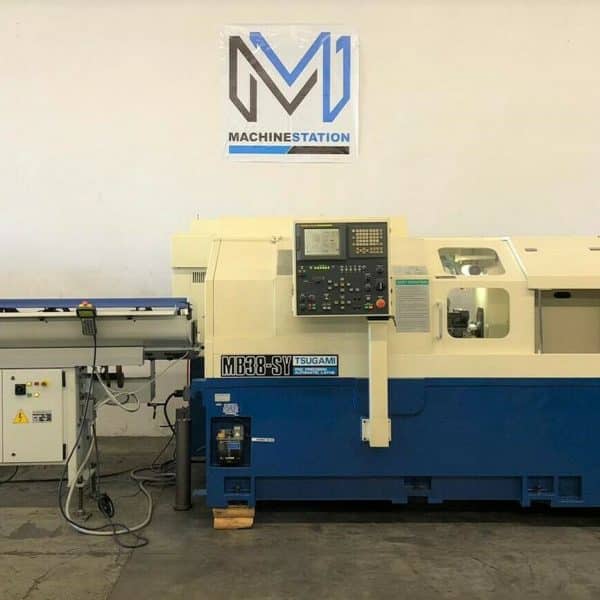

Tsugami MB38-SY CNC Turning Center

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details.”



Share

Description

TSUGAMI MB38-SY CNC TURNING CENTER
Make Tsugami
Model No. MB38-SY
Year 2005/2007
Serial # 186
Condition Very Good
Comes with Iemca 547 Barfeeder, 2 X Collet Chuck, Tool Holders, Cool blaster, parts & Chip Conveyor
  • Tsugami MB38-SY CNC Turning Center Equipped With:

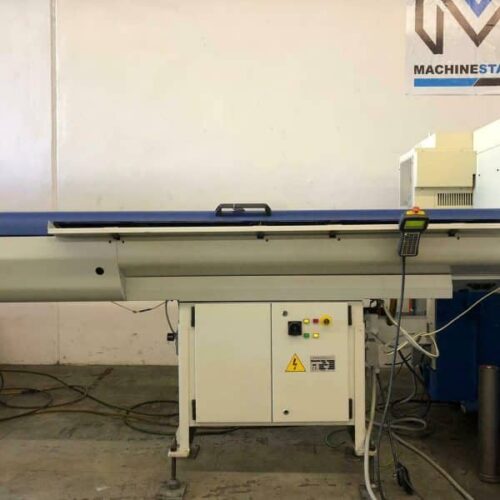

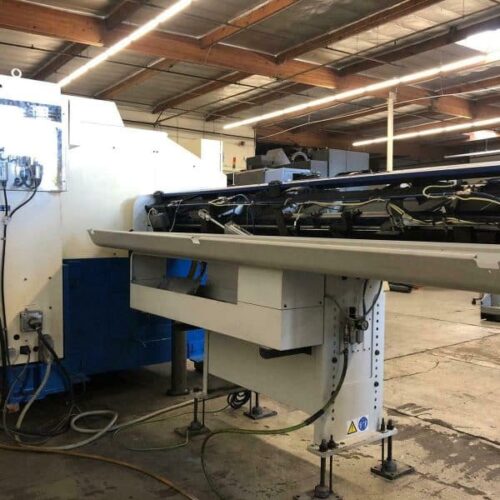

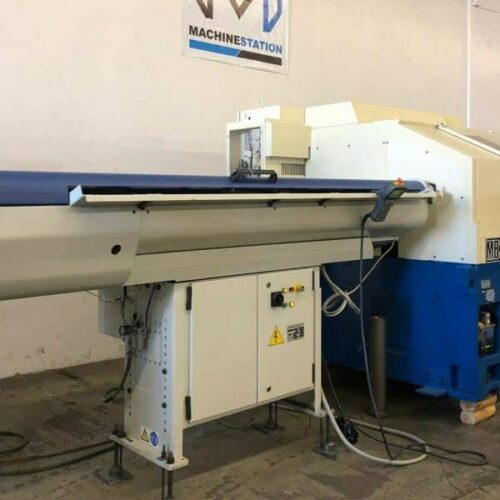

  • IEMCA Prodigy 547 Barfeeder
  • Remcool 900PSI Chip Blaster Cooler

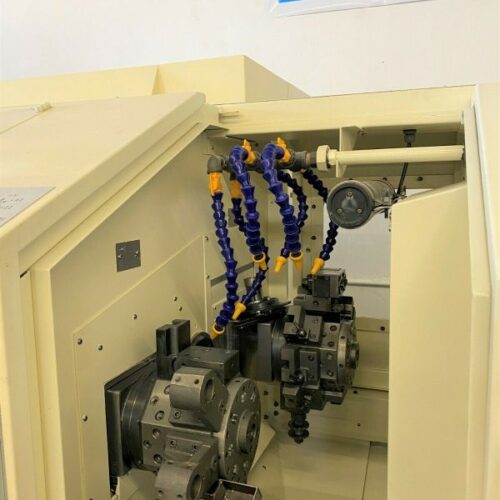

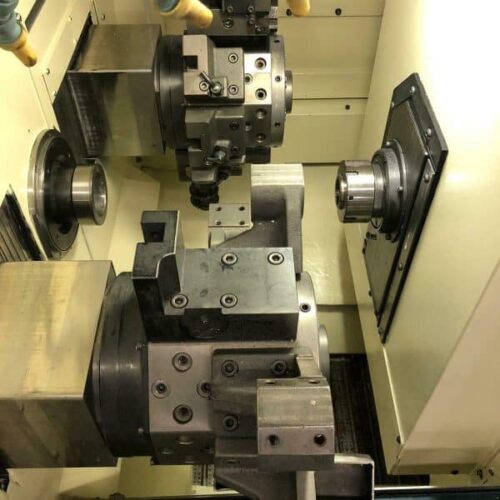

  • Twin 8-Station Turret – Live / Rotary Tools
  • Servo Controlled Full C-Axis on Both Spindles

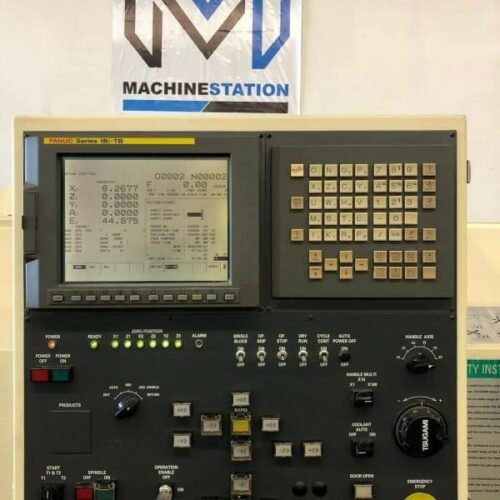

  • Fanuc 18iT CNC Control
  • PCMCIA Card Slot
  • Parts Catcher
  • Parts Conveyor
  • Collet Chuck on Main Spindle
  • Collet Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck

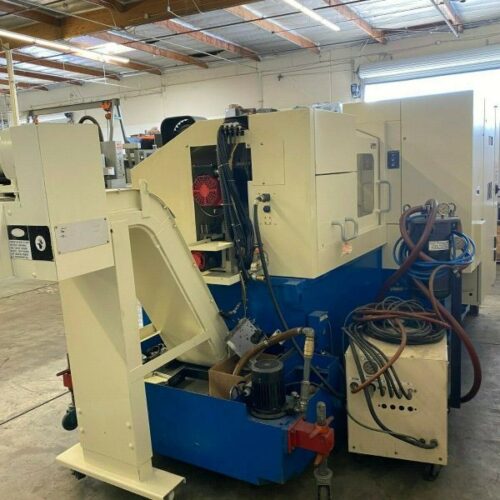

  • Chip Conveyor

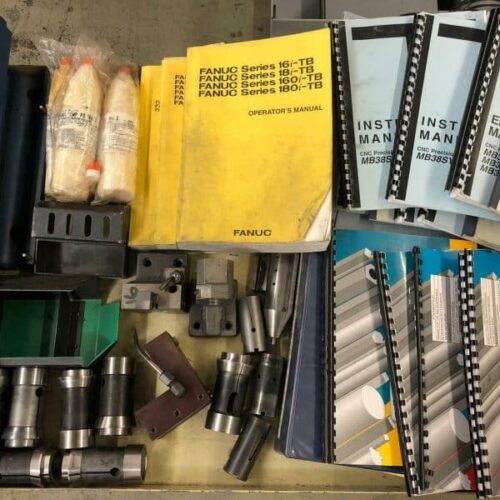

  • Comes with Live Tools & some Static Tool Holders
  • Books & Manuals
  • Tsugami MB38-SY CNC Turning Center Specifications:
  • Capacity:
  • Max Turning Diameter: 1.5″
  • Max Turning Length:5.0″
  • Max Bar Capacity: 1.77″
  • Swing Over Bed: 23.62″
  • Swing over the Saddle: 21.65″
  • Travels:
  • X1 Axis Travel: 3.15″
  • X2 Axis Travel: 4.33″
  • Z1 Axis Travel: 3.94″
  • Z2 Axis Travel: 5.5″
  • Y Axis Travel: +-1.57″
  • C Axis: 360° (0.001°) Both Spindle
  • Feedrate:
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Rapid Traverse Y Axis: 295 IPM
  • Rapid Traverse B Axis: 787 IPM
  • Spindle:
  • Main Spindle Bore: 1.5″
  • Sub Spindle Bore: 1.27″
  • Main Spindle Speed: 60-6000 RPM
  • Sub Spindle Speed: 60-6,000 RPM
  • Main Spindle Power: 20HP
  • Sub Spindle Power: 10HP
  • Live Tool Spindle Motor: 3 kw
  • Turret Index Time: 0.1 Second
  • Live Tool Speed: 5400 RPM
  • General:
  • Power: 53 kva, 220v / 3-Phase Overall
  • Dimensions: 120″ x 67″ x 72″ High
  • Overall Dimensions: 136″ x 67″ x 72″ High with Chip Conveyor
  • Weight: 11,500 lbs

“No Charges for loading at list Price”

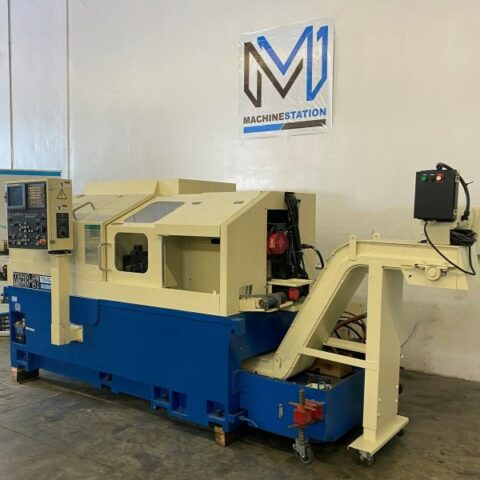

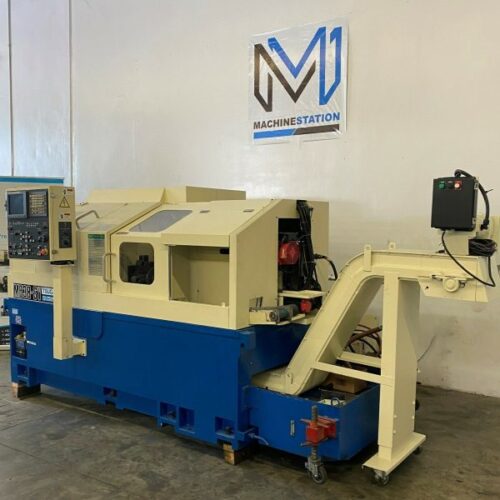

Tsugami MB38-SY CNC Turning Center Comes as shown in picture…
