| USED-Blanchard Rotary Surface Grinder Model No 18 | |
|---|---|
| Make | Blanchard |
| Model No. | No. 18 |
| Condition | Very Good |
- Features:

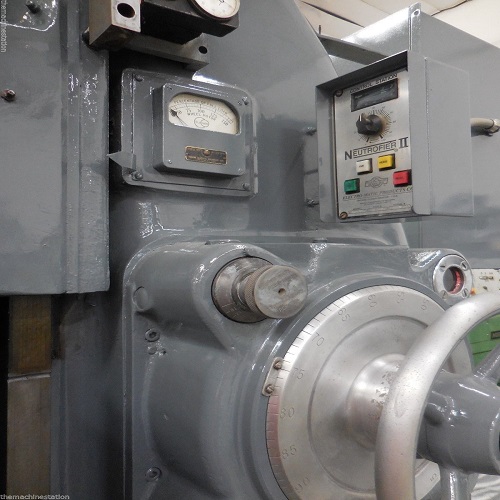

- Neutrofier II Magnetic Chuck Control Station
- Accuracy is easily obtained through compact and rigid construction
- Three-point column support ensures correct alignment throughout life of the machine
- Magnetic chucking is quick and reduces idle machine time when changing jobs
- Incremental Down Feed Adjustable Kick Out Stop
- Rapid Traverse to Raise & Lower Grinding Head
- Under the Wheel Swing Arm Wheel Dresser
- Specifications:
- Work Table
- Range: 20″ Diameter x 7″ high over 36″ chuck
- Chuck Diameter: 36″ Electro Magnetic Chuck with Neutrofier Control
- Pole Spacing: 1/2″
- Center Hole: 3/4″
- Wheel:
- Diameter: 18″
- Depth: 5″
- Thickness: 1″
- Speeds:
- Wheel: 720 RPM
- Chuck: (4 geared speeds) 6,9,12,18,25,33 RPM
- Feed:
- Graduations: .0005″
- Power Feed: (Variable) .003″ – .070″ on 60 cycle
- .003″ – .058″ on 50 cycle
- Maximum Down Feed: .048″
- Water Supply:
- Tank Capacity: 75 gallons
- Discharge Rate: 16 gallons / minute
- Pipe Diameter: 3/4″
- General:
- Overall Dimensions: 105″ x 72″ x 90″
- Weight: 14,000 lbs

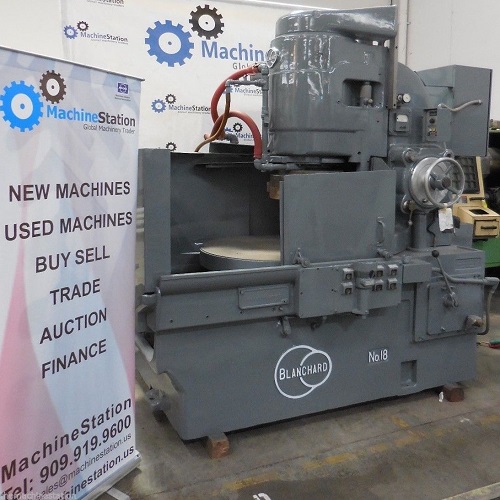

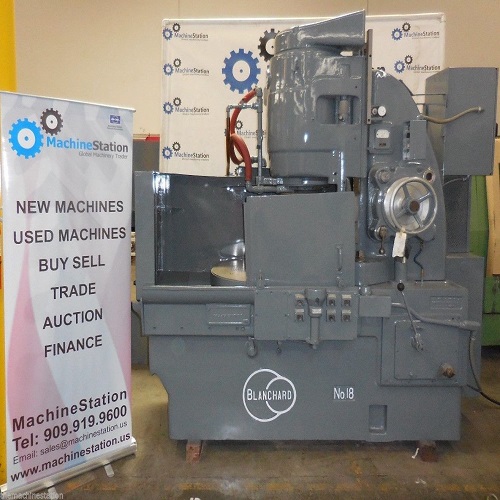

USED-Blanchard Rotary Surface Grinder Model No 18 and Comes as shown in pictures.
GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.
WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.
MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.
BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
