Features:
- 12″ Three-Jaw Buck Chuck
- Gamet “Micron” precision tapered roller spindle bearings
- All headstock gears are hardened and ground
- Shafts are splined and run on anti-friction bearings
- (16) All geared speeds in geometric progression
- Forward/reverse spindle clutch
- Universal gearbox with english/ metric threading
- Automatic kick-out feed on apron
- Electro-magnetic spindle brake
- Induction hardened bedways
- Massive one-piece cast iron bed
- Easy access pull-out chip bin
-
Specifications:
- Capacities:
- Swing Over Bed: 17″
- Swing in Gap: 28″
- Distance Between Centers: 80″
- Swing Over Cross Slide: 10″
-
Spindle:
- Thru Hole: 3-1/16″
- Spindle Nose: D1-8 Camlock
- Spindle Center: #5 MT
- No. of Speeds: 16
- Spindle speed range: 20 – 1,600 rpm
-
Threads & Feeds:
- Standard Threads: (38) 2 – 72
- Metric Threads: (40) 4 – 14
- Leadscrew Diameter: 1-1/2″-4 Acme
- Feed Rod Diameter: 1-1/8″
- Cross Feeds: .001″ to .016″
- Longitudinual Feeds: (45) 0.002″ – 0.032″
-
Carriage:
- Length on Bed: 20″
- Width of Bridge: 9-1/4″
- Cross Slide Travel: 12-1/4″
- Compound Slide Travel: 6″
- Tool Block Opening: 2″
-
Tailstock:
- Spindle Taper: #5 Morse Taper
- Spindle Diameter: 2-15/16″
- Spindle Travel: 8-1/2″
-
Bed:
- Width: 13-1/2″
- Depth: 13-1/4″, 16-1/4″ at the ends
-
General:
- Motor: 10 Horsepower 1800 RPM, 3 Phase, 230/460 Volt
- Electrical: 440 3 Phase
- Overall Dimensions: 138″ x 42″ x 52″
- Approx. Weight: 6,000 lbs

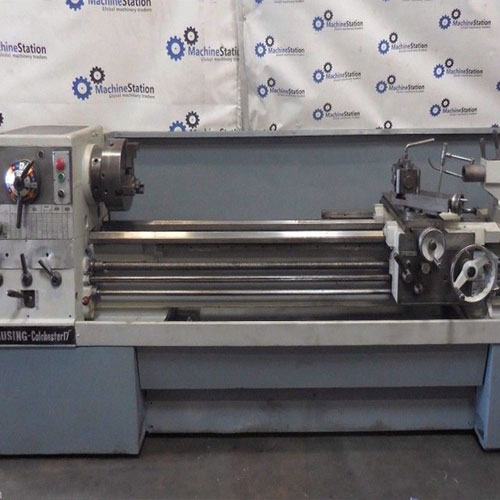

USED-CLAUSING COLCHESTER GAPPED BED ENGINE LATHE
