USED-FEMCO CNC VERTICAL MACHINING CENTER Model KAFO FV-40

Out of stock

SKU:	1144
Make/Model:	Femco / Kafo FV-40 / KVF-40
Video:	[fusion_button link=”https://www.youtube.com/watch?v=hLMCwEVIZLI” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1144

USED-FEMCO CNC VERTICAL MACHINING CENTER Model KAFO FV-40
Make	Femco / Kafo
Model No.	FV-40 / KVF-40
Year of Manufacture:	08.1996
Serial #	013155
Condition	Very Good

Features:
Fanuc Series O-M Control.
RS-232 Port.
CAT40 Spindle Taper.
Pendant Control.

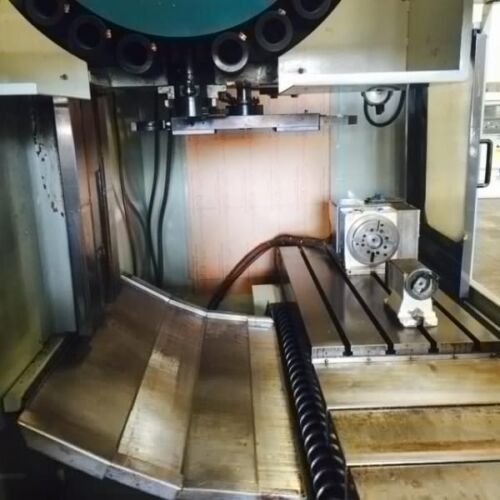

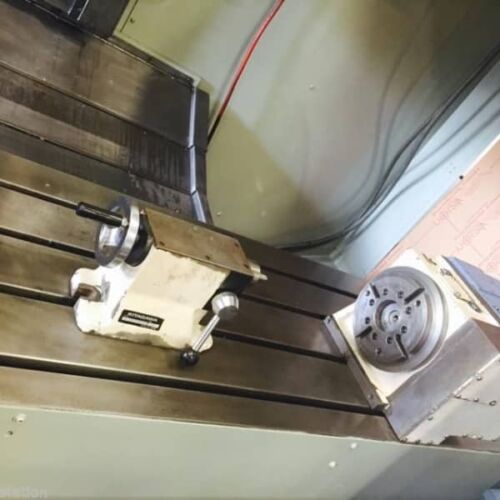

Kitagawa / Tecnara 7″ 4th Axis Rotary Table included.
Central Lubrication System.
Chip Auger.
24-Station Automatic Tool Changer.

Specifications:
Travels:
X-Axis: 43.3″
Y-Axis: 22.0″
Z-Axis: 23.8″

Table:
Table Dimensions: 51.2″ x 21.5″
T-Slots (number x width x distance between centers): 4 x 0.71″ x 5″
Maximum Weight on Table: 2,500 lbs.

Spindle:
Taper: CAT40
Speeds: 70 to 4,000 RPM
Motor: 20 / 15 HP
Spindle Center to Column: 21.3″
Spindle Nose to Table Top: 3.9″ to 27.75″

Feed Rates:
Cutting Feed Rate (X, Y, Z,): 0.04″ to 393″ in/min
Rapid Traverse Rate (X & Y): 590 in/min
Rapid Traverse Rate (Z): 480 in/min

Automatic Tool Changer:
Tool Capacity: 24
Maximum Tool Diameter (with adjacent tool / without adjacent tool): 3″ / 5.6″
Maximum Tool Length: 11.8″
Maximum Tool Weight: 13.2 lbs.

General:
Electrical: 220 Volt, Three Phase
Machine Weight: 15,400 lbs.
Floor Space (W x D x H): 140″ x 120″ x 100″

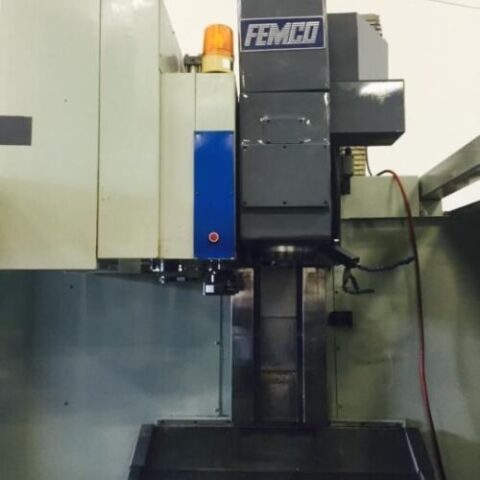

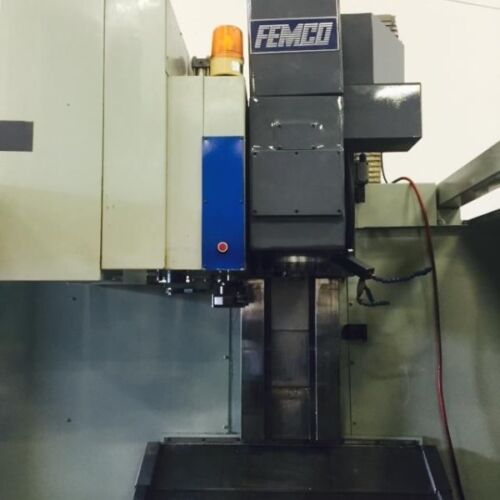

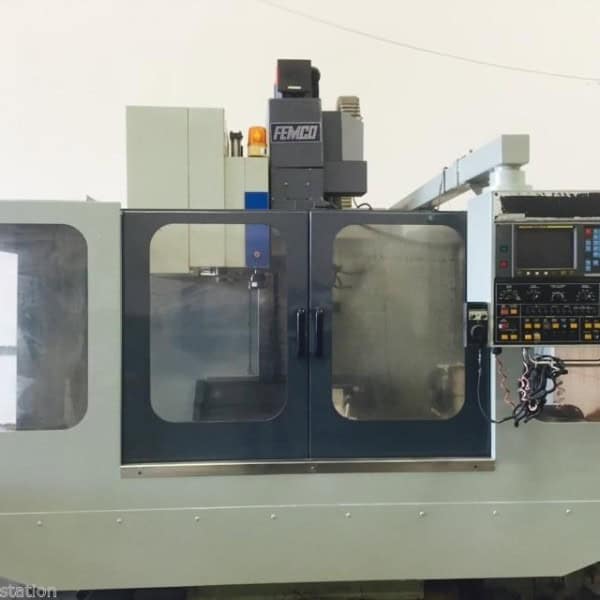

USED-FEMCO CNC VERTICAL MACHINING CENTER Model KAFO FV-40 and Comes as shown in pictures.
