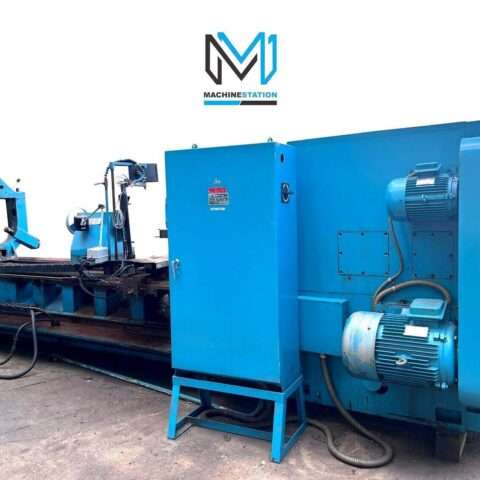

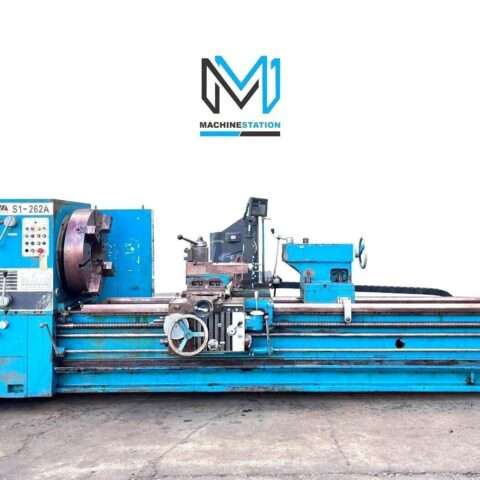

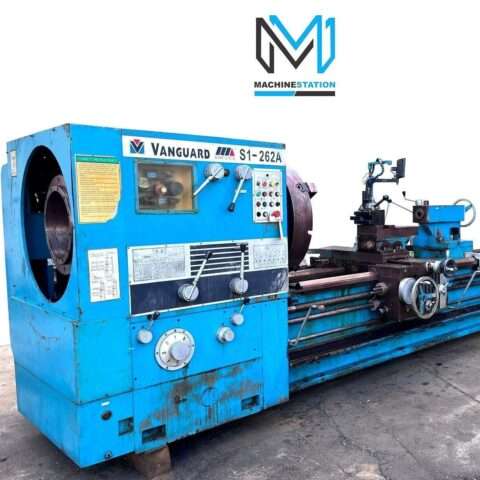

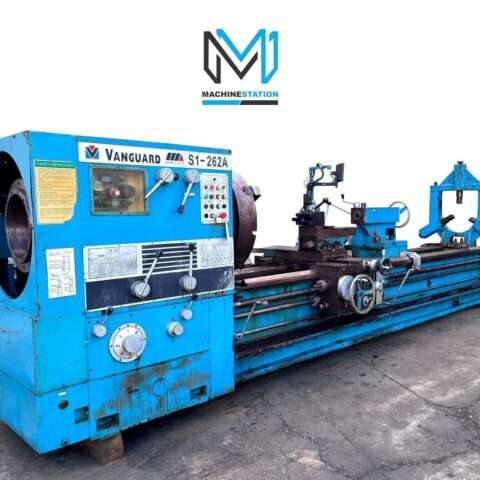

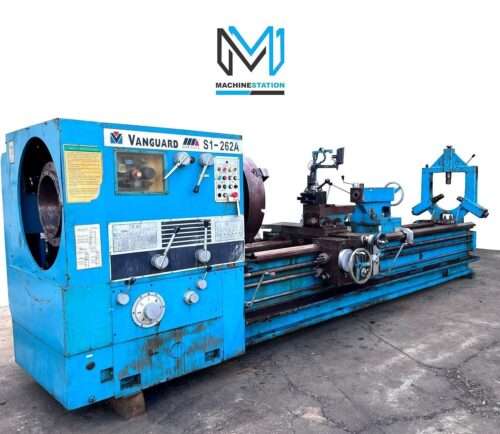

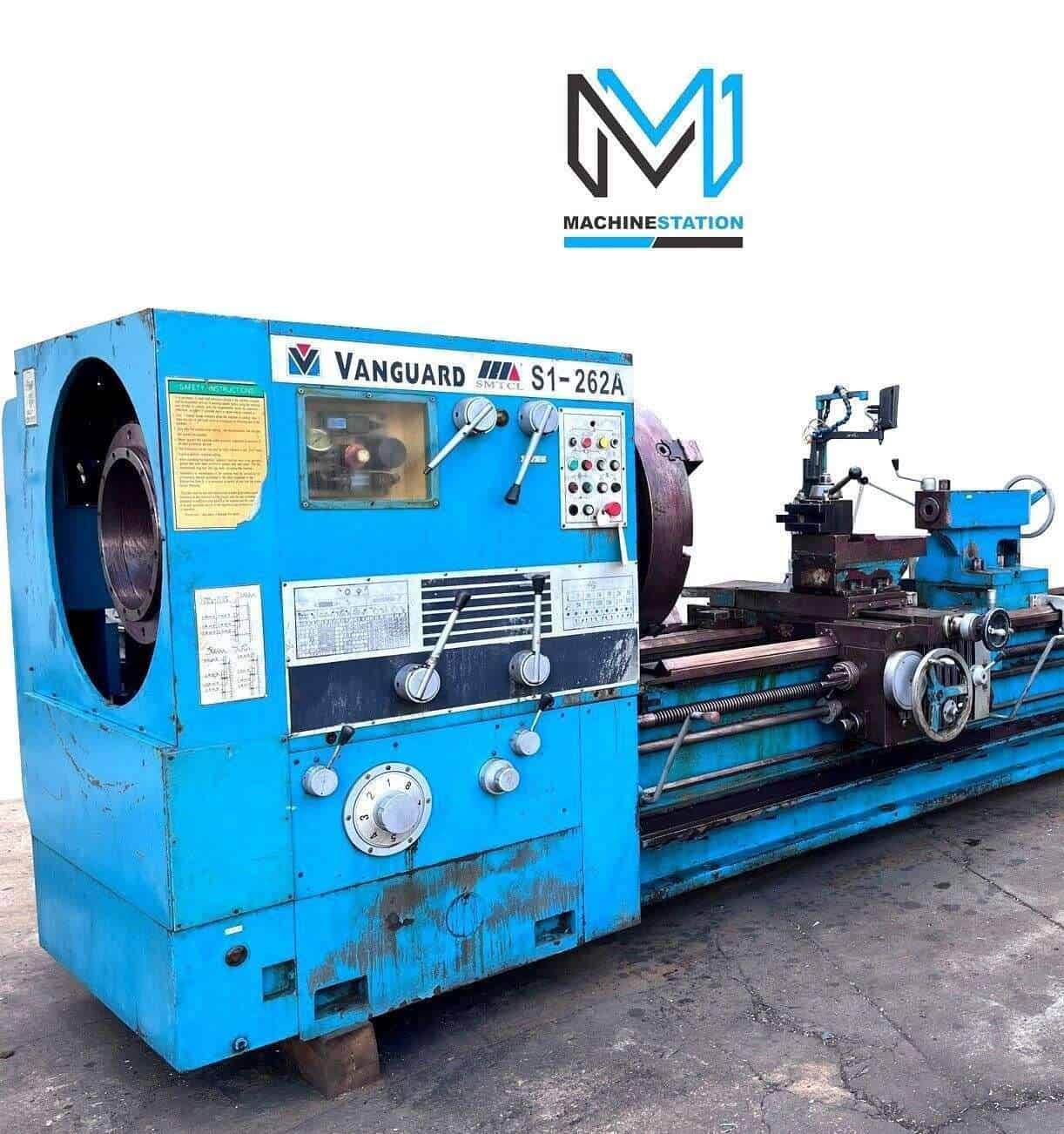

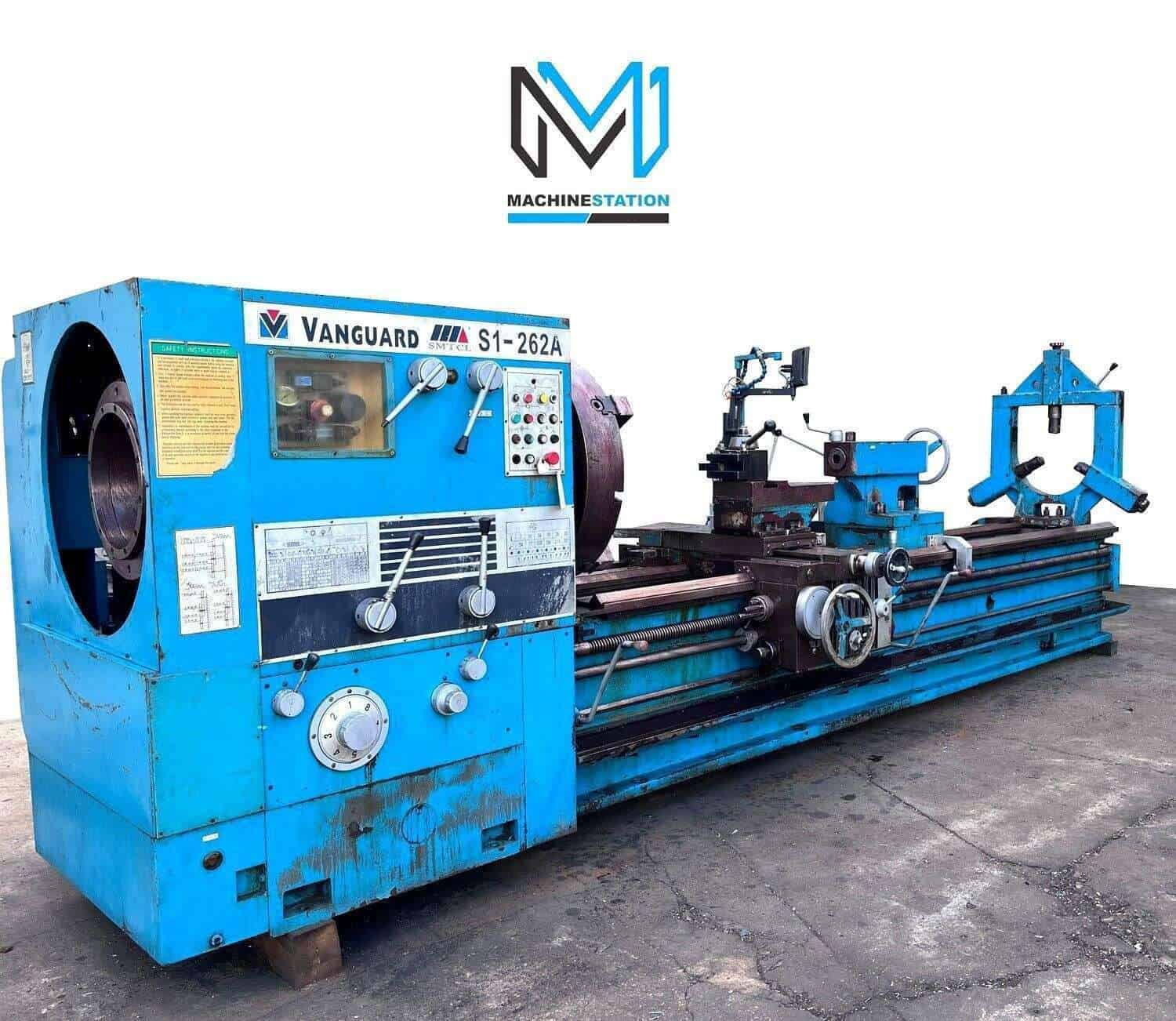

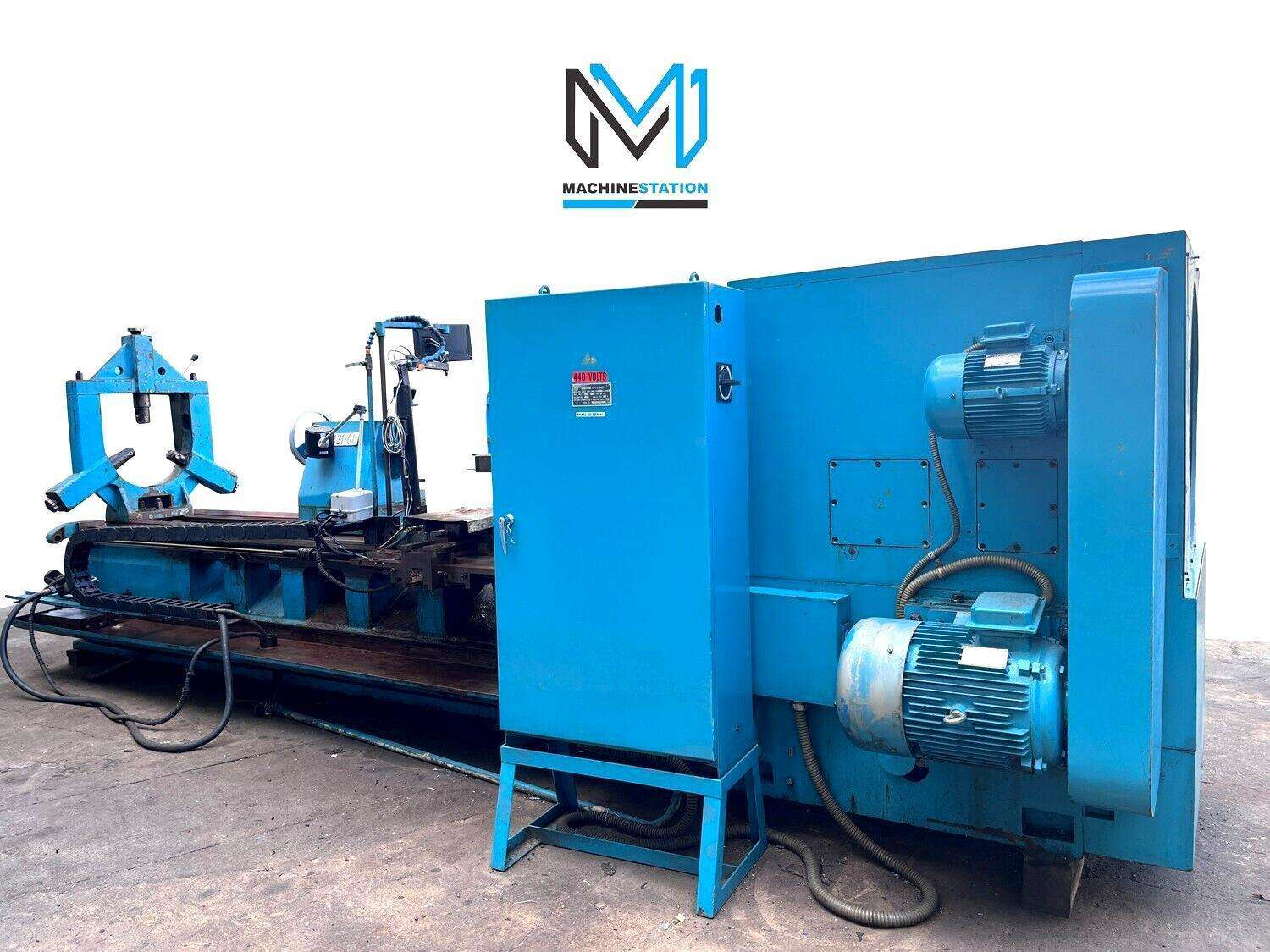

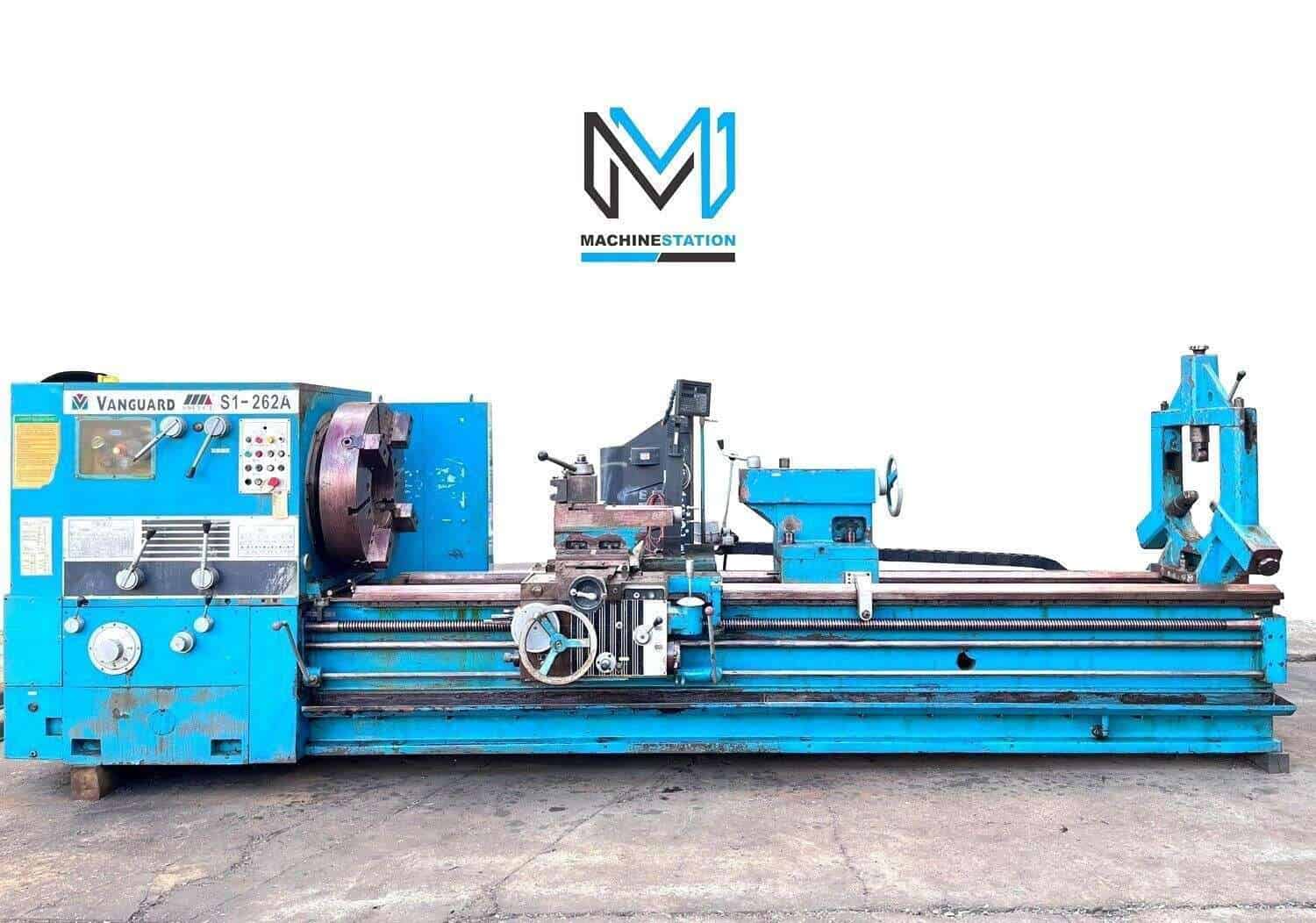

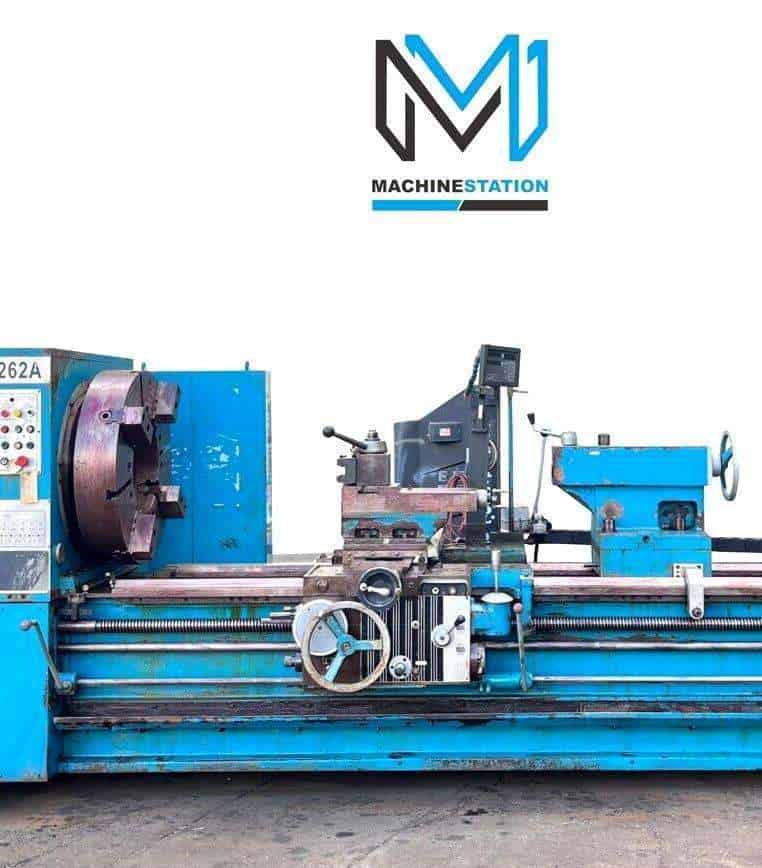

Vanguard S1-262A 36″ X 118″ 14.5″ Hollow Spindle Oil Country Lathe – Shenyang
Out of stock
| SKU: | 2310 |
| Make/Model: | VANGUARD S1-262A |
| Video: | No Video |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | VANGUARD |
| Model: | S1-262A |
| Year: | 2007 |
| Condition: | Used – Good |
| Vanguard S1-262A Equipped With: |
|---|

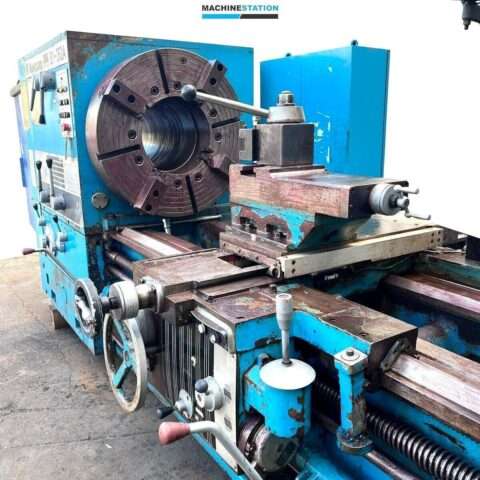

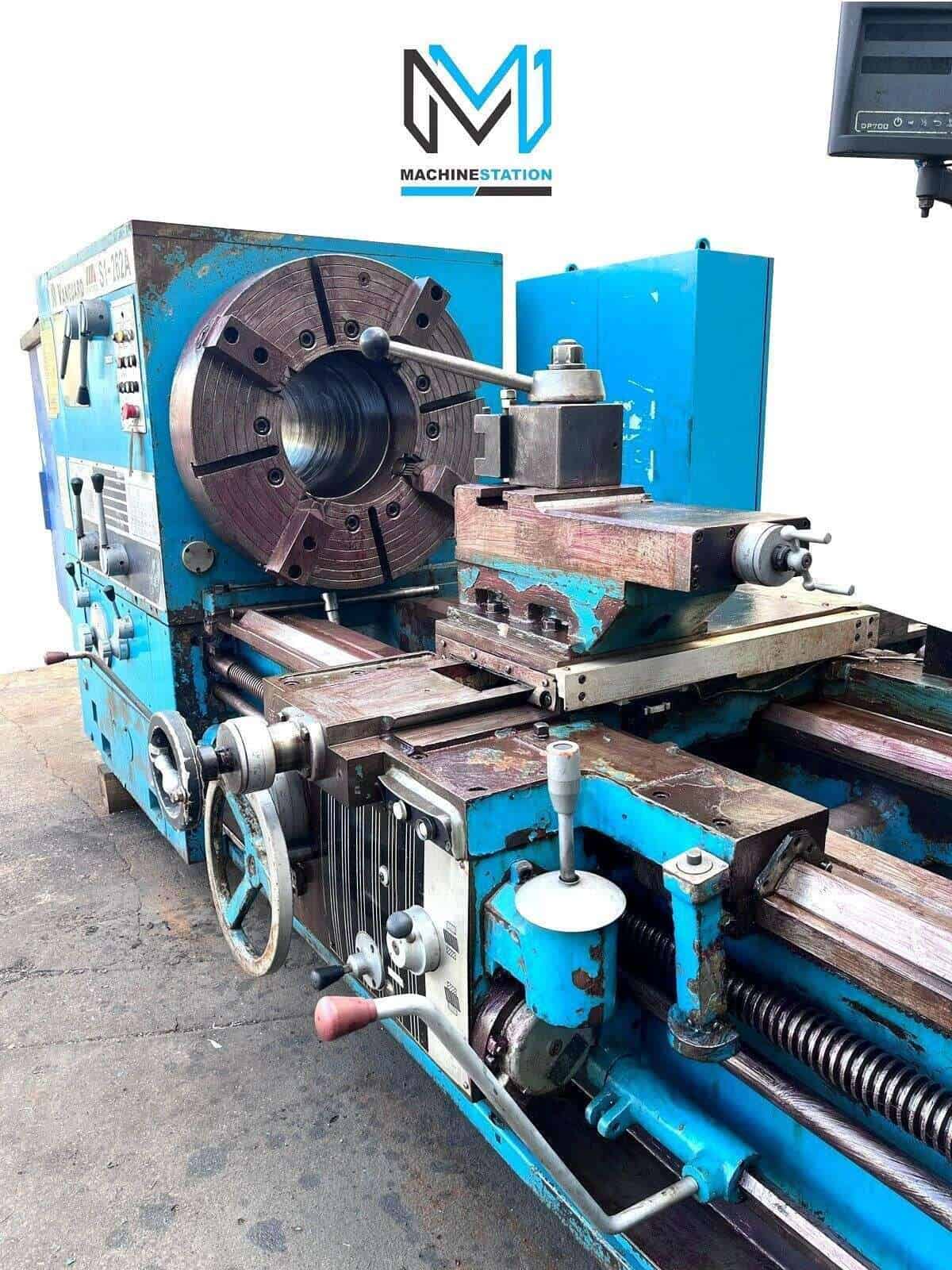

| 31.5” Diameter 4 Jaw Chuck |

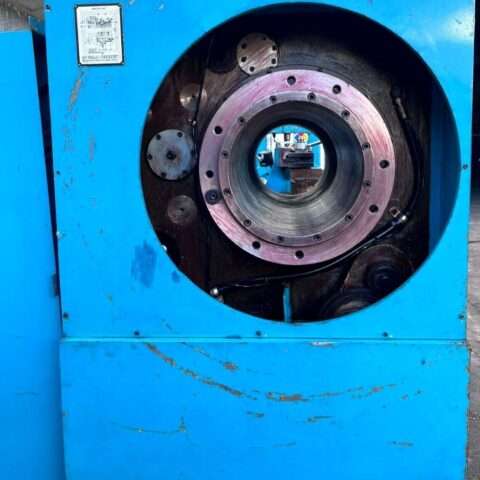

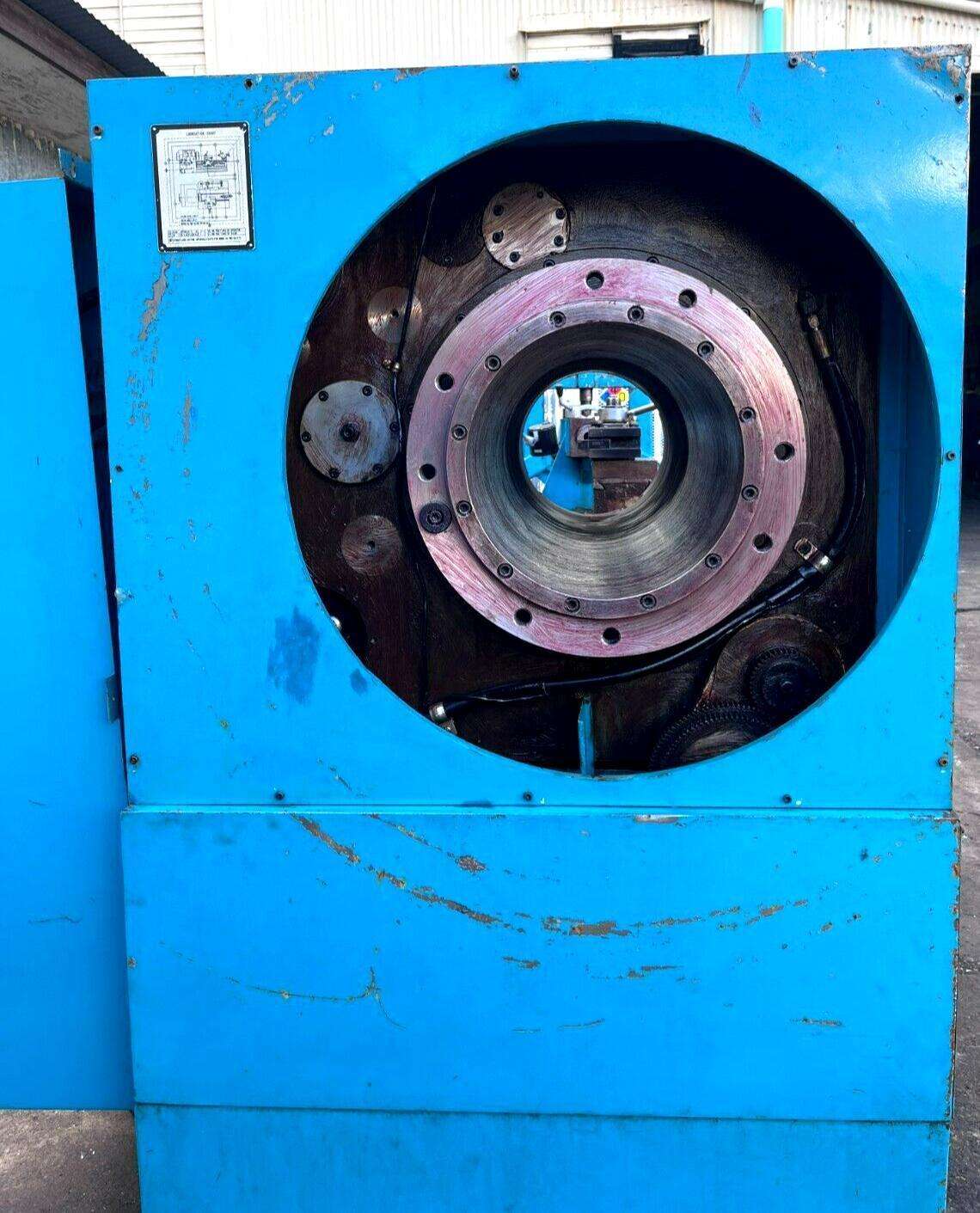

| 14.5″ Hollow Spindle |

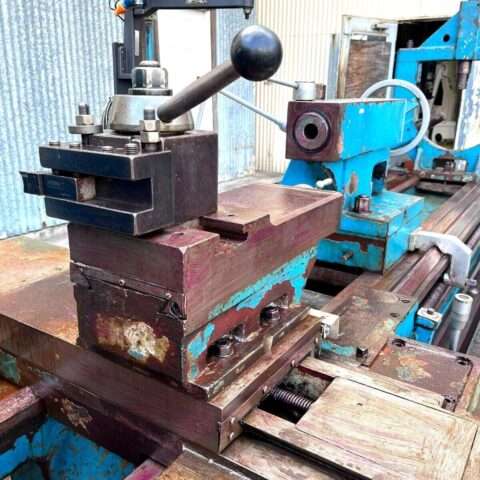

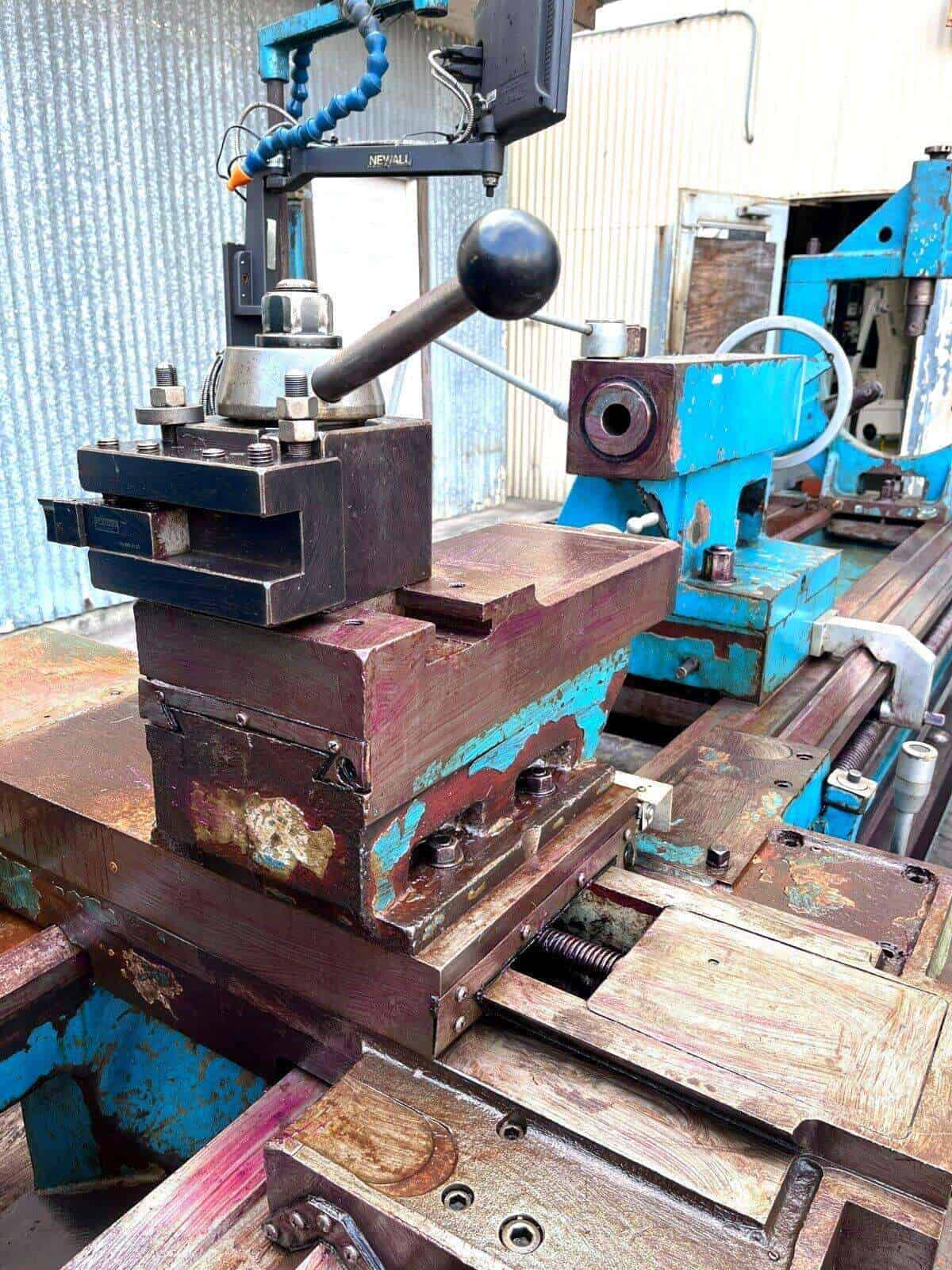

| 4 Way tool post |

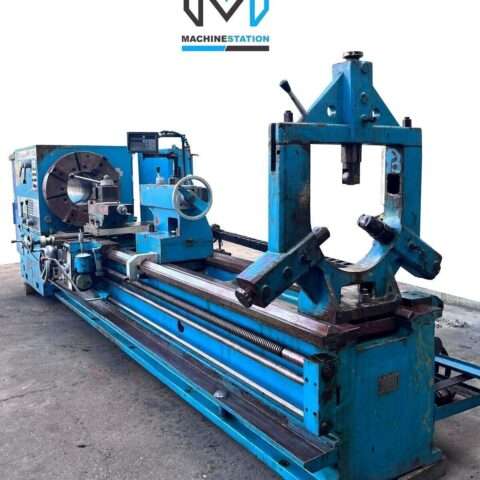

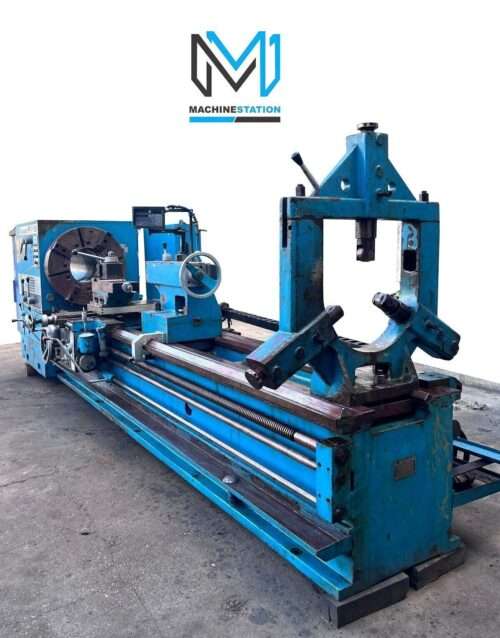

| Heavy Duty Steady Rest |
| Set of Steady Rests |
| Heavy Duty tailstock |
| Taper attachment |
| Capacity: |
|---|
| Max Turning Diameter: 28″ ? |
| Max Turning Length: 118″ |
| Max Bar Capacity: 14.5″ |
| Swing Over Bed: 36.0″ |
| Swing Over Cross Slide: 32″ |
| Distance Between Centers: 118″ |
| Bed Width: 27.75″ |
| Travel: |
|---|
| Cross Slide Travel: 12″ |
| Longitudinal Travel: 118″ |
| Compound Slide Travel: 8″ |
| Compound Slide Swivel Angle: 90 Degrees |
| Cross Slide Width: 13″ |
| Taper Attachment Taper Angle: 14 Degrees |
| Feed and Threads: |
|---|
| Threads Per Inch: (26) 1/2 to 28 TPI |
| Metric Threads: (22) 1 to 15 mm |
| Module Threads: (21) .5 to 7.5 |
| Diametral Threads: (20) 2 to 28 TPI |
| Longitudinal Feeds: (32) 003 to .56 IPR |
| Cross Feeds: (32) .003 to .56 IPR |
| Leadscrew Diameter-Pitch: 2.2″ – 2 TPI |
| Longitudinal Rapid Travers: 157 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-20 |
| Spindle Bore: 14.5″ |
| Spindle Speed: 7 – 305 RPM |
| Spindle Motor: 25 HP |
| Tailstock: |
|---|
| Tailstock Body Travel: 100″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 440 V Three Phase 60 Hz |
| Power Requirement: 36 kva |
| Overall Dimensions: 228″ x 72″ x 67″ |
| Weight : 25353 lbs Approx. |
| “No Charges for loading at list Price” |
