| Victor DCM 2063 Vertical Machining Center | |
|---|---|

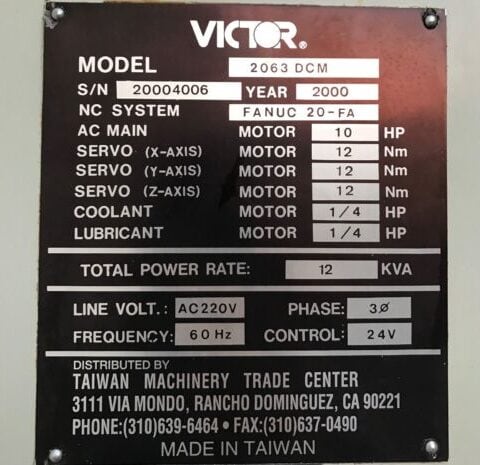

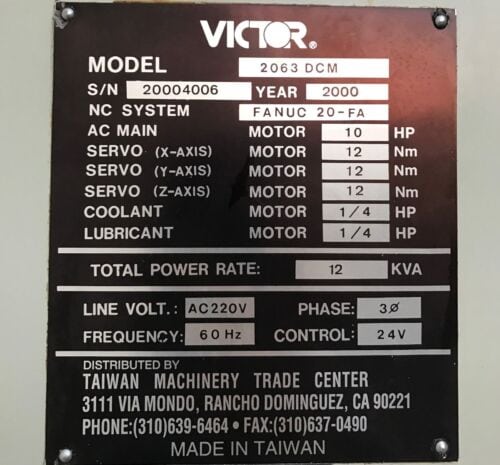

| Make | Victor |
| Model No. | 2063 DCM |
| Year of Manufacture: | 2000 |
| Serial # | 20004006 |
| Condition | Very Good |
Replacement Cost Approx. $ 52,000
All specifications are approximations and are subject to verification.
Comments: Excellent Condition Machine from a Aerospace Shop Tool Room equipped with Sony Glass Scales. Only 788 Cutting Hours. Customer Paid 52678 Dollars when purchased new. All Documentation Available. On our Floor now, fully powered / tested & is in Great working condition. check *VIDEO
- Victor DCM 2063 Features:

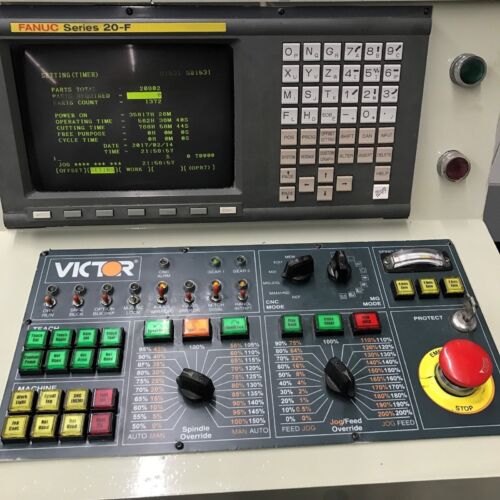

- Fanuc 20-FA CNC Control
- Sony Scales on X and Y Axis
- Manual operation via four (4) handwheels
- Conversational graphics programming
- Teach-in / Playback operation: manually run 1st part, then Playback for automatic operation
- 6 CNC Modes: MEM, EDIT, MDI, Machine Guidance, Manual/handwheel, Ref Return
- Remote Jog Handle
- Rigid Tapping
- Quill Travel Rigid Head
- Brush-type servo drive motors on all axis
- Telescopic way covers
- Coolant system
- Comes with All Original Manuals, Floppy disks & Documentation
- Victor DCM 2063 Specifications:
- Travels:
- X-Axis: 50.00″
- Y-Axis: 25.00″
- Z-Axis: 24.00″
- Rapid Traverse Rates: 400 Inch Per Minute
- Cutting Feed Rates: 200 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 3″ – 27″
- Spindle to Column: 25.5″

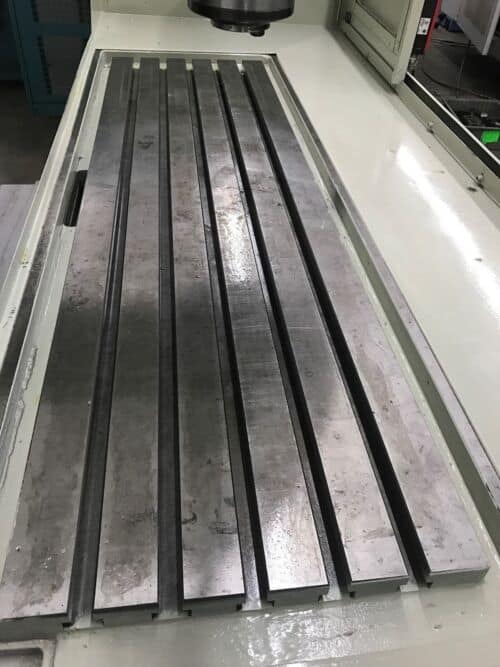

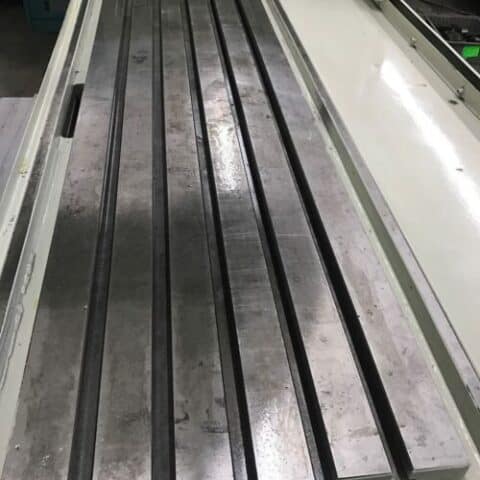

- Table:
- Length: 63″
- Width: 20″
- Number of Std T-Slots: 5
- T-Slot Width: 0.71″
- Max Weight on Table: 3300 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 6000 RPM
- Spindle Power: 10 HP
- General:
- Power: 220v / 3-Phase / 32 kva
- Overall Dimensions: ” High
- Weight: 9000 lbs

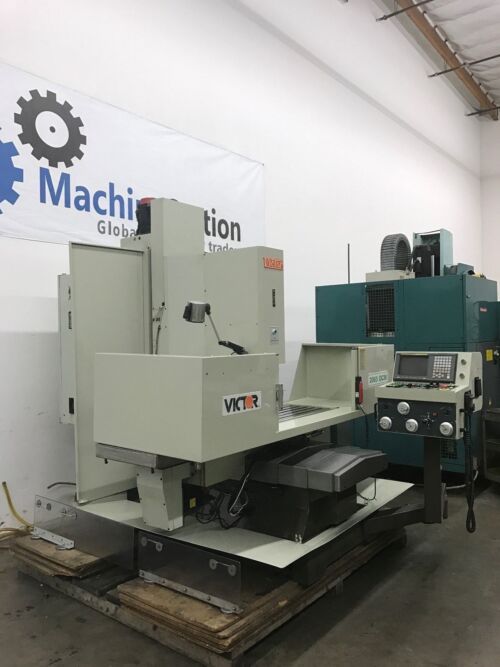

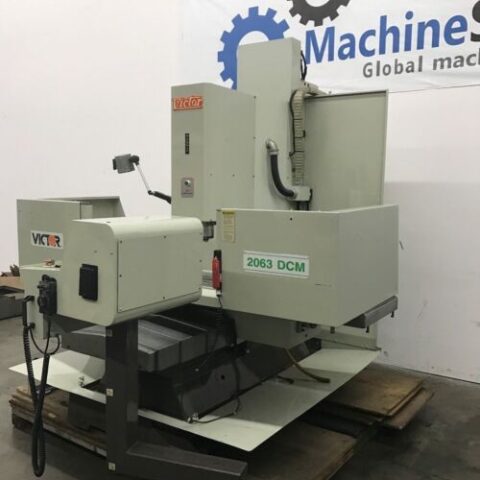

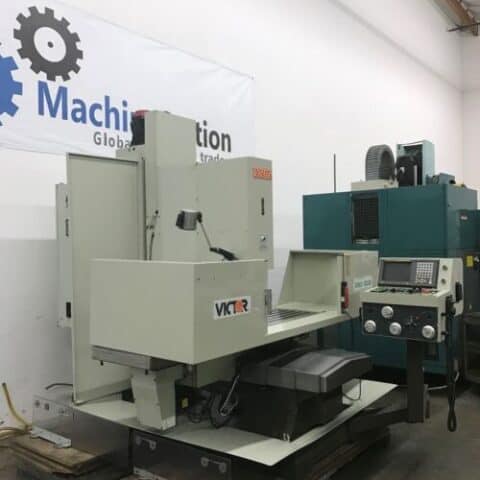

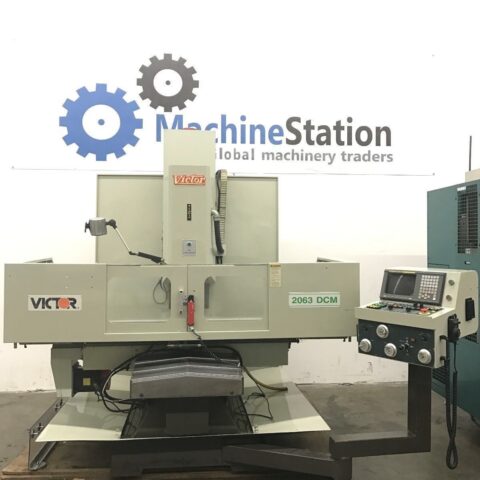

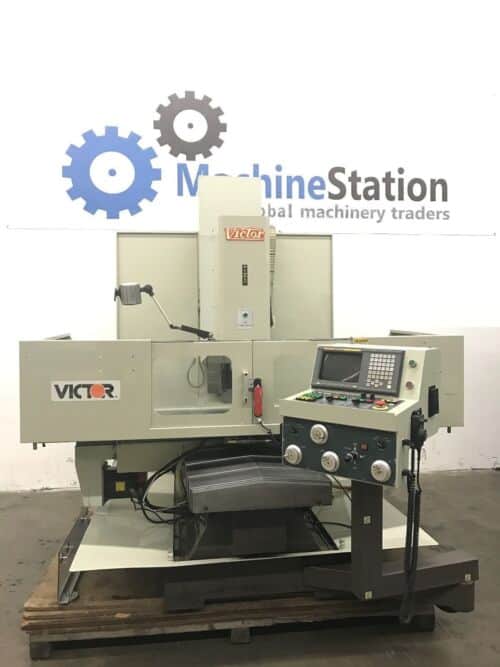

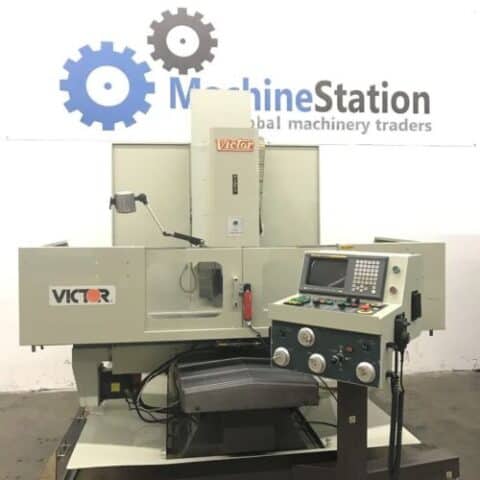

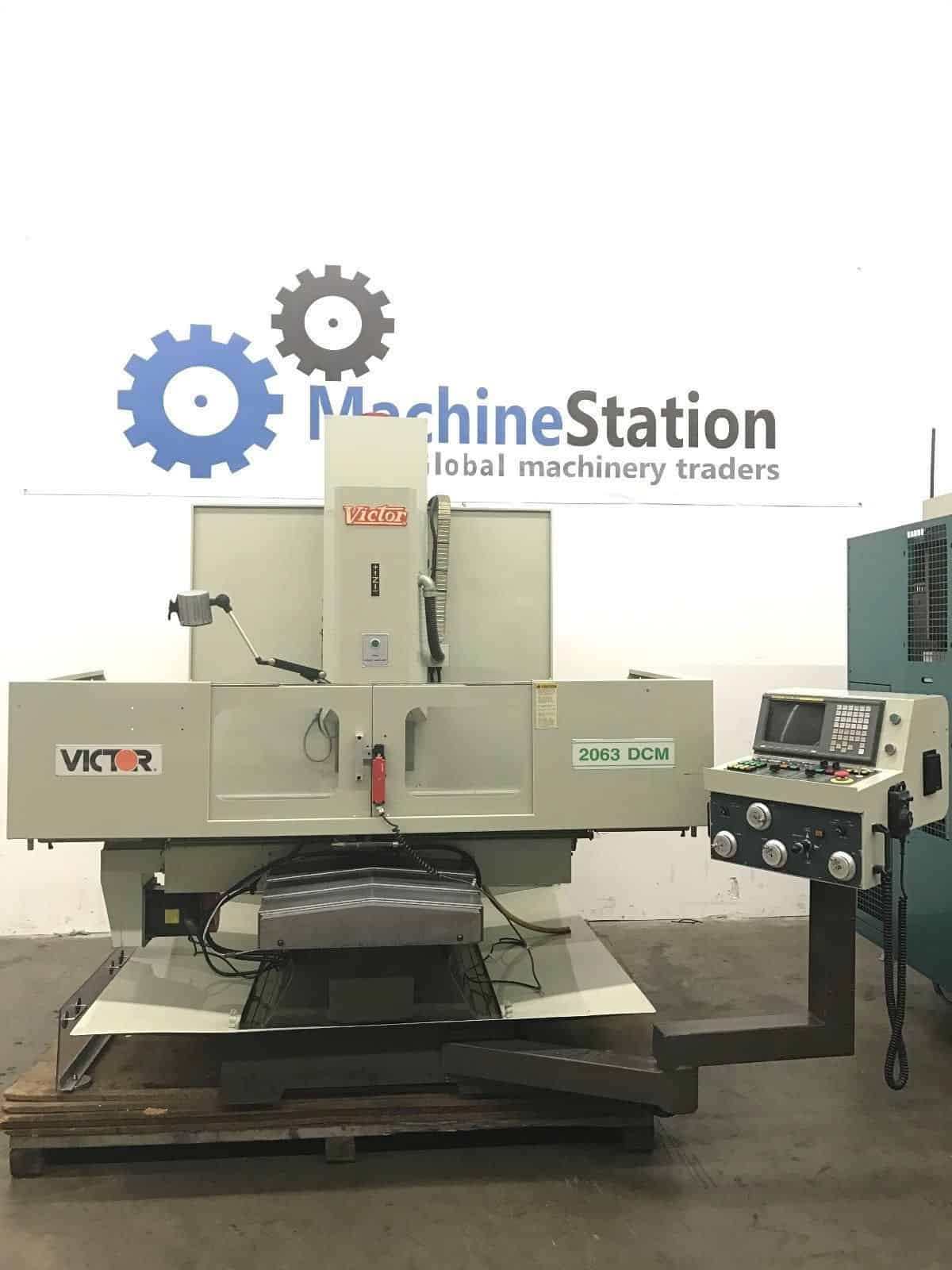

Victor DCM 2063 Comes as shown in pictures..
