| WA Whitney 50 Ton Duplicator Hydraulic Punch Press | |
|---|---|
| Make | W.A. Whitney |
| Model No. | 653 |
| Country of Origin: | USA |
| Condition | Very Good |
- WA Whitney 50 Ton Duplicator Hydraulic Punch Press Specifications:
- Capacity: 50 Tons
- Depth of Throat: 53″
- Height of Throat: 10-1/2″ at highest point / 6″ at lowest point
- Stroke Adjustment: 1/4″ to 2″
- Die Bed Dimensions: 16″ x 8″
- Table Dimensions: 32″ x 72″
- Punching Capacities (mild steel): 1-1/8″ diameter x 1/2″ thickness / 2″ diameter x 3/8″ thickness / 3″ diameter x 1/4″ thickness / 4″ diameter x 3/16″ thickness / 6-1/2″ diameter x 10 gauge
- Pump Motor: 10 Horsepower, 230 / 460 Volt, 1,750 RPM, 26 / 13 Amps, 60 Hz
- WA Whitney 50 Ton Duplicator Hydraulic Punch Press Electrical: 230 / 460 Volt, Three Phase
- Overall Dimensions of Pump: 39″ x 20″ x 34″ tall
- Overall Dimensions of Press: 44″ x 120″ x 87″ tall

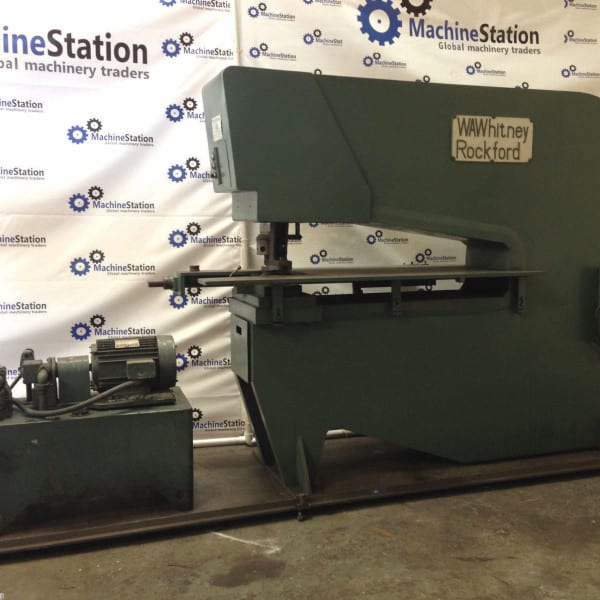

WA Whitney 50 Ton Duplicator Hydraulic Punch Press Comes as shown in pictures.
