Walter Helitronic Power HMC-400 CNC Tool and Cutter Grinder

Out of stock

SKU:	1879
Make/Model:	Walter/HMC-400
Video:	[fusion_button link=”https://www.youtube.com/watch?v=wfisaFZUXoE” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1879

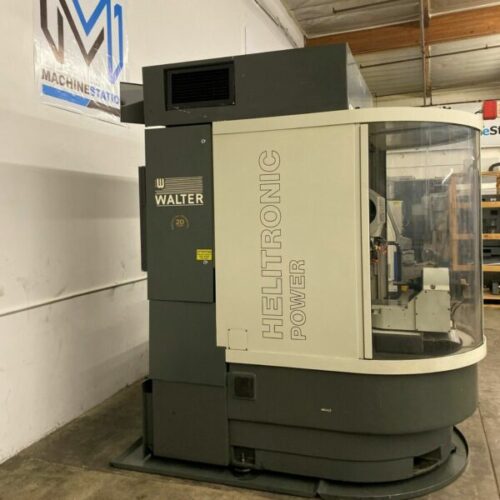

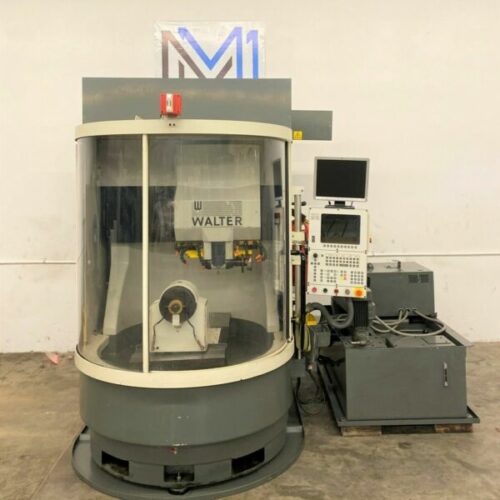

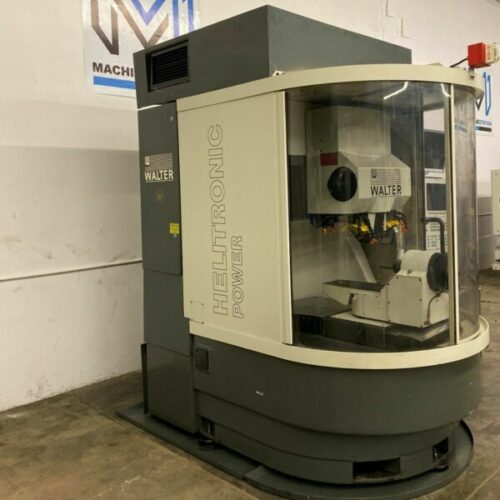

Walter Helitronic Power HMC-400 CNC Tool and Cutter Grinder
Make	Walter
Model No.	HMC-400
Year of Manufacture:	1996/1998

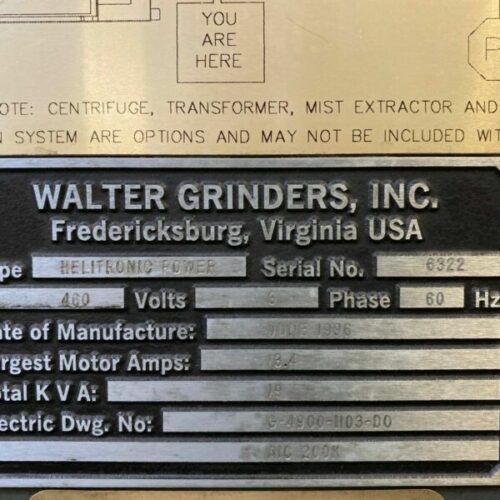

Serial #	6322
Condition	Very Good

All specifications are approximations and are subject to verification.

Programs include: Drill, Reamer, End Mill and Form Tool

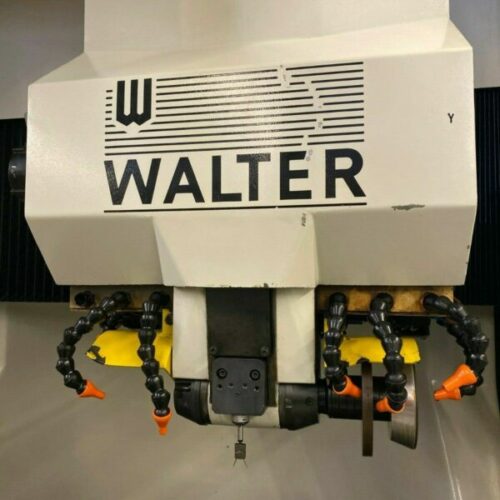

Double Side Grinding spindle

Walter Helitronic Power HMC-400 Equipped With:

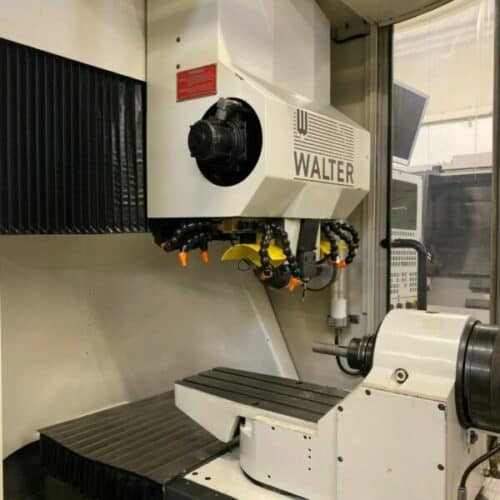

10,500 RPM Precision Spindle

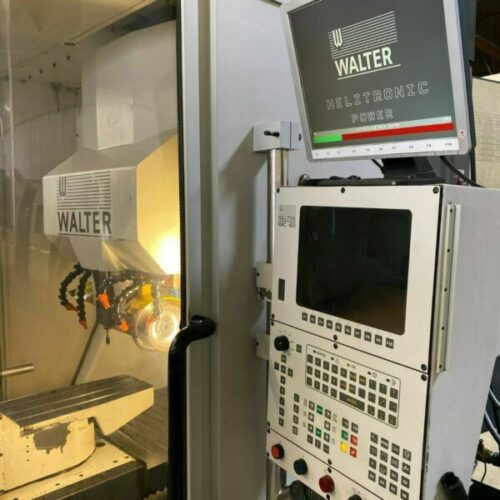

Windows based Walter cnc Control
CBN Diamond Wheel installed
Probing sytem

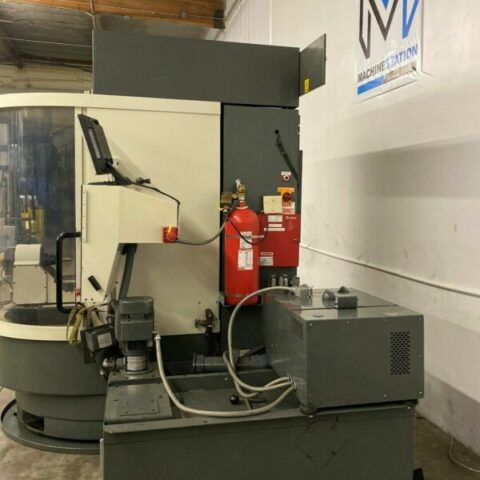

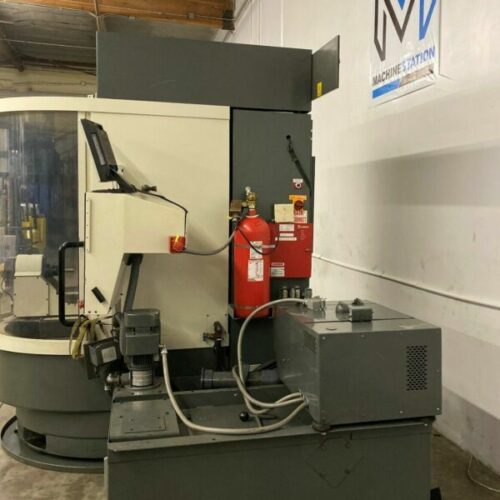

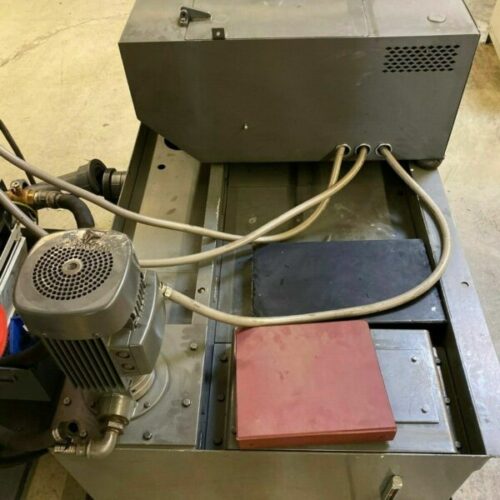

Coolant and Filteration System
Full Enclosure
Manuals
WorkLight

General:
Air Required: 6 bar
Total Power Requirement Max: 18kw
Power: 460v / 60hz
Overall Dimensions: 85.8″ x 63″ x 86.6″ High Weight: 7055 lbs

Walter Helitronic Power HMC-400 Specifications:
Capacity of Workpiece Dia.: 0.04″ – 3.9″
Max. Peripheral Grinding: 10″
Max. End Face Grinding: 7.3″
Max. X Axis Travel: 13.8″
Max. Y Axis Travel: 7.9″
Max. Z Axis Travel: 18.5″
A Axis: Infinite
C Axis Rotary: +/- 200° ( 0.001° )
Grinding Spindle Motor: 16 hp
Grinding Wheel Type: Diamond or CBN Grinding
Wheel Dia. Max.: 5.9″
Grinding Wheel Speed: 500 to 10,500 RPM

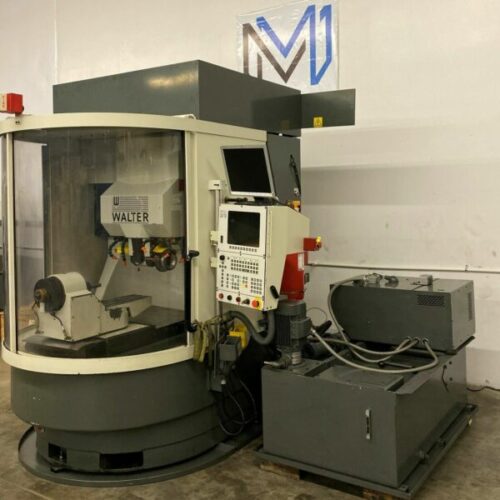

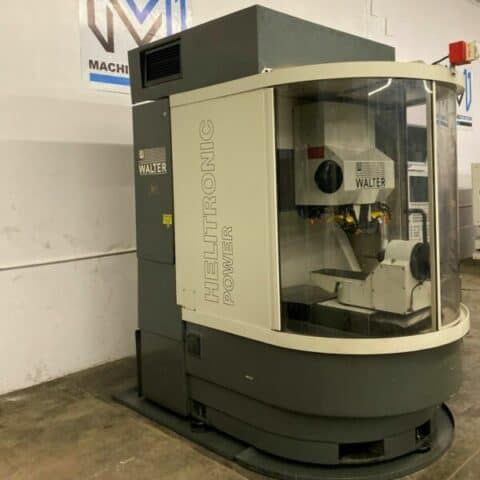

Walter Helitronic Power Comes as Shown in Pictures…
