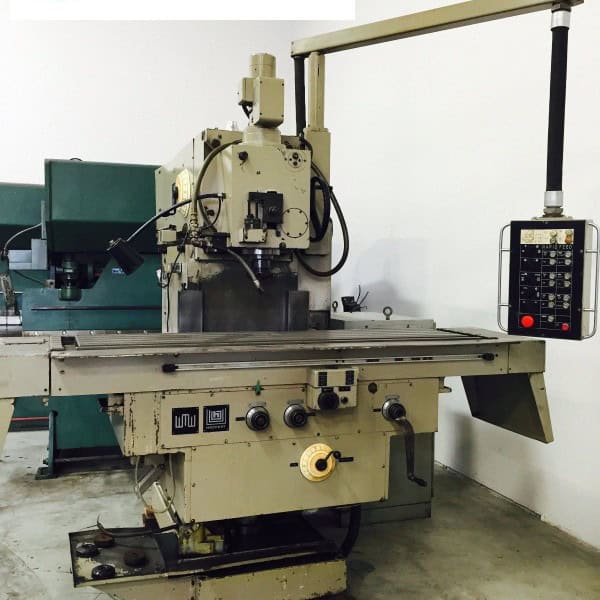

WMW FQ 400 Vertical Milling Machine
|WMW FQ 400 Vertical Milling|
|Country of Origin||Germany|
- WMW FQ 400 Vertical Milling Features:
- Pendant Control.
- 3-Axis Power Feed.
- Coolant System.
- WMW FQ 400 Vertical Milling Specifications:
- Work Table:
- Surface Area: 78.75″ x 19″
- T-Slot Center Distance: 5 @ 3.25″ centers
- T-Slot Sizes: 0.710″
- Maximum Work Load: 3,000 lbs.
- X-Axis Table Travel: 46.85″
- Y-Axis Table Travel: 17.71″
- Z-Axis Table Travel (knee): 16.3″
- Quill Travel: 6″
- Spindle Taper: SK50
- Quill Diameter: 5″
- Number of Speeds: 18
- Speeds: 35.5 to 1,800 RPM
- Head Adjustments:
- Head Tilt: 45 degrees
- Electrical: 460 Volt, Three Phase
- Overall Dimensions: 125″ x 115″ x 115″ tall
WMW FQ 400 Vertical Milling and Comes as shown in pictures.
