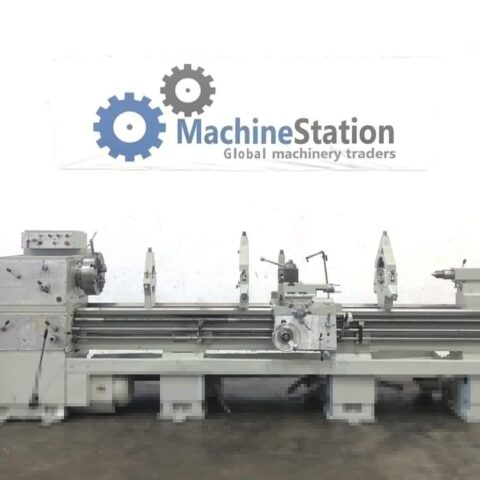

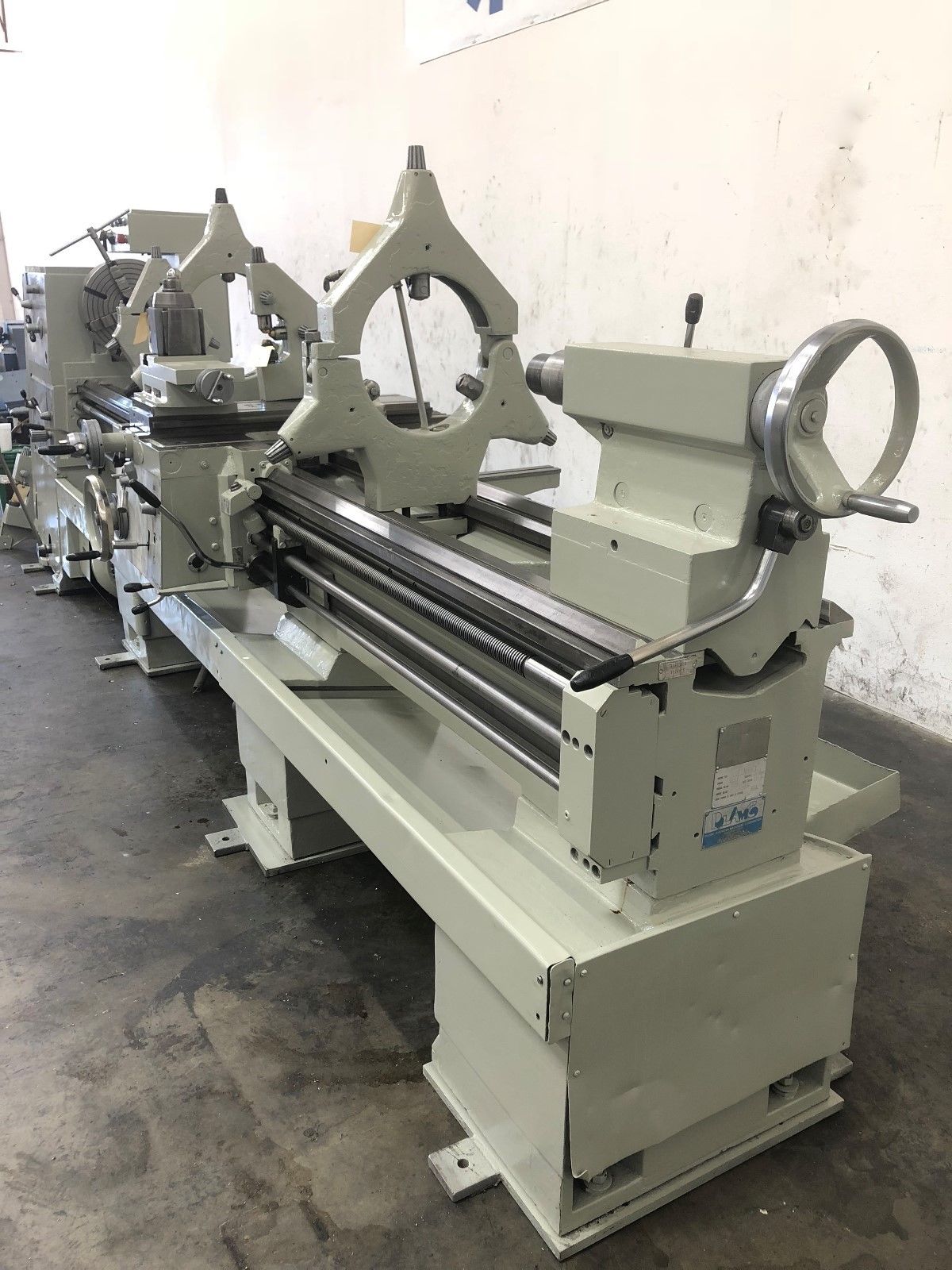

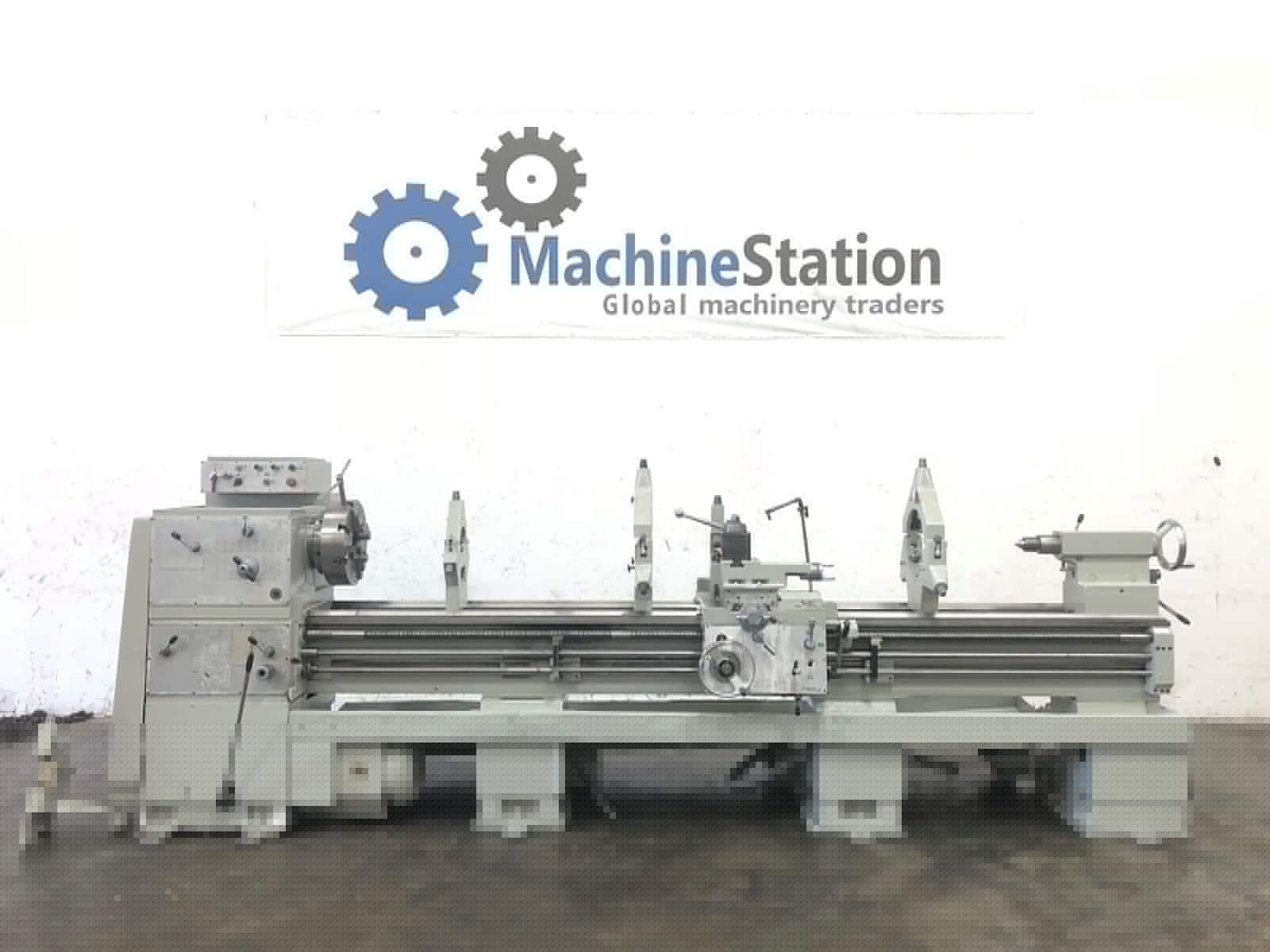

| WROCLAW TUR-63 HEAVY DUTY ENGINE LATHE | |
|---|---|
| Make | Wroclaw |
| Model No. | TUR-63 |
| Serial # | 39217 |
| Condition | Very Good |

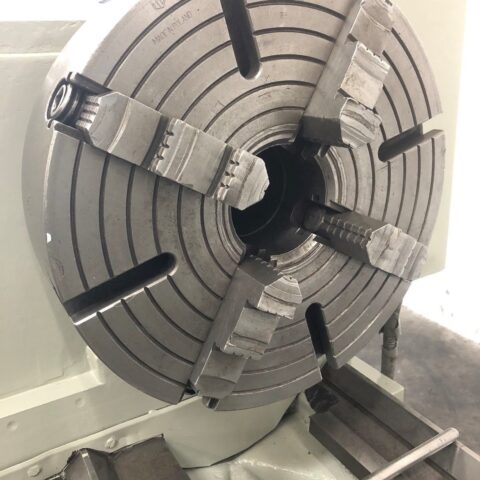

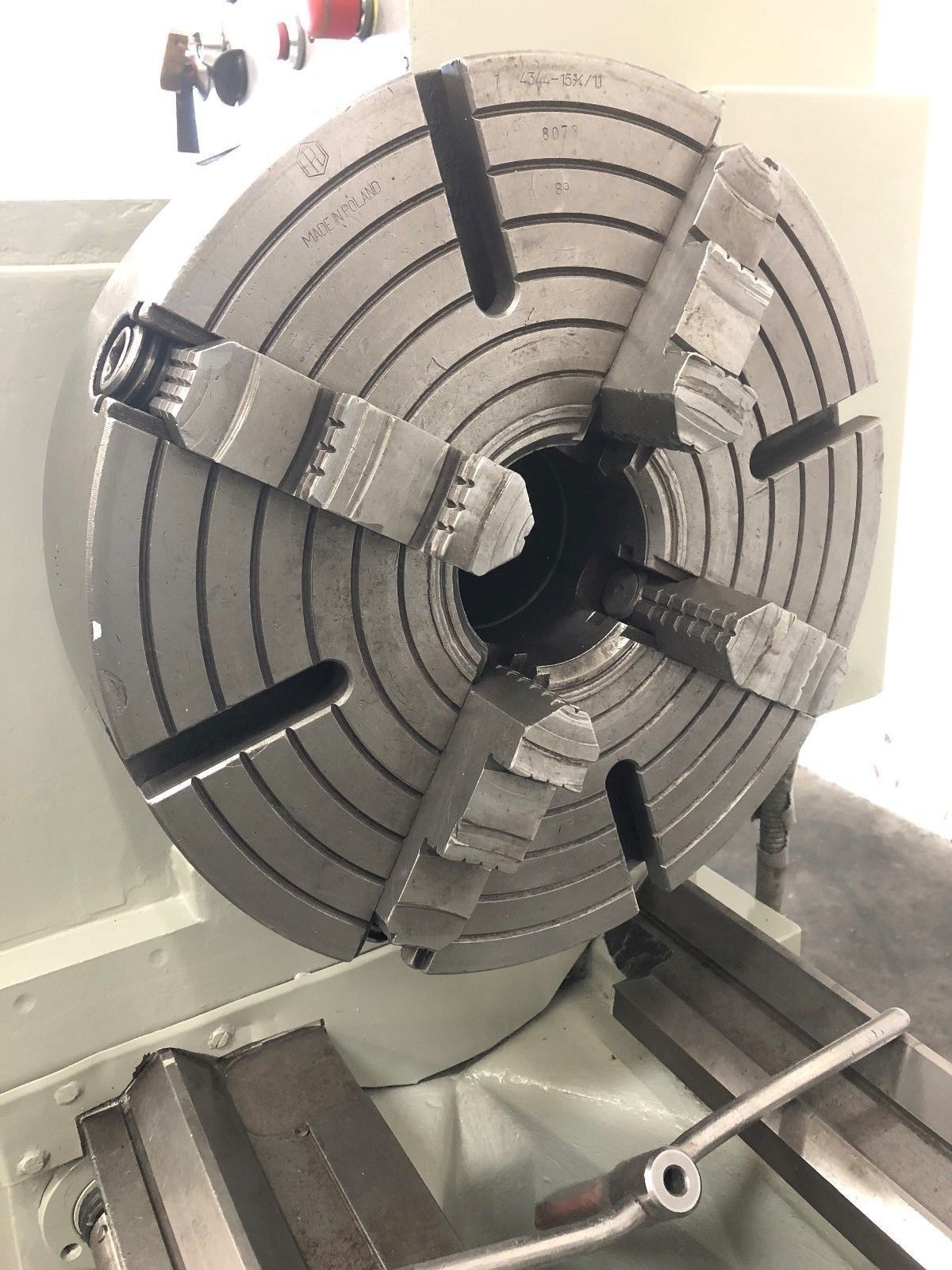

Comes with 16″ Chuck, Taper Attachment, Steady Rest’s, Tool Post, Tailstock, & Pan.
All specifications are approximations and are subject to verification.
“On Our Floor now in working condition. Please feel free to ask For *VIDEO* and more Pictures.”
- WROCLAW TUR-63 Equipped With:
- Threading (Inch-Metric Full-Length Lead Screw)
- Taper Attachment
- 4.0″ Big Bore

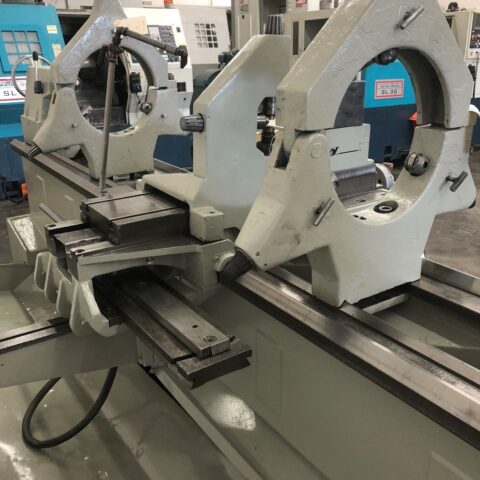

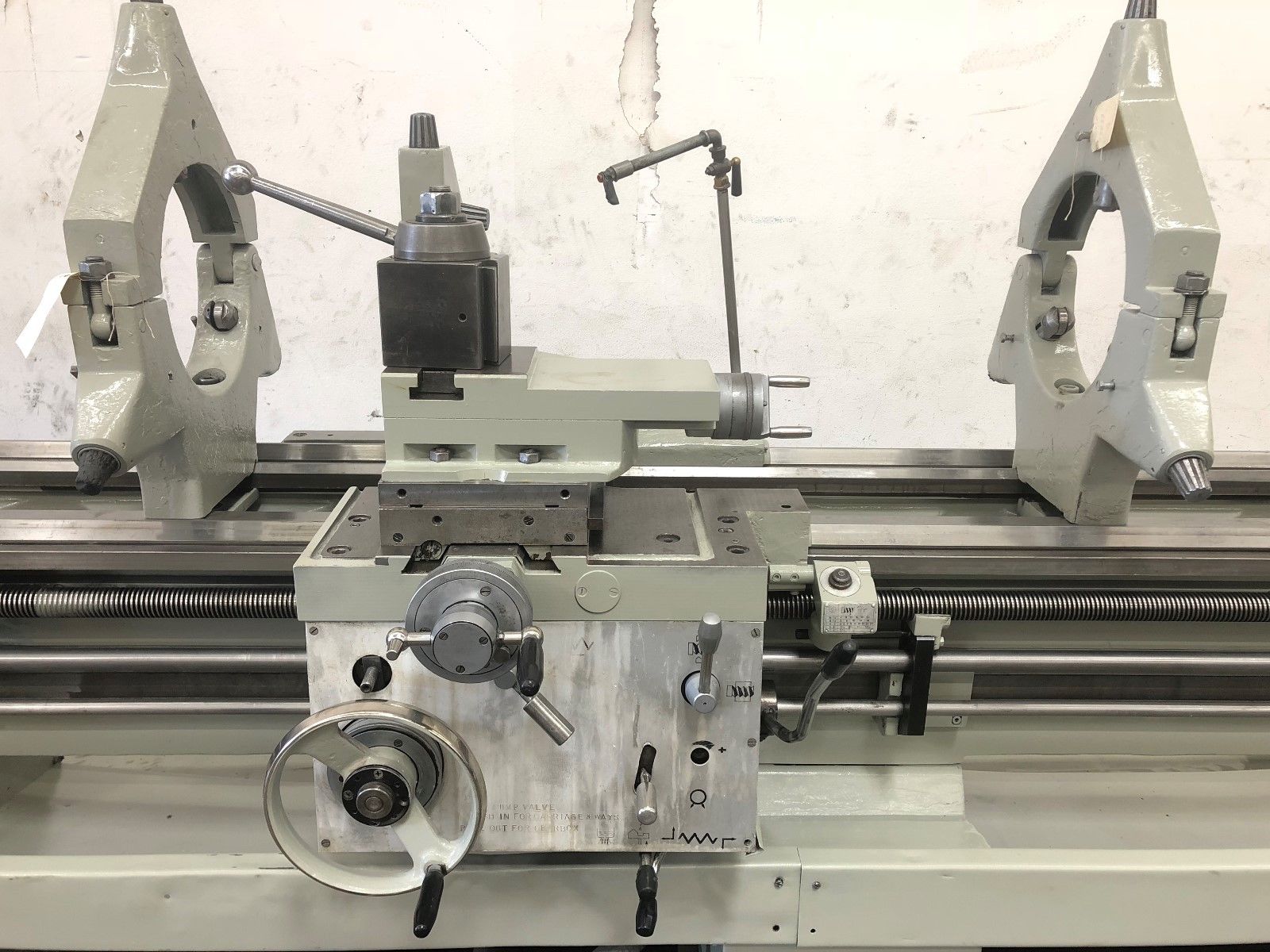

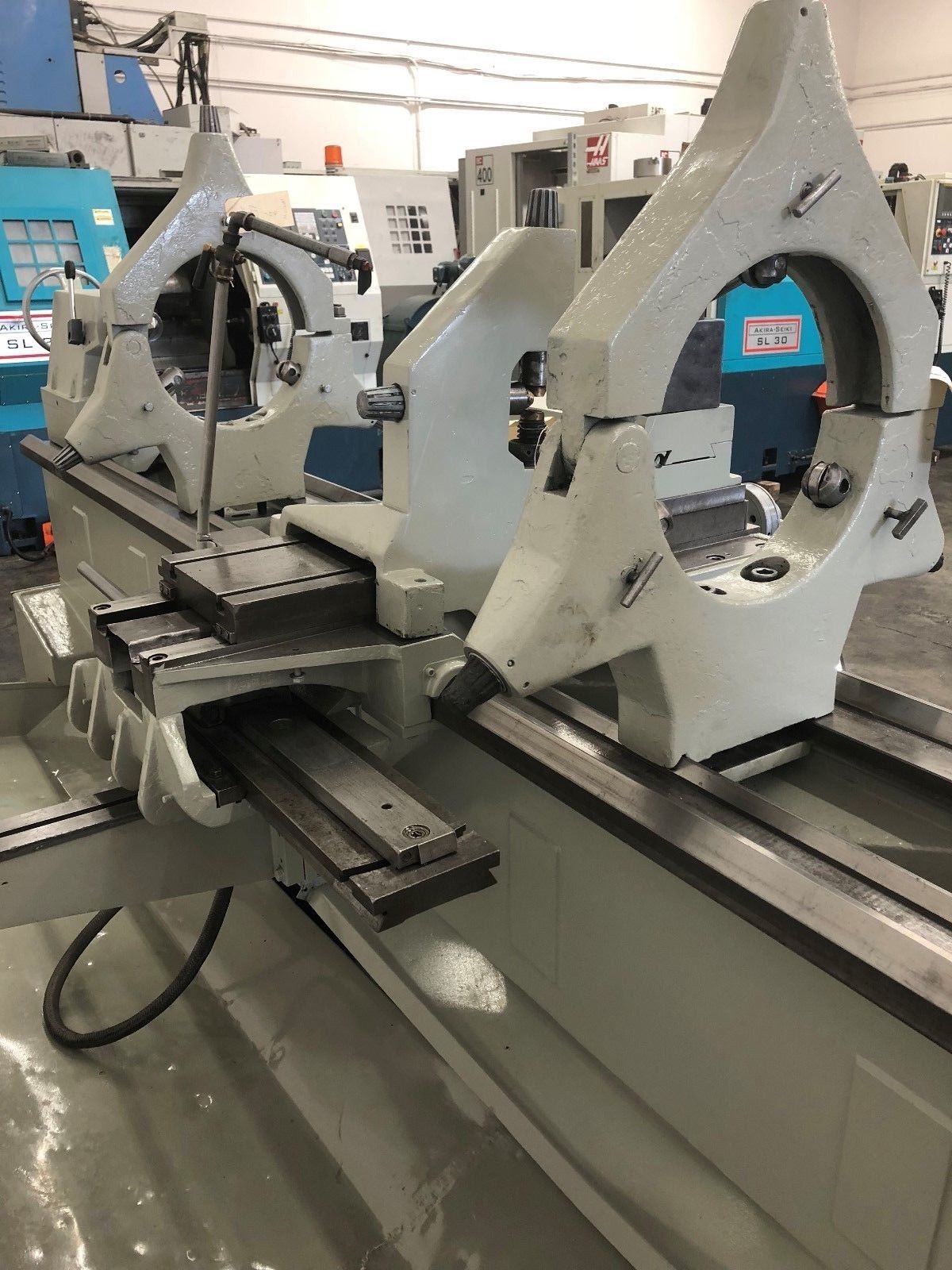

- 3 Pcs 3 Jaw Steady Rest
- 2 Pcs 2 Jaw Steady Rest
- Hardened & Ground Gears & Bedways

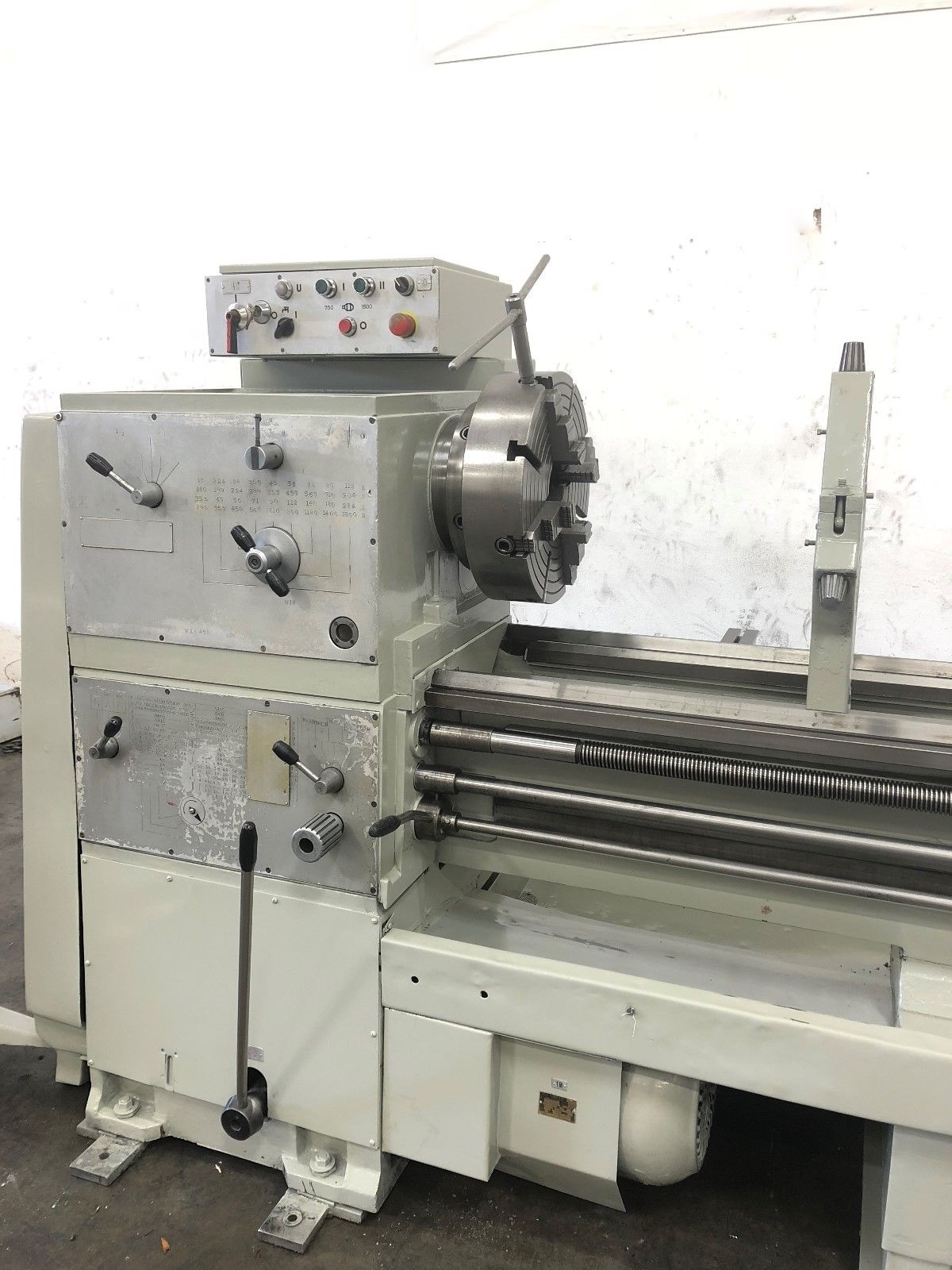

- 16″ 3 Jaw Hydraulic Chuck
- Micrometer Carriage Stop

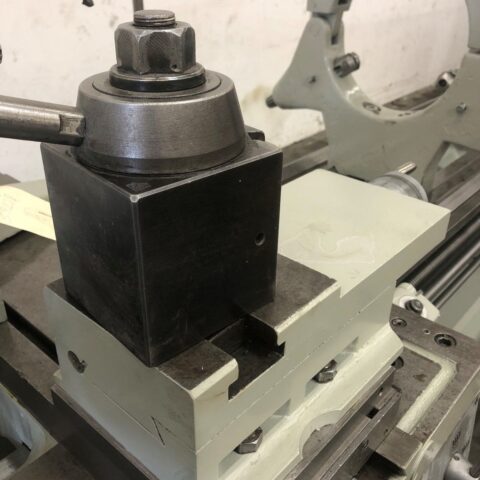

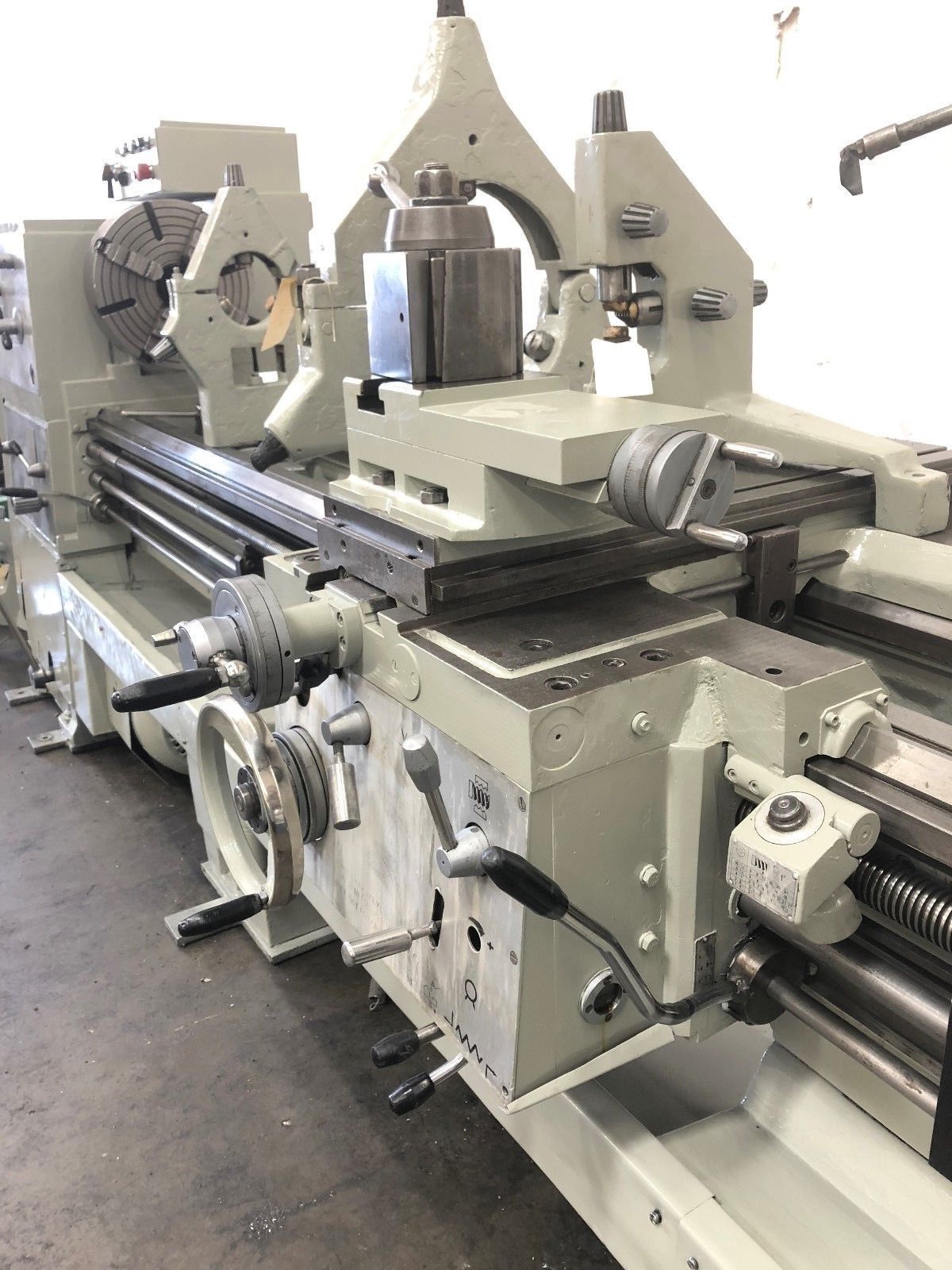

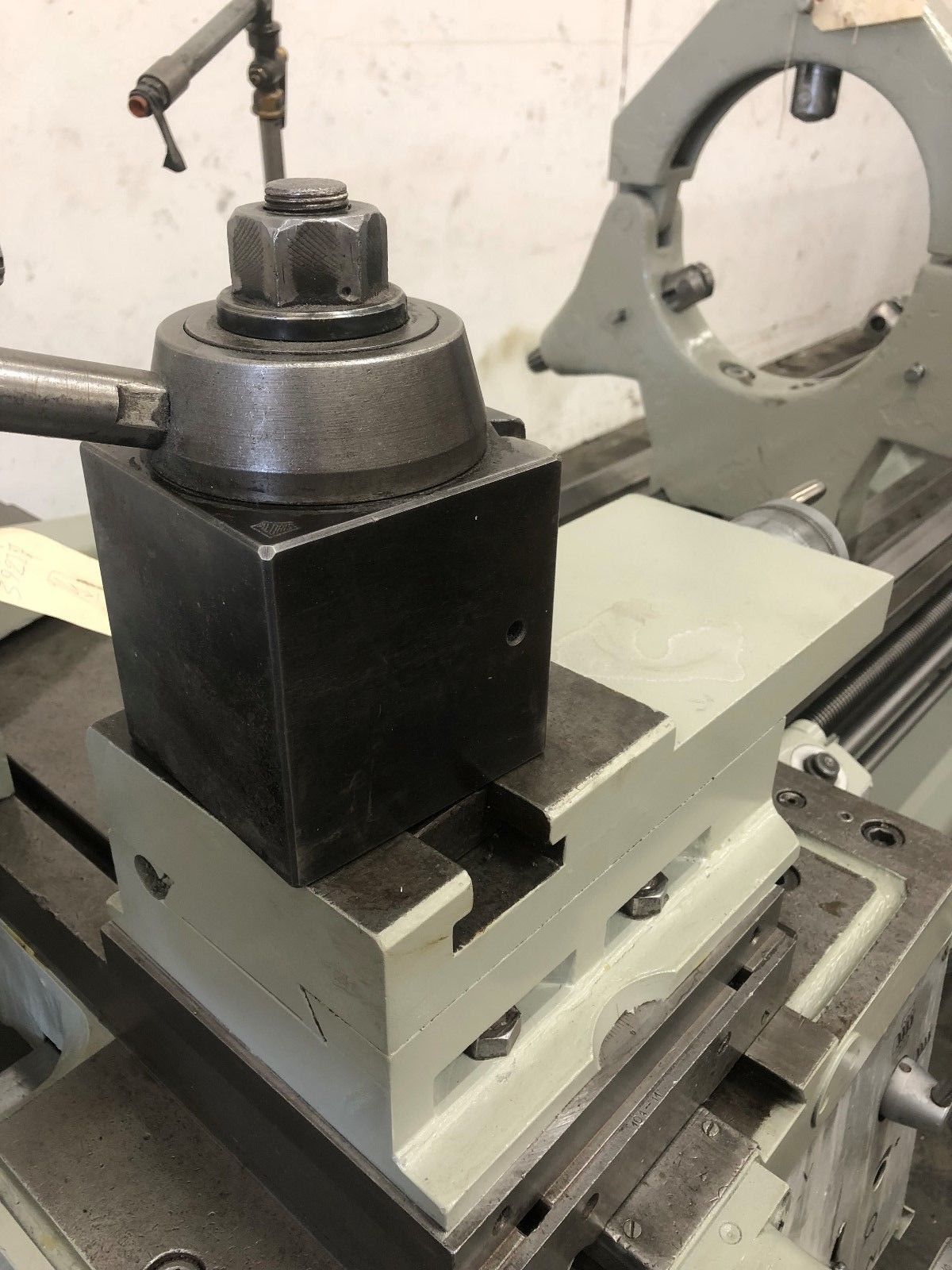

- Aloris Quick Change Tool Post

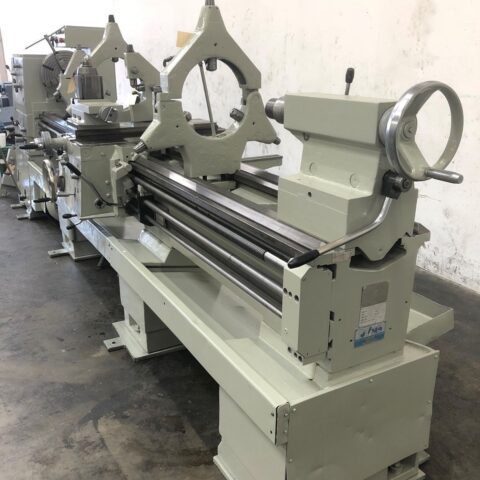

- Heavy Duty Tailstock and Quill

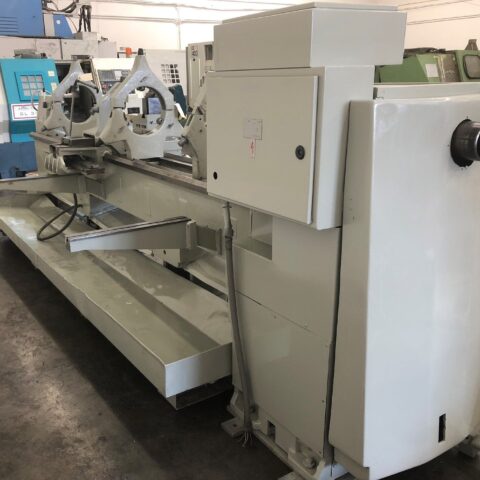

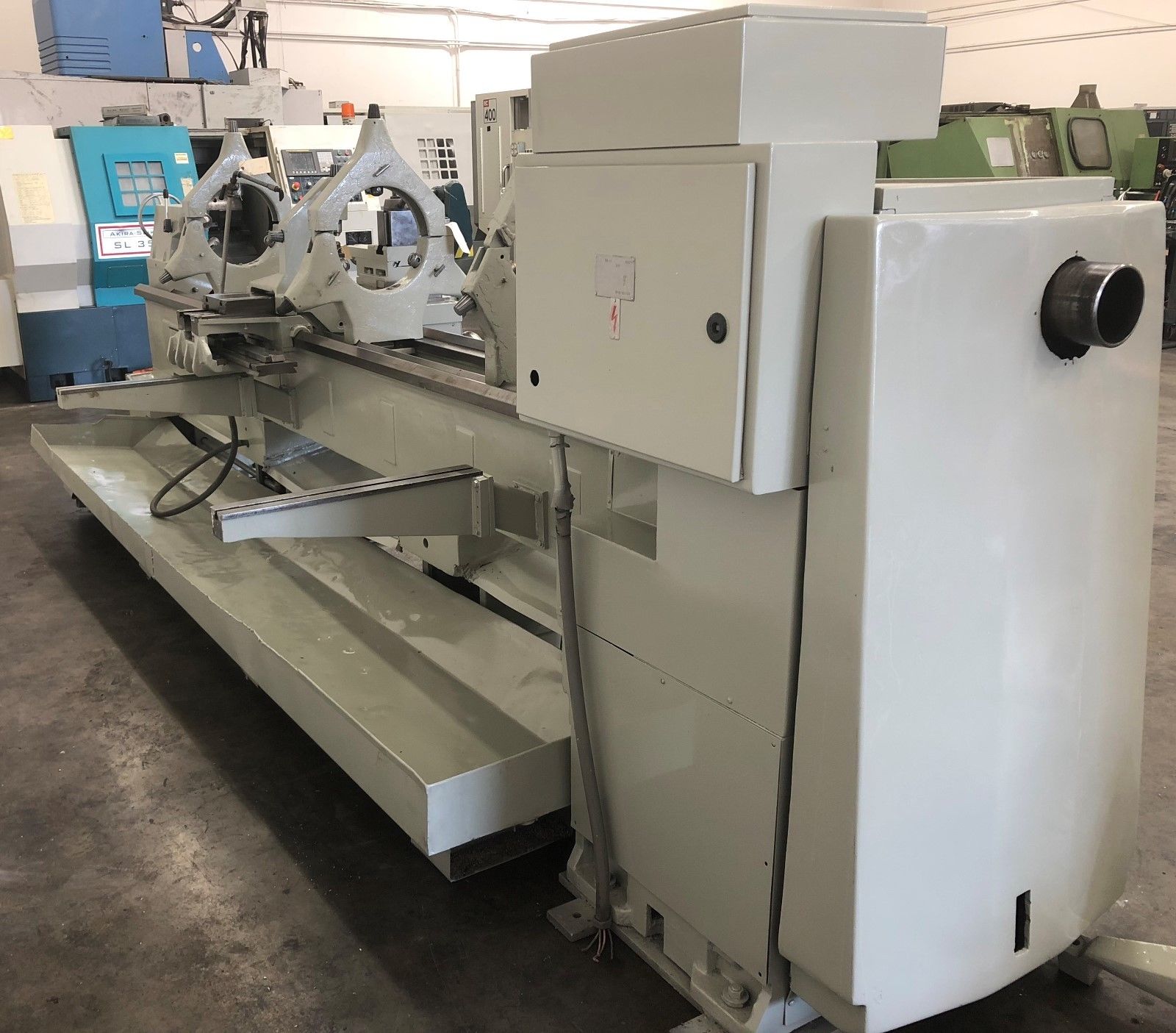

- Coolant Tank
- General:

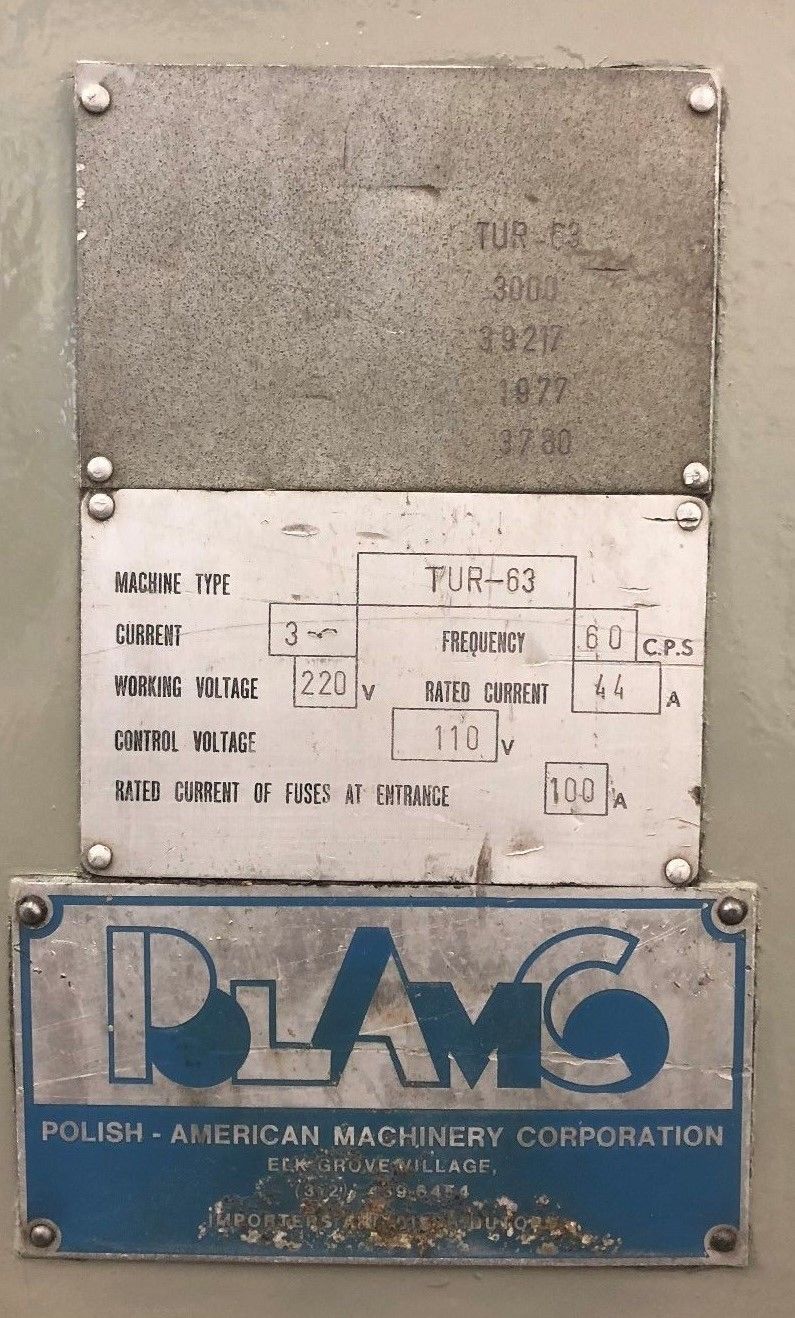

- Power: 30 kva, 220v / 3-Phase
- Overall Dimensions: 228″ X 90″ X 78″ High
- Weight: 8000 lbs
- WROCLAW TUR-63 Specifications:
- Capacity:
- Max Turning Diameter: 23.6″
- Max Turning Length: 120″
- Max Bar Capacity: 3.76″
- Swing Over Bed: 24.5″
- Swing Over Cross Slide: 14.5″
- Distance Between Centers: 124.6″
- Cross Slide Travel: 12.5″
- Compound Rest Travel: 6.0″
- Spindle Nose: D-8 Camlock
- Spindle Speed: 18 – 1800 RPM
- Spindle Motor: 20 HP

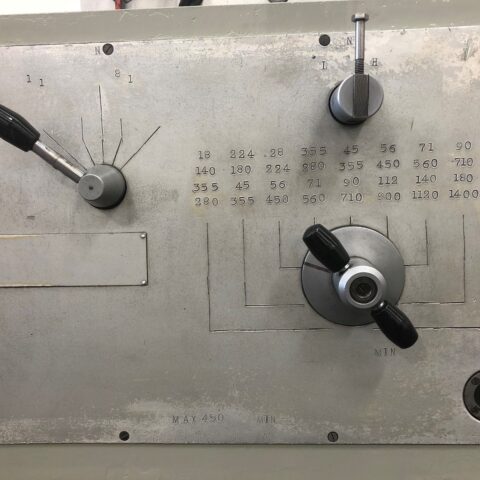

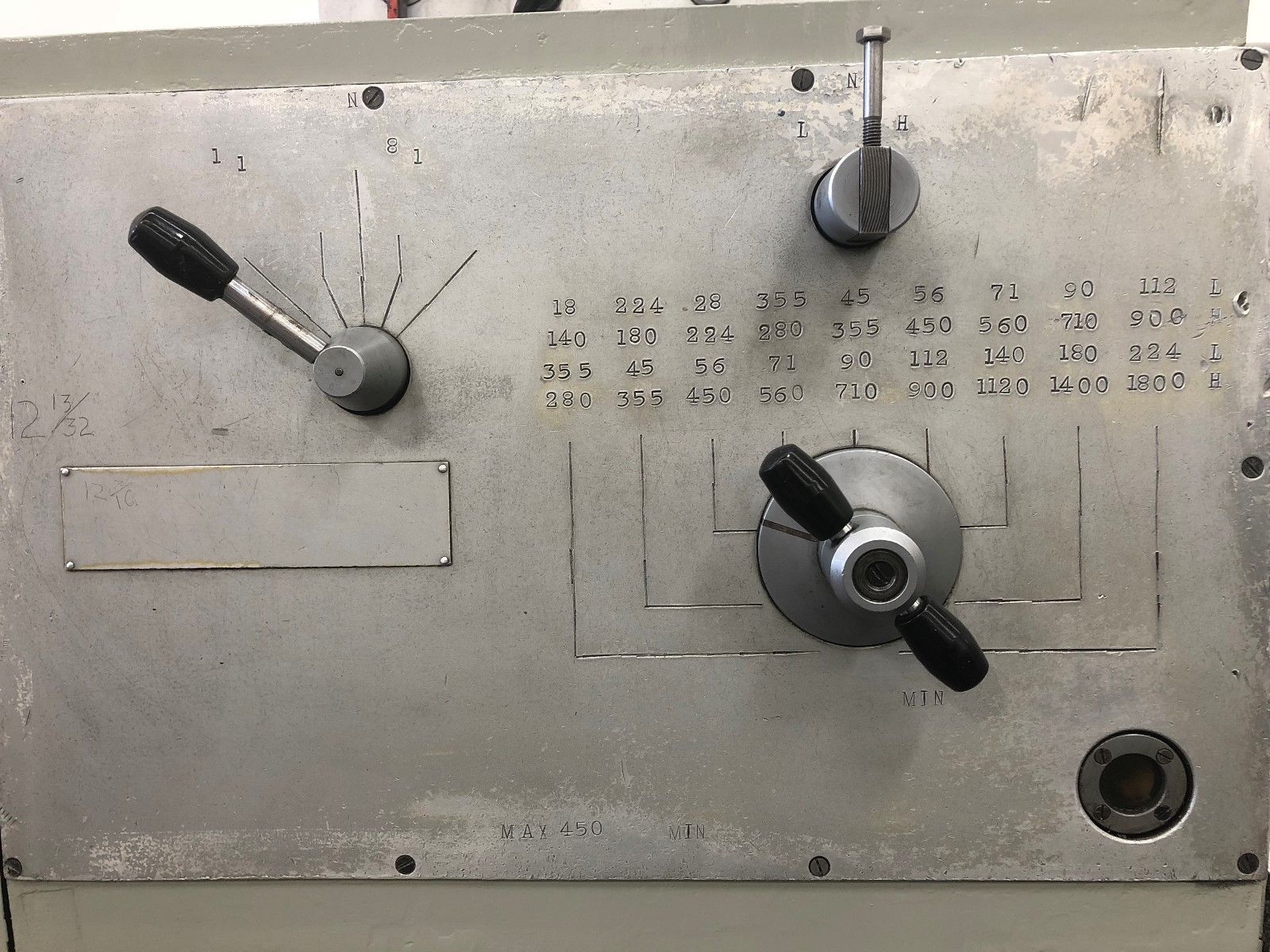

- (21) Spindle Speeds, Range…………. 18 to 1800 RPM
- (42) Carriage Longitudinal Feeds……. .0031 to .121 IPR
- (42) Cross-Slide Cross Feeds……….. .0016 to .060 IPR
- (42) Inch Thread Changes, Range…….. 1 to 88 TPI
- (42) Diametral Thread Changes, Range… 1 to 88 DP
- (42) Modular Thread Changes, Range….. 1 to 88 MM
- Power Rapid Traverse Rate………….. 220 IPM
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 8.0″

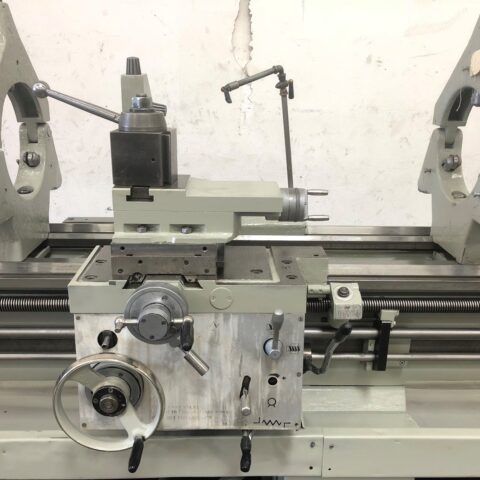

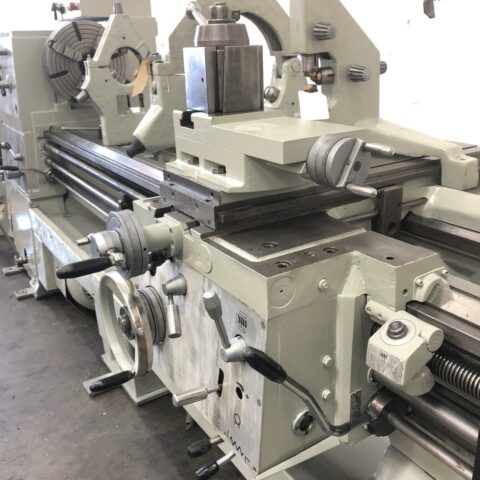

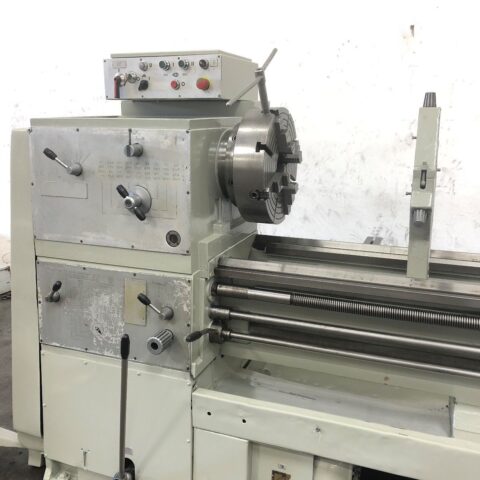

WROCLAW TUR-63 Comes as shown in pictures..
