*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

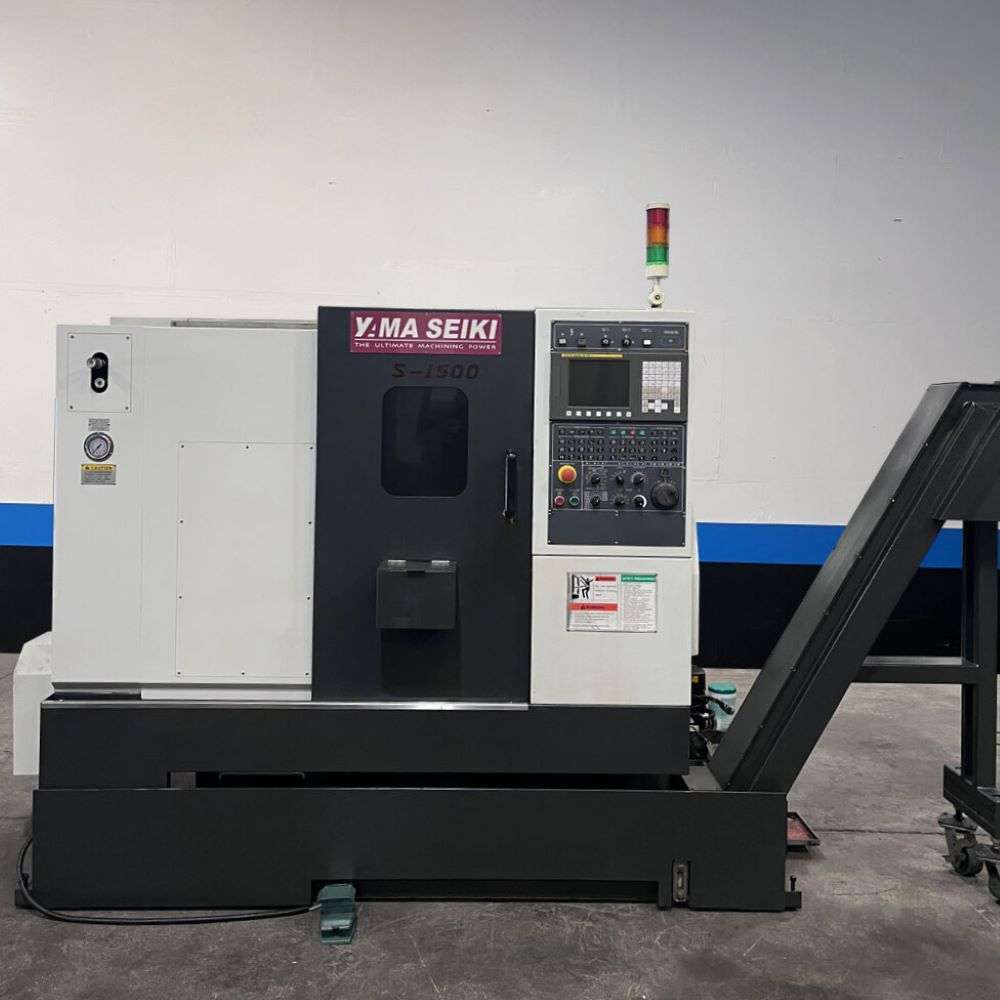

| Make: |
Yama Seiki |
| Model: |
GLS-1500 |
| Year: |
2012 |
| Condition: |
MLS |
| Equipped With: |
- Fanuc 0i-TD CNC Control
- Collet Chuck
- 6″ 3-Jaw Chuck
- A2-5, 6000 RPM Spindle
- 12 Station Automatic Turret
- Parts Catcher
- Tool Presetter
- Rigid Tapping
- Spindle Orientation
- Hydraulic Programmable Tailstock
- PCMCIA Card Interface
- USB Port
- Foot Switch
- Chip conveyor
|
| Capacity: |
- Max Turning Diameter: 15.35″
- Max Turning Length: 12.99″
- Max Bar Capacity: 2.0″
- Swing Over Bed: 22.05″
- Max Swing Over Saddle: 9.06″
|
| Travels: |
- X Axis Travel: 9.1″
- Z Axis Travel: 12.99″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
|
| Spindle: |
- Spindle Nose: A2-5
- Spindle Bore: 2.4″
- Spindle Speed: 6000 RPM
- Spindle Motor: 20 hp
|
| Turret: |
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Tool Size: 1″
|
| Tailstock: |
- Tailstock Taper: MT-4
- Tailstock Body Travel: 11.81″
- Tailstock Quill Dia.: 2.75″
- Tailstock Quill Travel: 3.15″
|
| General: |
- Power: 25 kva, 220v / 3-Phase
- Overall Dimensions: 128″ x 71″ x 69″ High
- Weight: 7,055 lbs
|
