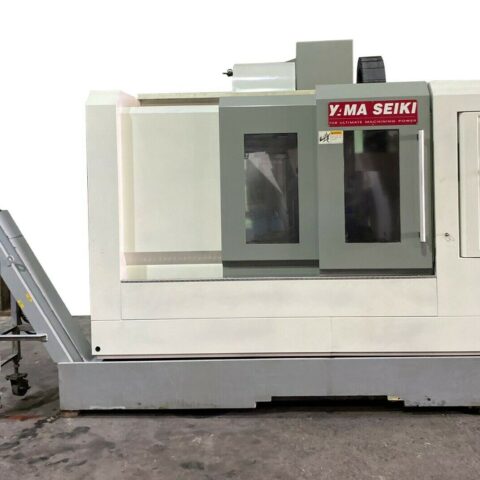

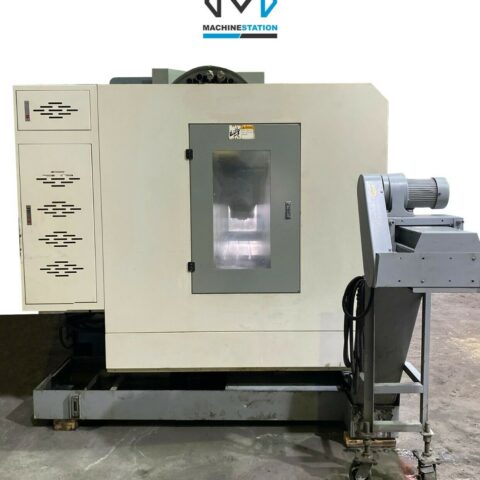

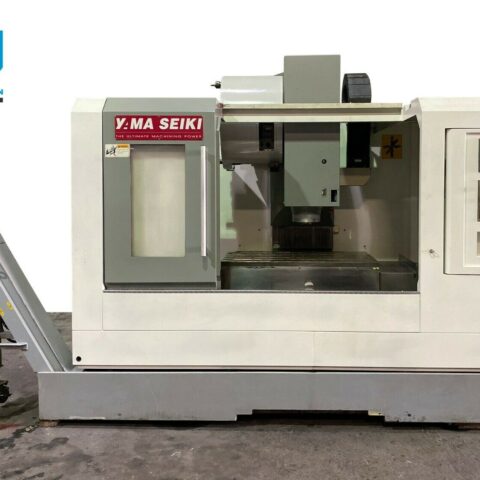

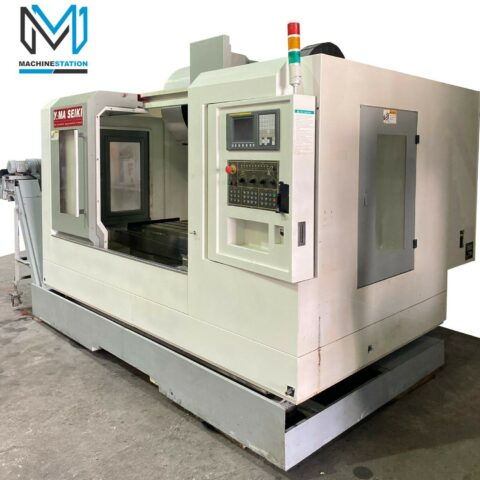

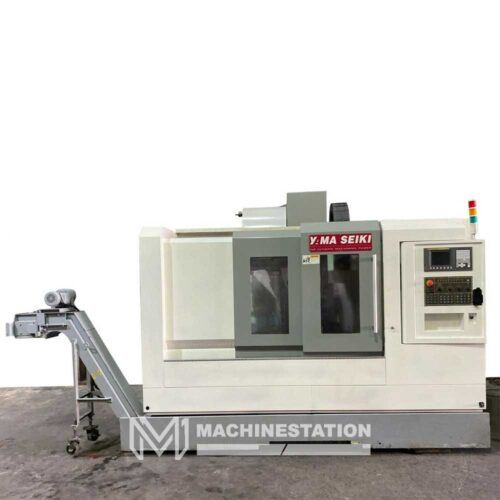

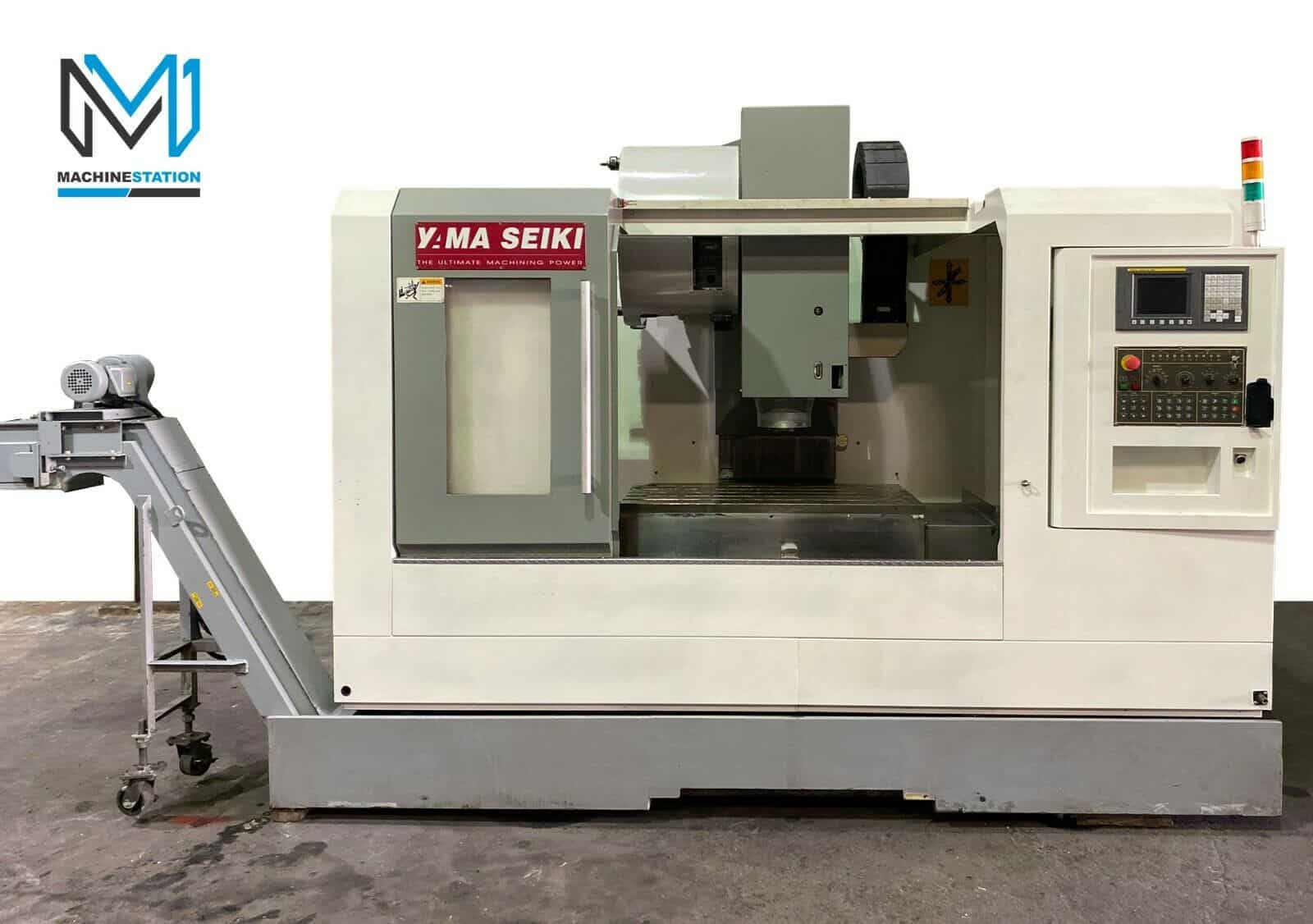

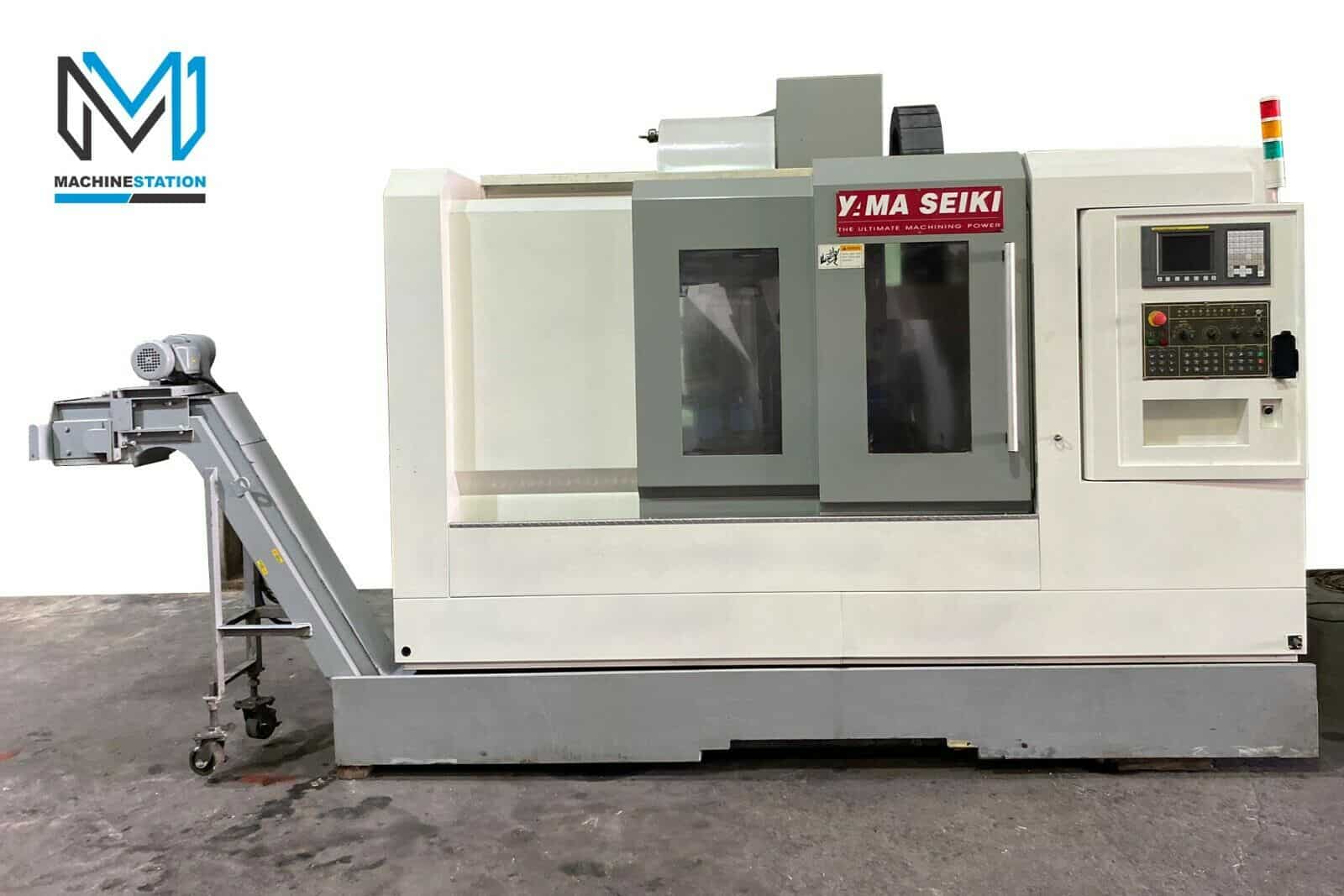

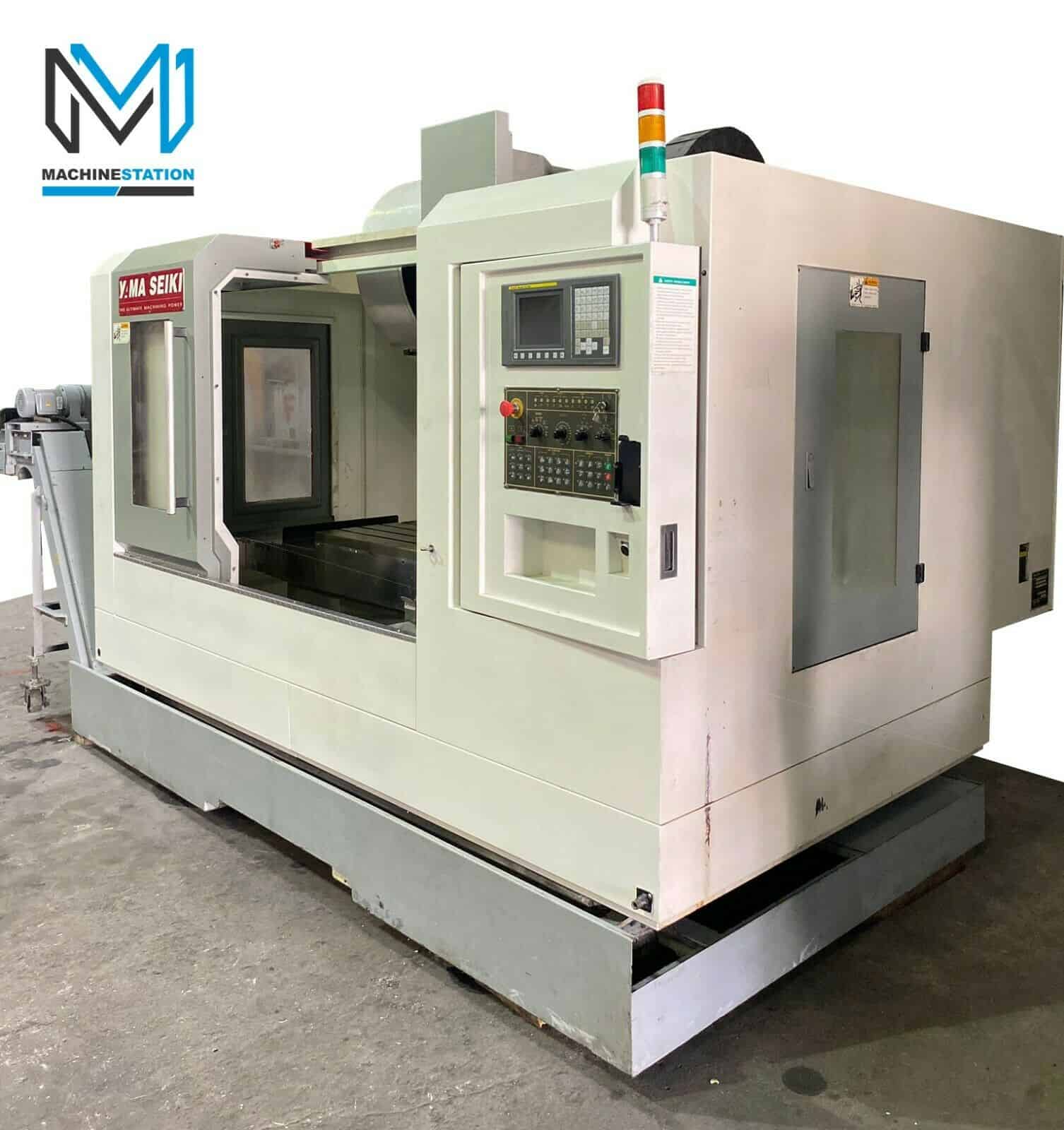

Yama Seiki VMB-1020 CNC Vertical Machining Center

Location Houston, TX
SKU 2157
Make/Model Yama Seiki VMB-1020
Out of stock
Location: Houston, TX
SKU: 2157
Make/Model: Yama Seiki VMB-1020
SKU: 2157

*All the below specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2157
Make: Yama Seiki
Model: VMB-1020
Year: 2006
Serial: 6017

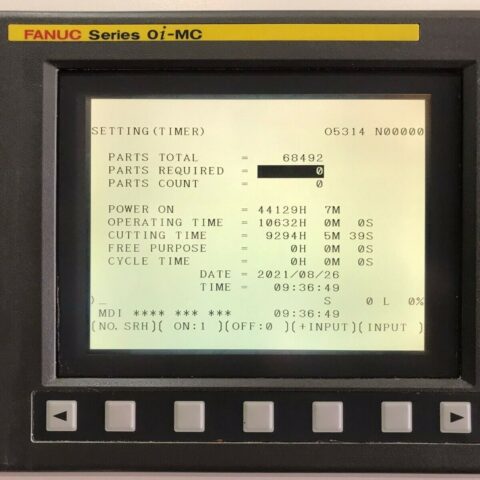

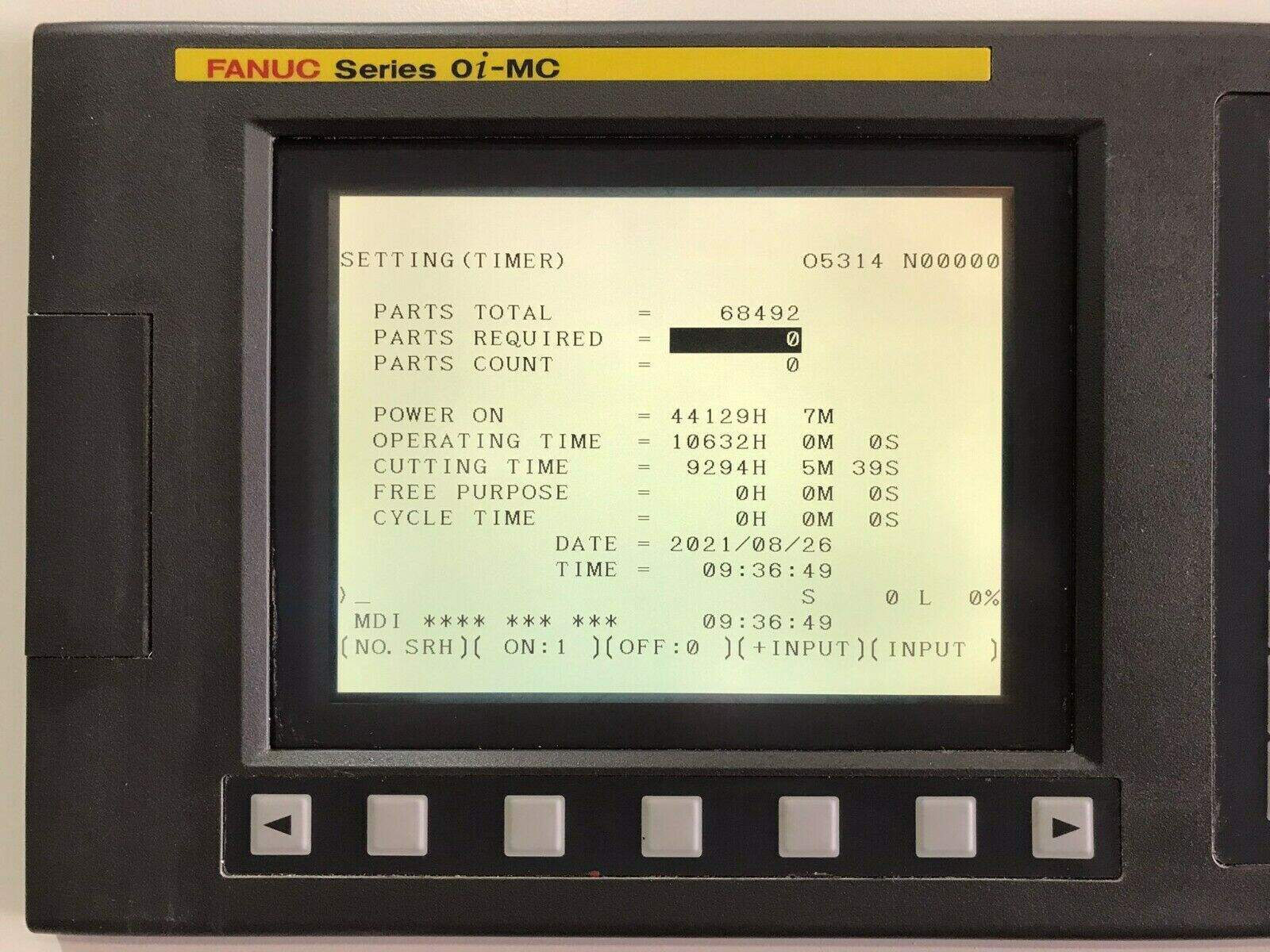

Cutting Hours: 9294
Features:

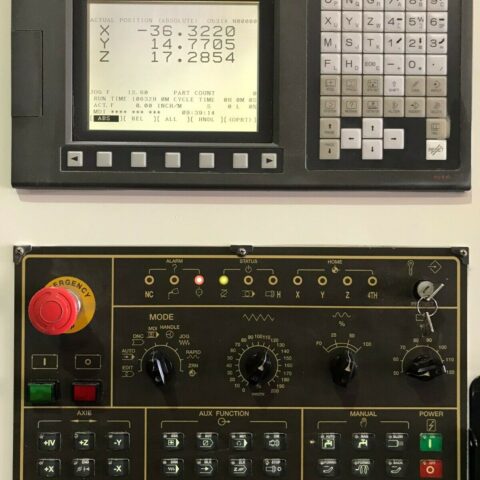

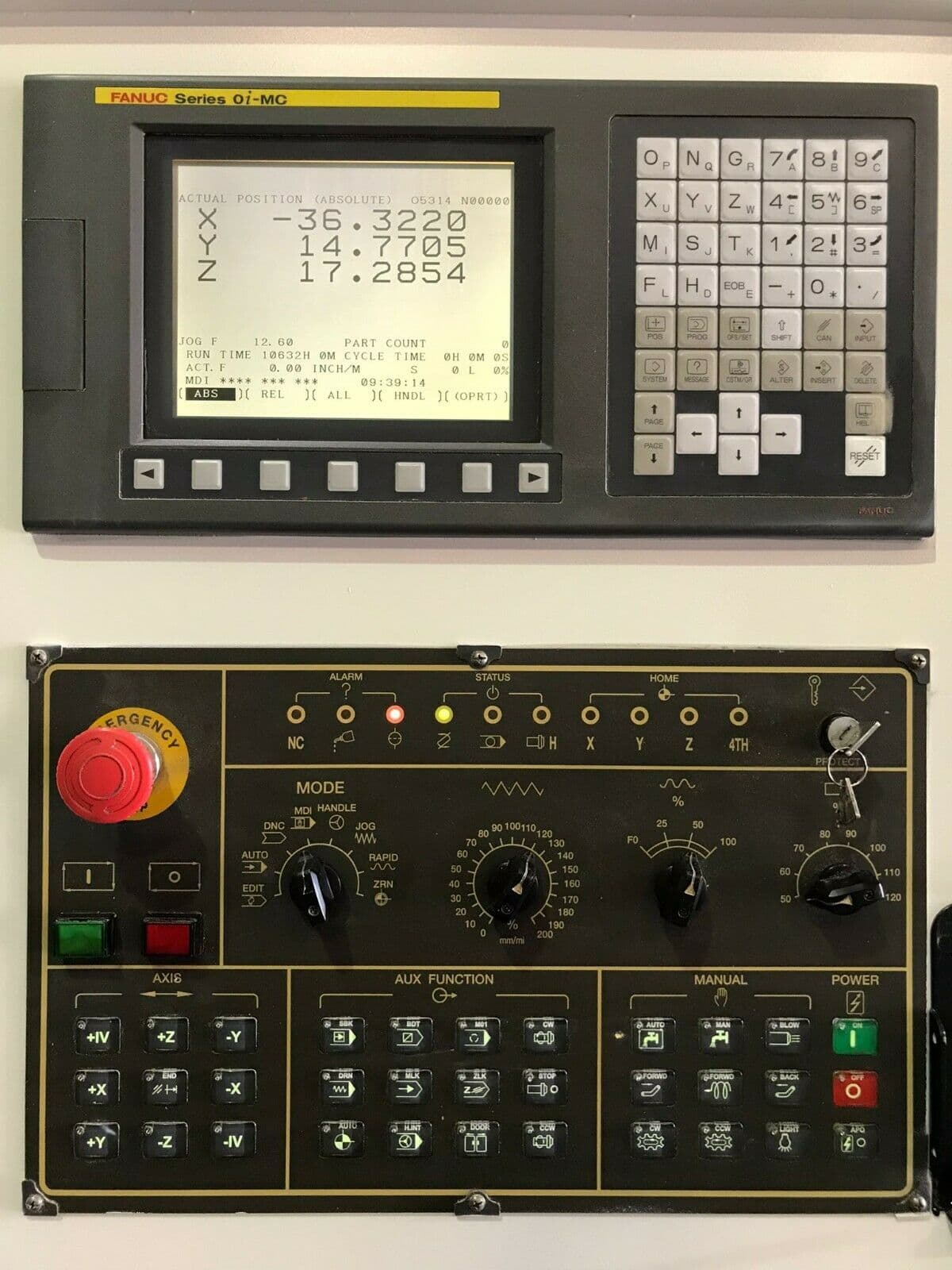

Fanuc 0i-MC CNC Control
Box Way Construction
CAT-40 Taper Gear Head Spindle
8000 RPM
MPG Control
USB & PCMCIA Interface
24 Station tool changer
Rigid Tapping
Spindle Orientation
Telescopic way covers
Coolant tank and pumps

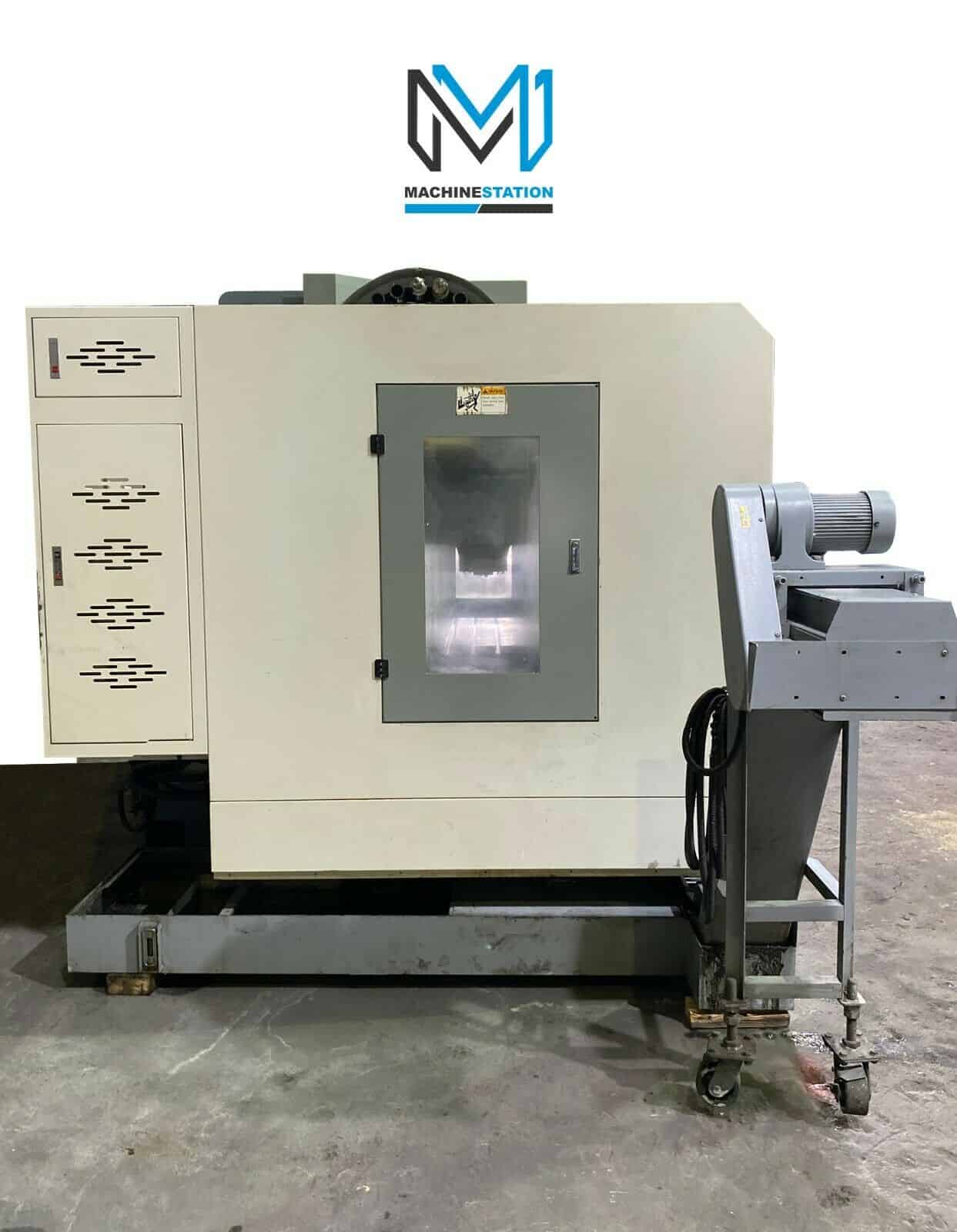

Chip Conveyor
Table:
Length: 44.1″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2200 lbs
Travel:
X-Axis: 40.2″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates: 945 Inch Per Minute
Cutting Feed Rates: 788 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″
Spindle:
Taper Size: CAT-40
Speed Range: 8000 RPM
Spindle Power: 25 HP
Tool changer:
Capacity: 24
Max Tool Weight: 33 lbs
Max Tool Dia: 7.8″
Max Tool Length: 11.8″
Tool Changing Time: 2.7 Seconds
General:
Air Required: 85 psi, 6 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 128″ and 98″ and 110″
Weight: 15000 lbs
Table:
Length: 1,120 mm
Width: 599 mm
Number of Std T-Slots: 5
T-Slot Width: 5/203 mm
Max Weight on Table: 2200 lbs
Travel:
X-Axis: 1,021 mm
Y-Axis: 599 mm
Z-Axis: 599 mm
Rapid Traverse Rates: 945 Inch Per Minute
Cutting Feed Rates: 788 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 124 mm – 724 mm
Spindle:
Taper Size: CAT-40
Speed Range: 8000 RPM
Spindle Power: 25 HP
Tool changer:
Capacity: 24
Max Tool Weight: 33 lbs
Max Tool Dia: 198 mm
Max Tool Length: 300 mm
Tool Changing Time: 2.7 Seconds
General:
Air Required: 85 psi, 6 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 3,251 mm and 2,489 mm and 2,794 mm
Weight: 15000 lbs
MakeYama Seiki
ModelVMB-1020
CategoriesVertical Machining Center
  • Fanuc 0i-MC CNC Control
  • Box Way Construction
  • CAT-40 Taper Gear Head Spindle
  • 8000 RPM
  • MPG Control
  • USB & PCMCIA Interface
  • 24 Station tool changer
  • Rigid Tapping
  • Spindle Orientation
  • Telescopic way covers
  • Coolant tank and pumps
  • Chip Conveyor
