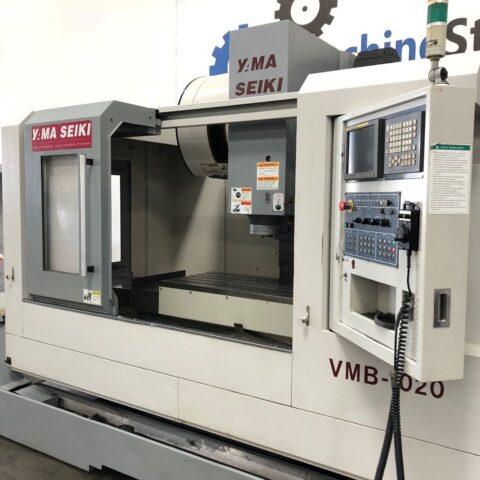

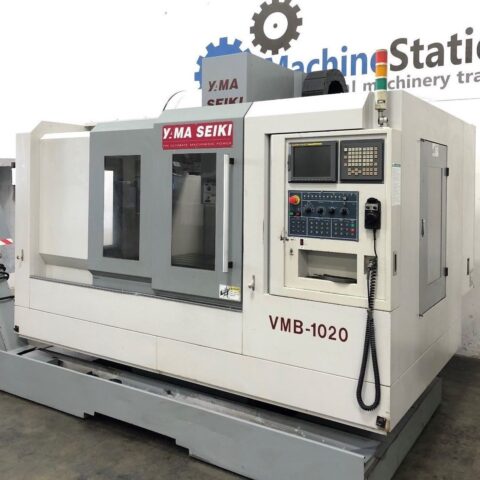

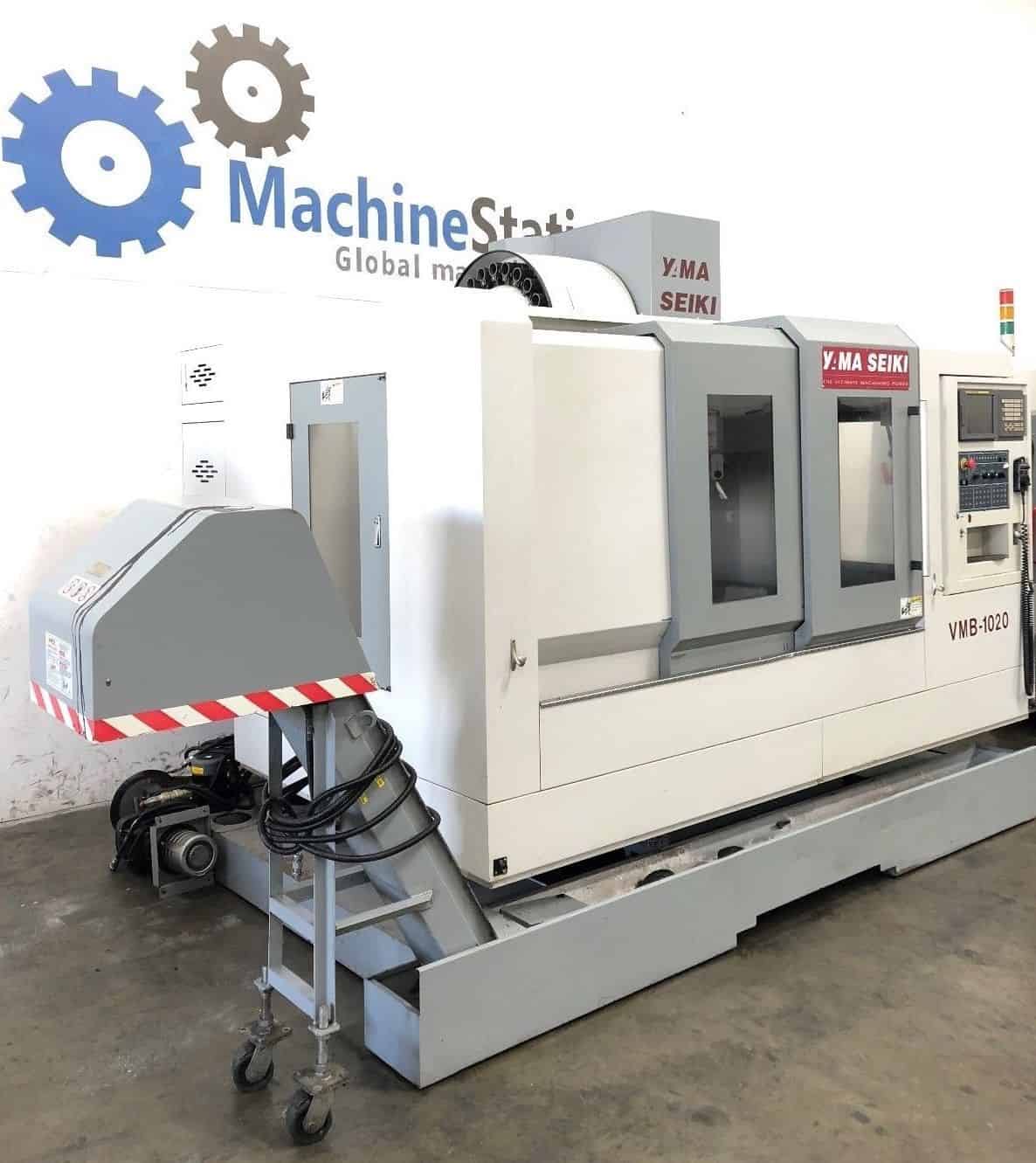

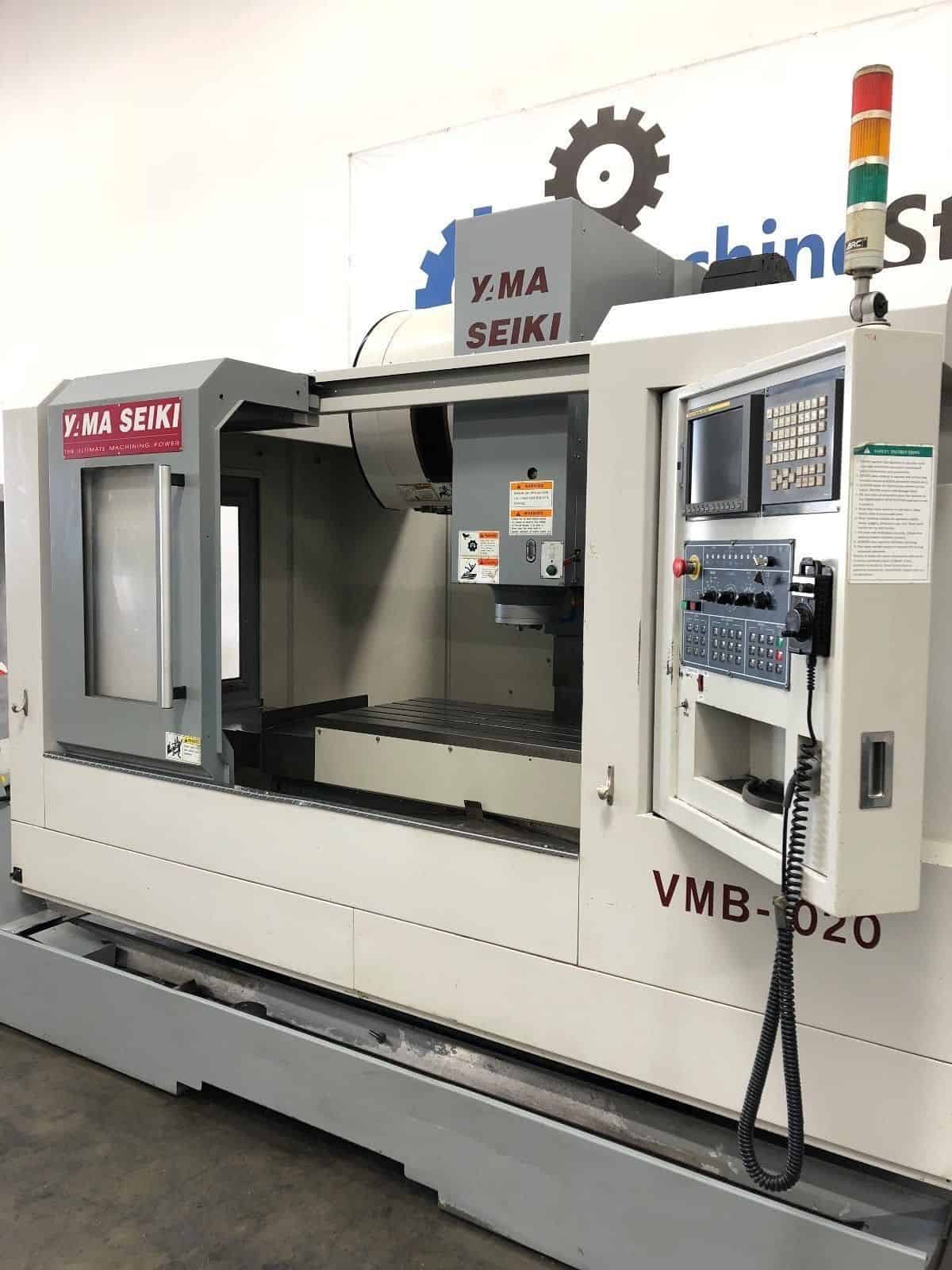

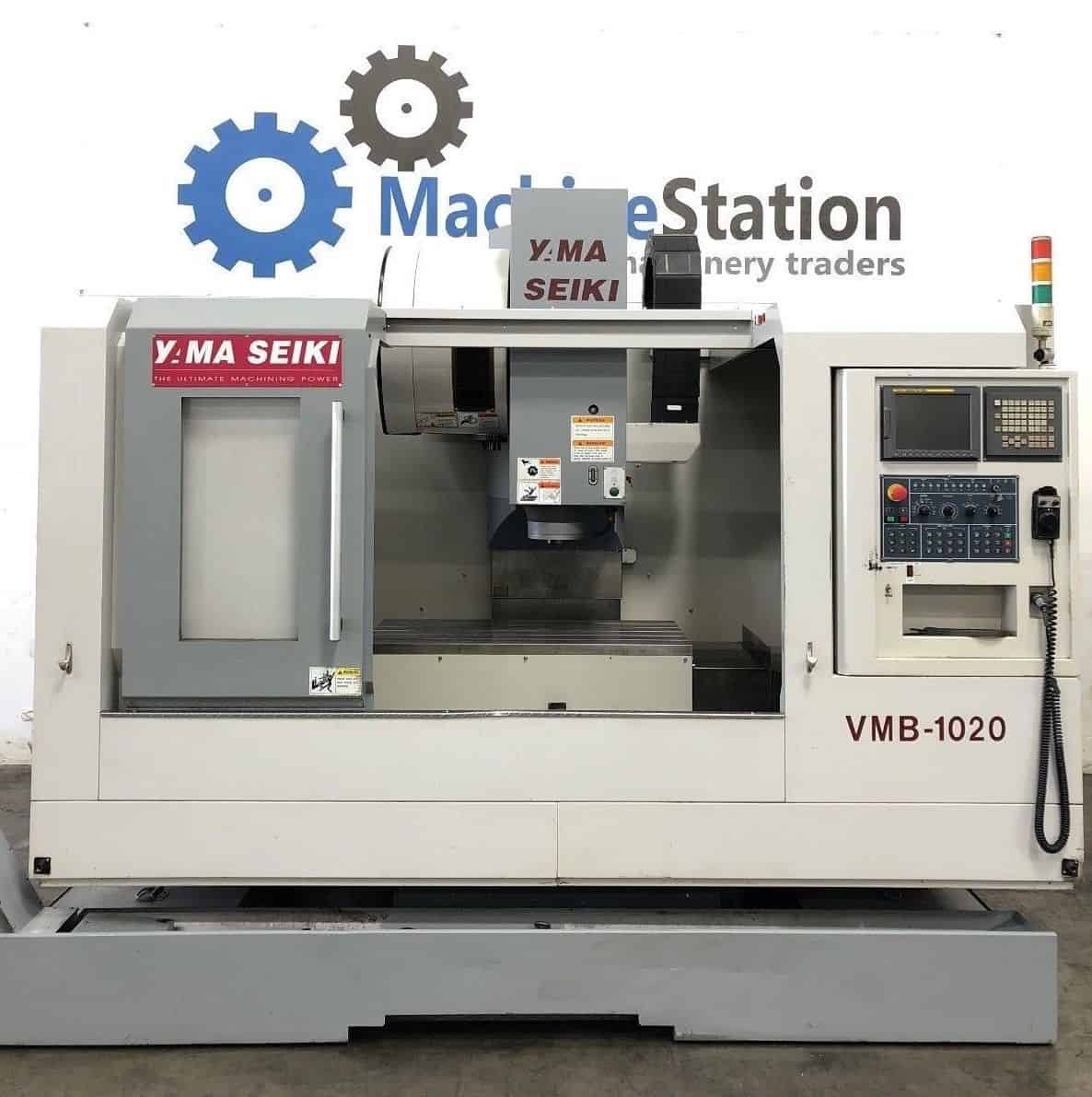

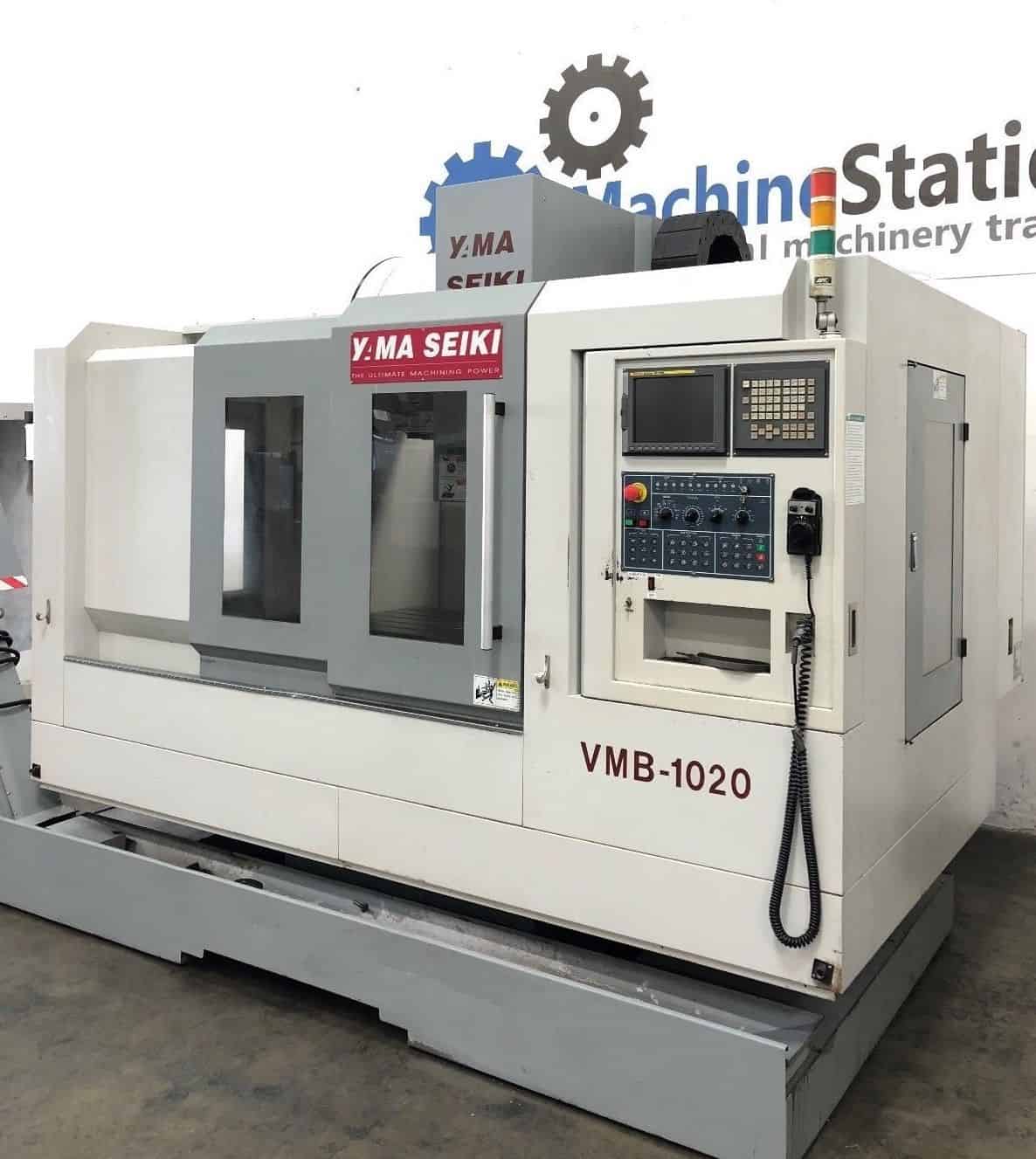

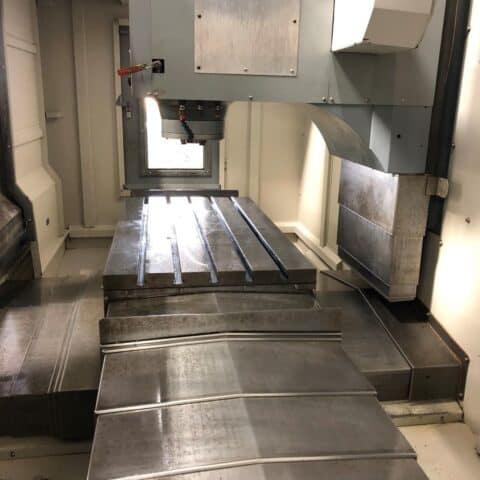

Yama Seiki VMB-1020 CNC VMC

All specifications are approximations and are subject to verification.

• Yama Seiki VMB-1020 Features:

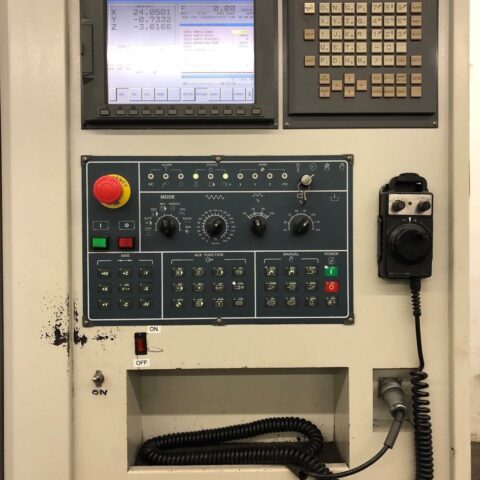

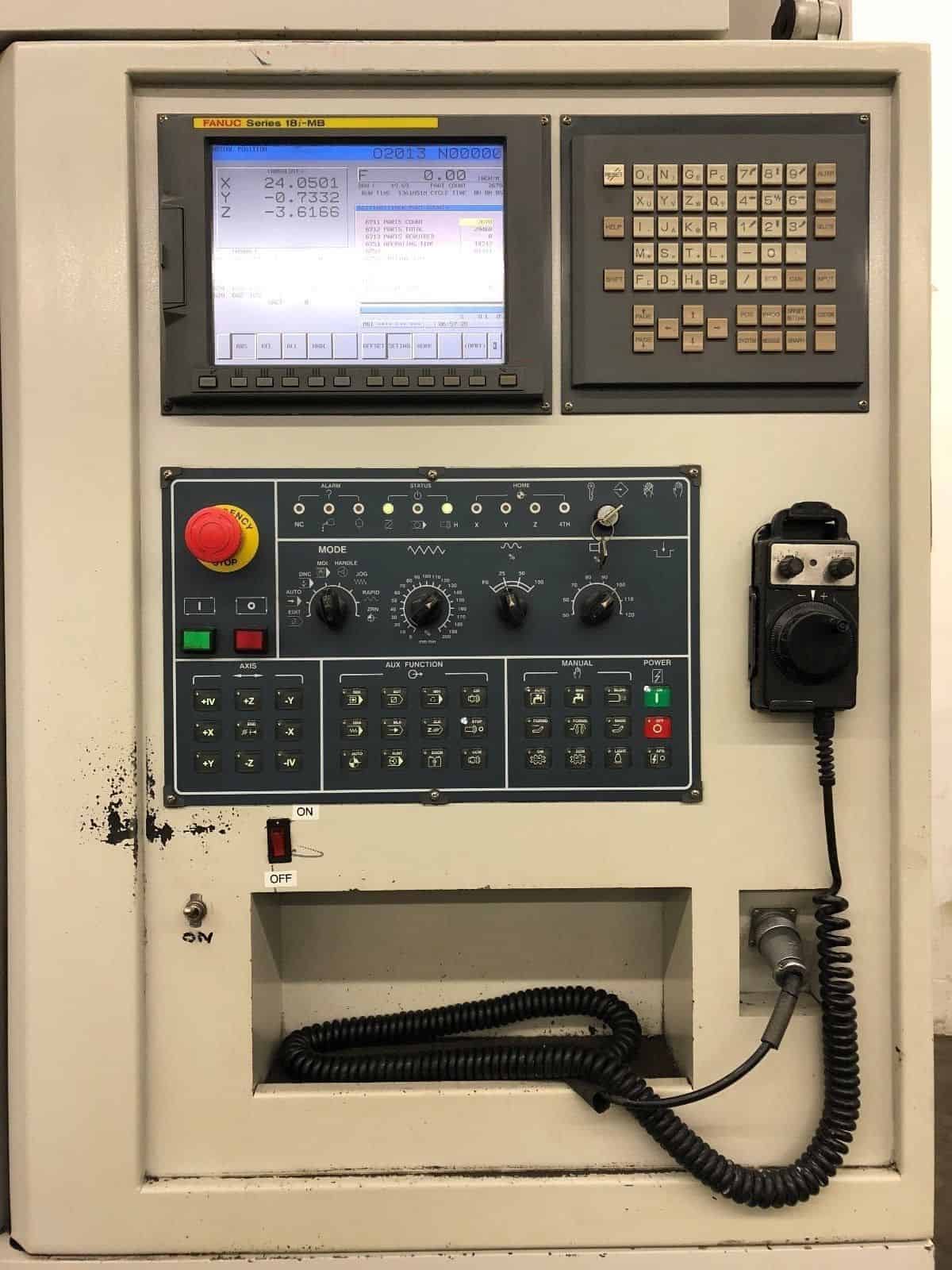

• Fanuc 18i-MB CNC Control
• 40 Taper Geared Head Spindle
• 4th Axis Ready ( Drive and Wiring Installed )

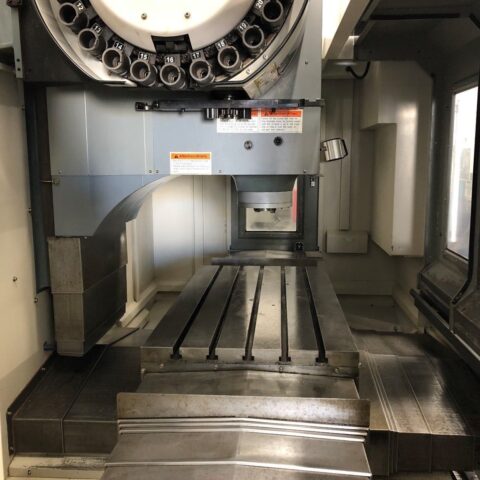

• 20 Tools Side Mount Bidirectional Tool Changer
• PCMCIA Card Slot
• Box Way Construction All Axis
• Powerful 25 hp high torque spindle motor
• Spindle Orientation
• Rigid Tapping
• Electrical Panel AC
• Fast Rapid Traverse Rate
• Flood coolant with large separate coolant tank

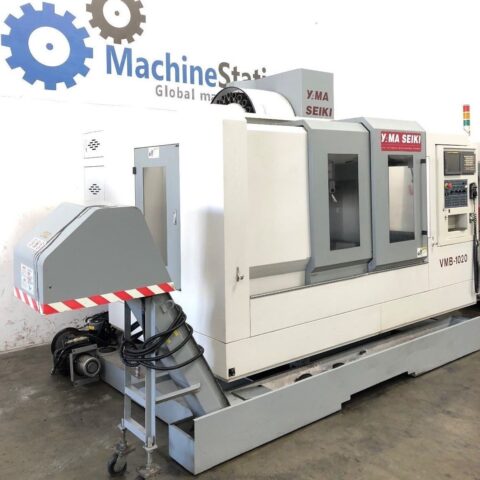

• Chip Conveyor
• Work light
• Books and Manuals

• Yama Seiki VMB-1020 Specifications:

•  Travels:
• X-Axis: 40.2″
• Y-Axis: 23.6″
• Z-Axis: 23.6″
• Spindle Nose to Table (Min.- Max.): 4.92″ – 28.5″
• Spindle Nose to Column: 26.8″

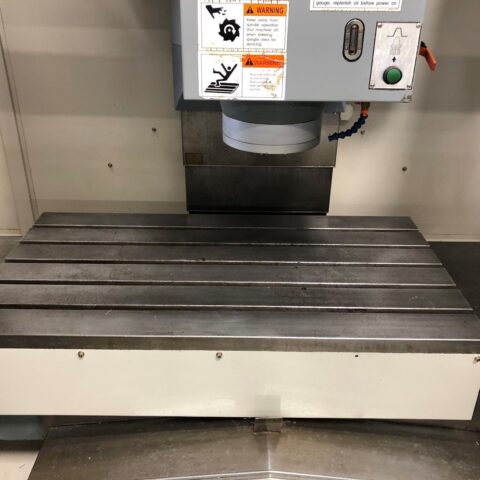

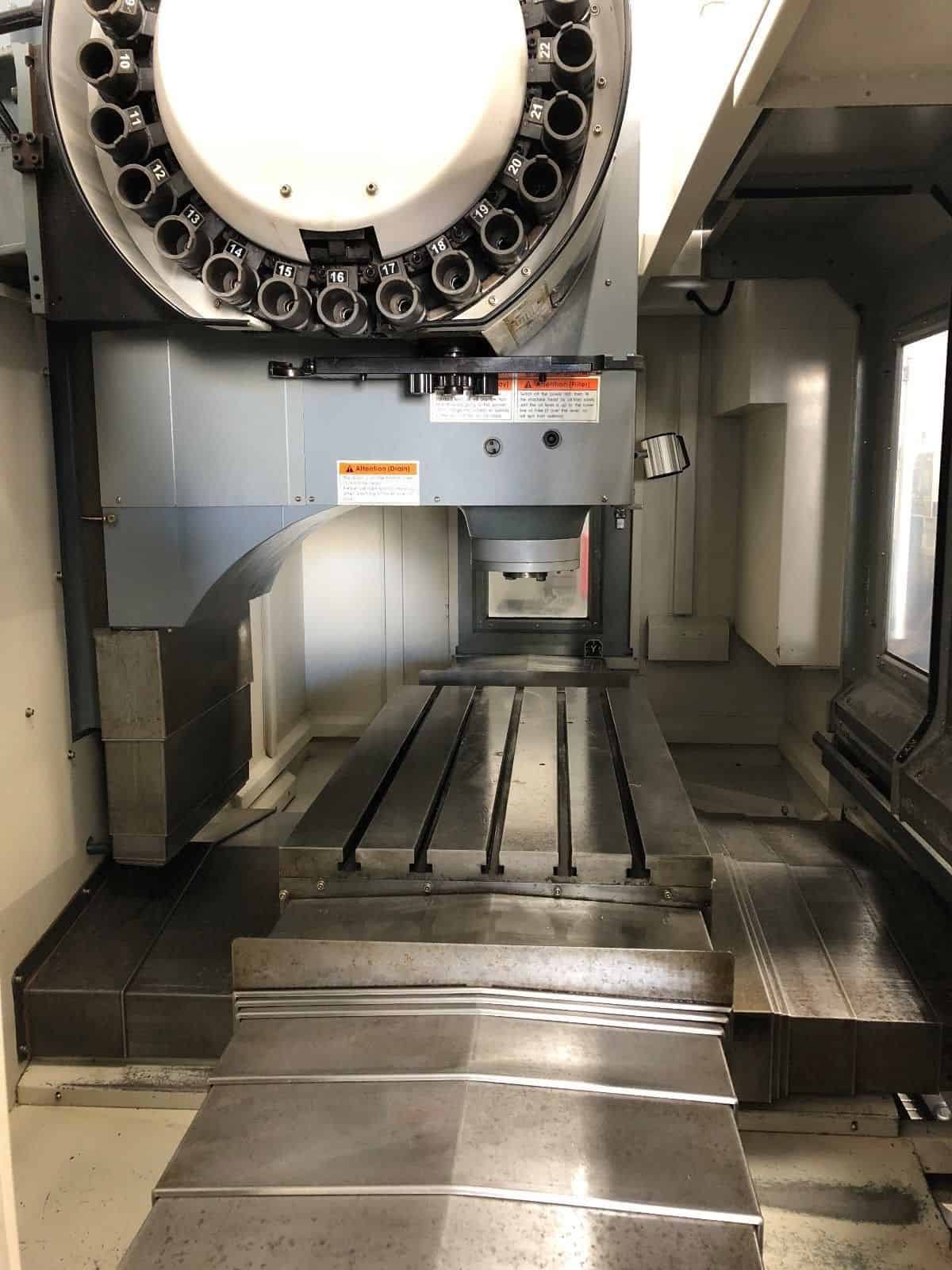

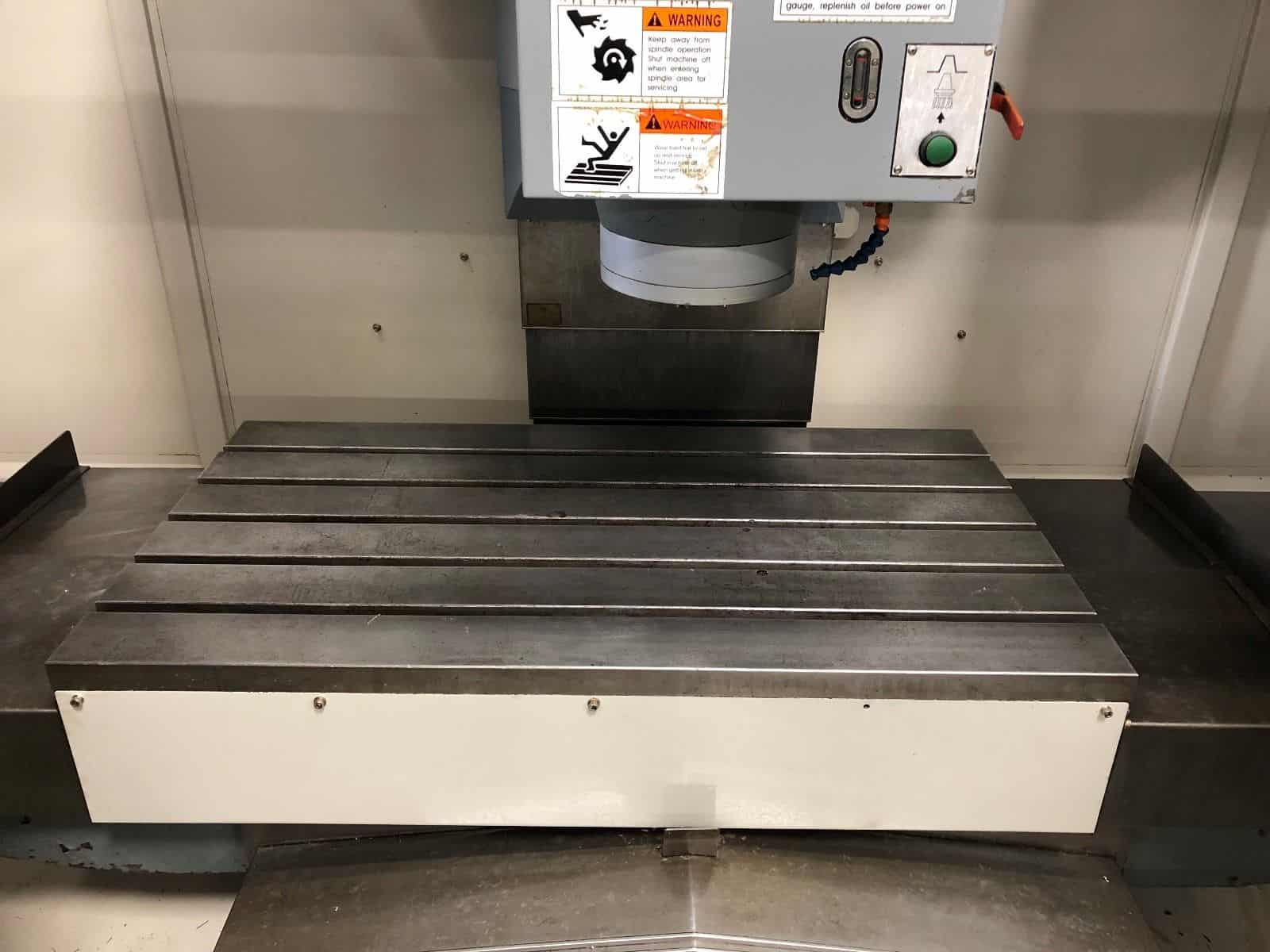

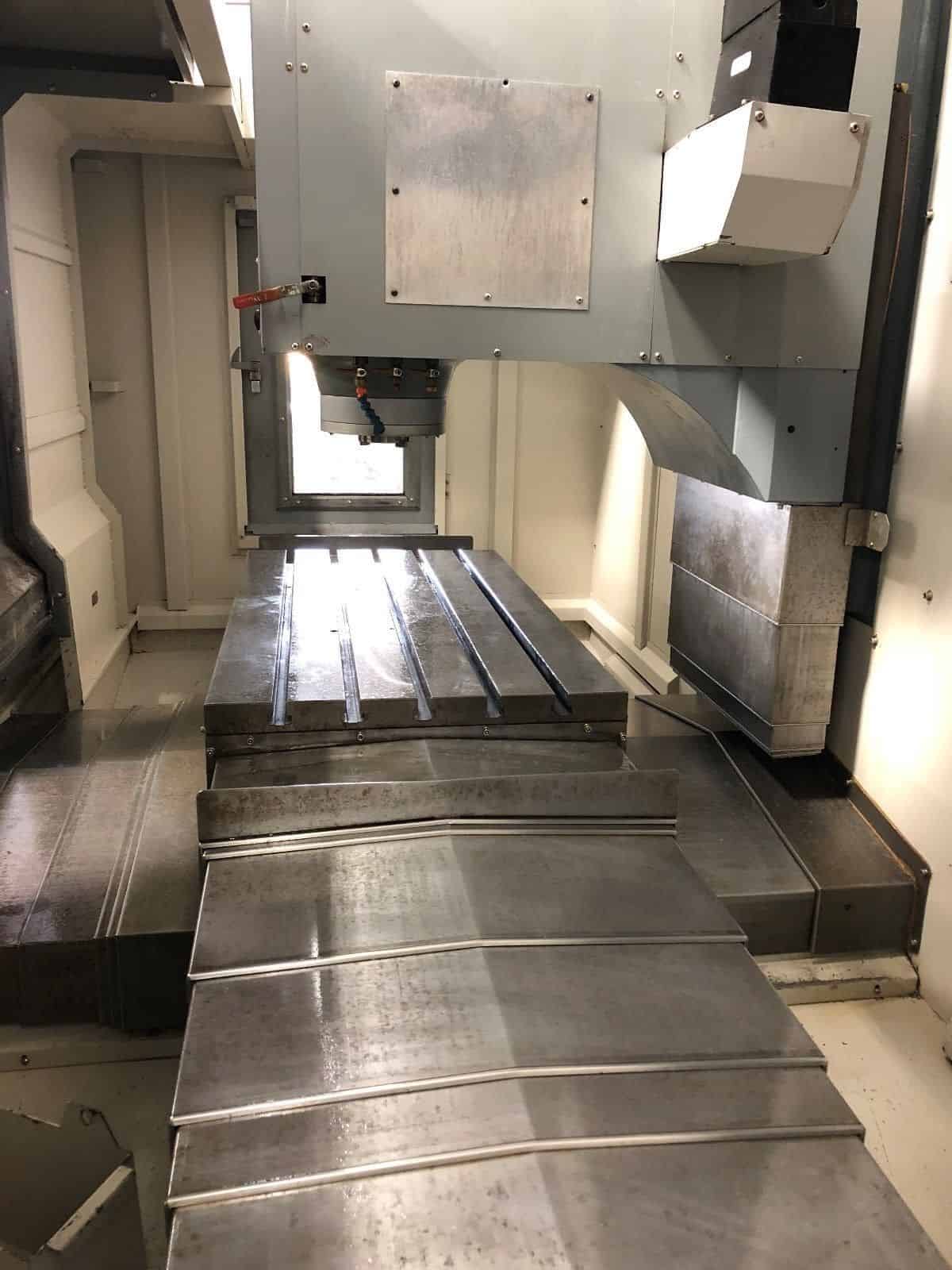

• Table:

• Length: 44.1″
• Width: 23.6″
• Max Weight on Table: 2200 lbs
• T-Slot no. & Width: 5 X 0.7″

• Gear Head Spindle:

• Taper Size: 40
• Speed Range: 60 – 8,000 RPM
• Spindle Power: 25 HP

• Feed rates:

• Rapid X,Y & Z: 945 inch/P.M
• Cutting Feedrate: 788 inch/ P.M

• Automatic Tool Changer:

• 40 Taper
• Capacity: 24
• Max Tool Weight: 18 lbs
• Max Tool Length: 9.84″
• Max Tool Dia.: 3.5″

• General:

• Air Required: 85 psi, 4 scfm
• Power: 205-220v / 50kva / 3-Phase
• Overall Dimensions: 185″ x 128″ x 122″ High
• Weight: 15000 lbs
