*All the below specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

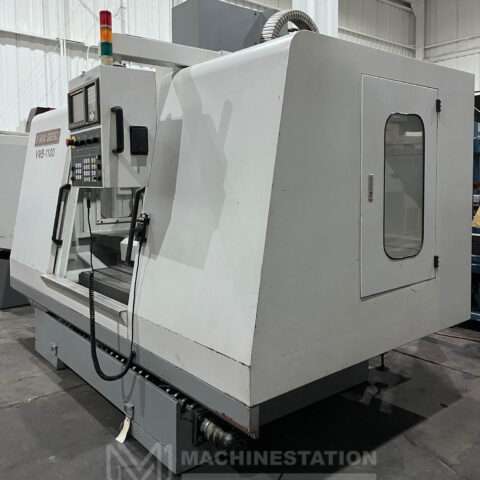

| SKU: | 112645 |

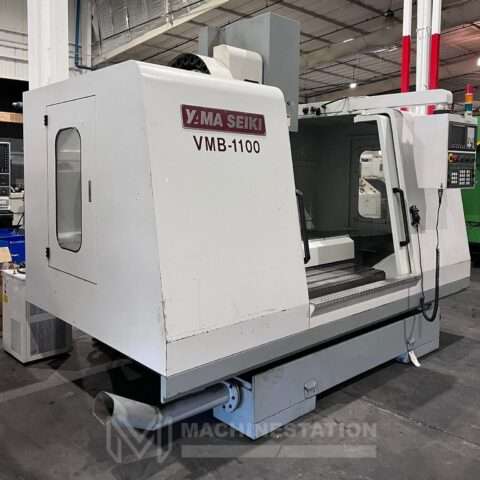

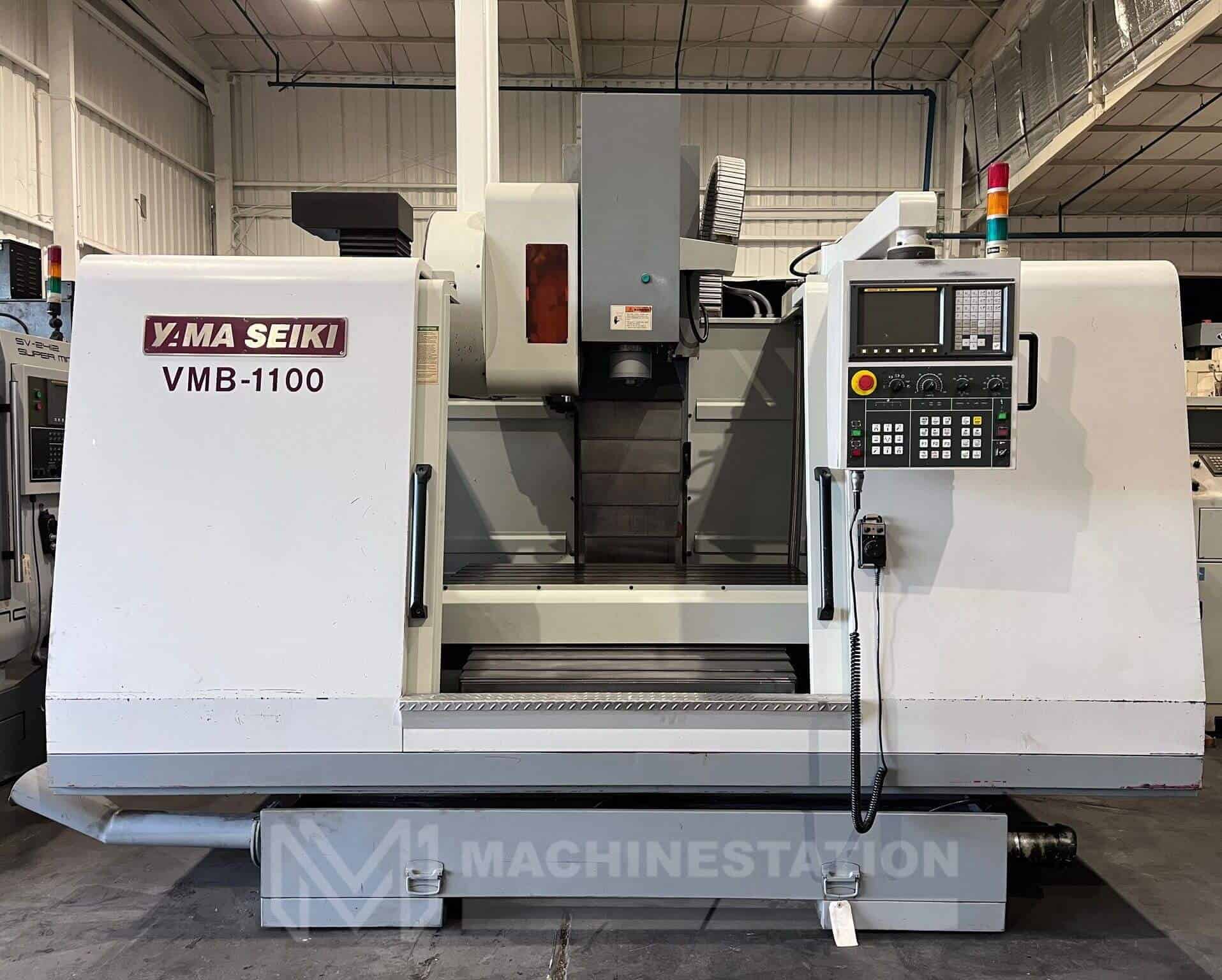

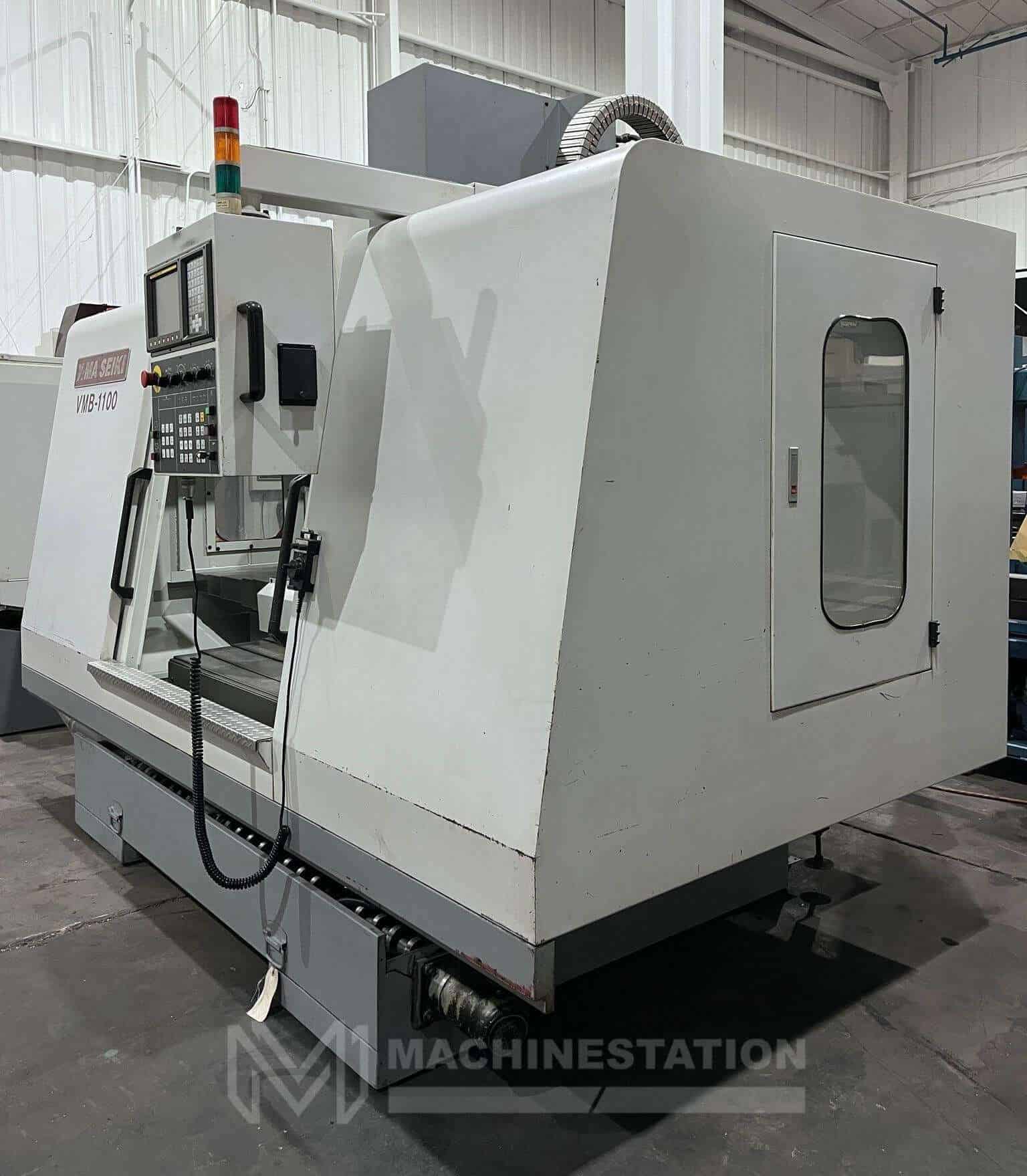

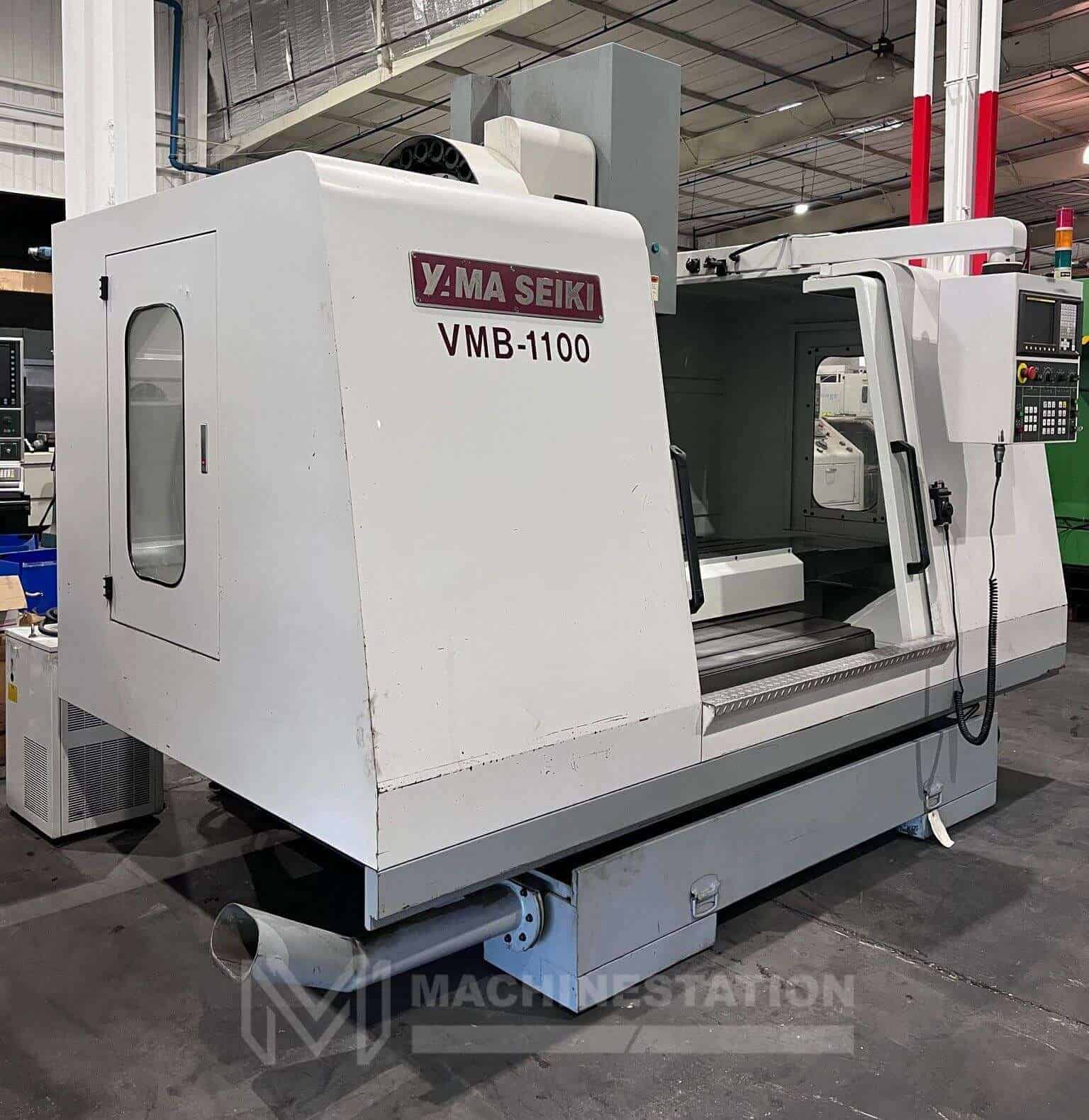

| Make: | Yama Seiki |
| Model: | VMB-1100 |
| Year: | 2002 |
| Features: |
|---|
| Fanuc Oi-M CNC Control |
| Box Way Construction |
| 8000 RPM Spindle |
| 24 Station Automatic Tool Changer |
| MPG Handwheel Control |
| Rigid Tapping |

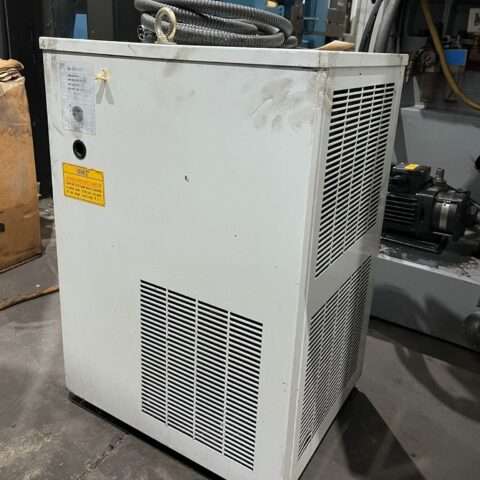

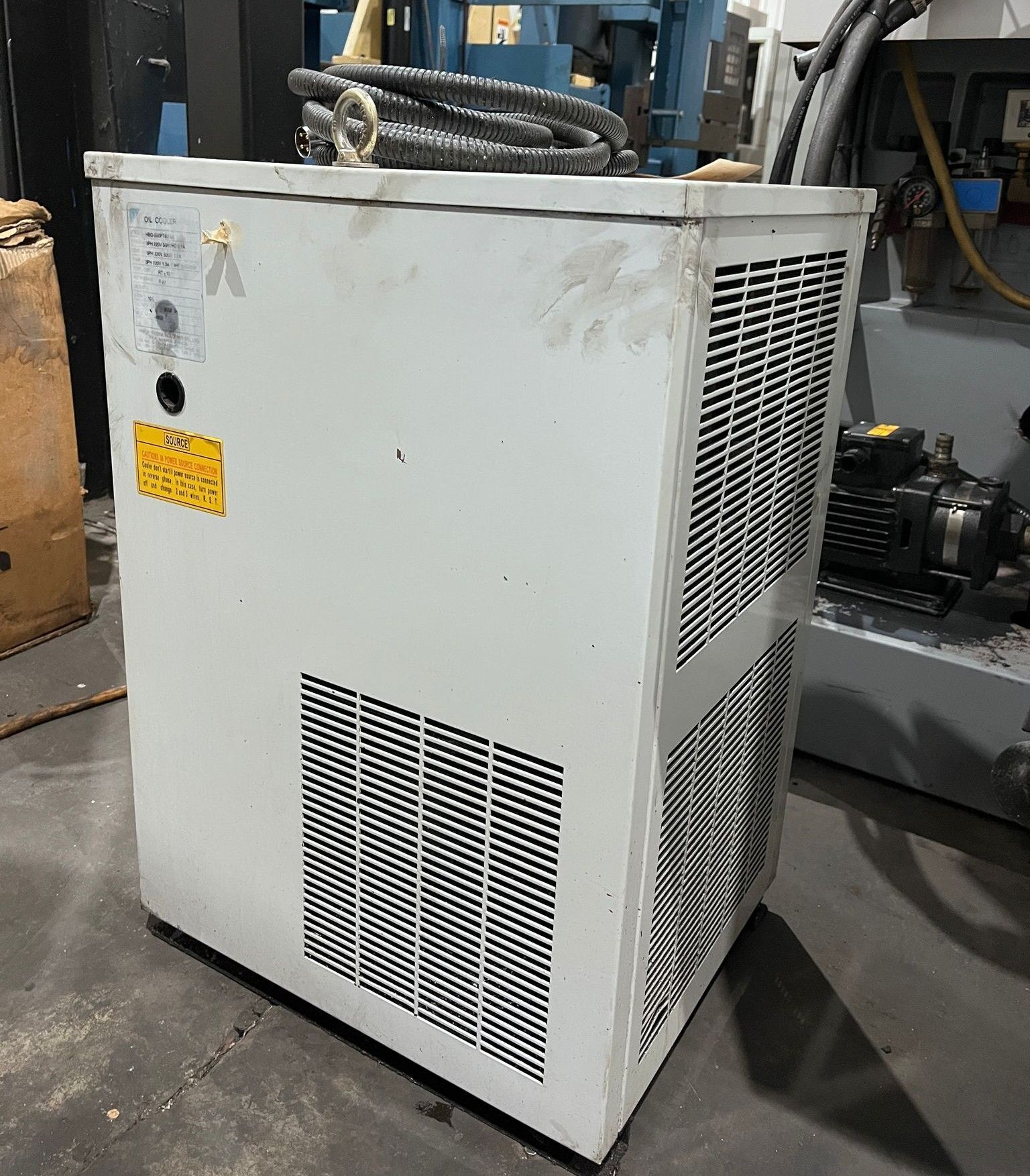

| Spindle Chiller Unit |
| Coolant System |
| Screw Type Chip Auger |

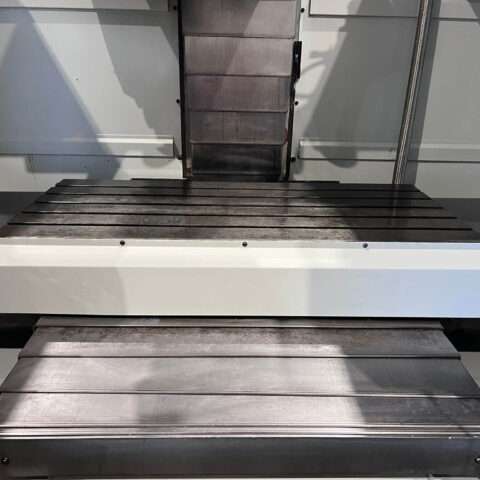

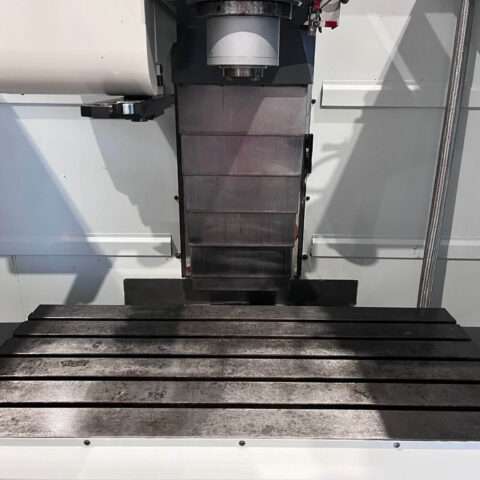

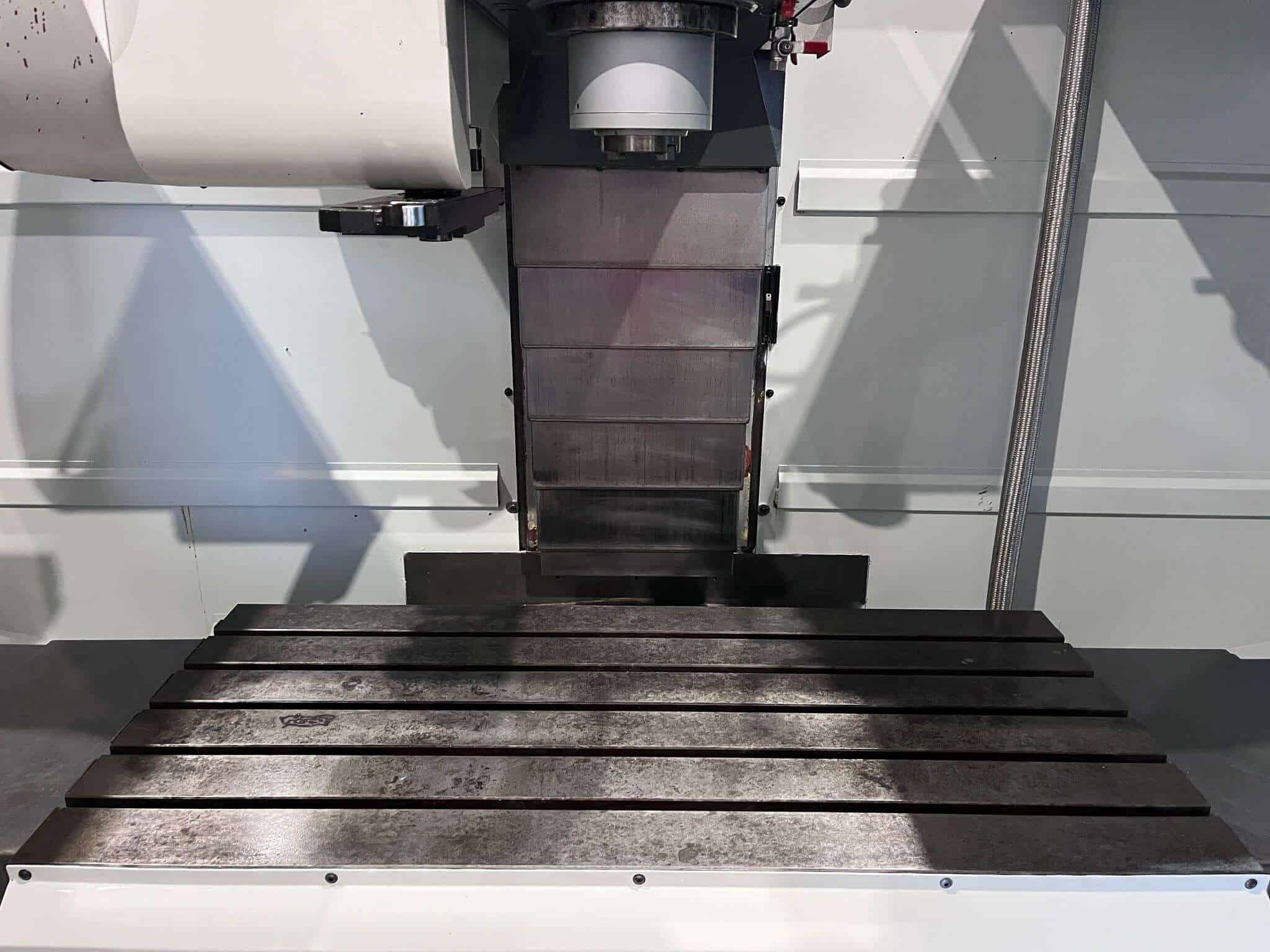

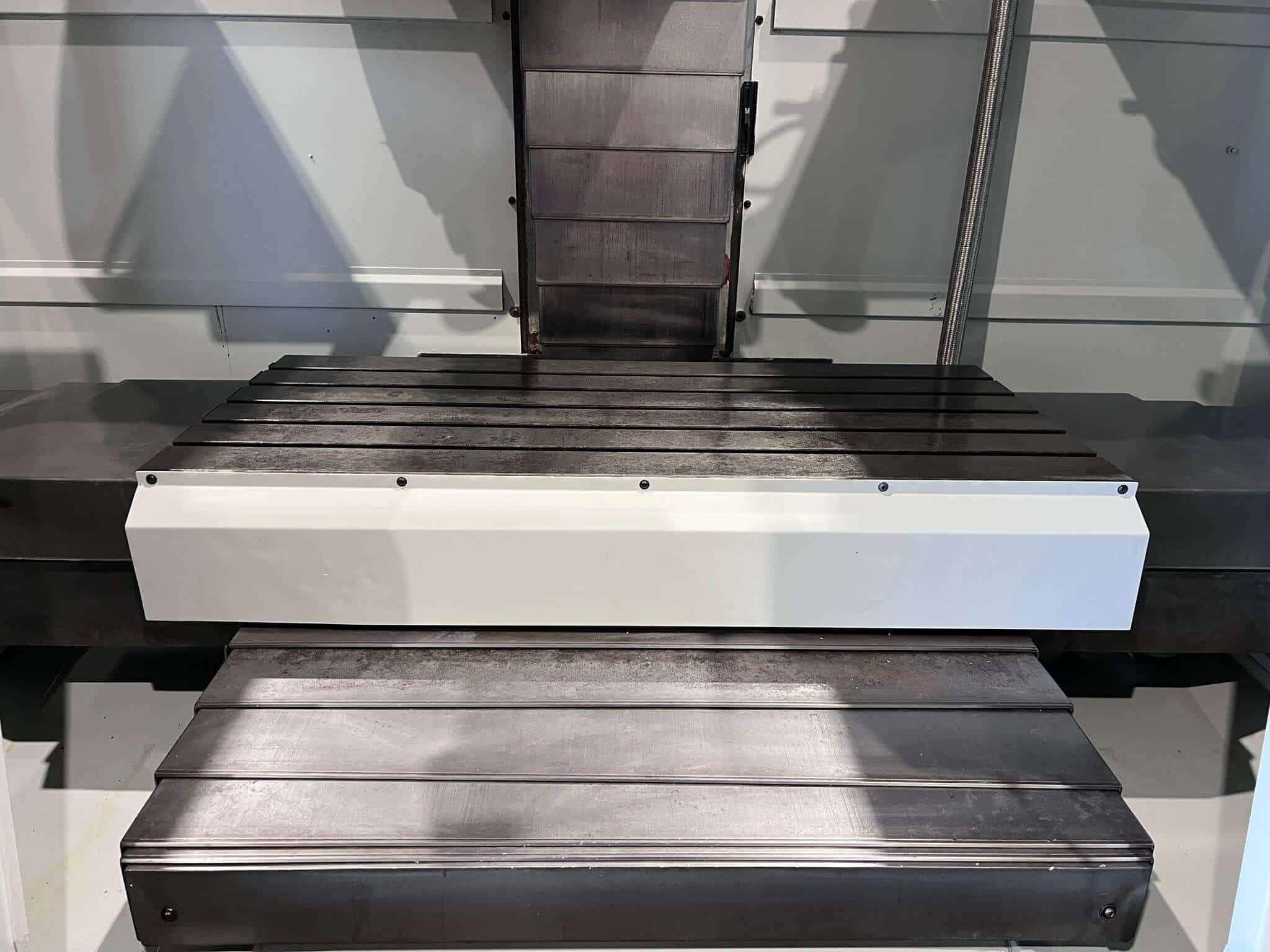

| Table: |
|---|
| Length: 51.2″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2650 lbs |
| Travel: |
|---|
| X-Axis: 43.3″ |
| Y-Axis: 23.6″ |
| Z-Axis: 23.6″ |
| Rapid Traverse Rates: 945 Inch Per Minute |
| Cutting Feed Rates: 788 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″ |

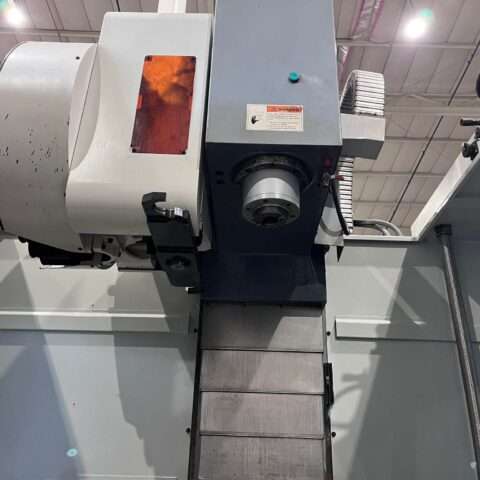

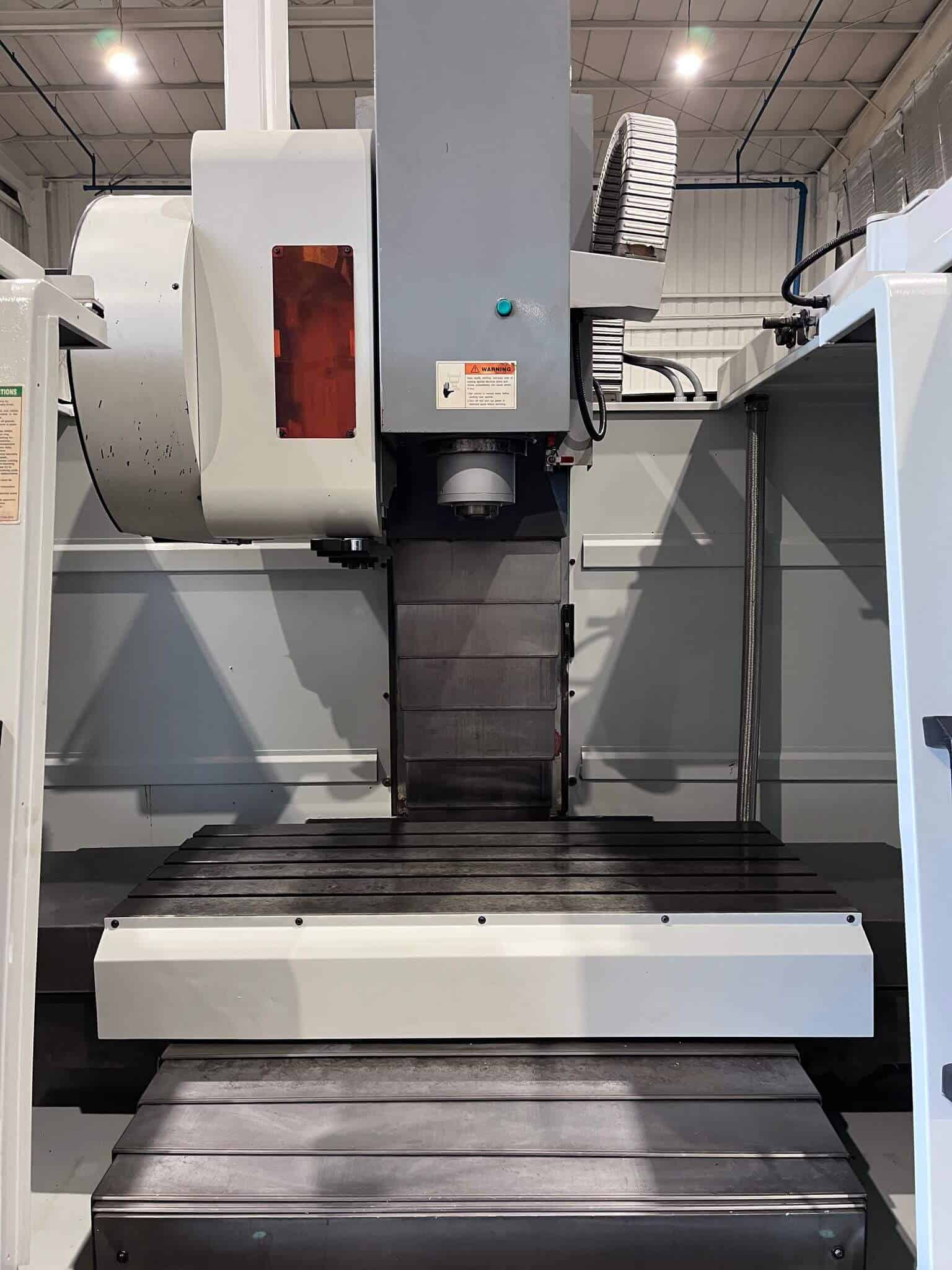

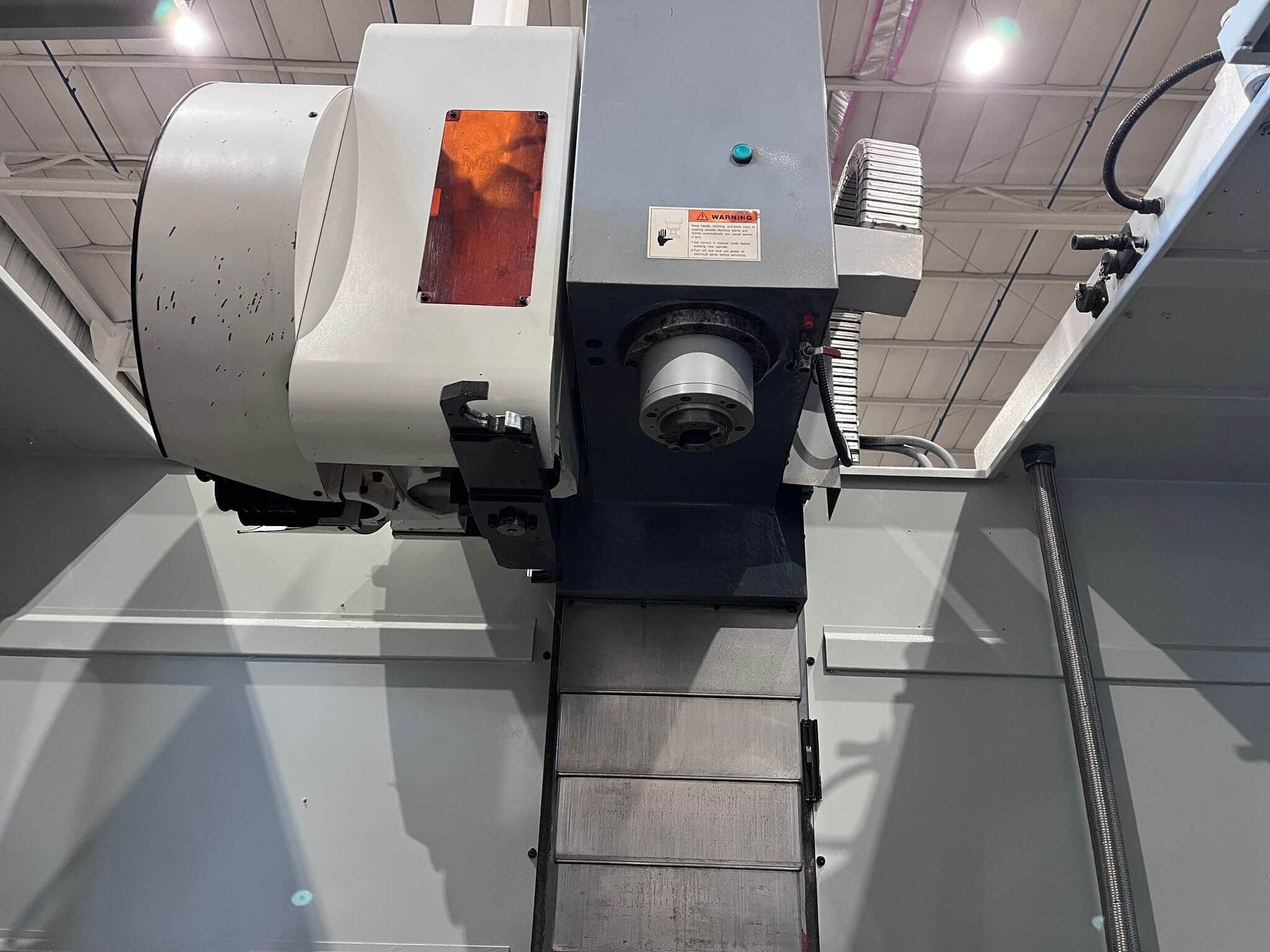

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8000 RPM |
| Spindle Power: 20 HP |

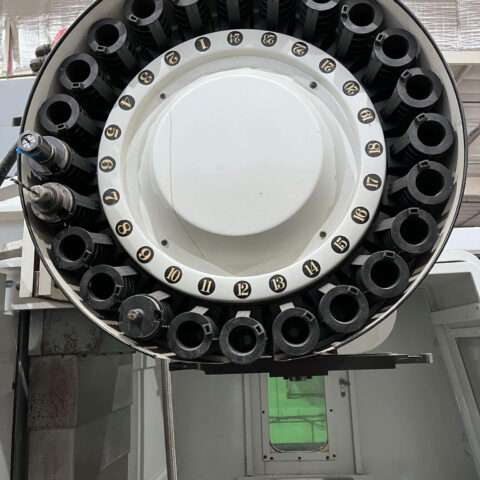

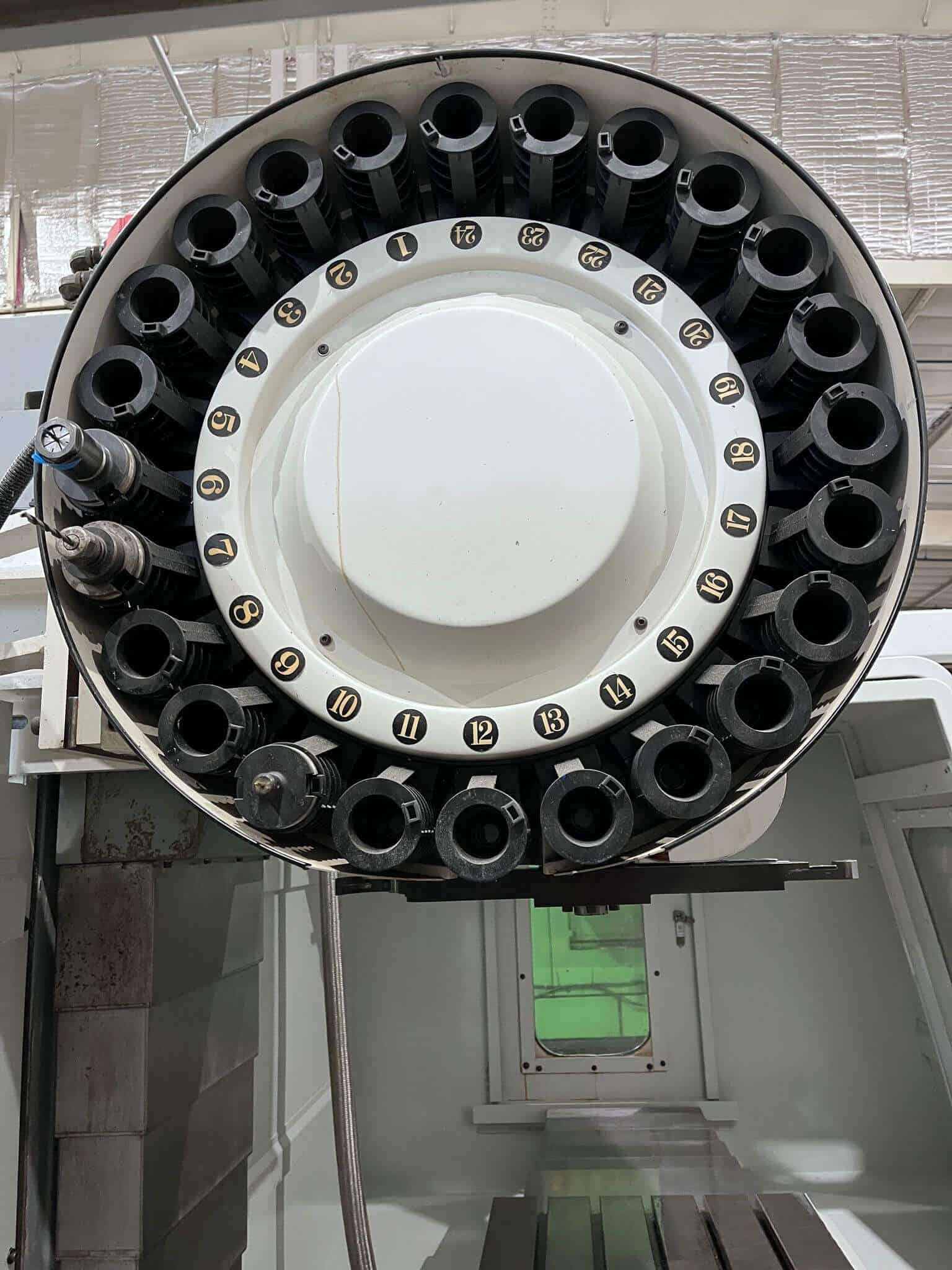

| Tool changer: |
|---|
| Capacity: 24 Station |
| Max Tool Weight: 18 lbs |
| Max Tool Dia: 3.5″ – 5.9″ |
| Max Tool Length: 9.84″ |
| Tool Changing Time: 2.7 Seconds |
| General: |
|---|
| Air Required: 85 psi, 6 scfm |

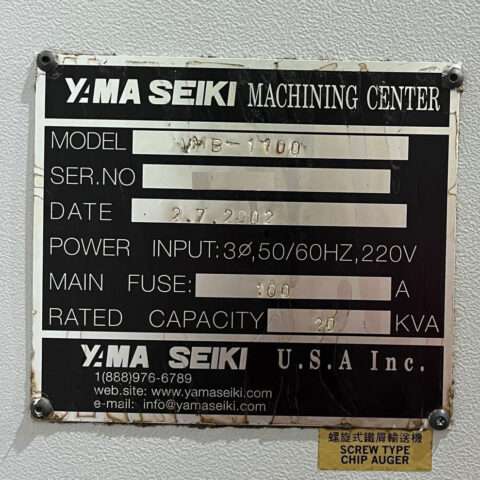

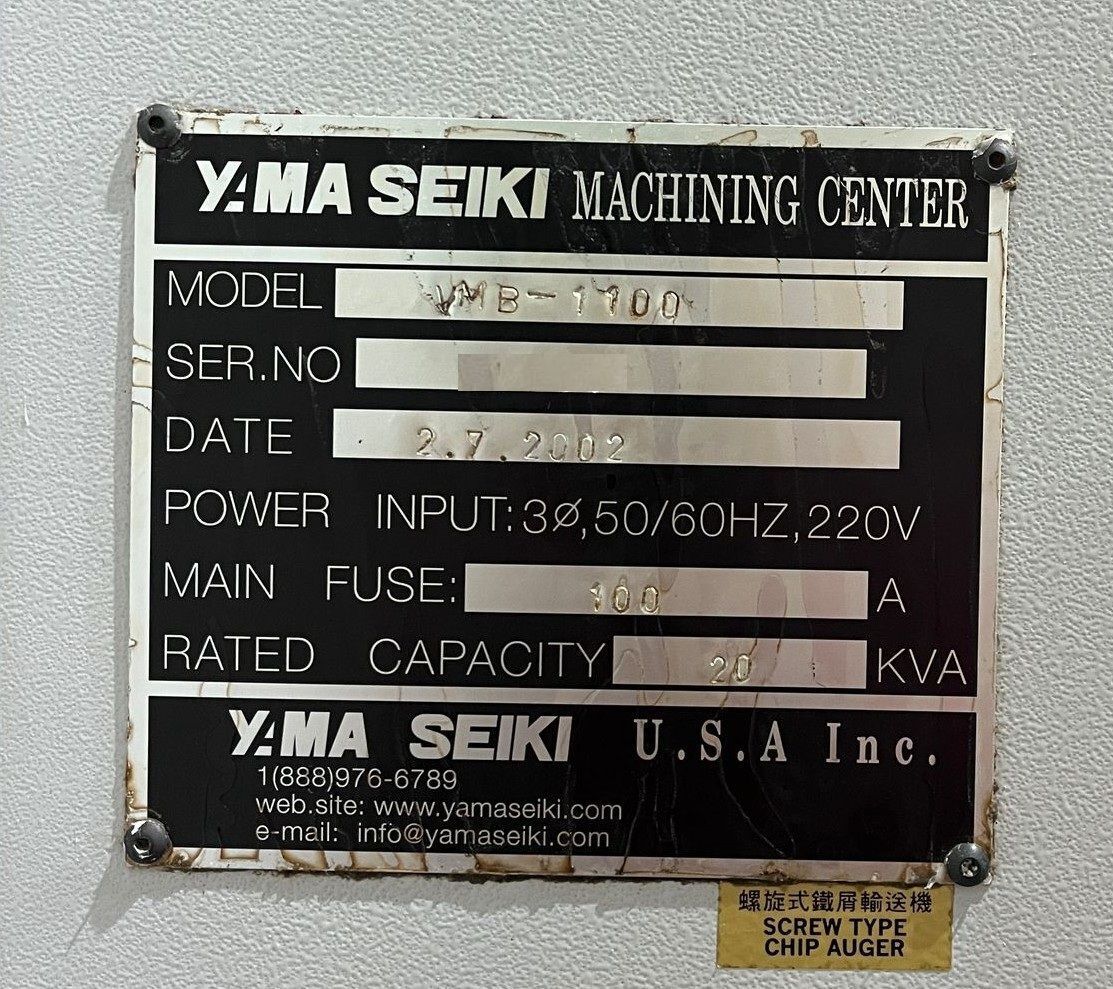

| Power: 220v / 50/60 Hz / 3-Phase / 20 kva |
| Overall Dimensions: 123″ x 90″ x 110″ High |
| Weight: 15,500 lbs |
