Yama Seiki VMB-1600 CNC VMC

Out of stock

This One Owner Machine has very low Cutting Hours, 4th Axis Ready, 50 Taper, through Spindle Coolant, 30 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”

SKU: 1492
Make/Model: Yama Seiki VMB-1600
Video: [fusion_button link=”https://www.youtube.com/watch?v=AdsYq1ZUkec” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1492

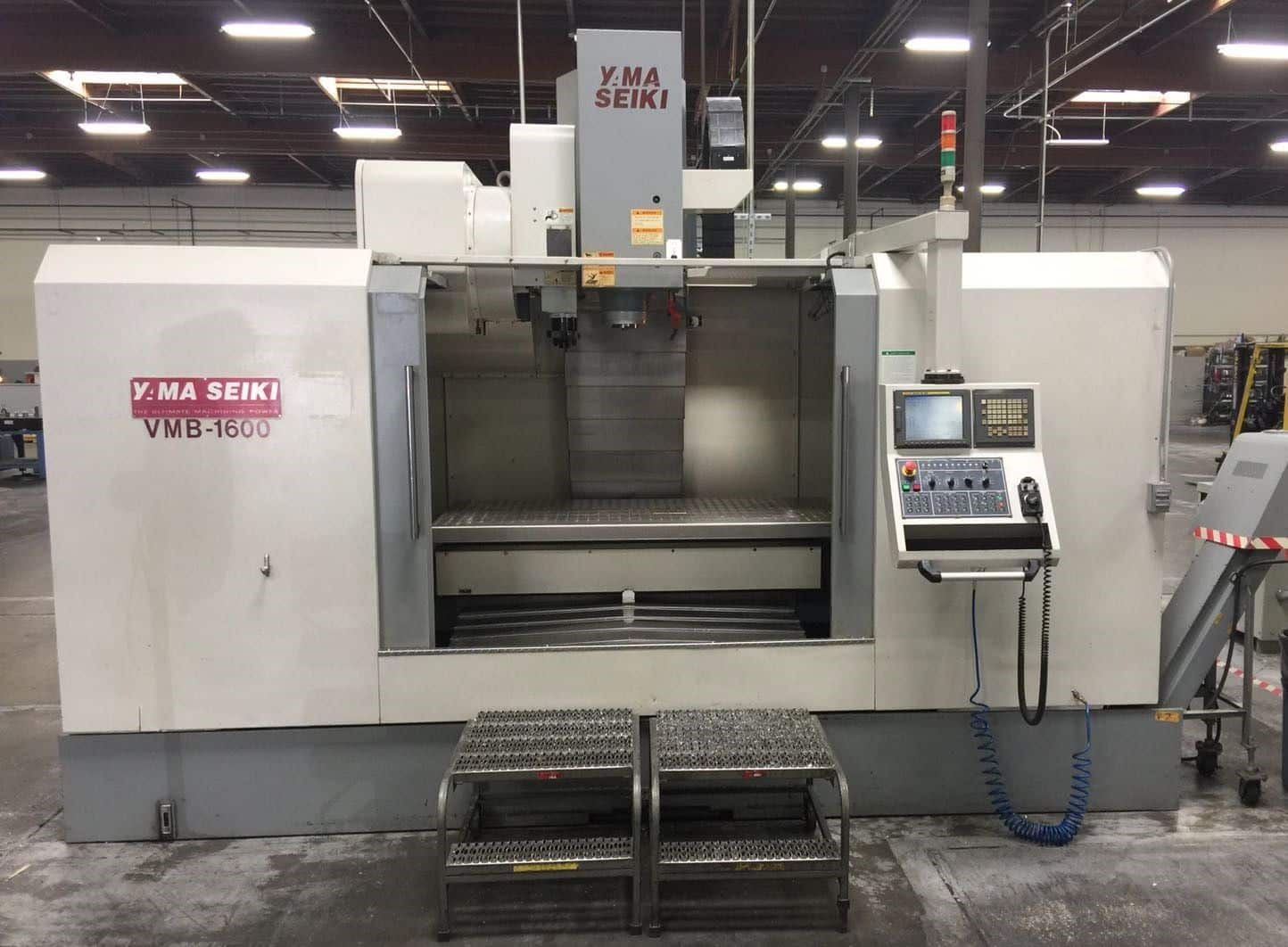

YAMA SEIKI VMB-1600 VERTICAL MACHINING CENTER
Make Yama Seiki
Model No. VMB-1600

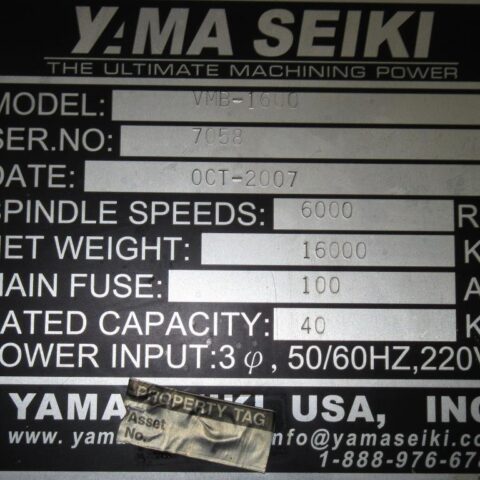

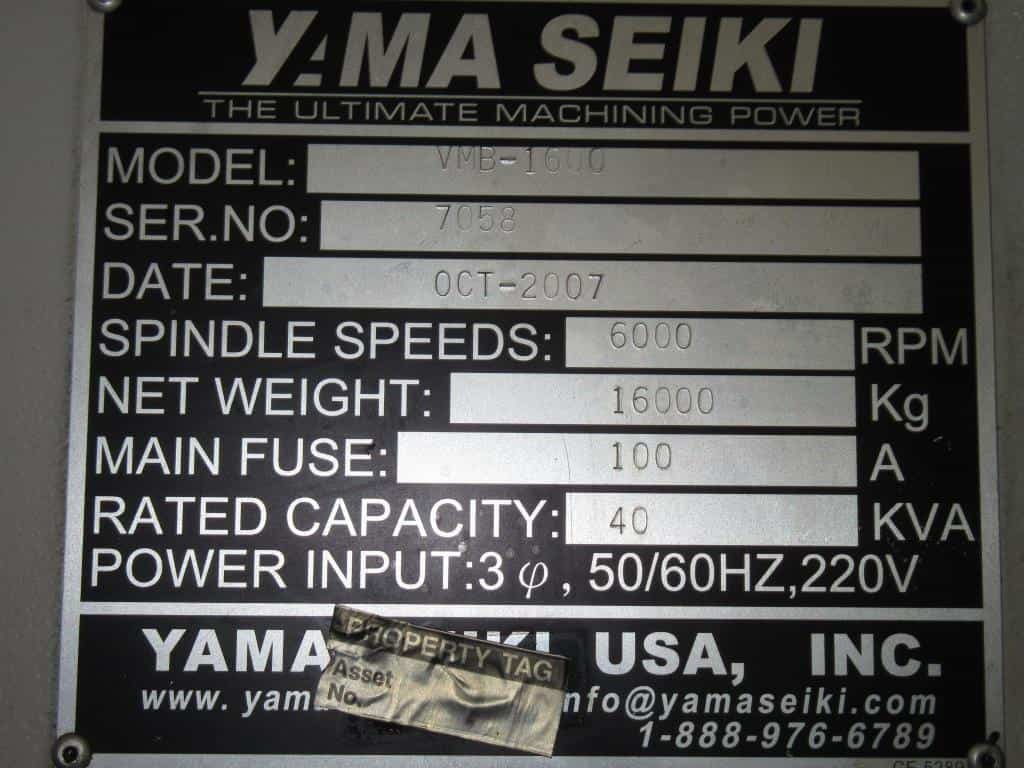

Year of Manufacture: 08-2007, Installed 2009
Serial # 7058
Condition Very Good

“This One Owner Machine has very low Cutting Hours, 4th Axis Ready, 50 Taper, through Spindle Coolant, 30 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”

  • YAMA SEIKI VMB-1600 Features:

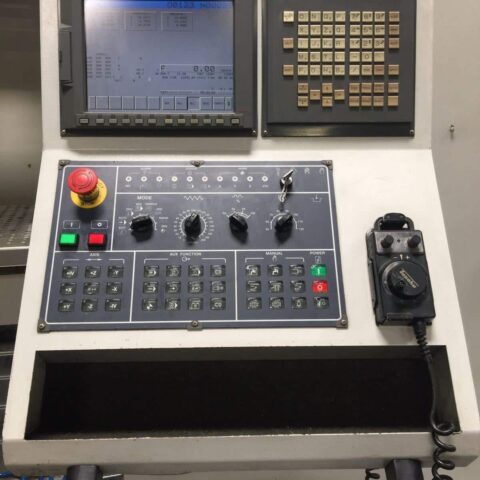

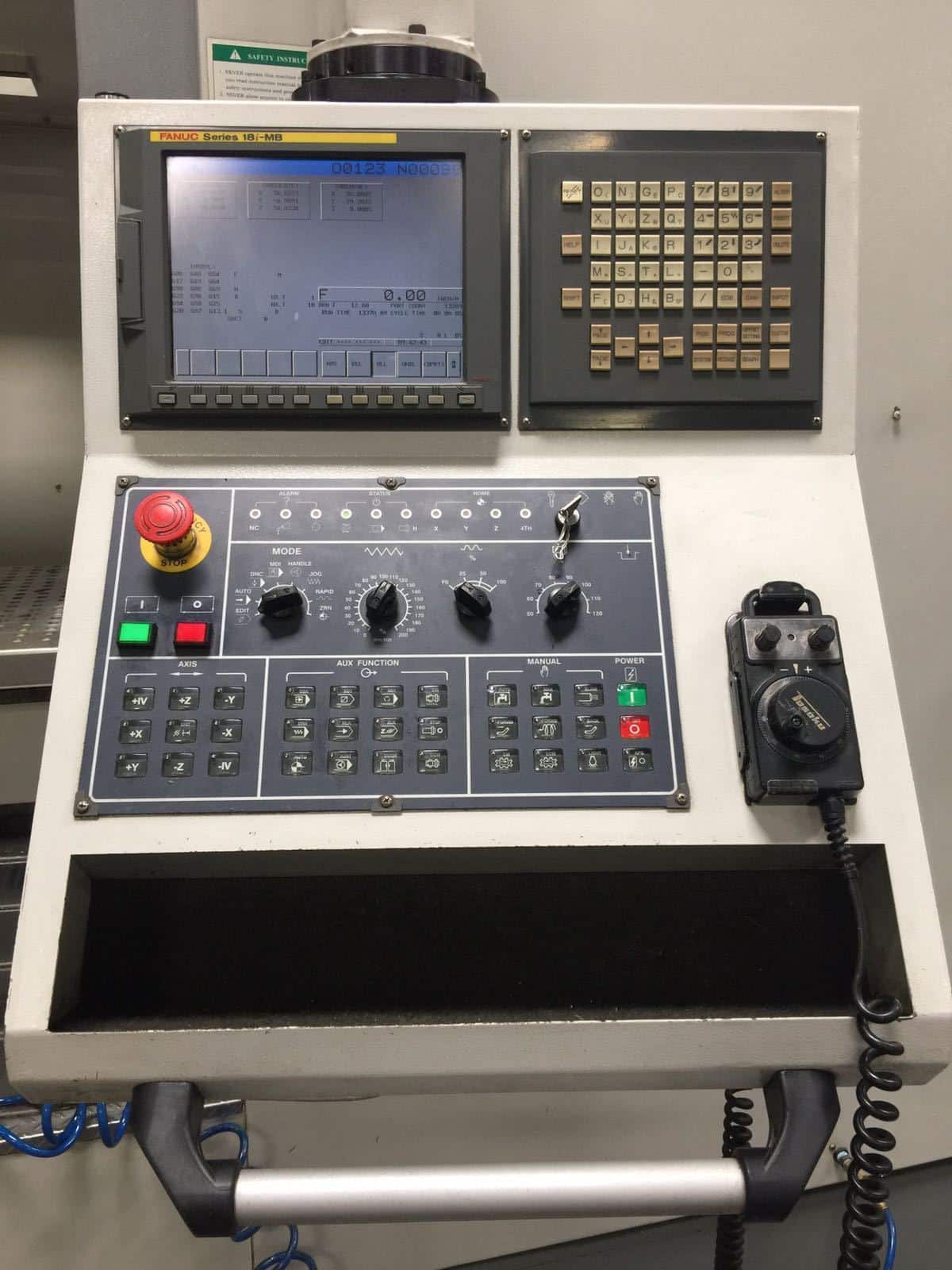

  • Fanuc 18i-MB CNC Control
  • Coolant through Spindle System

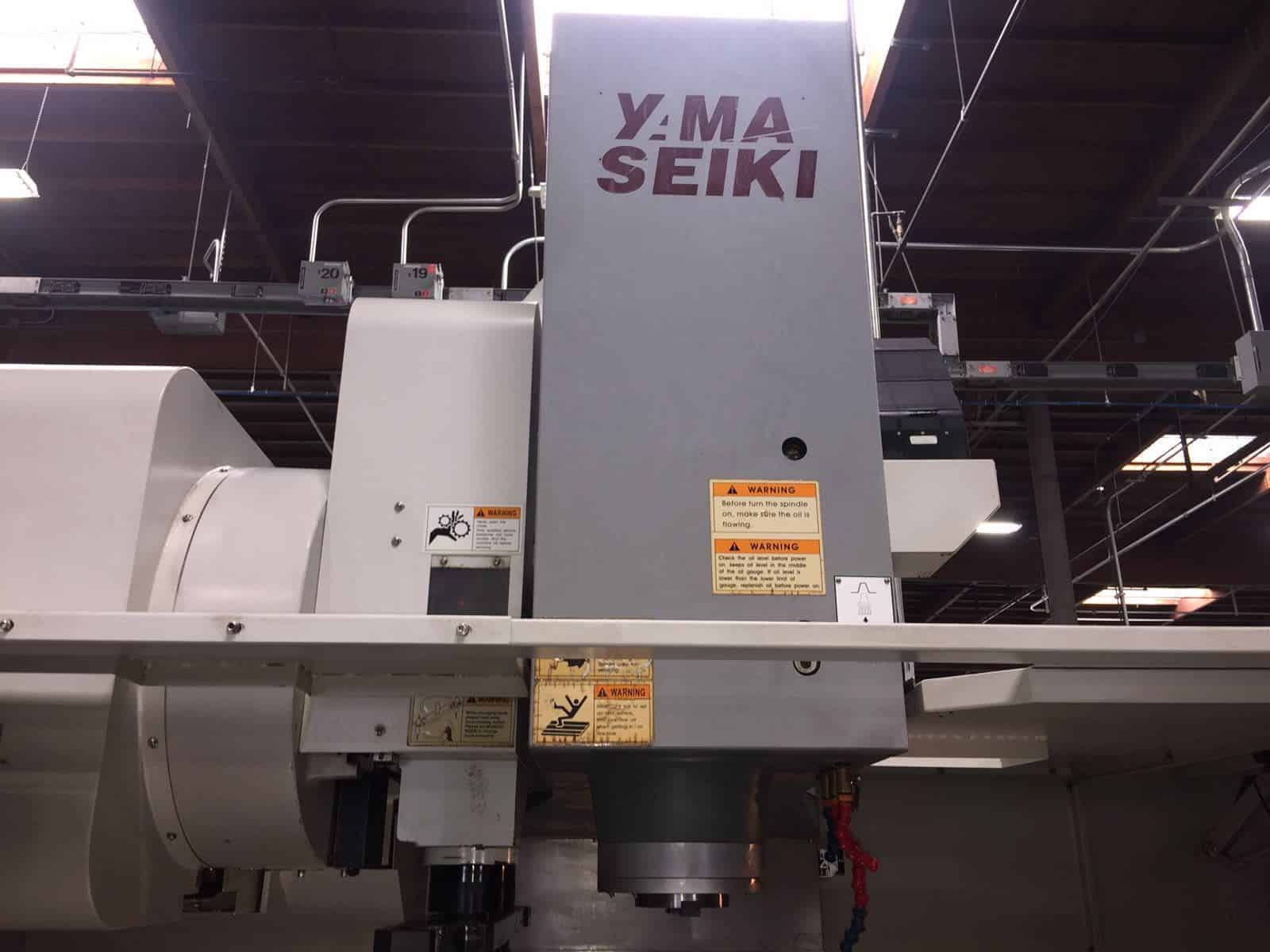

  • 50 Taper Geared Head Spindle
  • 4th Axis Ready ( Drive and Wiring Installed )
  • 30 Tools Side Mount Bidirectional Tool Changer
  • PCMCIA Card Slot
  • Box Way Construction All Axis
  • Powerful 35 hp high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping

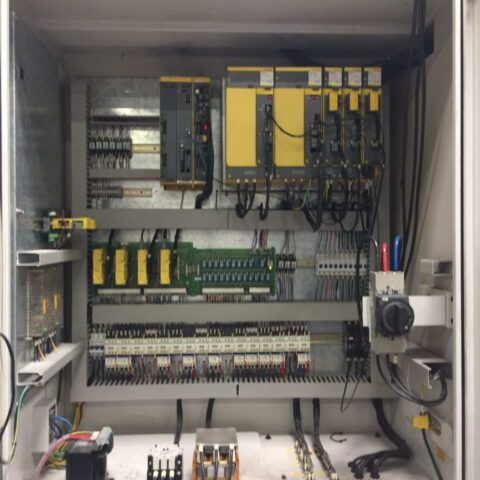

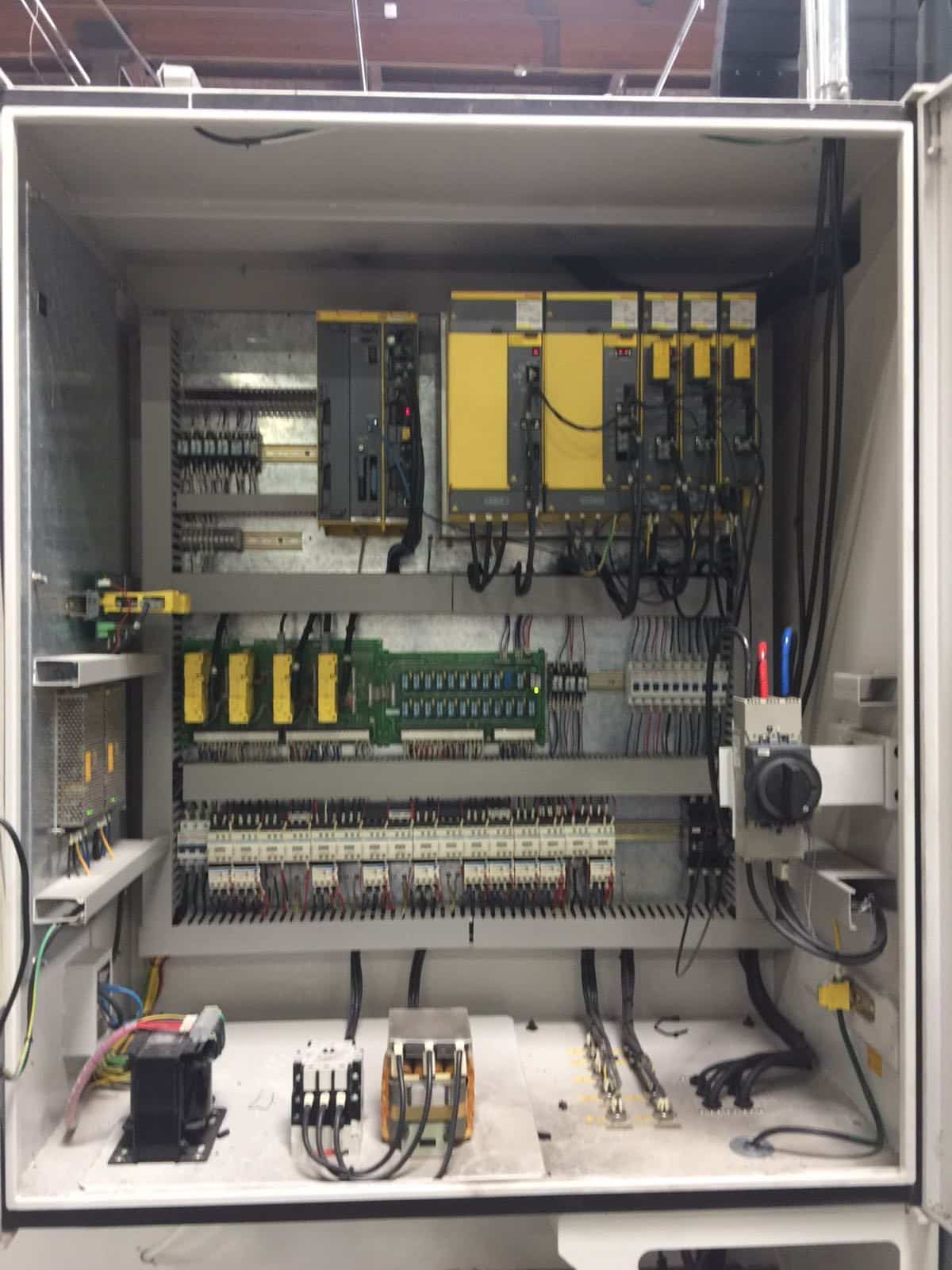

  • Electrical Panel AC
  • Fast Rapid Traverse Rate
  • Flood coolant with large separate coolant tank
  • Chip Conveyor
  • Work light
  • Books and Manuals
  • YAMA SEIKI VMB-1600 Specifications:
  • Travels:
  • X-Axis: 63″
  • Y-Axis: 31.5″
  • Z-Axis: 31.5″
  • Spindle Nose to Table (Min.- Max.): 7.87″ – 39.3″
  • Spindle Nose to Column: 35.4″

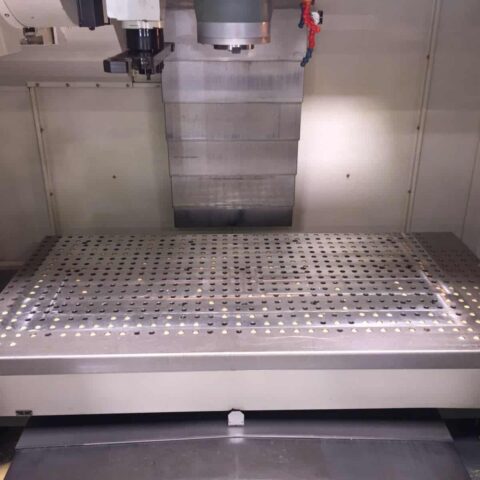

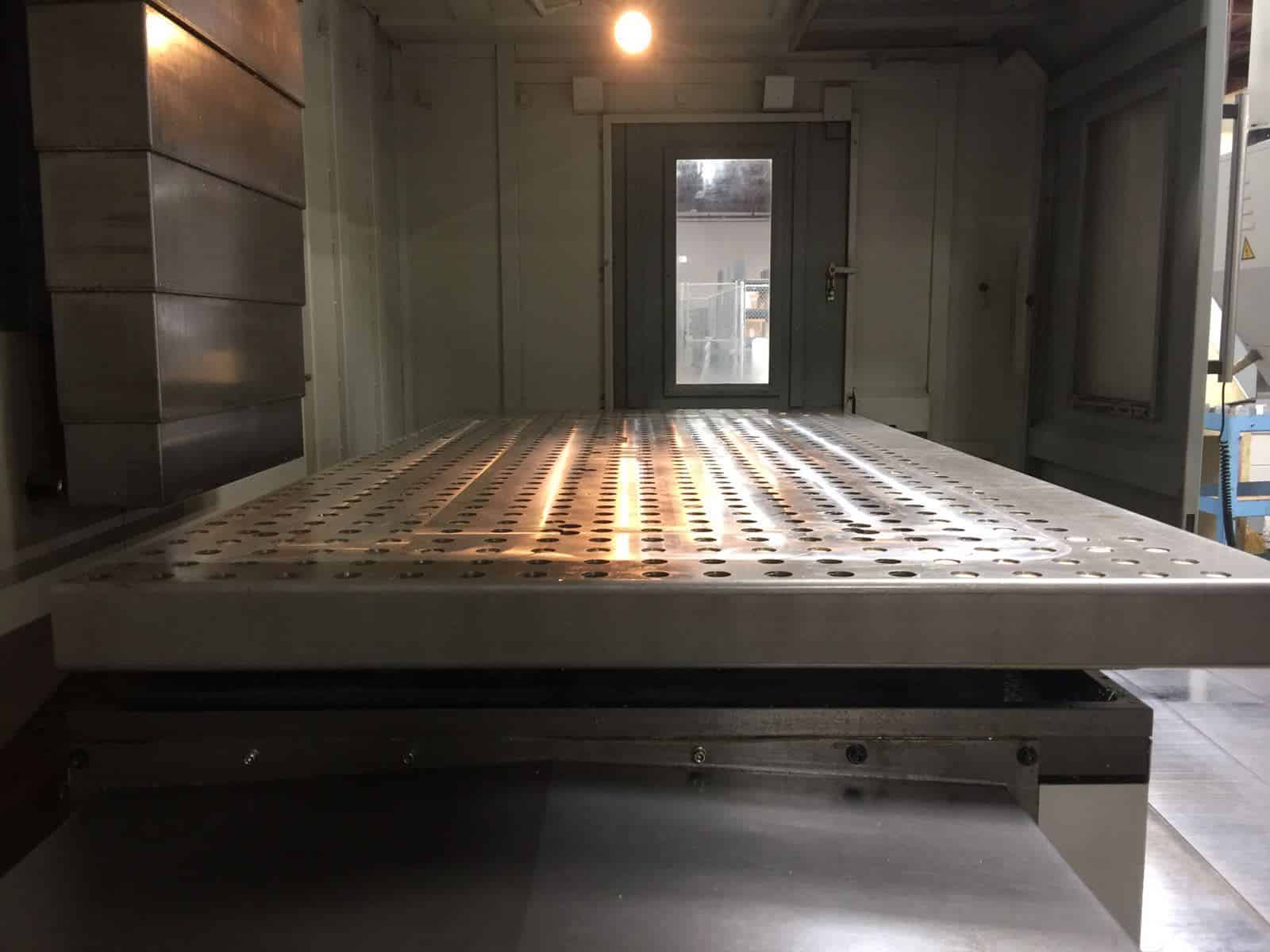

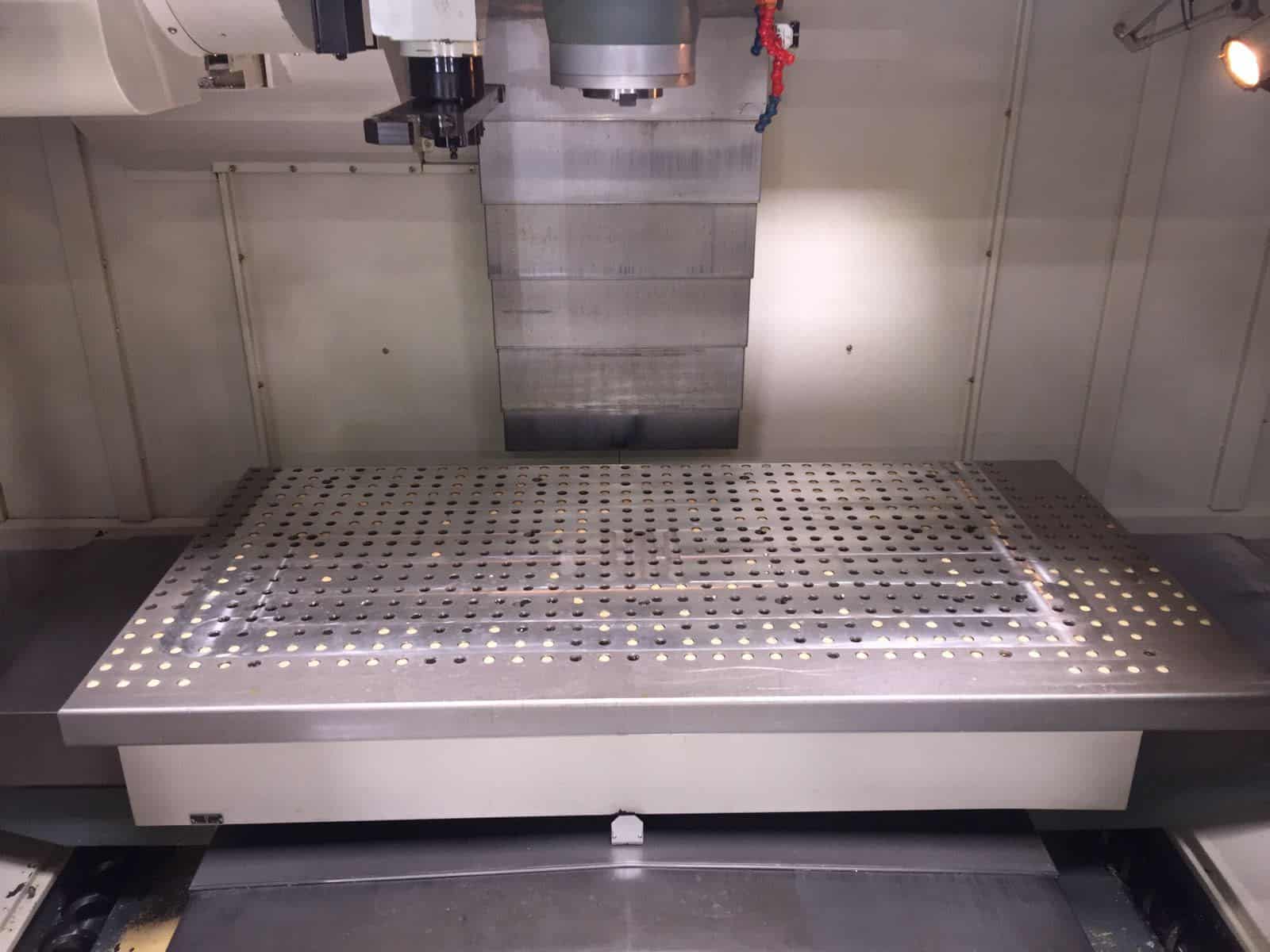

  • Table:
  • Length: 67″
  • Width: 31.5″
  • Max Weight on Table: 4400 lbs
  • T-Slot no. & Width: 5 X 0.7″
  • Gear Head Spindle:
  • Taper Size: 50
  • Speed Range: 60 – 6,000 RPM
  • Spindle Power: 35 HP
  • Feed rates:
  • Rapid X,Y & Z: 788 inch/P.M
  • Cutting Feedrate: 315″ inch/ P.M
  • Automatic Tool Changer:
  •  50 Taper
  • Capacity: 30
  • Max Tool Weight: 33 lbs
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 7.87″
  • General:
  •  Air Required: 90 psi, 4 scfm
  • Power: 205-220v / 50kva / 3-Phase
  • Overall Dimensions: 185″ x 128″ x 122″ High
  • Weight: 33000 lbs

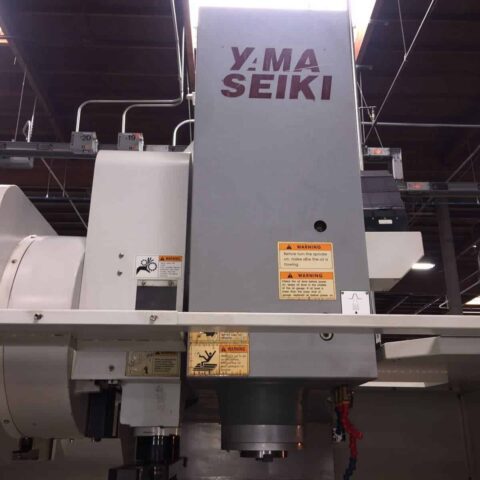

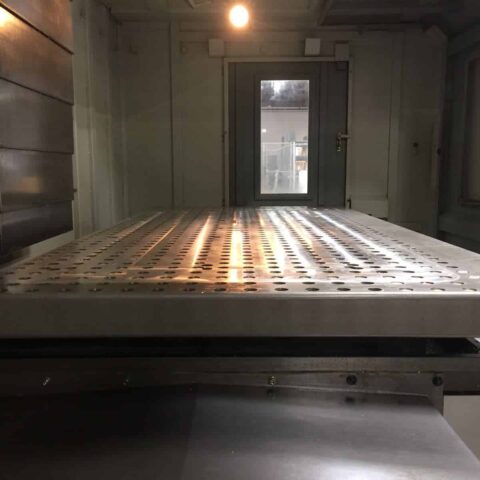

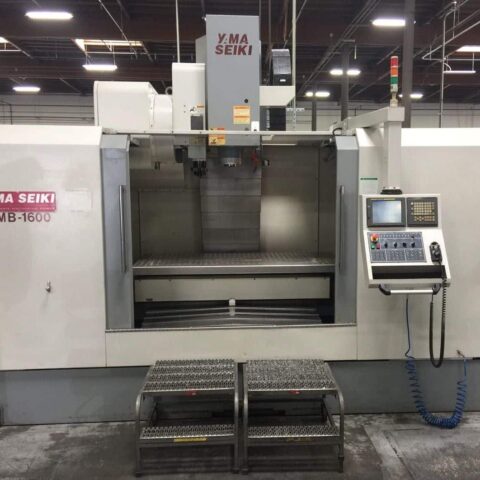

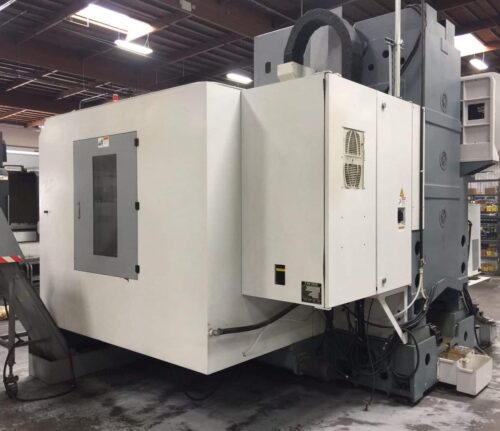

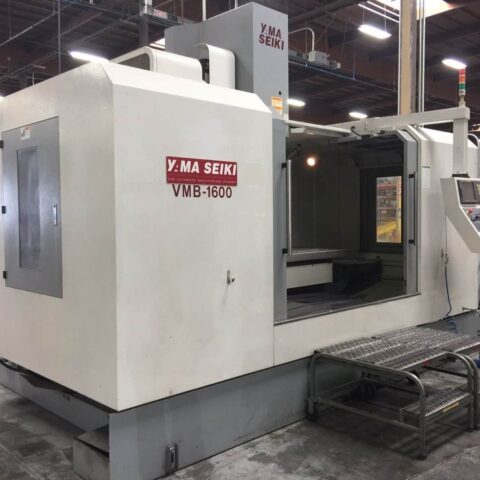

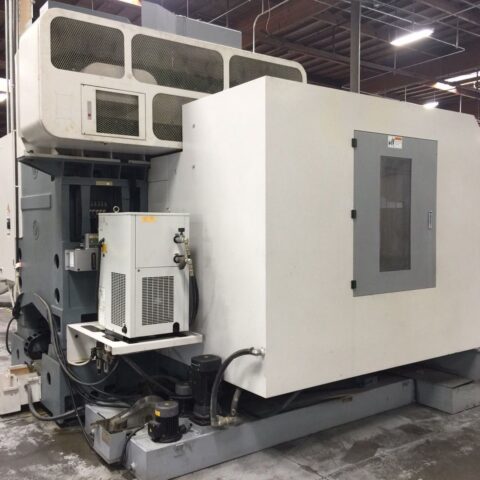

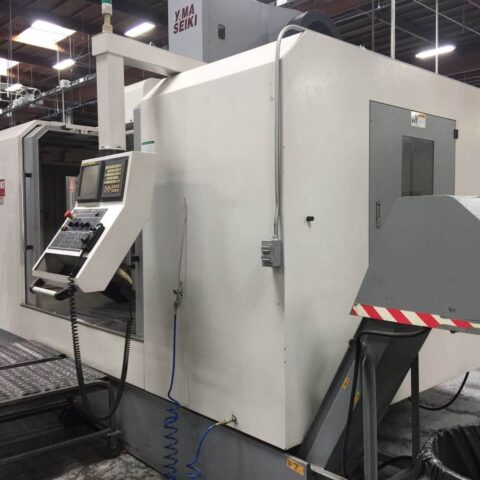

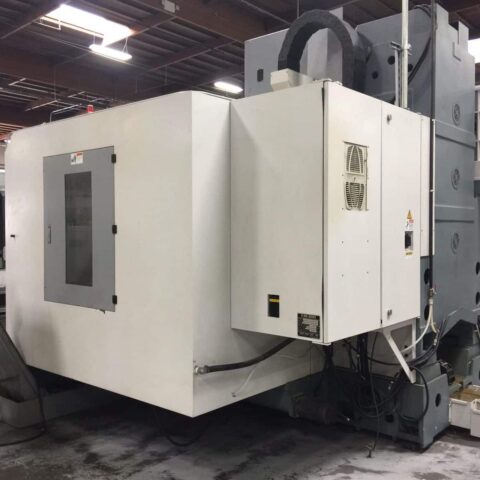

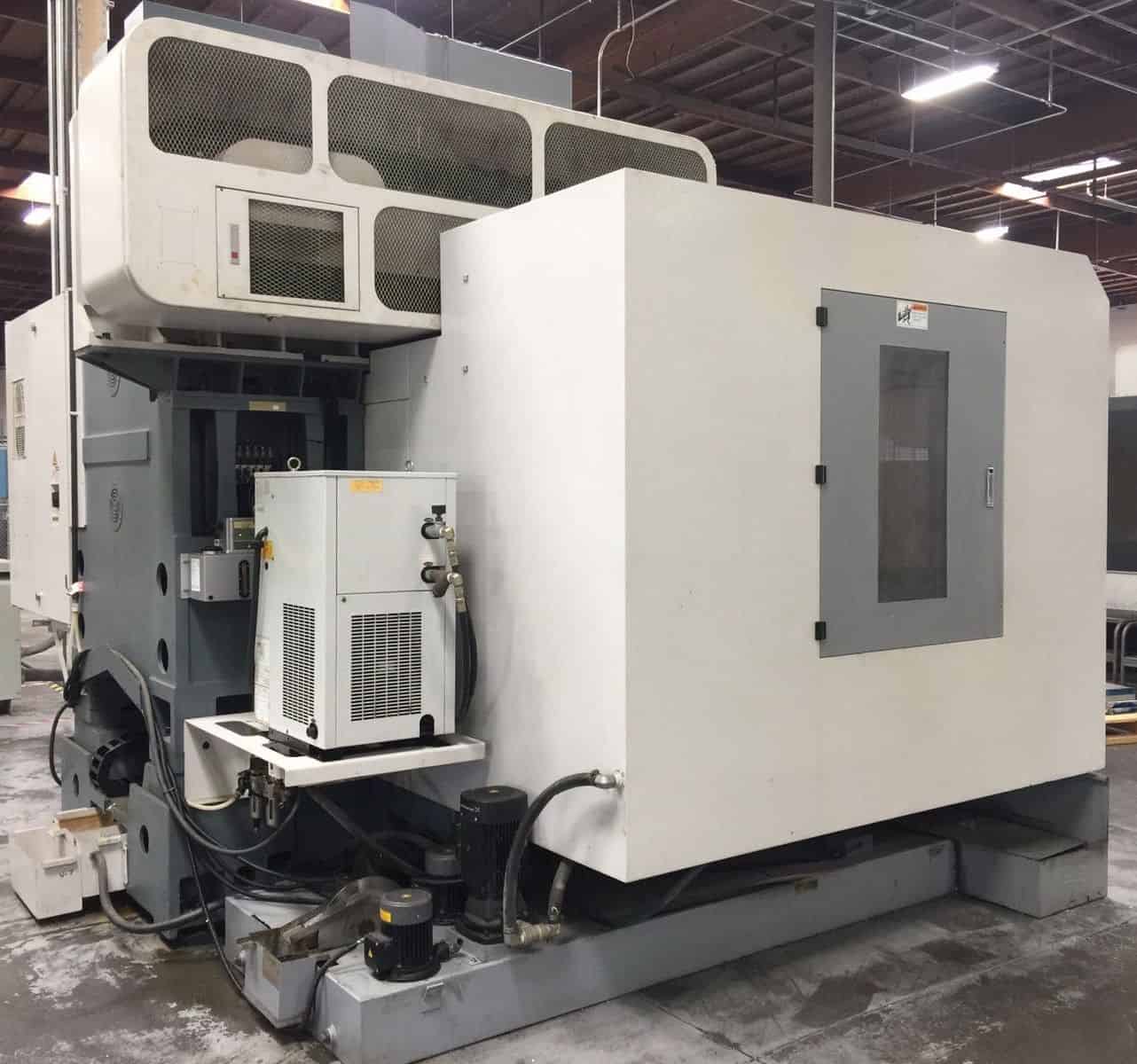

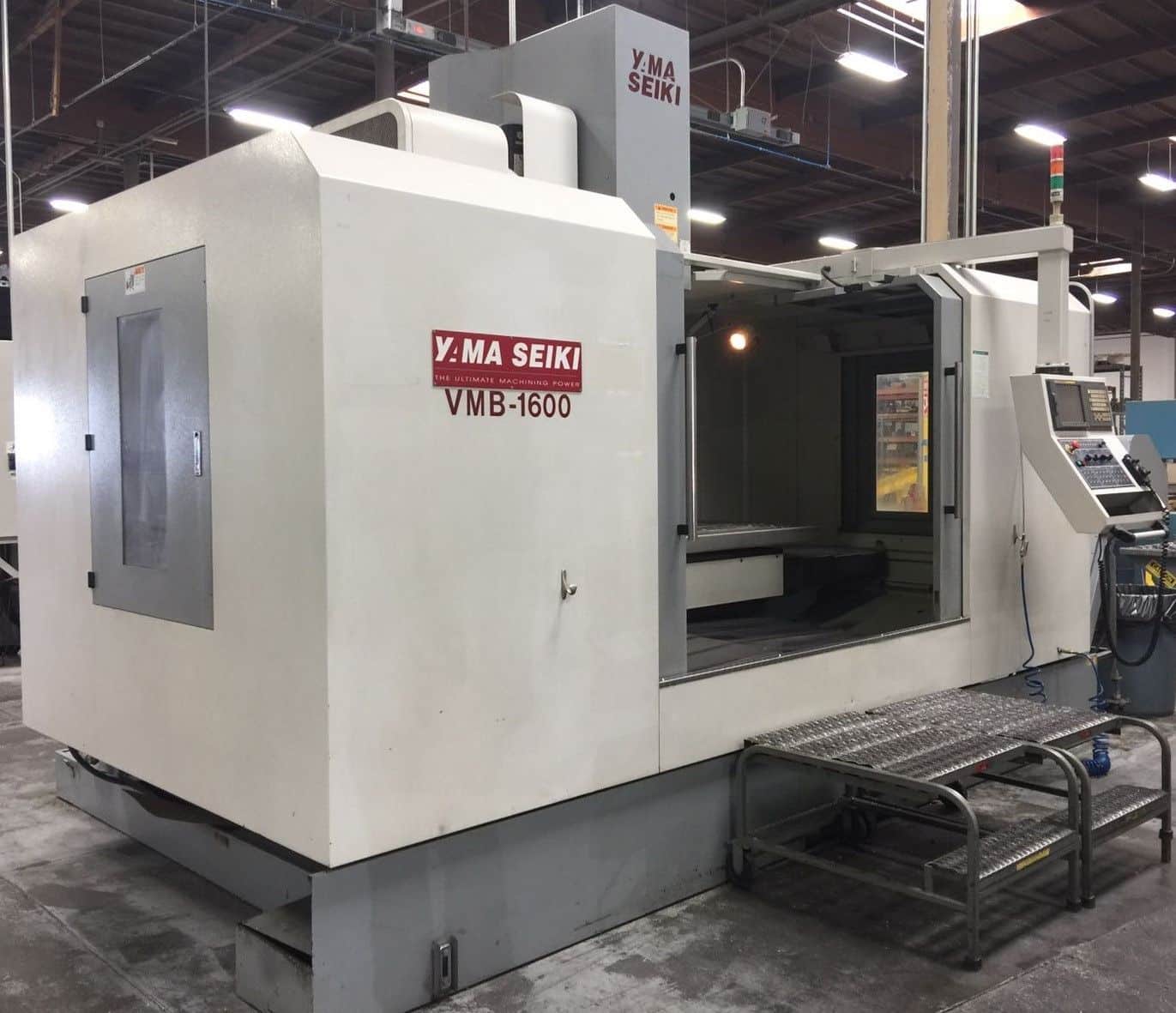

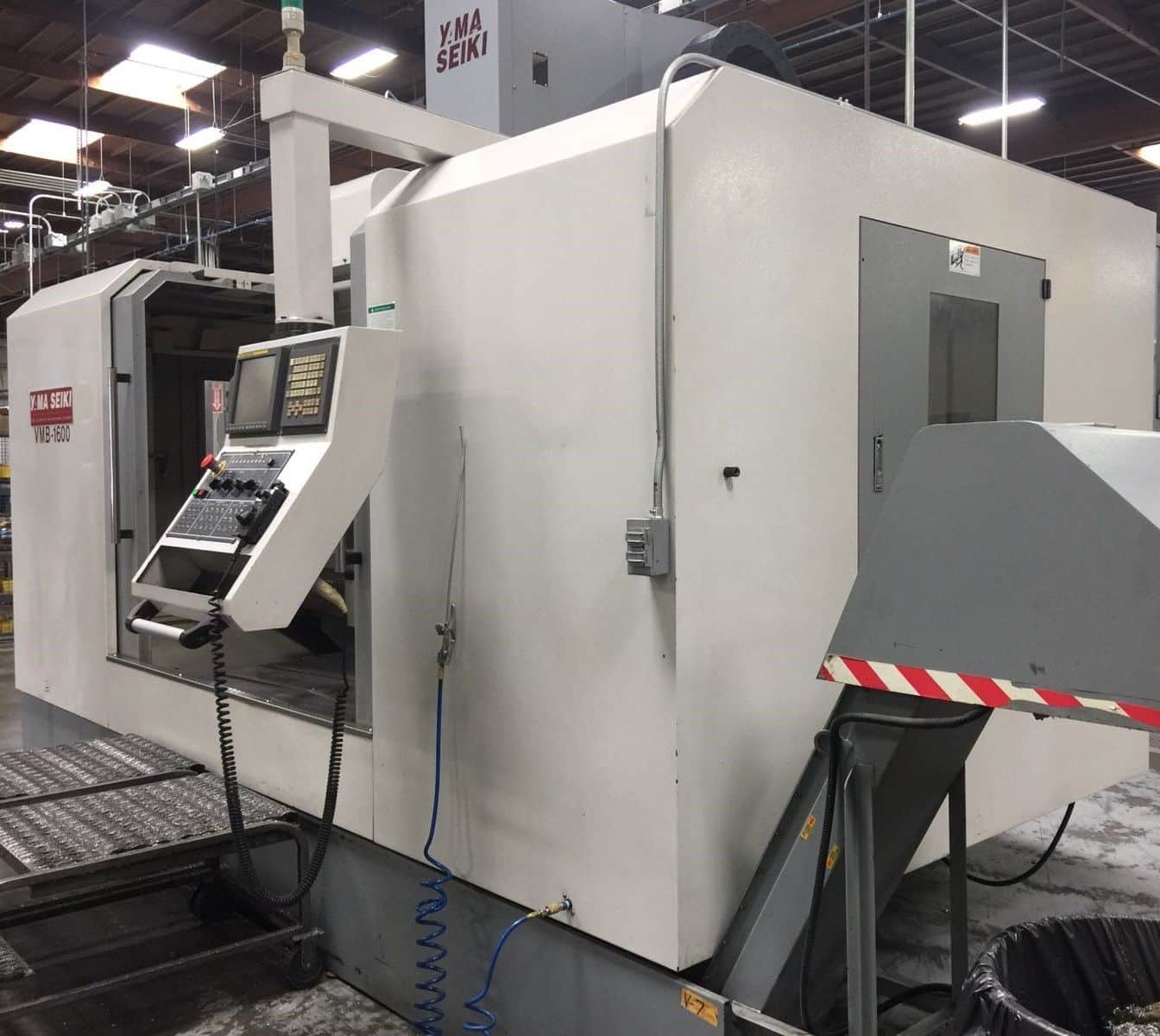

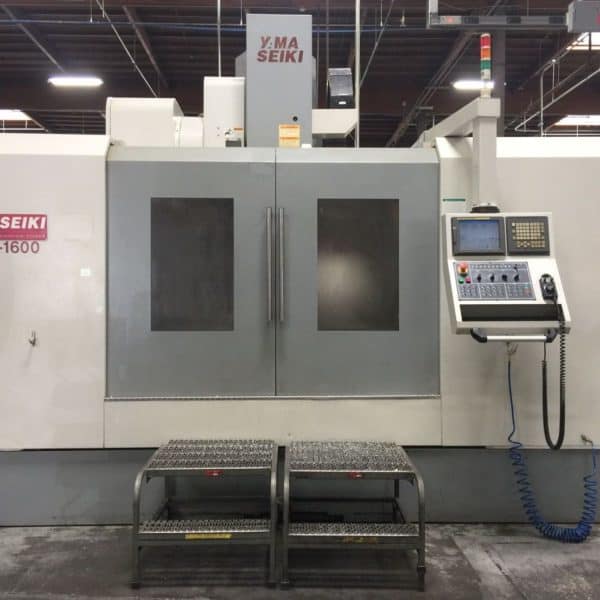

Comes as shown in pictures….
