*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

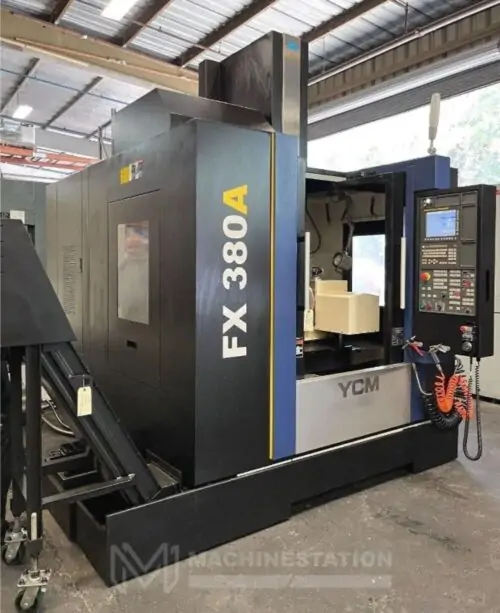

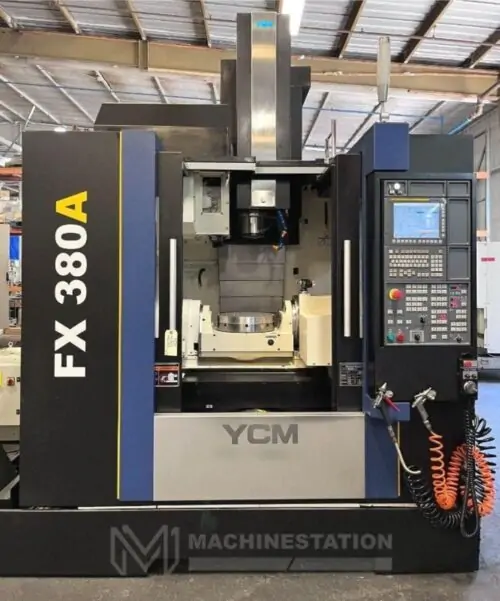

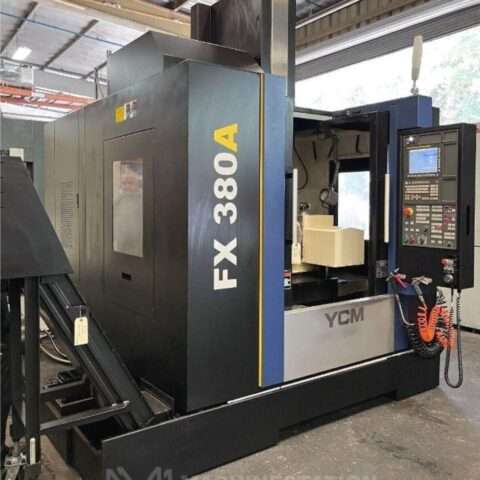

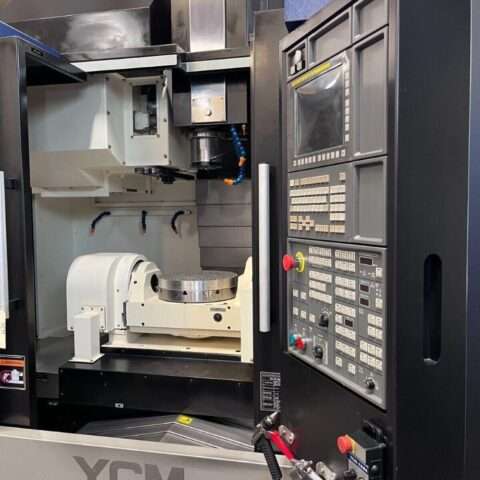

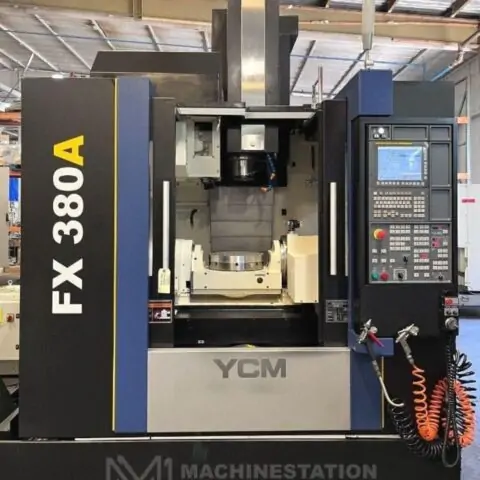

| Make: |
YCM |
| Model: |
FX-380A |
| Year: |
2017 |
| Condition: |
Used – Good |
Features:

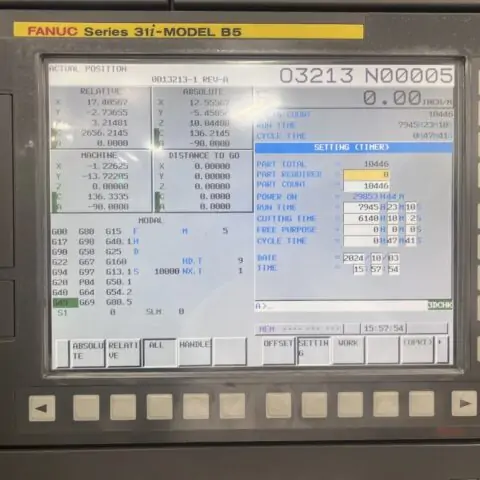

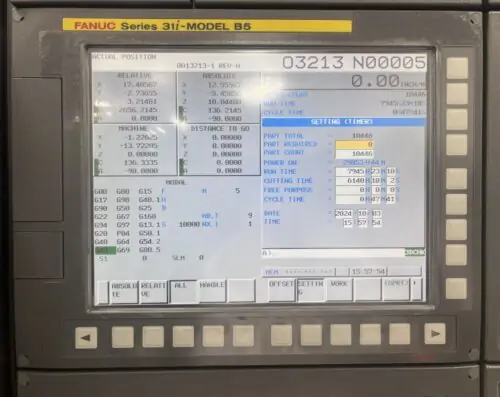

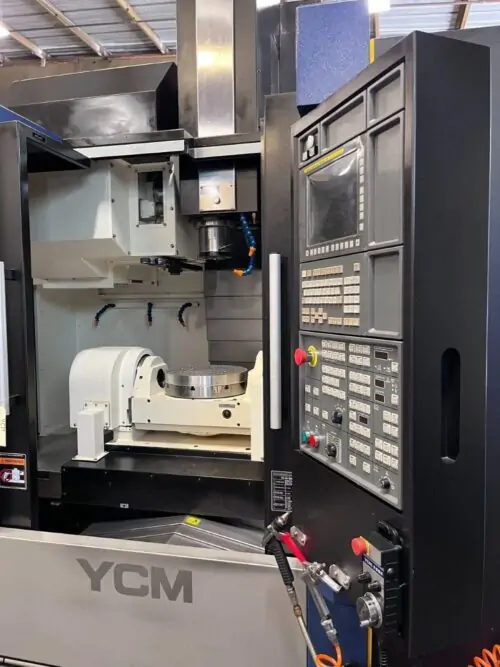

- Fanuc 31i-B5 Series CNC Control
- Simultaneous 5-Axis Cutting

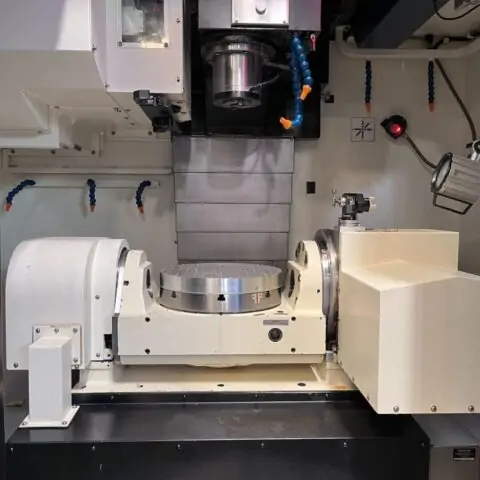

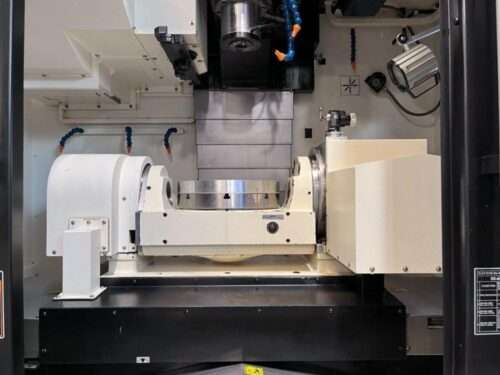

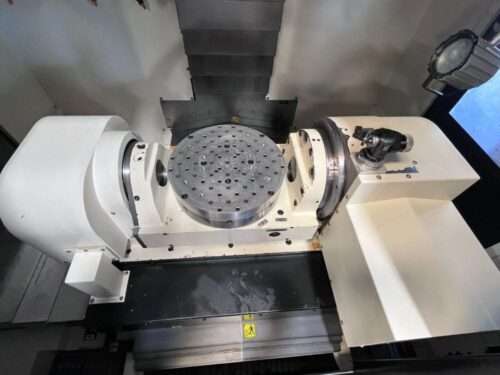

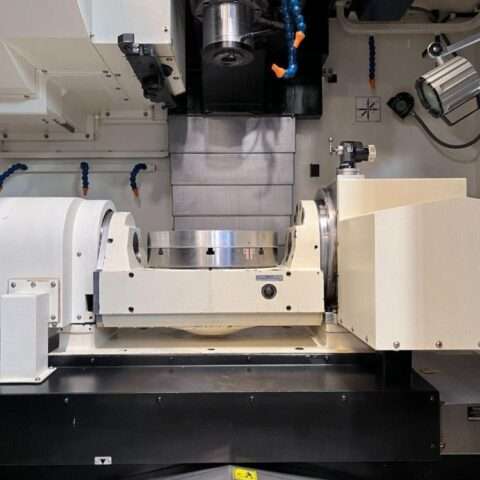

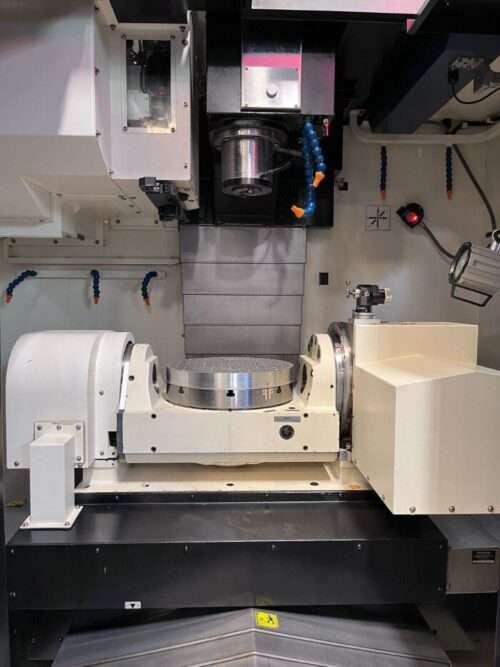

- NC Programmable Swiveling Trunnion Table 14.96” Diameter
- 12,000 RPM High Precision Spindle
- Coolant through Spindle
- 30 Station Automatic Tool Changer
- Renishaw OTS Wireless Touch Probe System
- Hand Wheel MPG Control
- Spindle Chiller
- USB, PCMCIA Ports
- Spindle Orientation
- Rigid Tapping
- Absolute Incremental Programming
- Fast Rapid Traverse Rate

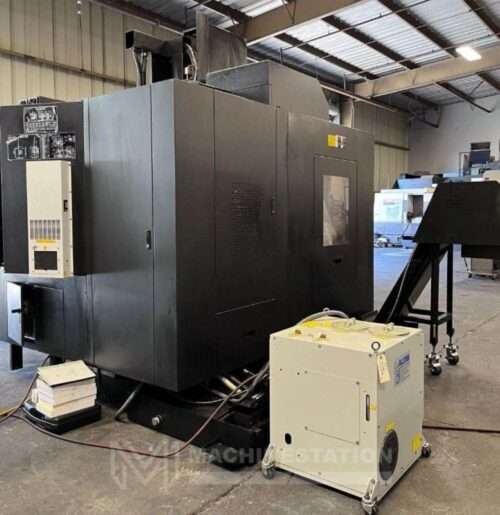

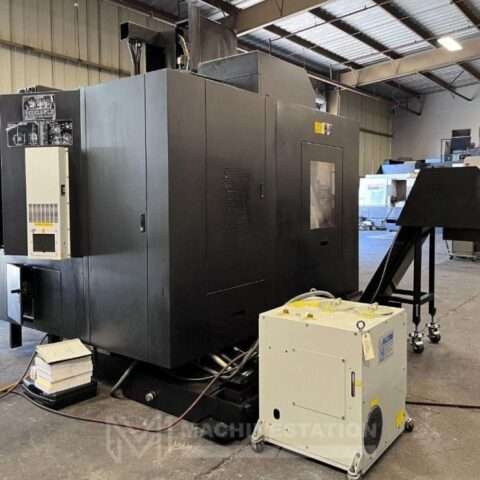

- Chip Conveyor
- Work light
|
Travels:
- X Axis: 27.56″
- Y Axis: 20.47″
- Z Axis: 18.90″
- A Axis: 150° (+30°/– 120°) ( Table Tilt )
- C Axis: 360° ( Table Rotate )
- Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
- Rapid Traverse Rates Z Axis: 944 Inch Per Minute
- Cutting Feed Rates: 393 Inch Per Minute
|

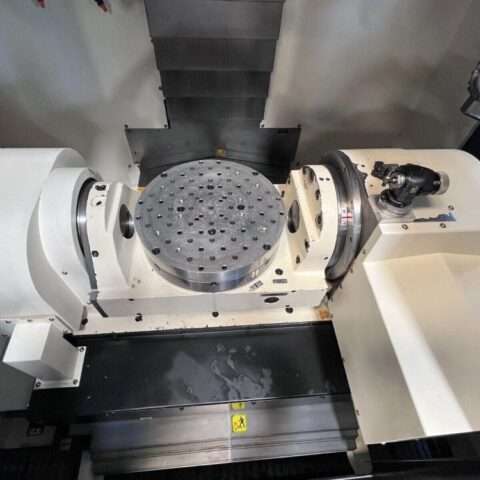

Table:
- Table Diameter: 14.96″
- T-Slots: 0.47″ Radial
- Max Weight on Table: 441 lbs
|

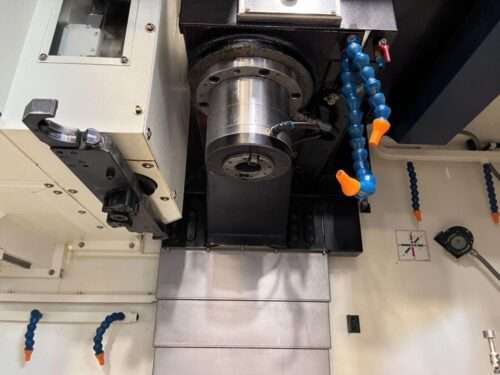

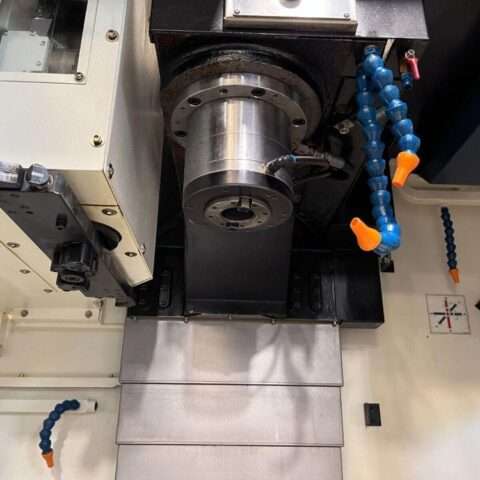

Spindle:
- Taper Size: 40
- Speed Range: 12,000 RPM
- Spindle Power: 30 HP
|
Automatic Tool Changer:
- Capacity: 30 Tools
- Taper: 40
- Max Tool Size: 3″ X 11.2″
- Max Tool Weight: 13.2 lbs.
- Tool Change Time: 5.5 Second
|
General:
- Air Required: 80 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase / 35kva
- Overall Dimensions: 103″ X 98″ X 120″ High
- Weight: 13,690 lbs Approx.
|
