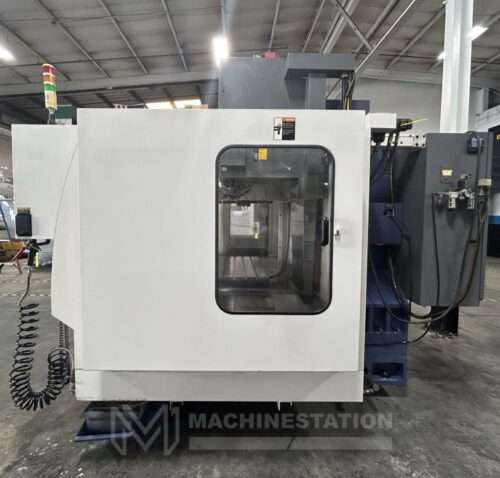

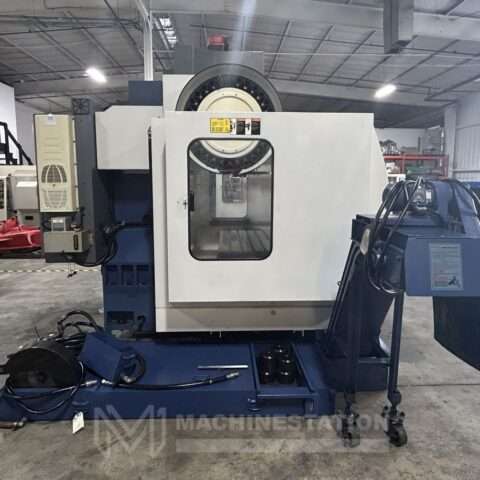

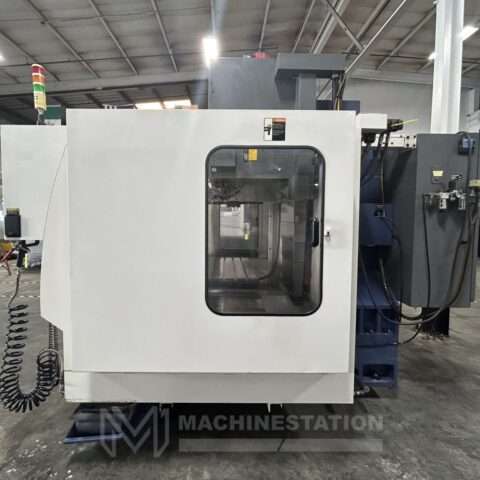

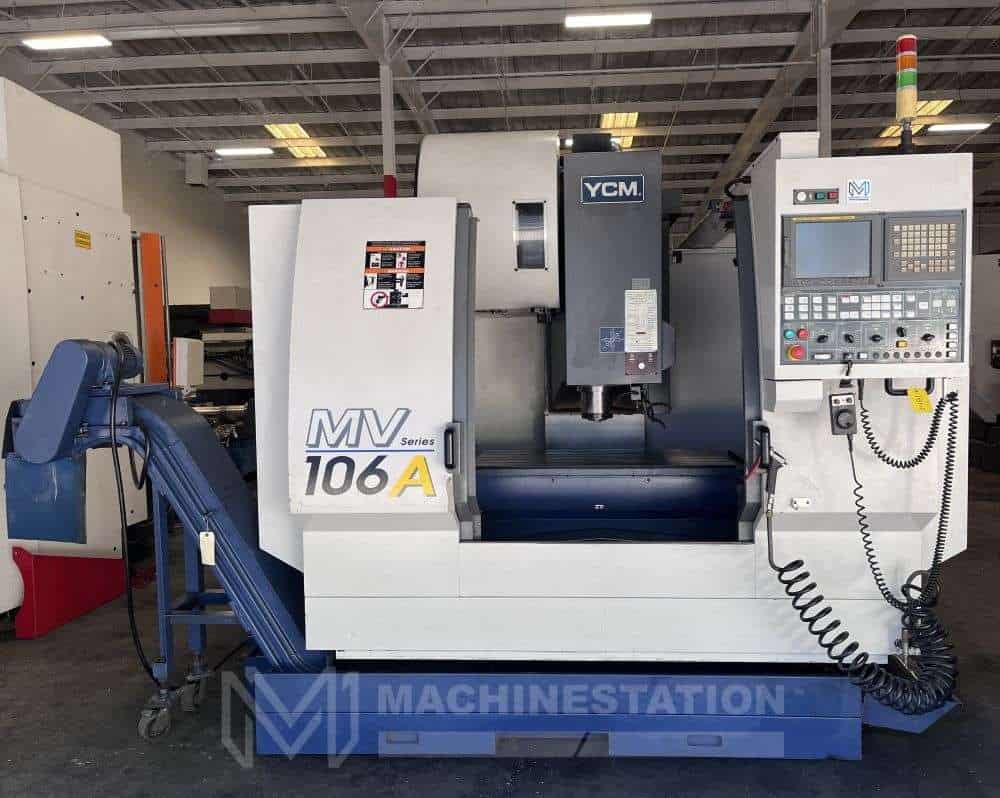

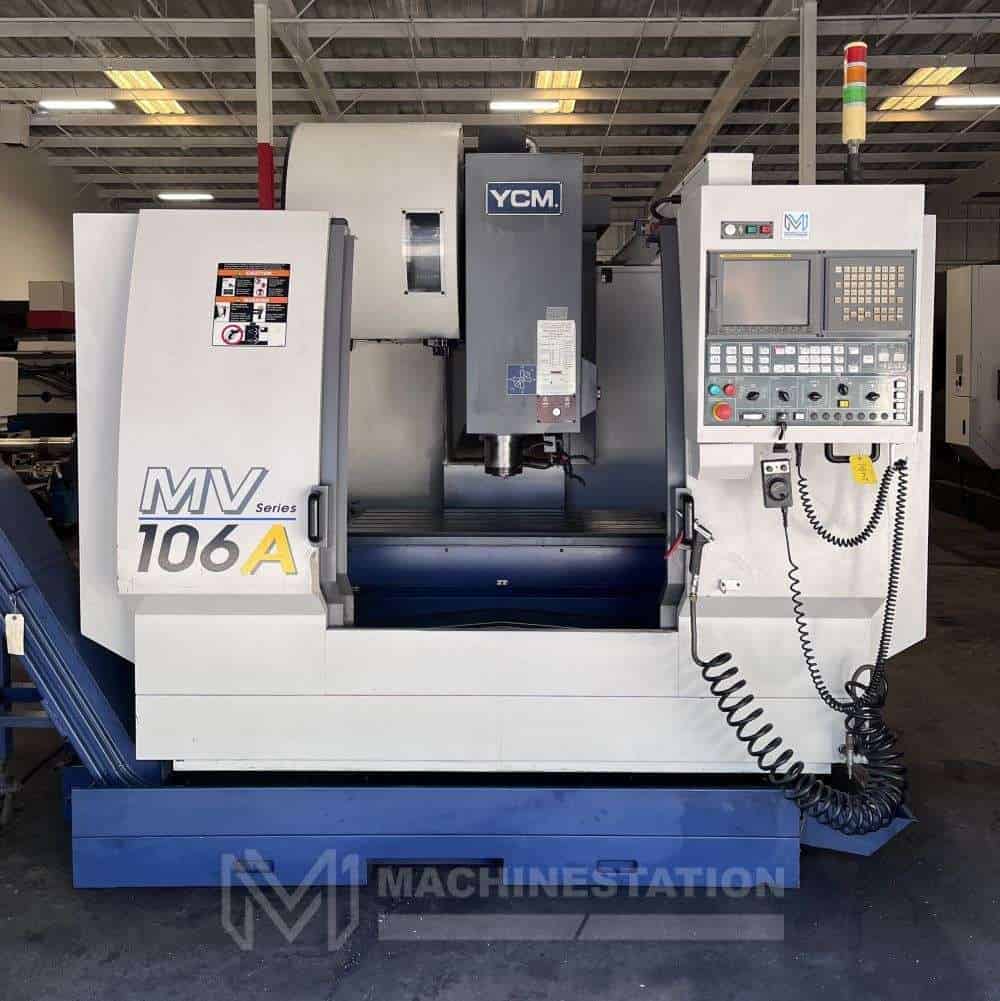

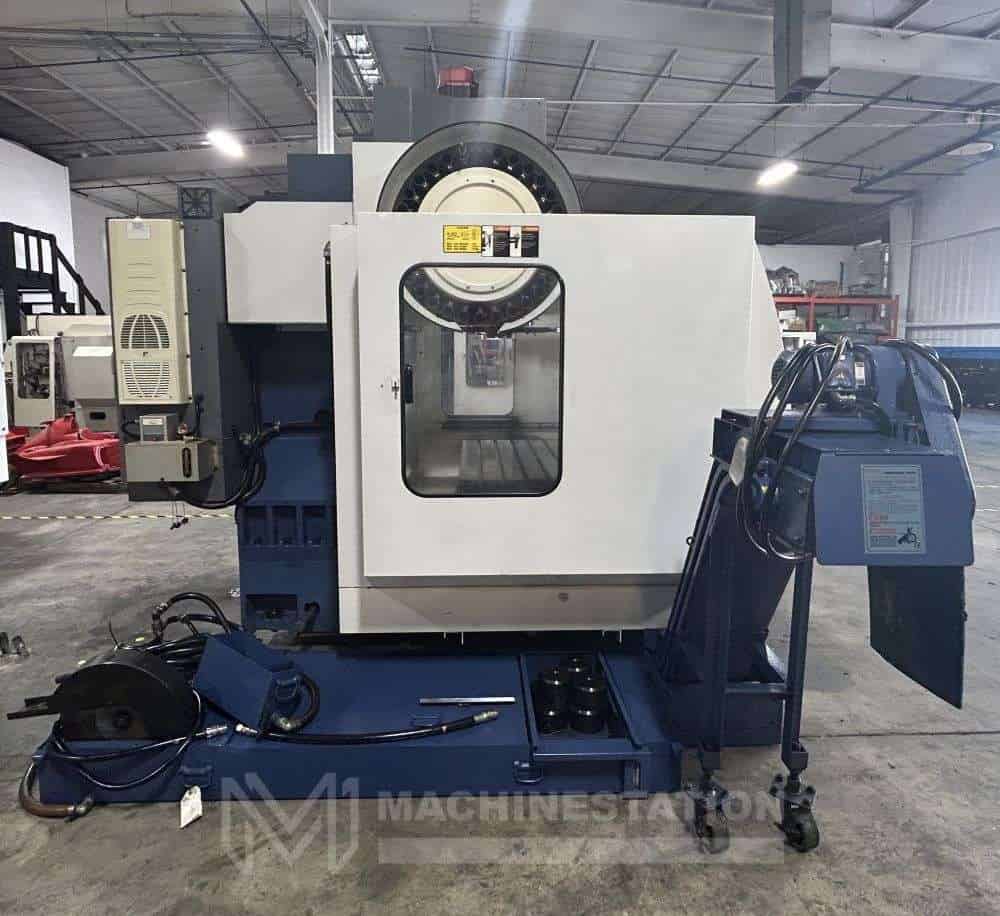

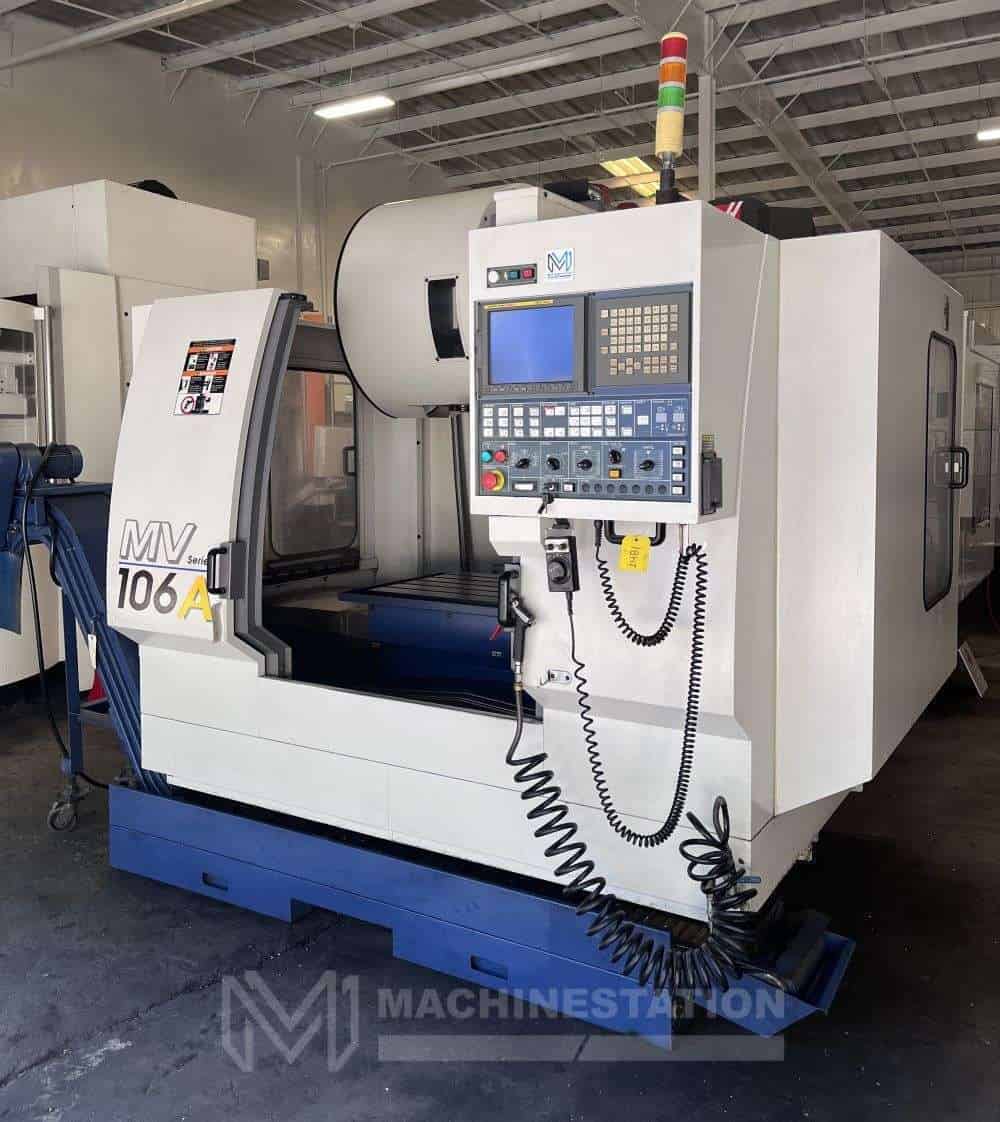

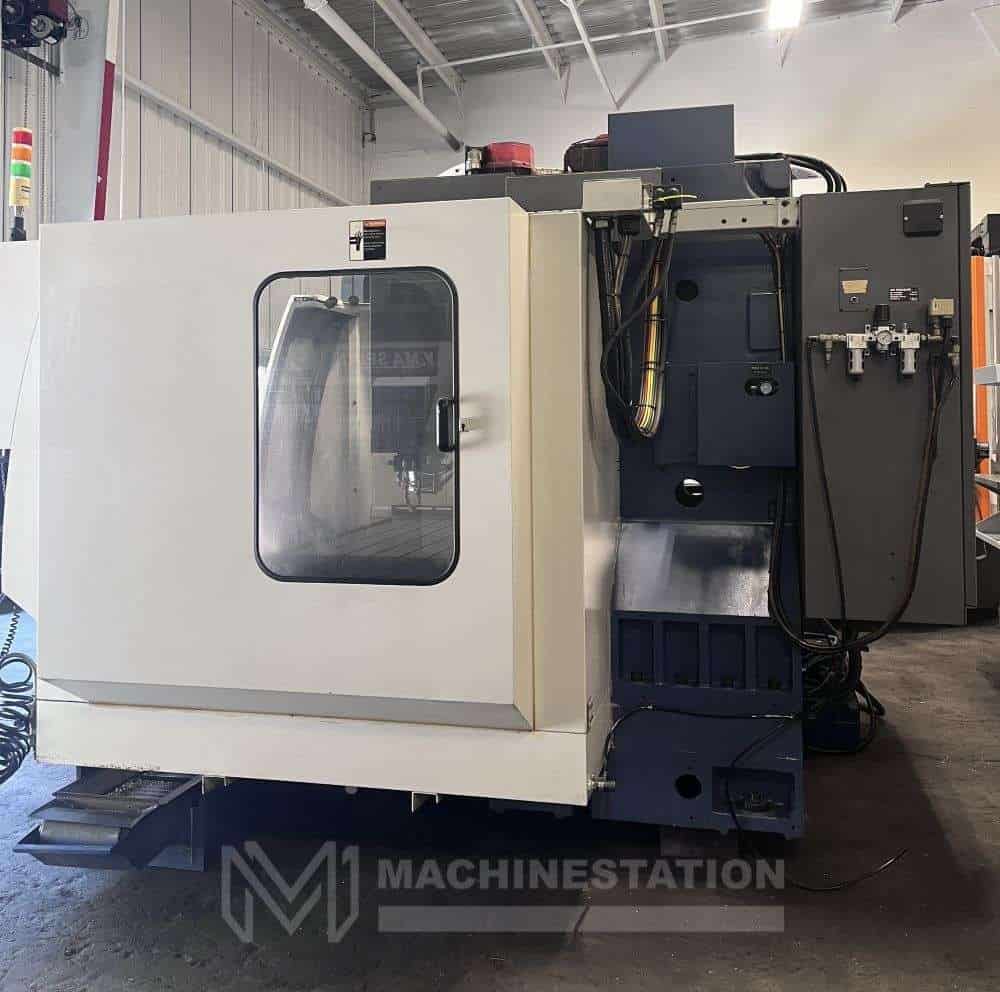

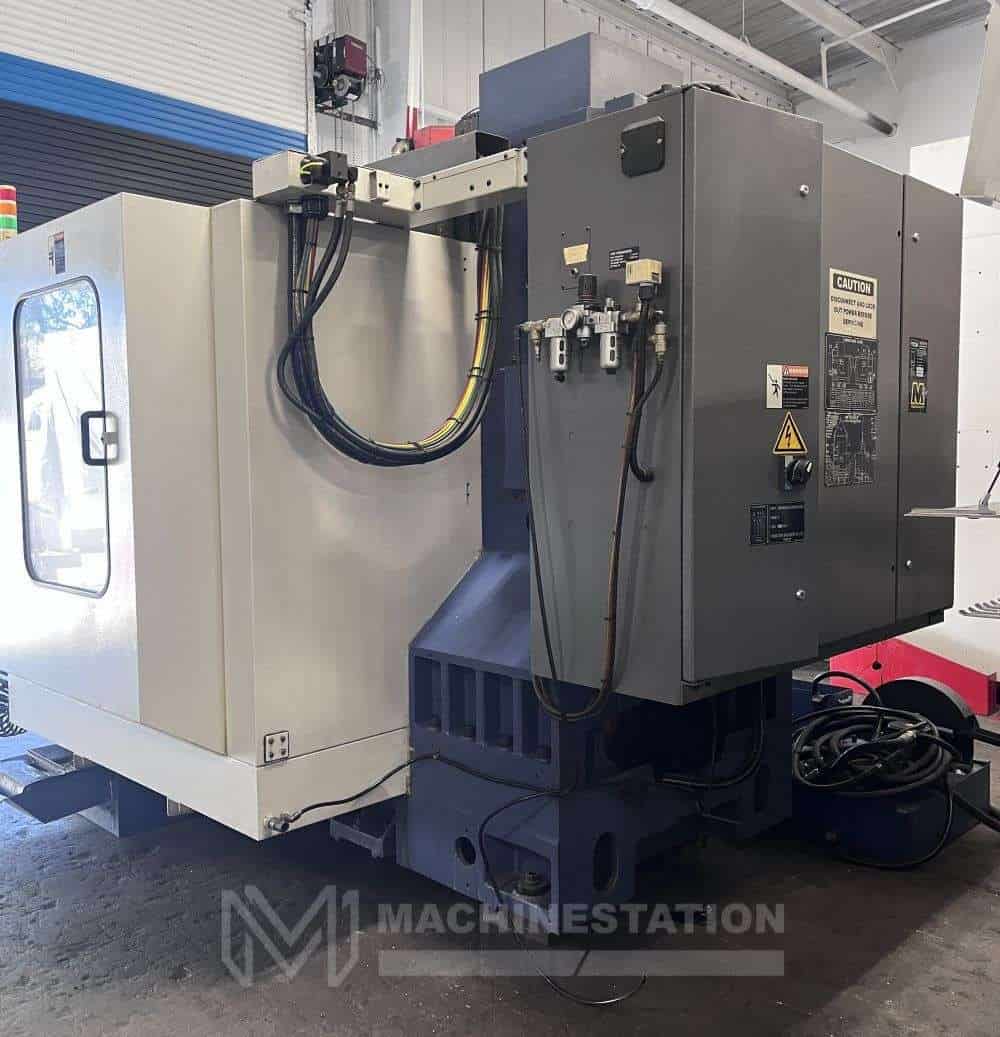

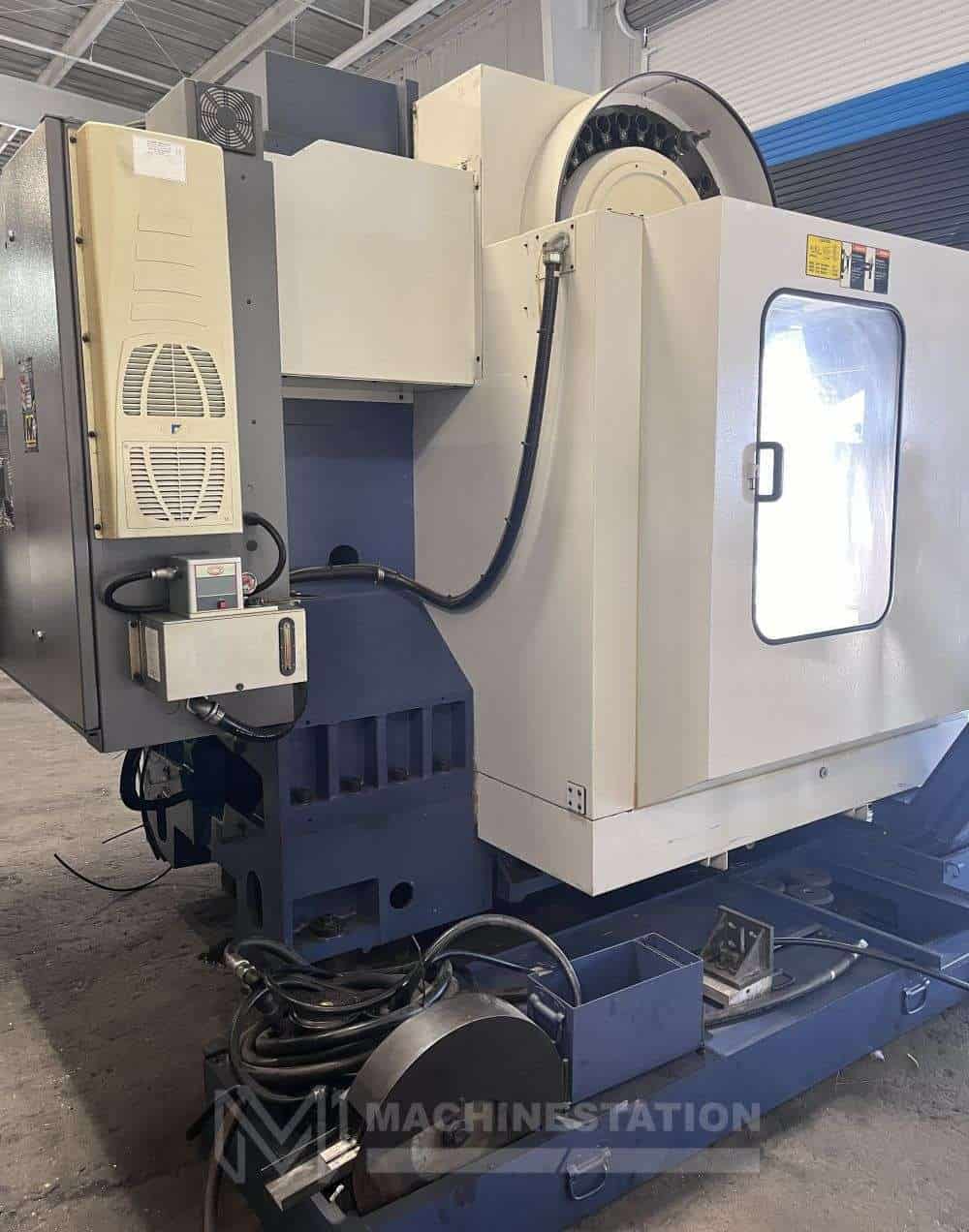

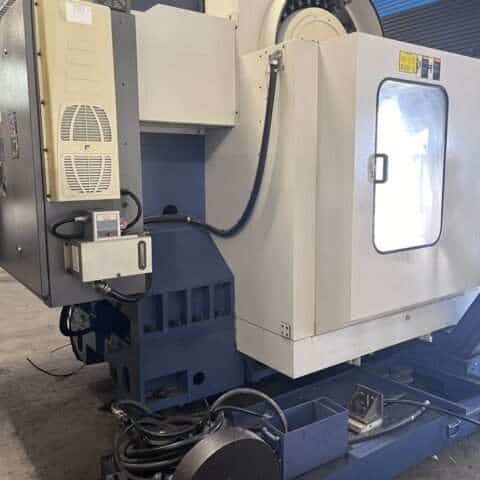

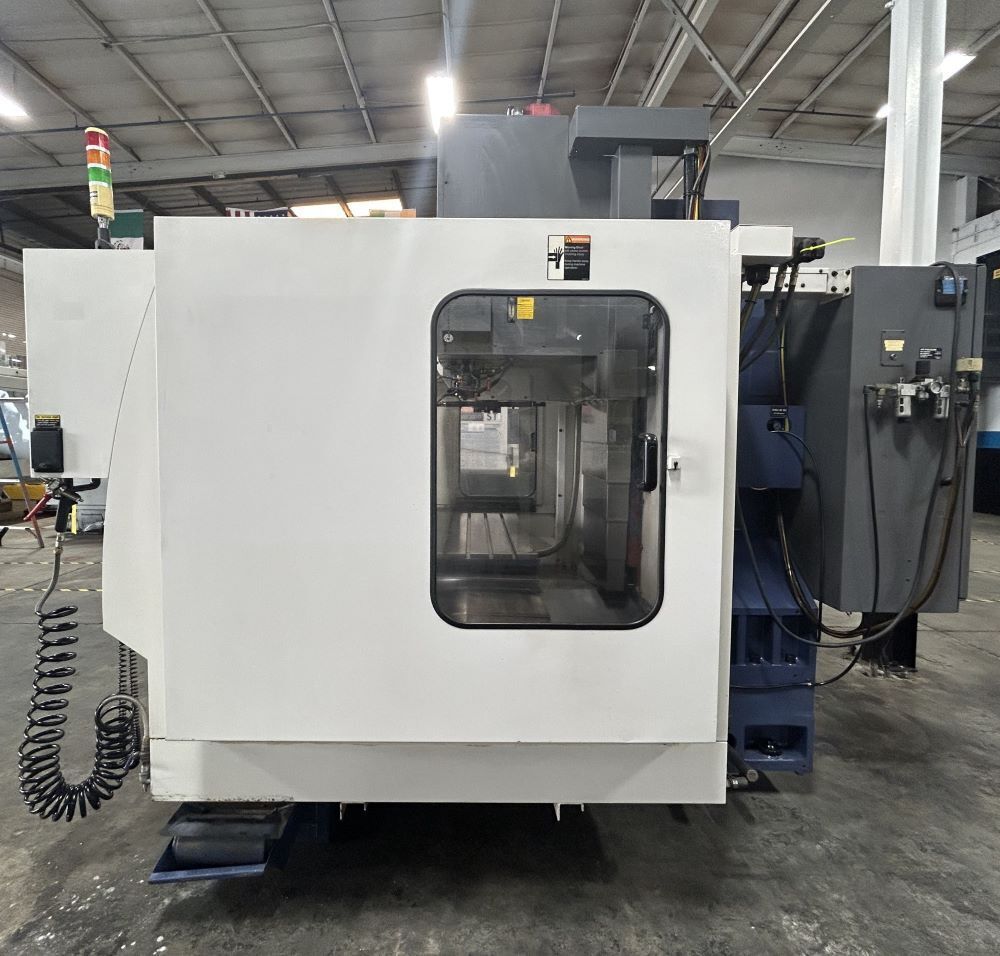

YCM MV-106A CNC Vertical Machining Center

Out of stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

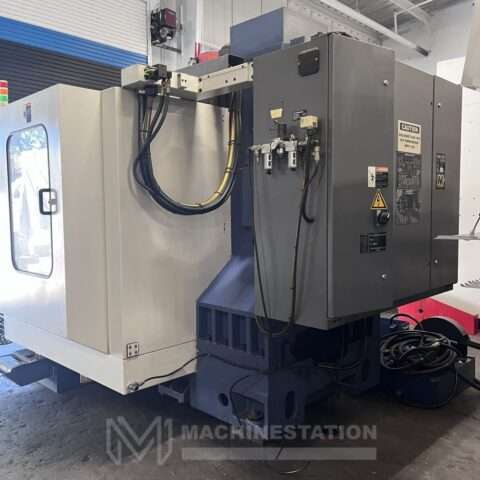

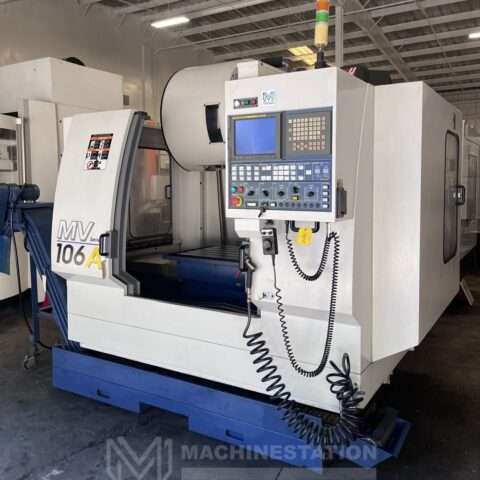

Used YCM MV-106A Vertical Machining Center for Sale.

Location: Lake Elsinore, CA
SKU: 2481
Make/Model: YCM MV-106A

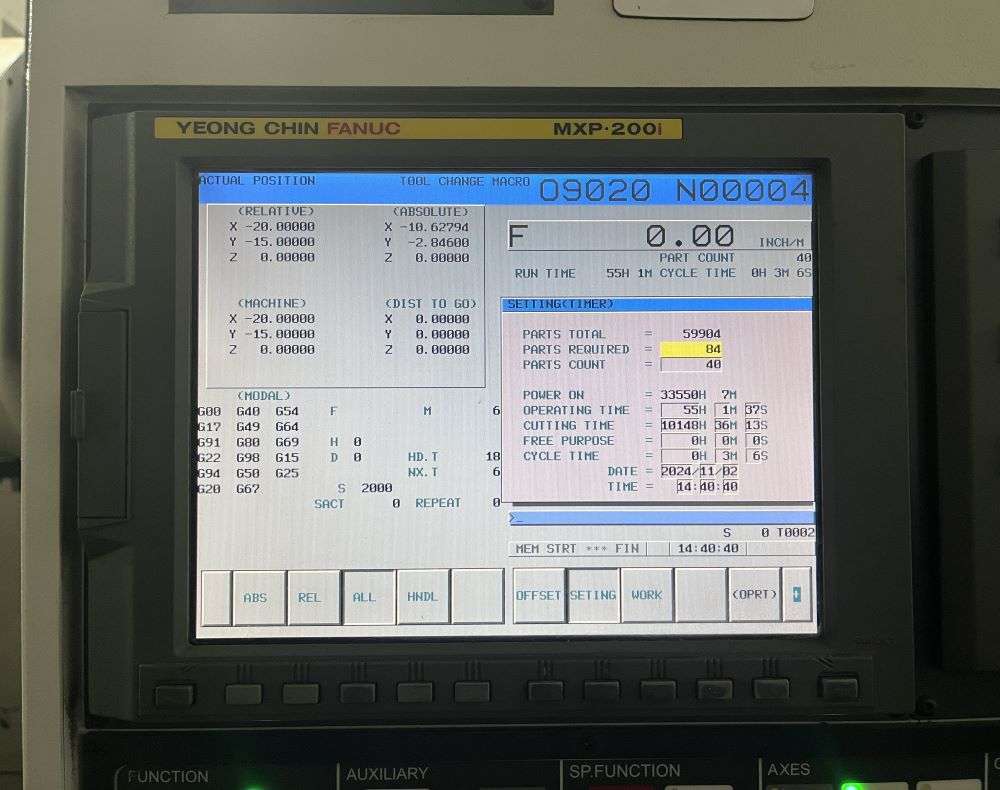

Cutting Time: 10,148 Hours
Video: On Request
Condition: Used – Good
SKU: 2481

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2481

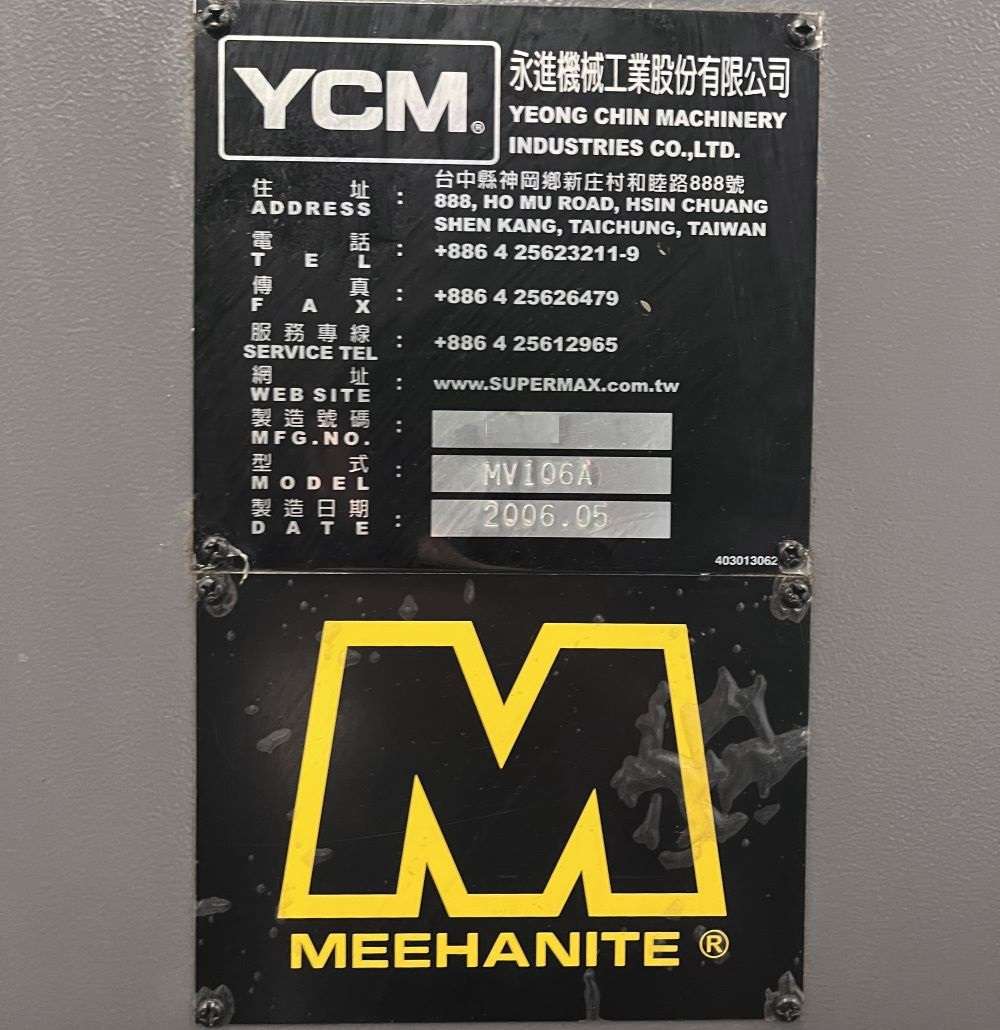

Make: YCM
Model: MV-106A
Year: 2006



Features:

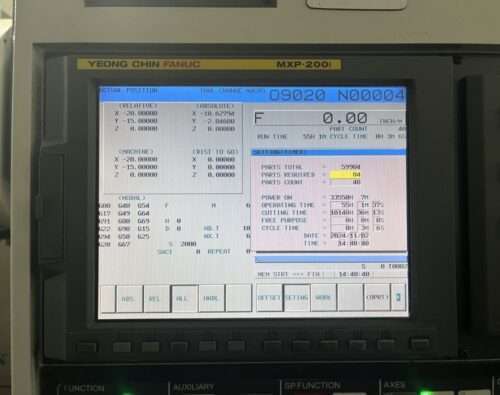

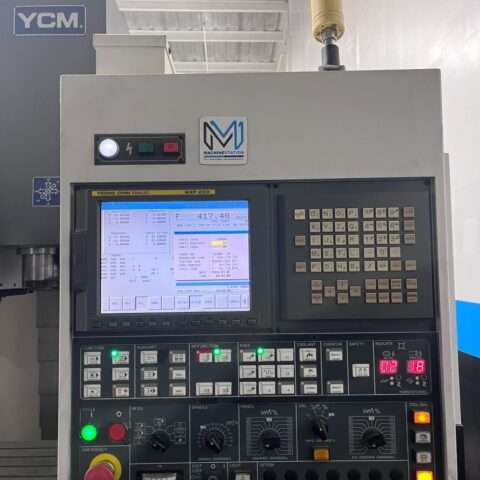

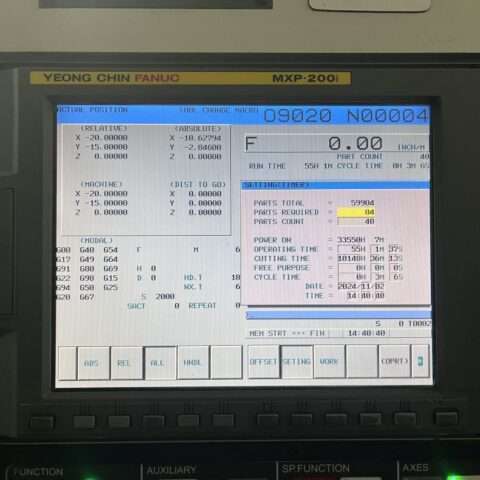

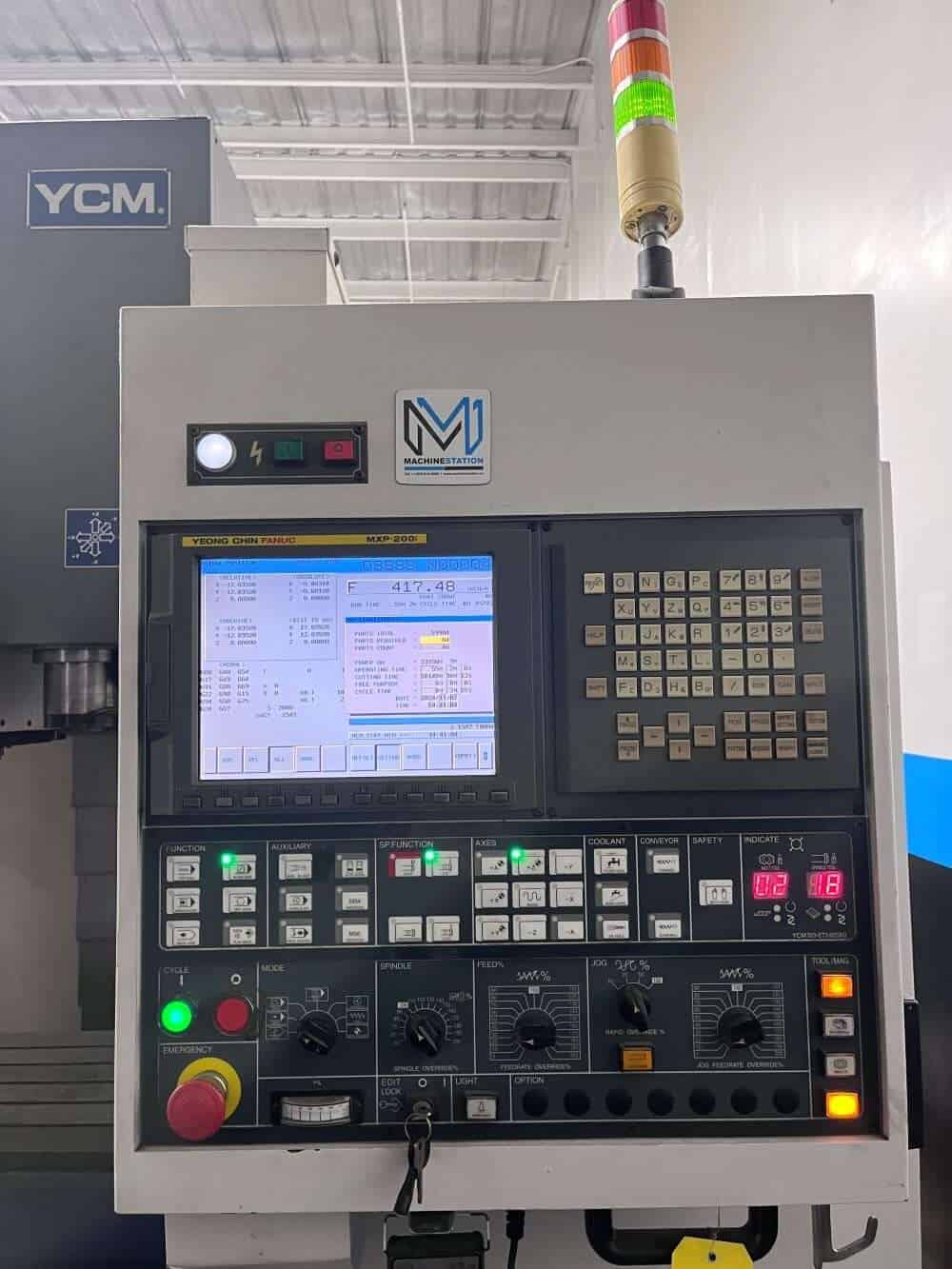

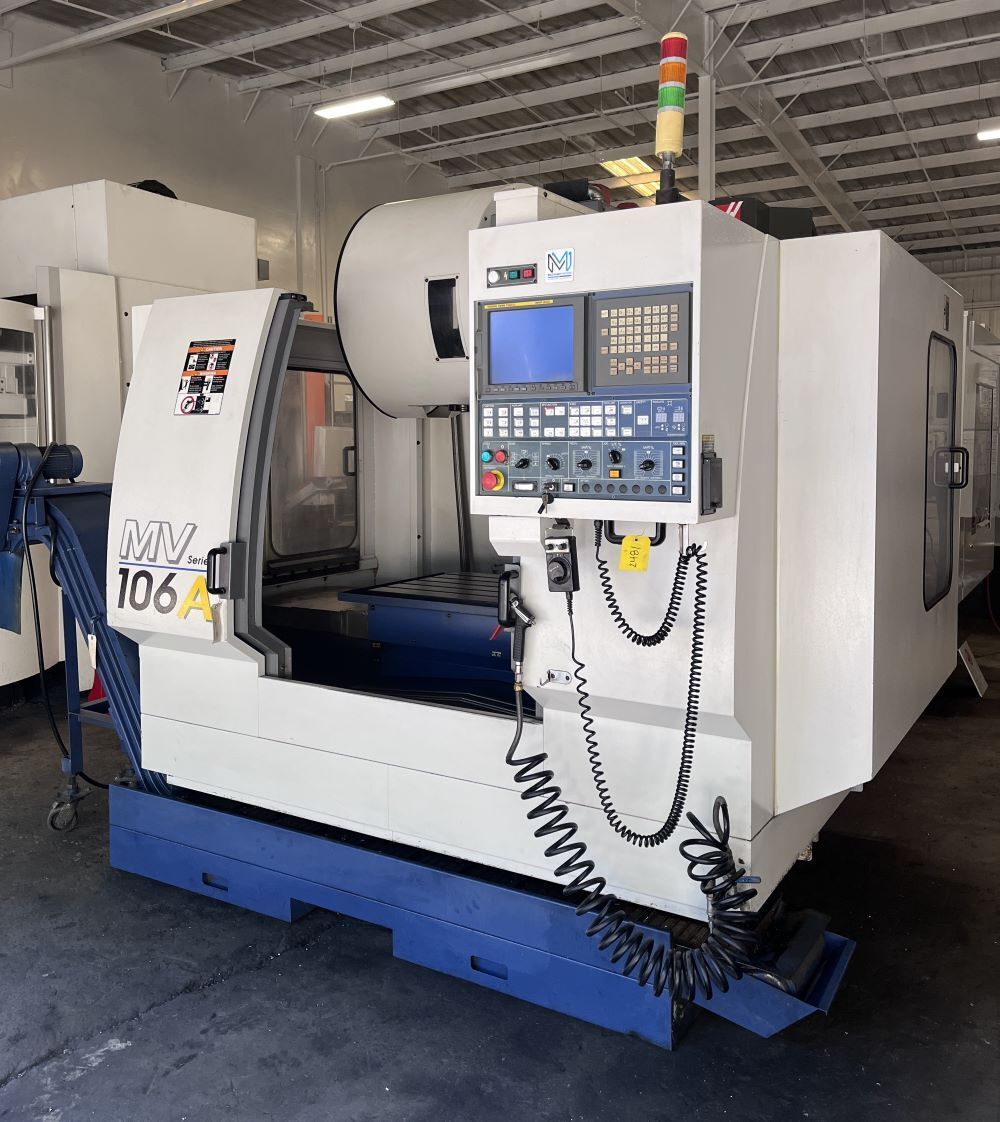

Fanuc MXP-200i series CNC Control
Box Way Construction
8,000 RPM Gear Head Spindle

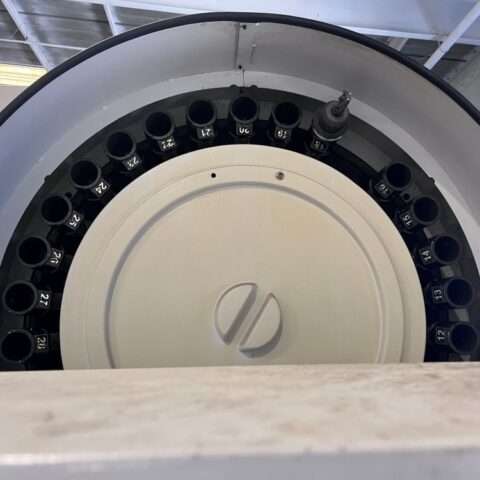

30 Station Automatic tool changer
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic way covers
Coolant system
Coolant Tank

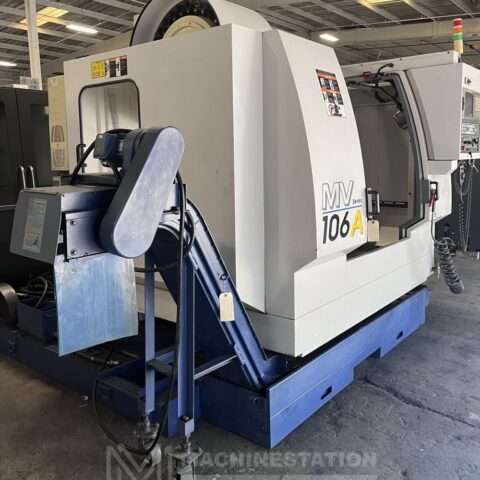

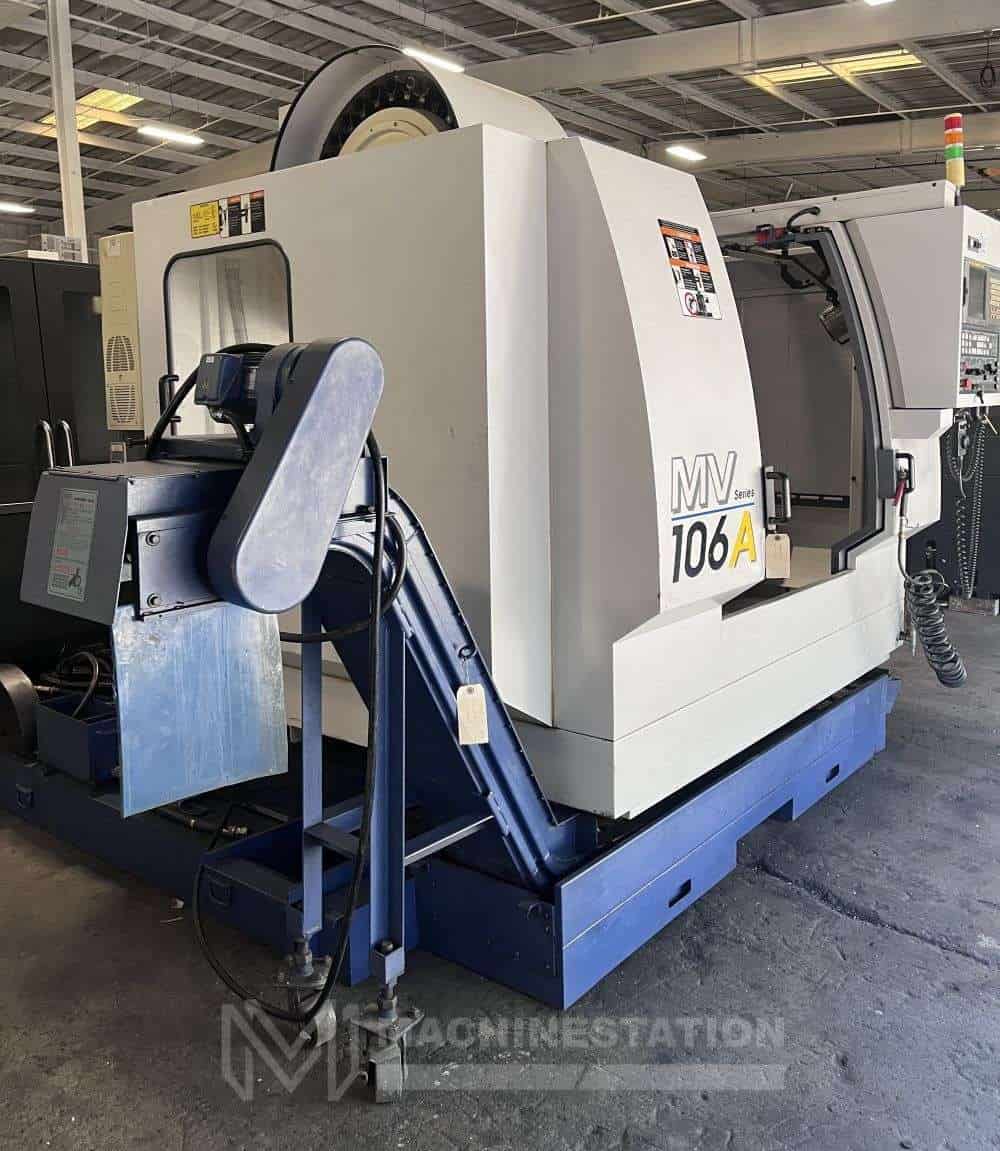

Chip Conveyor

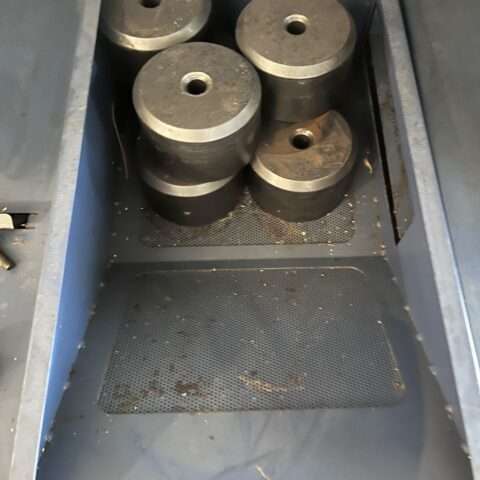

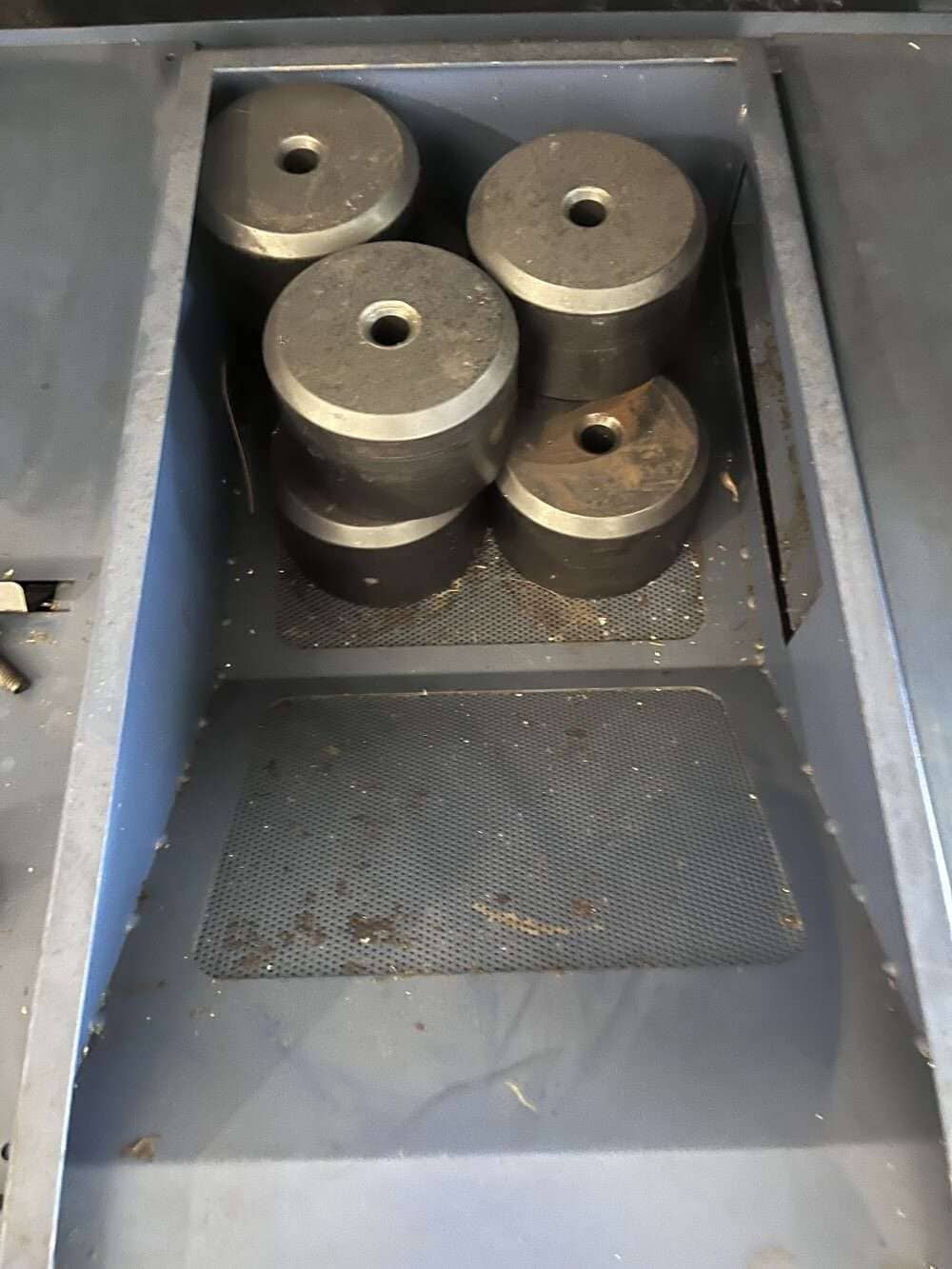

Levelling Pads



Travels:
X-Axis: 40.0″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates: 945″ Per Minute
Cutting Feed Rates: 394″ Per Minute
Spindle Nose to Table (Min.- Max.): 3.2″ – 26.7″

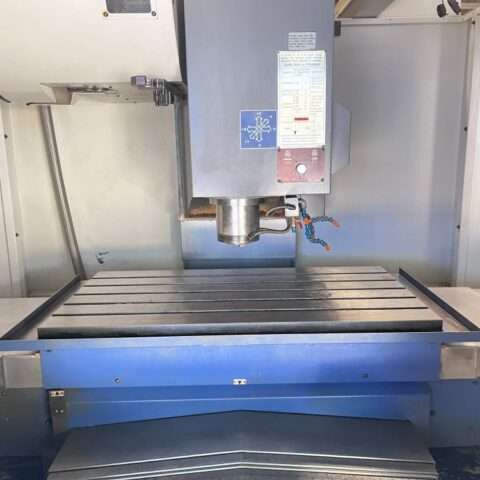

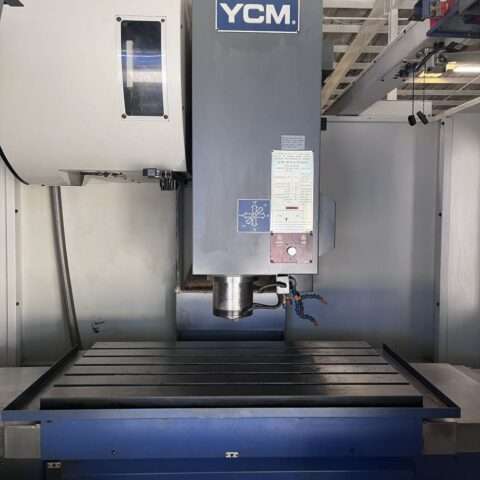

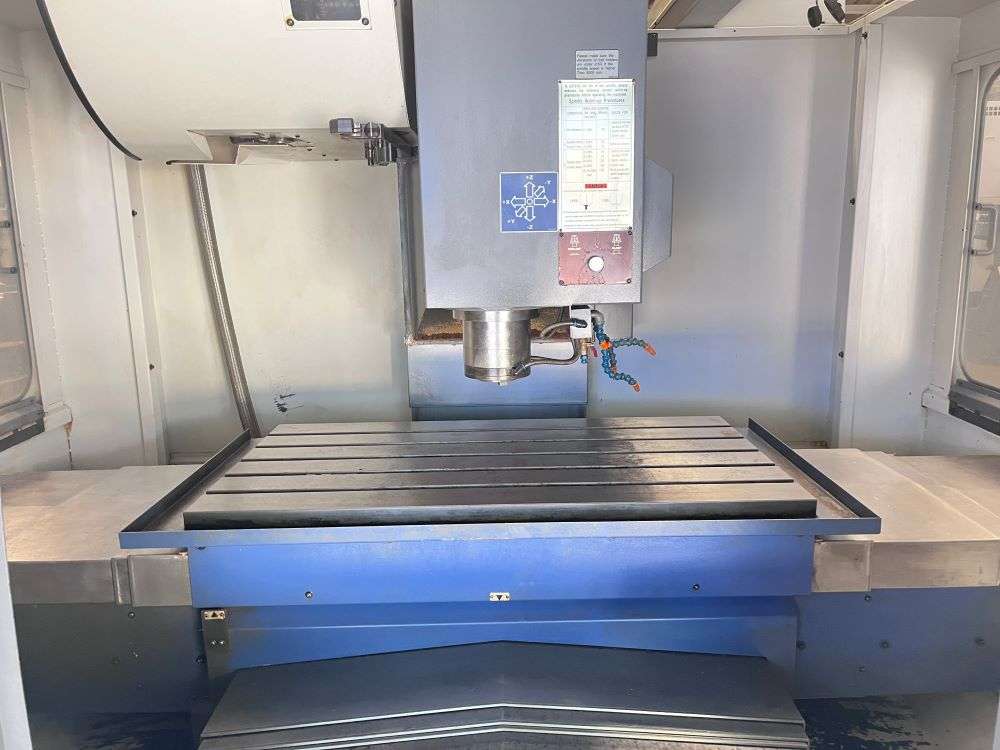

Table:
Length: 44.3″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1760 lbs

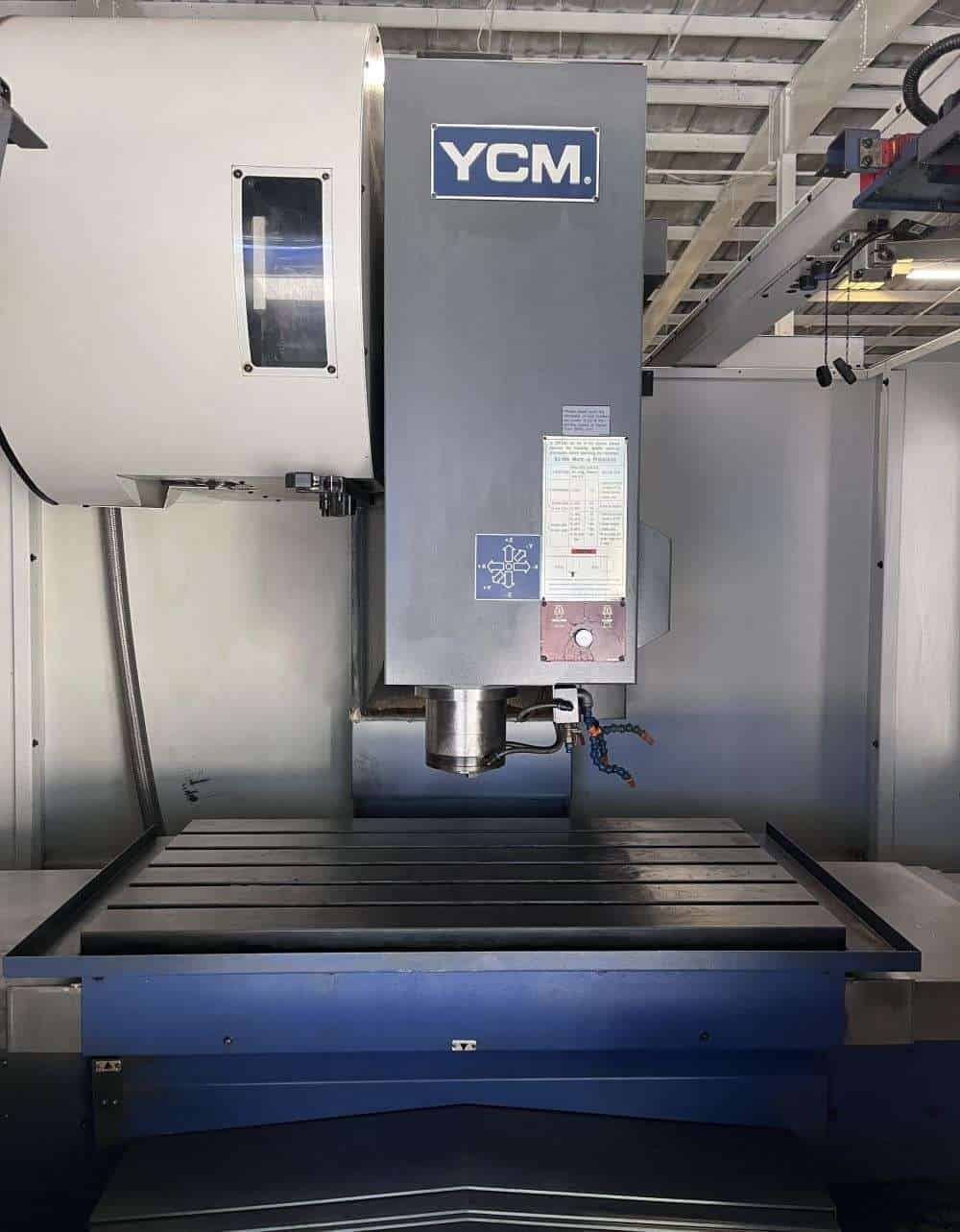

Spindle:
Spindle: Taper Size: 40
Speed Range: 0 – 8,000 RPM
Spindle Type: Belt Driven
Spindle Power: 20 HP

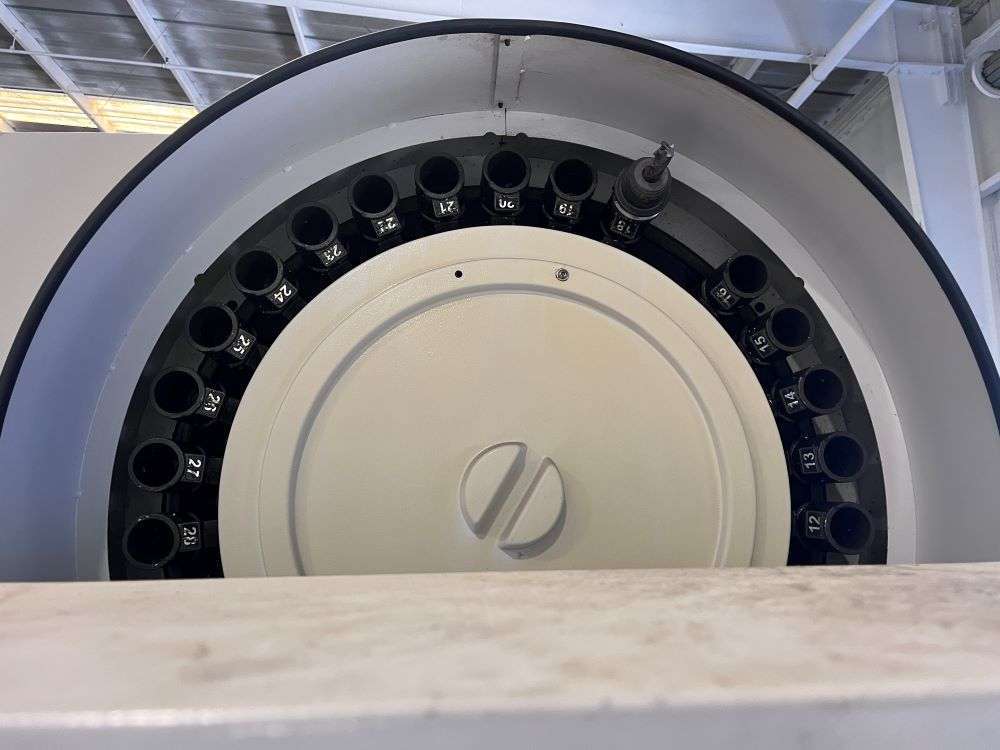

Automatic Tool Changer:
Capacity: 30 Station
Tool Weight: 15.4 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 2.5 Seconds



General:
Air Required: 80 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 120″ x 100″ x 110″ High
Weight: 14500 lbs
